Volvo 850 (1993) – wiring diagrams – security/anti-theft

Volvo 850 (1993) – wiring diagrams – security/anti-theft

Year of productions:  1993

Security/anti-theft

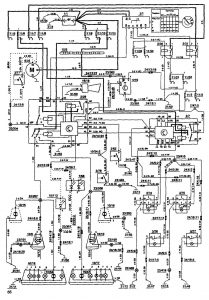

Volvo 850 - wiring diagram - security/anti theft (part 1)
Volvo 850 – wiring diagram – security/anti theft (part 1)

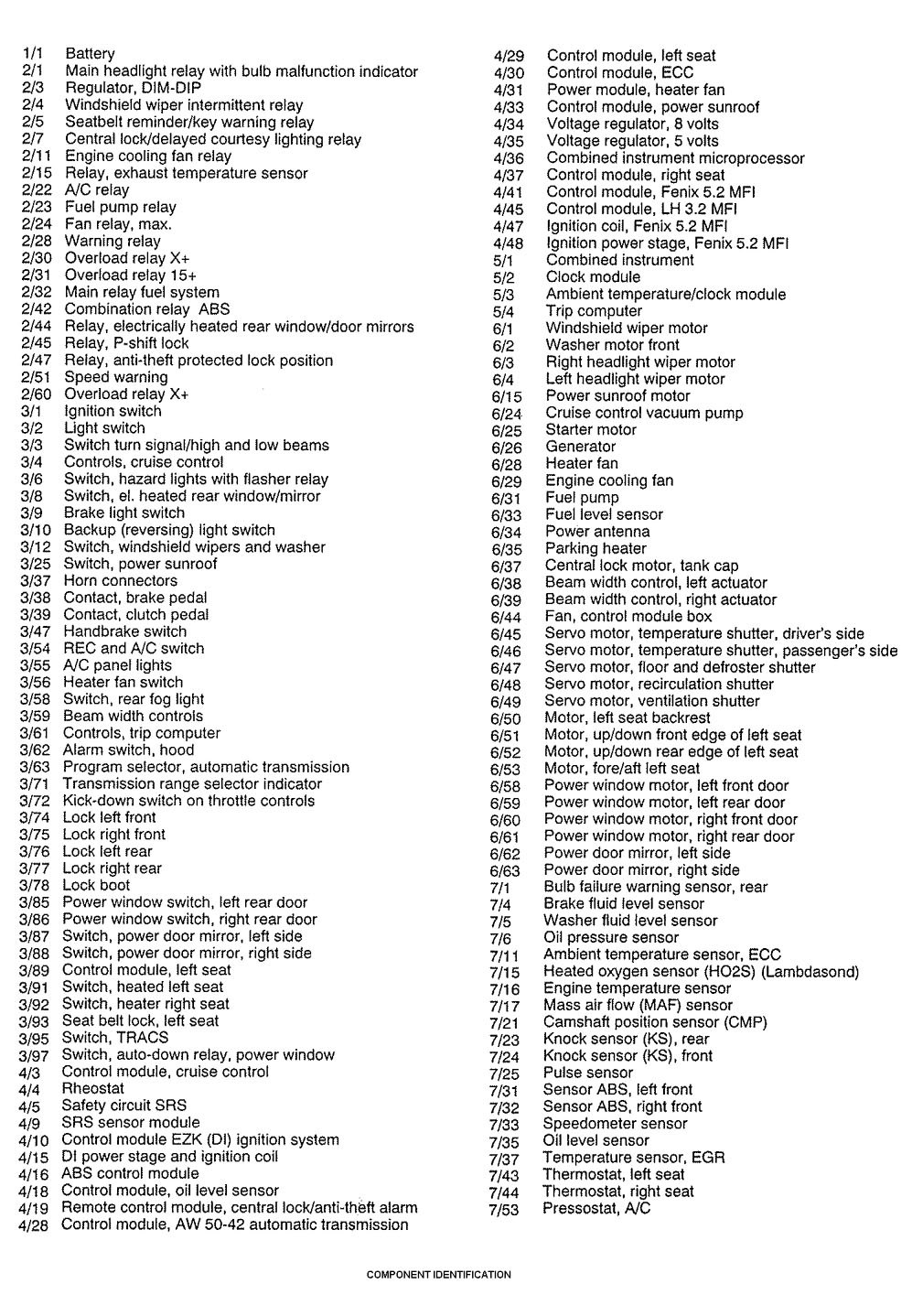

Volvo 850 - wiring diagram - security/anti theft (part 2)
Volvo 850 – wiring diagram – security/anti theft (part 2)

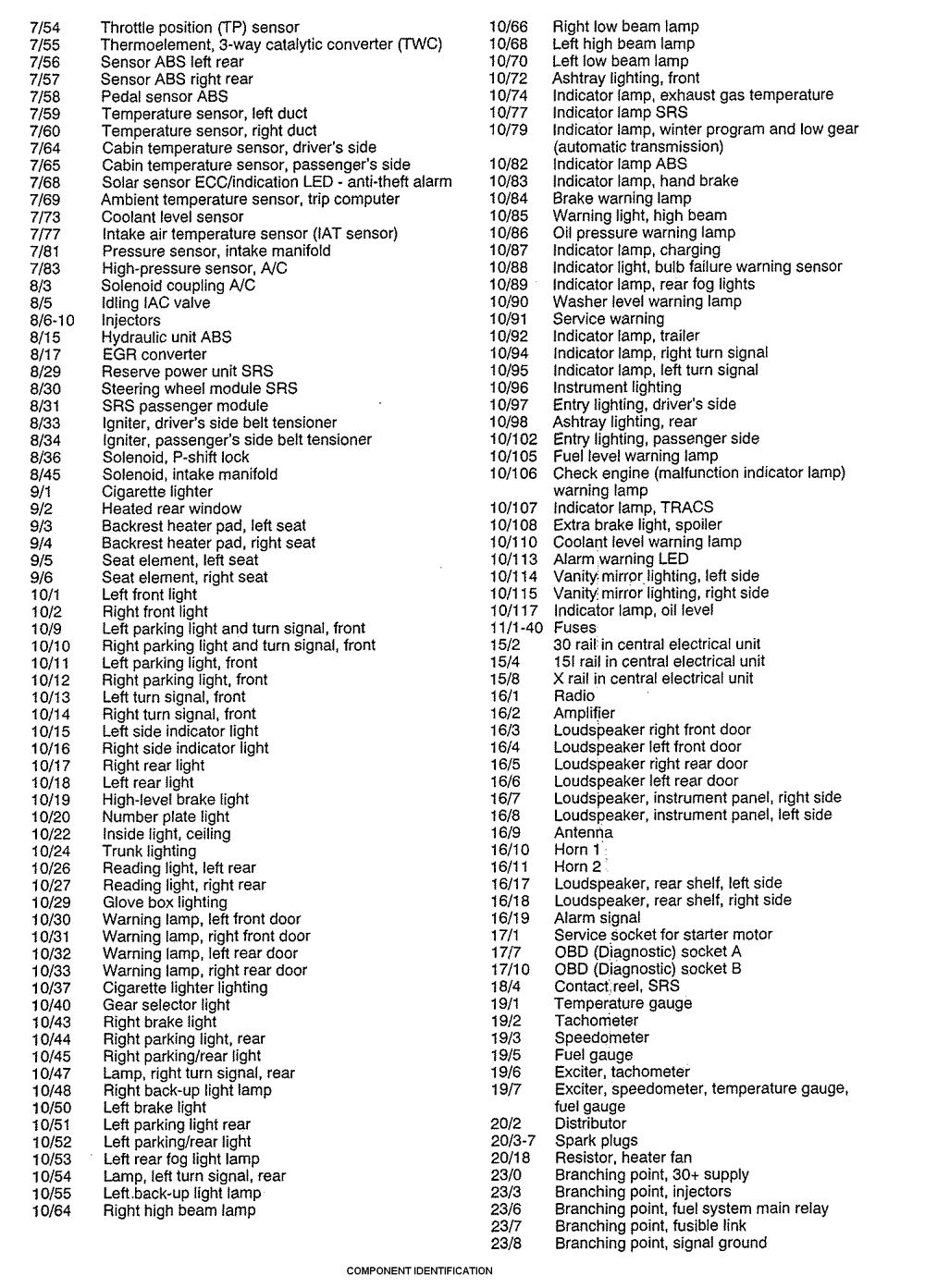

Volvo 850 - wiring diagram - security/anti theft (part 3)
Volvo 850 – wiring diagram – security/anti theft (part 3)

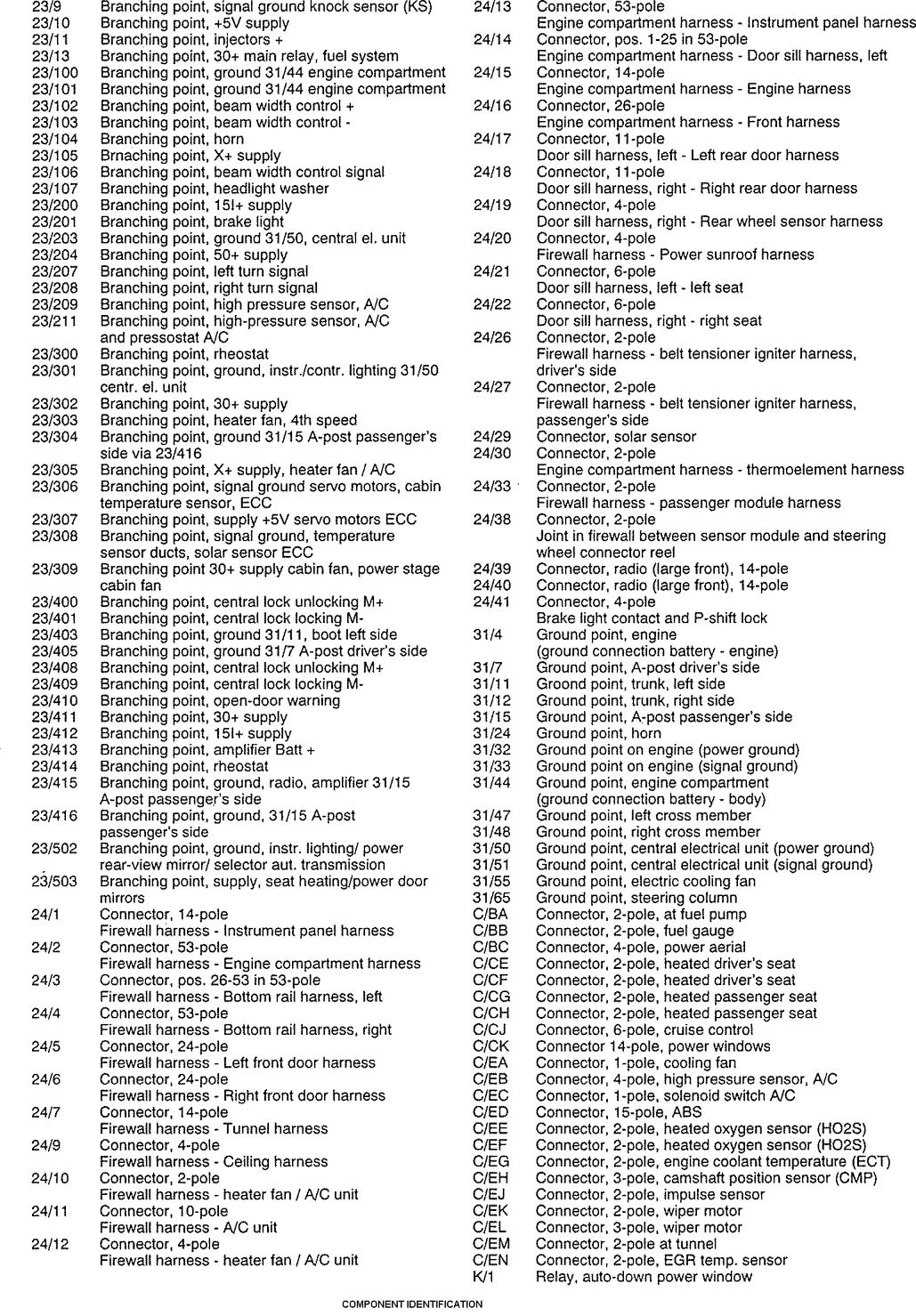

Volvo 850 - wiring diagram - security/anti theft (part 4)
Volvo 850 – wiring diagram – security/anti theft (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
