Volvo 760 (1990) – wiring diagrams – stop lamp

Volvo 760 (1990) – wiring diagrams – stop lamp

Year of productions:  1990

Stop lamp

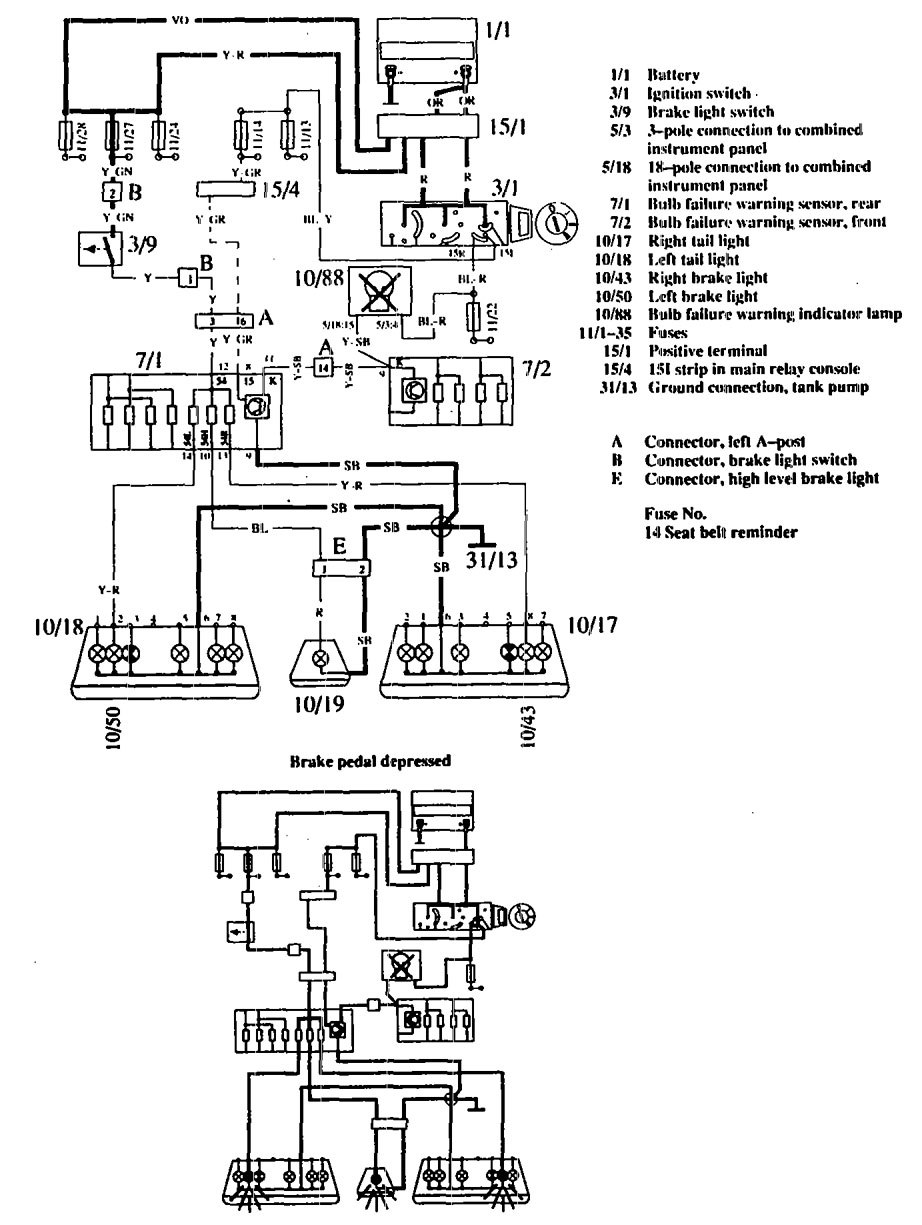

Version 1

Volvo 760 – wiring diagram – stop lamp

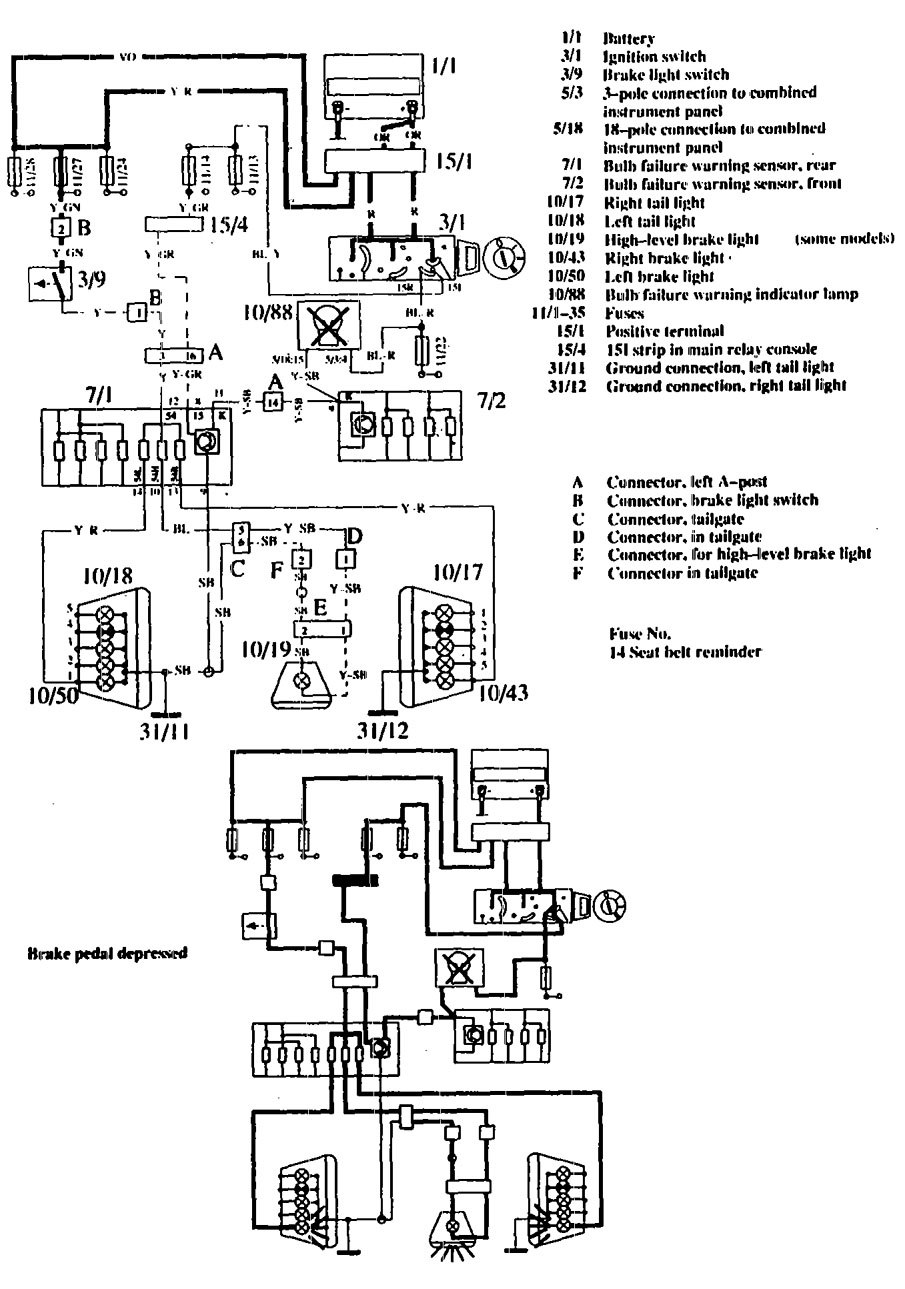

Version 2

Volvo 760 – wiring diagram – stop lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
