Year of productions:  1986, 1987

Instrumentation

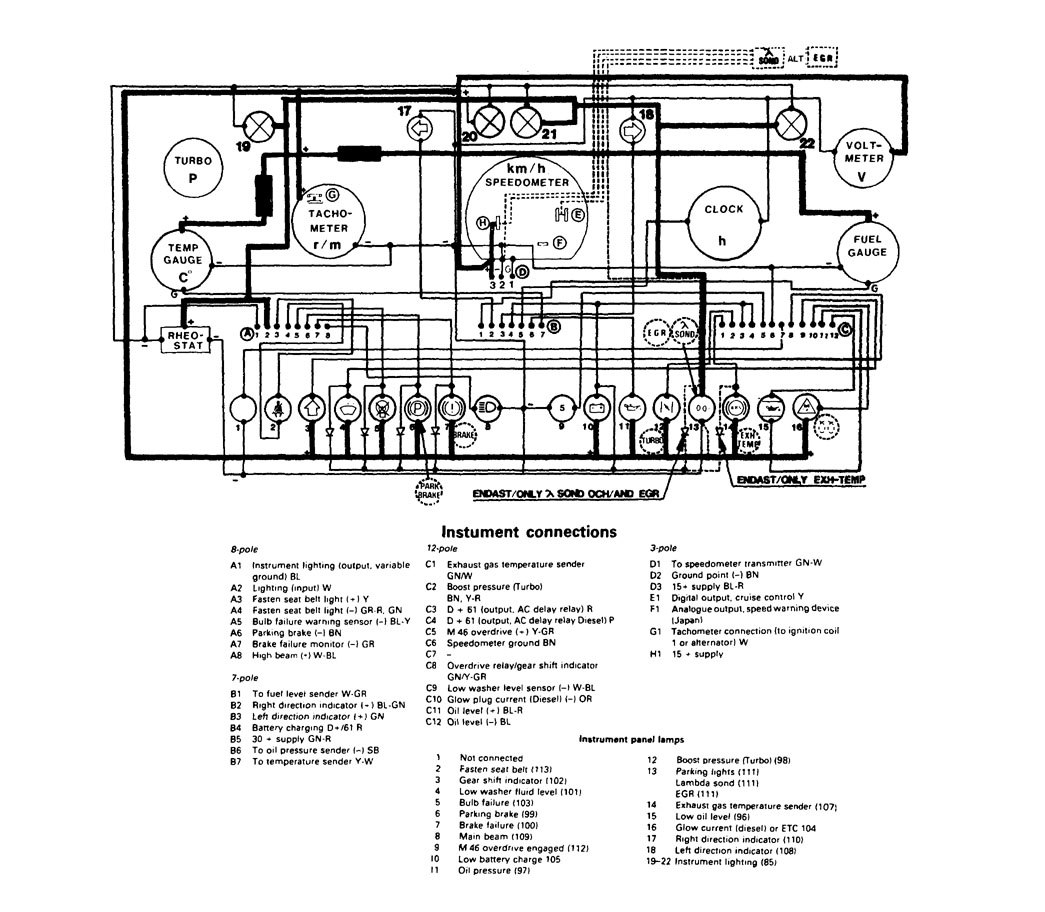

Volvo 740 – wiring diagram instrumentation

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
