Toyota Avensis T270 (2009- 2017) – fuse box diagram

Toyota Avensis T270 (2009- 2017) – fuse box diagram

Year of production: 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

Passenger Compartment

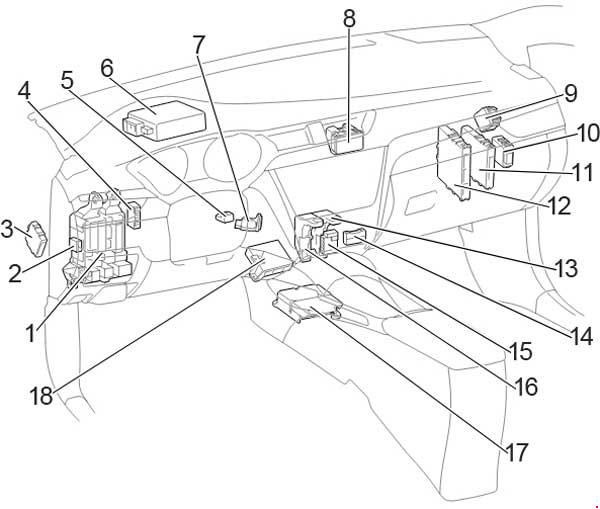

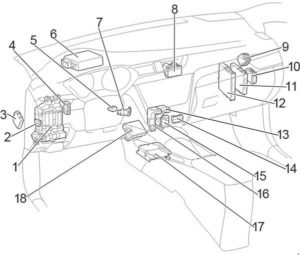

LHD

Toyota Avensis - fuse box diagram - passenger compartment LHD
Toyota Avensis – fuse box diagram – passenger compartment LHD

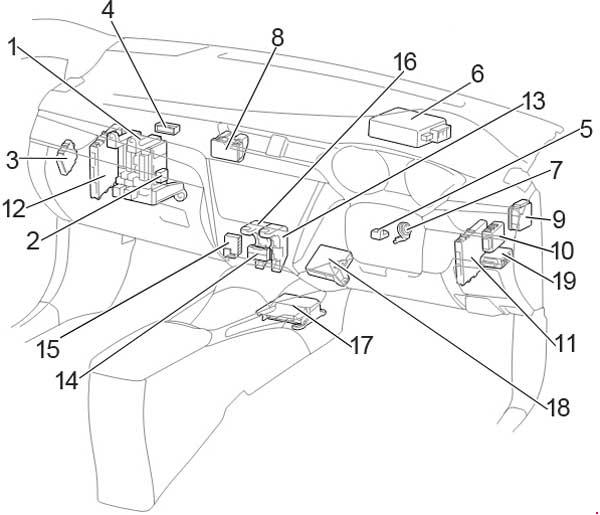

RHD

Toyota Avensis - fuse box diagram - passenger compartment RHD
Toyota Avensis – fuse box diagram – passenger compartment RHD
Fuse Description
1 Fuse Box / Main Body ECU
2 Additional Fuse Box
3 Headlight Swivel ECU (with AFS)
Headlight Leveling ECU (without AFS)
4 Junction Connector
5 Steering Lock Actuator
6 Power Steering ECU
7 Transponder Key Amplifier
8 Junction Block
9 Junction Block
10 Windshield Wiper Relay
11 Power Management Control ECU
12 Engine Stop & Start ECU
13 Relay Box No.1
14 Junction Connector
15 Junction Connector
16 Relay Box No.2
17 Airbag ECU
18 Air Conditioning Amplifier
19 RHD: Double Lock Door Control Relay

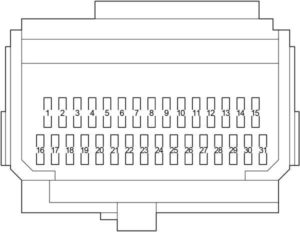

Passenger Compartment Fuse Box

Toyota Avensis - fuse box diagram - passenger compartment fuse box
Toyota Avensis – fuse box diagram – passenger compartment fuse box
Fuse Ampere Circuit
1 AM1 7,5 Starting system, “ACC”, “CIG”, “ECU-IG NO.2”, “HTR-IG”, “WIPER”, “RR WIPER”, “WASHER”, “ECU-IG NO.1”, “ECU-IG NO.3”, “SEAT HTR” fuses
2 FR FOG 15 Before Feb. 2013, from May 2015: Front fog lights
7,5 Feb. 2013 – May 2015: Front fog lights
3 DRL 7,5 Daytime running light system
4 ACC-B 25 “CIG”, “ACC” fuses
5 DOOR 25 Power door lock system
6
7 STOP 10 Stop lights, high mounted stoplight, anti-lock brake system, VSC, multiport fuel injection system/sequential multiport fuel injection system, automatic transmission, shift lock system, starting system
8 OBD 7,5 On-board diagnosis system
9 ECU-IG NO.2 10 Back-up lights, charging system, emergency flashers, rear window defogger, “PASSENGER AIRBAG” indicator, air conditioning system, AFS, rear view monitor, Toyota parking assist-sensor
10 ECU-IG NO.1 10 Main body ECU, smart entry & start system, electric cooling fan(s), shift lock system, panoramic roof shade, auto anti-glare inside rear view mirror, anti-lock brake system, steering sensor, yaw rate & G sensor, VSC, headlight cleaner, precrash safety system, LKA, driver support system
11 WASHER 15 Windshield washers, rear window washer
12 RR WIPER 15 Rear window wiper
13 WIPER 30 Windshield wipers, rain sensing windshield wipers
14 HTR-IG 10 Air conditioning system
15 SEAT HTR 15 Before May 2015: Seat heaters
20 From May 2015: Seat heaters
16 METER 7,5 Gauges and meters
17 IGN 7,5 Steering lock system, SRS airbag system, multiport fuel injection system/sequential multiport fuel injection system, automatic transmission, starting system
18 RR FOG 7,5 Rear fog light
19
20 TI&TE 30 Tilt & telescopic steering
21 MIR HTR 10 Outside rear view mirror defoggers
22
23 ACC 7,5 Outside rear view mirrors, shift lock system, audio system, main body ECU, power outlet
24 CIG 15 Cigarette lighter
25 SHADE 20 Panoramic roof shade
26 RR DOOR 20 Power windows (rear right)
27 RL DOOR 20 Power windows (rear left)
28 P FR DOOR 20 Power windows (passenger side)
29 ECU-IG NO.3 10 Toyota parking assist-sensor, AFS, windshield wiper de-icer, electric parking brake, pre-crash seat belt, paddle shift switch, tilt & telescopic steering, electric power steering
30 PANEL 7,5 Switch illumination, instrument cluster lights, glove box light, steering switches, main body ECU
31 TAIL 10 Front position lights, tail lights, license plate lights, rear fog light, front fog lights, manual headlight leveling dial, instrument panel lights, air conditioning system switch, audio system, multidrive or automatic transmission shift lever illumination, glove box light, airbag manual on-off system, emergency flashers, cigarette lighter, “AFS OFF” switch, speed limiter switch, electric parking brake switch, steering switch, VSC OFF switch, Toyota parking assist-sensor switch, “LKA” switch, seat heater switch, “SPORT” switch, outside rear view mirror switches, fuel filler door opener switch
Toyota Avensis - fuse box diagram - passenger compartment fuse box
Toyota Avensis – fuse box diagram – passenger compartment fuse box
Fuse Ampere Circuit
1 POWER 30 Power windows (driver side)
2 DEF 40 Rear window defogger, “MIR HTR” fuse
3 PWR SEAT RH 30 Power seat, lumber support
RELAY
R1 Ignition (IG1)
R2
R3 LHD (before May 2015): Turn signal flasher

Passenger Compartment Additional Fuse Box

Toyota Avensis - fuse box diagram - passenger compartment additional fuse box
Toyota Avensis – fuse box diagram – passenger compartment additional fuse box
Fuse Ampere Circuit
1 WIPER NO.2 7,5 Charging system, driver support system ECU
2

Passenger Compartment Relay Box No.1

Toyota Avensis - fuse box diagram - passenger compartment relay box
Toyota Avensis – fuse box diagram – passenger compartment relay box
Number Relay
R1 Before Jun. 2010: Front fog light (FR FOG)
From Oct. 2016: Interior lights (DOME CUT)
R2
R3 Before Nov. 2011: Panel
From Nov. 2011: Daytime running light system (DRL)
R4 Power outlet (ACC SOCKET)

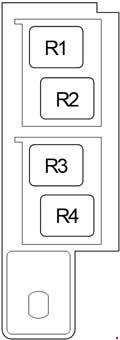

Passenger Compartment Relay Box No.2

Toyota Avensis - fuse box diagram - passenger compartment relay box Numbe
Toyota Avensis – fuse box diagram – passenger compartment relay box
Numbe
Number Description
R1 Starter (ST)
R2 Rear fog light (RR FOG)
R3 Accessory (ACC)
R4 Jun. 2010 – May 2015: Front fog light (FR FOG)
From Oct. 2016: Windshield wiper de-icer(FR DEICER)

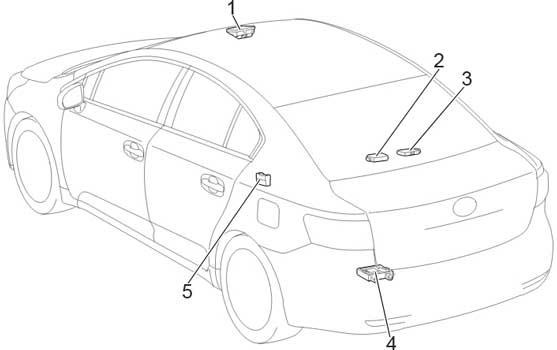

Sedan

Toyota Avensis - fuse box diagram - sedan
Toyota Avensis – fuse box diagram – sedan

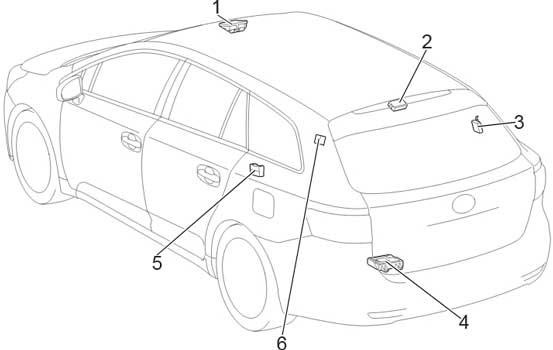

Wagon

Toyota Avensis - fuse box diagram - wagon
Toyota Avensis – fuse box diagram – wagon
Number Description
1 Pre-Crash Safety City Sensor
2 Tire Pressure Warning ECU and Receiver
3 Door Control Receiver
4 Parking Brake ECU
5 Junction Connector
6 Sliding Roof Control ECU

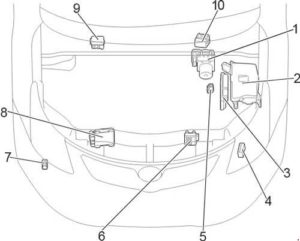

Engine Compartment

Toyota Avensis - fuse box diagram - engine compartment
Toyota Avensis – fuse box diagram – engine compartment
Number Description
1 Skid Control ECU
2 Fuse Box
3 ECM
4 Glow Plug Controller
5 Glow Plug Relay
6 Transmission Control ECU
7 Headlight Cleaner Control Relay
8 Injector Driver
9 LHD: Relay Box
10 RHD: Relay Box

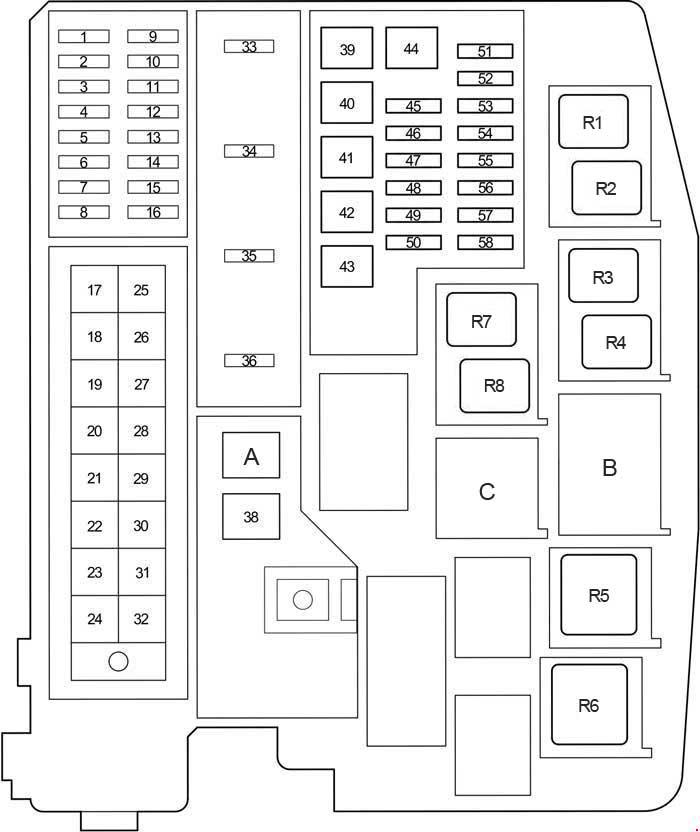

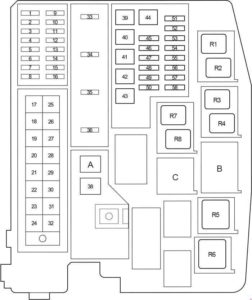

Engine Compartment Fuse Box

Toyota Avensis - fuse box diagram - engine compartment fuse box
Toyota Avensis – fuse box diagram – engine compartment fuse box

A

Toyota Avensis - fuse box diagram - engine compartment fuse box A
Toyota Avensis – fuse box diagram – engine compartment fuse box A

B

Toyota Avensis - fuse box diagram - engine compartment fuse box B
Toyota Avensis – fuse box diagram – engine compartment fuse box B

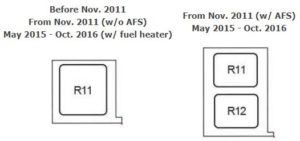

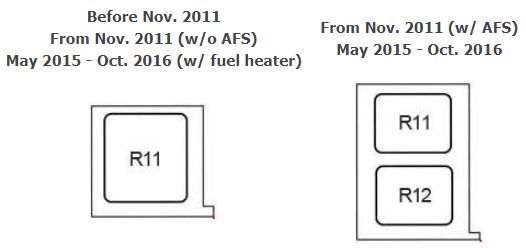

C

Toyota Avensis - fuse box diagram - engine compartment fuse box C
Toyota Avensis – fuse box diagram – engine compartment fuse box C
Fuse Ampere Circuit
1 DOME 10 Trunk/luggage compartment light, vanity lights, front door courtesy lights, personal/interior lights, personal lights, foot lights
2 RAD NO.1 20 Feb. 2014 – May 2015: Audio system
From May 2015: Audio system
15 Before Feb. 2014: Audio system
3 ECU-B 10 Gauges and meters, main body ECU, steering sensor, wireless remote control, smart entry & start system, tilt and telescopic steering
4 D.C.C
5 ECU-B2 10 Smart entry & start system, air conditioning system, power windows, power seat
6 EFI MAIN NO.2 7,5 Multiport fuel injection system/sequential multiport fuel injection system
7 DOOR NO.2 25 Before May 2015: Power door lock system
BODY ECU 7,5 From May 2015: Multiplex communication system
8 AMP 30 Audio system
9
10 STRG LOCK 20 Steering lock system
11 A/F 20 Before May 2015: Exhaust system
From May 2015: –
12 AM2 30 Starting system
13
14 TURN-HAZ 10 Turn signal lights, emergency flashers
15 ALT-S 7,5 Before May 2015: Charging system
From May 2015: –
16 AM2 NO.2 7,5 Starting system
17 HTR 50 Before May 2015: Air conditioning system
From May 2015: –
18 ABS NO.1 50 ABS, VSC
19 CDS FAN 30 Electric cooling fan
20 RDI FAN 40 Electric cooling fan
21 H-LP CLN 30 Headlight cleaner
22 IP/JB 120 From May 2015: “ECU-IG NO.2”, “HTR-IG”, “WIPER”, “RR WIPER”, “WASHER”, “ECU-IG NO.1”, “ECU-IG NO.3”, “SEAT HTR”, “AM1”, “DOOR”, “STOP”, “FR DOOR”, “POWER”, “RR DOOR”, “RL DOOR”, “OBD”, “ACC-B”, “RR FOG”, “FR FOG”, “DEF”, “TAIL”, “SUNROOF”, “DRL” fuses
23
24
25
26 H-LP MAIN 50 “H-LP LH LO”, “H-LP RH LO”, “H-LP LH HI”, “H-LP RH HI” fuses
27 P/I 50 “EFI MAIN”, “HORN”, “IG2”, “EDU” fuses
28 EFI MAIN 50 Before May 2015: Multiport fuel injection system/sequential multiport fuel injection system, “EFI NO.1”, “EFI NO.2” fuses
FUEL HTR 50 From May 2015: Fuel Heater
29 P-SYSTEM 30 Before May 2015: VALVEMATIC system
EPKB 50 From May 2015: Electric parking brake
30 GLOW 80 Before May 2015: Engine glow system
EPS 80 From May 2015: Electric power steering
31 EPS 80 Before May 2015: Electric power steering
GLOW 80 From May 2015: Engine glow system
32 ALT 140 Before May 2015: “RDI FAN”, “CDS FAN”, “H-LP CLN”, “PWR SEAT LH”, “FUEL OPN”, “ABS NO.1”, “ABS NO.2”, “FR DEICER”, “PSB”, “HTR”, “STV HTR”, “PWR OUTLET”, “HTR SUB NO.1”, “HTR SUB NO.2”, “HTR SUB NO.3”, “ECU-IG NO.2”, “HTR-IG”, “WIPER”, “RR WIPER”, “WASHER”, “ECU-IG NO.1”, “ECU-IG NO.3”, “SEAT HTR”, “AM1”, “DOOR”, “STOP”, “P FR DOOR”, “POWER”, “RR DOOR”, “RL DOOR”, “OBD”, “ACC-B”, “RR FOG”, “FR FOG”, “TI & TE”, “SHADE”, “PWR SEAT RH”, “DEF”, “TAIL”, “DRL” fuses
120 Before May 2015: “RDI FAN”, “CDS FAN”, “H-LP CLN”, “PWR SEAT LH”, “FUEL OPN”, “ABS NO.1”, “ABS NO.2”, “FR DEICER”, “PSB”, “HTR”, “STV HTR”, “PWR OUTLET”, “HTR SUB NO.1”, “HTR SUB NO.2”, “HTR SUB NO.3”, “ECU-IG NO.2”, “HTR-IG”, “WIPER”, “RR WIPER”, “WASHER”, “ECU-IG NO.1”, “ECU-IG NO.3”, “SEAT HTR”, “AM1”, “DOOR”, “STOP”, “P FR DOOR”, “POWER”, “RR DOOR”, “RL DOOR”, “OBD”, “ACC-B”, “RR FOG”, “FR FOG”, “TI & TE”, “SHADE”, “PWR SEAT RH”, “DEF”, “TAIL”, “DRL” fuses
From May 2015:
33 IG2 15 Before May 2015: “IGN”, “METER” fuses
FUEL PUMP 30 From May 2015: Fuel pump
34 HORN 15 Horn
35 EFI MAIN 30 Before Nov. 2011: Multiport fuel injection system/sequential multiport fuel injection system, “EFI NO.1”, “EFI NO.2” fuses
FUEL OPN 10 From Nov. 2011: Fuel filler door opener
36 EDU 20 Before May 2015: Multiport fuel injection system/sequential multiport fuel injection system
IGT/INJ 15 Before May 2015: Multiport fuel injection system/sequential multiport fuel injection system
IG2 15 From May 2015: “IGN”, “METER” fuses
37 Before May 2015:
EFI MAIN 50 From May 2015: “EFI NO.1”, “EFI NO.2”, “EFI NO.4” fuses
38 E-PKB 30 Before May 2015: Electric parking brake
BBC 40 From May 2015: Stop & Start system
39 HTR SUB NO.3 30 Before May 2015: Power heater
40
41 HTR SUB NO.2 30 Before May 2015: Power heater
42 HTR 50 From May 2015: Air conditioning system
43 HTR SUB NO.1 30 Before May 2015: Power heater
50 From May 2015: Power heater
44 PWR SEAT LH 30 Power seat, lumber support
45 STV HTR 25 Power heater
46 ABS NO.2 30 ABS, VSC
47 FR DEICER 20 Windshield wiper de-icer
48 FUEL OPN 10 Before May 2015: Fuel filler door opener
From May 2015:
49 PSB 30 Before May 2015: Pre-crash seat belt
From May 2015: From May 2015 Production –
50 PWR OUTLET 15 Power outlet
51 H-LP LH LO 10 Before May 2015:
Except HID: Left-hand headlight (low beam)
From May 2015: Left-hand headlight (low beam)
15 Before May 2015:
HID: Left-hand headlight (low beam)
52 H-LP RH LO 10 Before May 2015:
Except HID: Right-hand headlight (low beam)
From May 2015: Right-hand headlight (low beam)
15 Before May 2015:
HID: Right-hand headlight (low beam)
53 H-LP LH HI 10 Left-hand headlight (high beam)
54 H-LP RH HI 10 Right-hand headlight (high beam)
55 EFI NO.1 10 Before May 2015: Multiport fuel injection system/sequential multiport fuel injection system, air flow meter, exhaust system
7,5 From May 2015: Multiport fuel injection system/sequential multiport fuel injection system, air flow meter, exhaust system
56 EFI NO.2 10 Before May 2015: Air intake system, air flow meter, exhaust system
15 From May 2015: Air intake system, air flow meter, exhaust system
57 IG2 NO.2 7,5 Before May 2015: Starting system
From May 2015: –
58 EFI NO.3 7,5 Before Nov. 2011: Multiport fuel injection system/sequential multiport fuel injection system
EFI NO.4 30 From Nov. 2011: Multiport fuel injection system/sequential multiport fuel injection system, “EFI NO.1”, “EFI NO.2” fuses
20 From May 2015: Multiport fuel injection system/sequential multiport fuel injection system, “EFI NO.1”, “EFI NO.2” fuses
59 CDS EFI 5 From May 2015: Electric cooling fan
60 EFI NO.3 7,5 From Nov. 2011: Multiport fuel injection system/sequential multiport fuel injection system
RDI EFI 5 From May 2015: Electric cooling fan
RELAY
R1 Before Nov. 2013: Windshield wiper de-icer / Stop light (FR DEICER/BRAKE LP)
From Nov. 2013: Electric Cooling Fan (FAN NO.2)
R2 Electric Cooling Fan (FAN NO.3)
R3 Before May 2015: Air fuel ratio sensor (A/F)
From May 2015: FR FOG Relay LH
R4 Before May 2015: Interior lights (DOME CUT)
From May 2015: FR FOG Relay RH
R5 Engine control unit (EFI MAIN)
R6 Headlight (H-LP)
R7 Before Nov. 2013: Electric Cooling Fan (FAN NO.2)
Nov. 2013 – Before Oct. 2016: Windshield wiper de-icer (FR DEICER)
From Oct. 2016: Dimmer
R8 Electric Cooling Fan (FAN NO.1)
R9 May 2015 – Oct. 2016: Interior lights (DOME CUT)
From Oct. 2016: (TSS C HTR)
R10 Before Nov. 2011: Fuel filler door opener (FUEL OPN)
R11 Before Nov. 2011: Dimmer
From Nov. 2011:
without AFS: Dimmer
From Nov. 2011:
with AFS: –
May 2015 – Oct. 2016:
with fuel heater: Fuel Heater (FUEL HTR)
without fuel heater: –
R12 From Nov. 2011:
with AFS: Dimmer
May 2015 – Oct. 2016:Dimmer

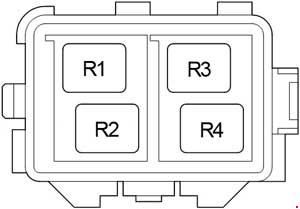

Engine Compartment Relay Box

Toyota Avensis - fuse box diagram - engine compartment relay box
Toyota Avensis – fuse box diagram – engine compartment relay box
Number Relay
R1
R2 HTR SUB NO.1
R3 HTR SUB NO.2
R4 HTR SUB NO.3

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
