Subaru Forester (2014 – 2016) – fuse box diagram

Subaru Forester (2014 – 2016) – fuse box diagram

Year of production: 2014, 2015, 2016

Fuse panel located in the passenger compartment

Subaru Forester – fuse box diagran – passenger compartment
Subaru Forester – fuse box diagram – passenger compartment
Fuse Ampere rating [A] Circuit
1 20 Trailer hitch connector
2
3 15 Door locking
4 10 Front wiper deicer relay
5 10 Combination meter
6 7,5 Remote control rear view mirrors, Seat heater relay
7 15 Combination meter, Integrated unit
8 20 Stop light
9 15 Front wiper deicer
10 7,5 Power supply (battery)
11 7,5 Turn signal unit, Clock
12 15 Automatic transmission unit, Engine control unit, Integrated unit
13 20 Accessory power outlet (center console)
14 15 Position light, Tail light, Rear combination light
15 10 Luggage light, Keyless unit
16 10 Illumination
17 15 Seat heaters
18 10 Back-up light
19 7,5 Daytime running lights
20 10 Accessory power outlet (instrument panel)
21 7,5 Starter relay
22 10 Air conditioner, Rear window defogger relay coil
23
24 10 Audio unit, Navigation system (if equipped)
25 15 SRS airbag system
26 7,5 Power window relay, Radiator main fan relay
27 15 Blower fan
28 15 Blower fan
29 15 Fog light
30
31 7,5 Auto air conditioner unit, Integrated unit
32 7,5 Clutch switch, Steering lock control unit
33 7,5 Vehicle dynamics control unit

Fuse panel located in the engine compartment

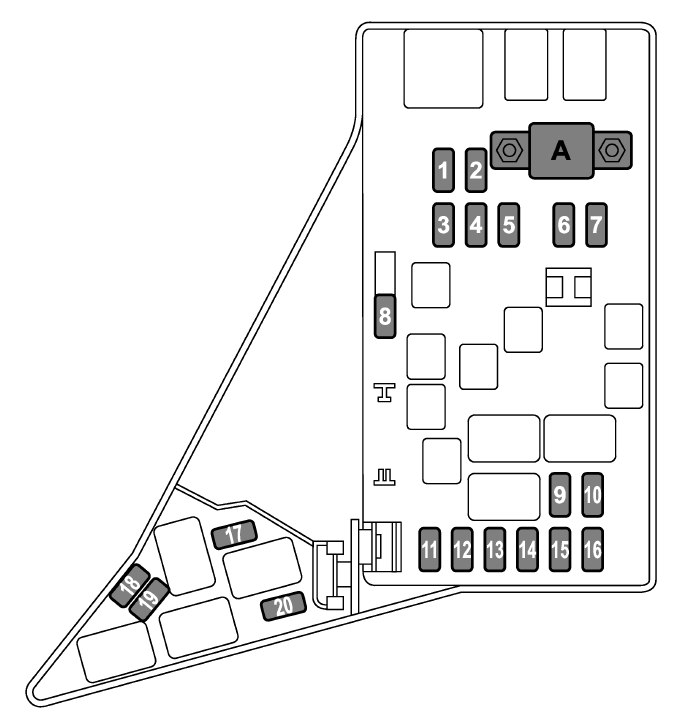

Subaru Forester – fuse box diagram – engine compartment
Subaru Forester – fuse box diagram – engine compartment
Fuse Ampere rating [A] Power consumer
1 30 ABS unit, Vehicle dynamics control unit
2 25 Main fan (cooling fan)
3 10 Sub fan (cooling fan)
4
5 25 Audio
6 30 Headlight (low beam)
7 15 Headlight (high beam)
8 20 Back-up light
9 15 Horn
10 25 Rear window defogger, Mirror heater
11 15 Fuel pump
12 20 Continuously variable transmission control unit
13 7,5 Engine control unit
14 15 Turn and hazard warning flasher
15 15 Tail and illumination relay
16 7,5 Alternator
17
18
19 15 Headlight (low beam – right hand)
20 15 Headlight (low beam – left hand)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
