Subaru Forester (2009 – 2013) – fuse box diagram

Subaru Forester (2009 – 2013) – fuse box diagram

Year of production: 2009, 2010, 2011, 2012, 2013

Fuse panel located in the passenger compartment

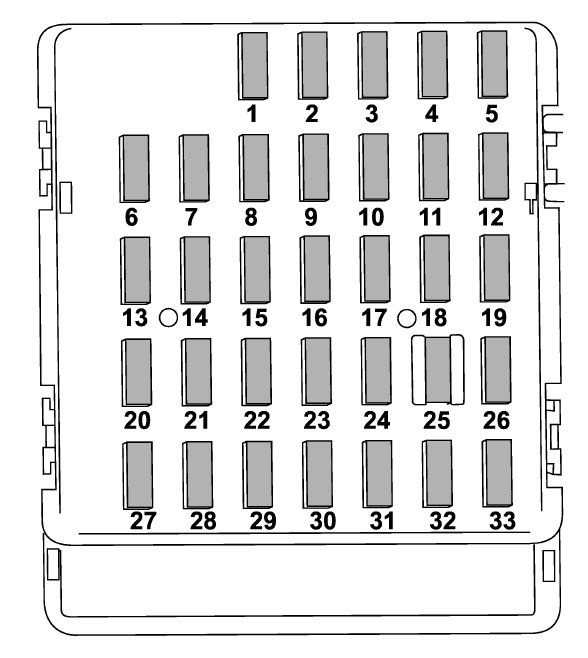

Subaru Forester – fuse box – passenger compartment
Subaru Forester – fuse box diagram – passenger compartment
Fuse Ampere rating [A] Circuit
1 20 Trailer
2
3 15 Door locking
4 10 Front wiper deicer relay
5 10 Combination meter
6 7,5 Remote control rear view mirrors, Seat heater relay
7 15 Combination meter, Integrated unit
8 20 Stop light
9 15 Front wiper deicer
10 7,5 Power supply (battery)
11 7,5 Turn signal unit, Clock
12 15 Automatic transmission unit, Engine control unit, Integrated unit
13 20 Accessory power outlet (center console)
14 15 Position light, Tail light, Rear combination light
15 (FWD connector for AWD AT vehicles)
16 10 Illumination
17 15 Seat heaters
18 10 Back-up light
19
20 10 Accessory power outlet (instrument panel)
21 7,5 Starter relay
22 15 Air conditioner, Rear window defogger relay coil
23 15 Rear wiper, Rear window washer
24 15 Audio unit, Clock
25 15 SRS airbag system
26 7,5 Power window relay, Radiator main fan relay, Tail and illumination relay
27 15 Blower fan
28 15 Blower fan
29 15 Fog light
30 30 Front wiper
31 7,5 Auto air conditioner unit, Integrated unit
32
33 7,5 ABS/Vehicle dynamics control unit

Fuse panel located in the engine compartment

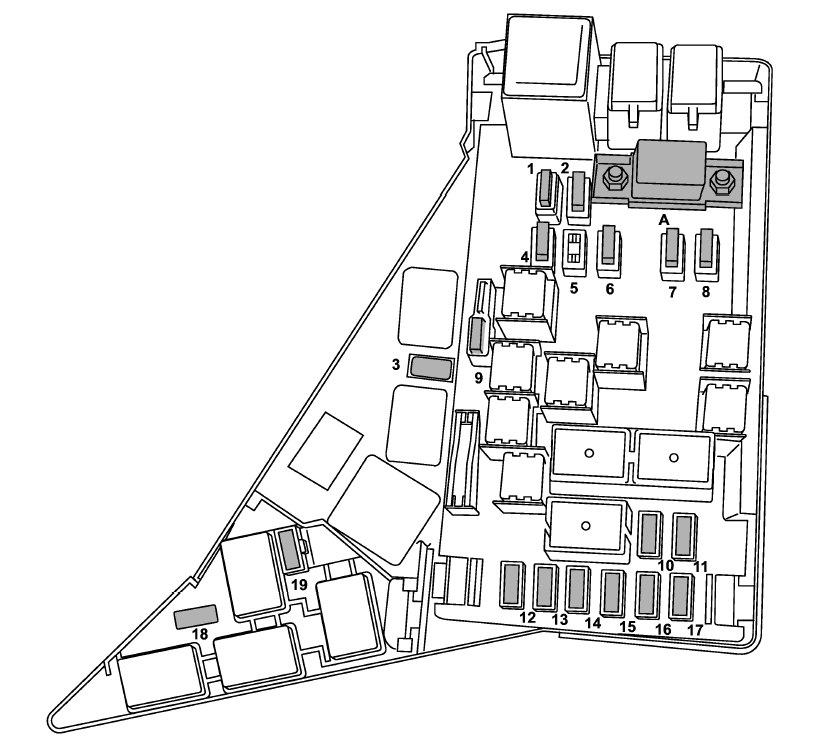

Subaru Forester – fuse box diagram – engine compartment
Subaru Forester – fuse box diagram – engine compartment
Fuse Ampere rating [A] Power consumer
1 30 ABS unit, Vehicle dynamics control unit
2 25 Main fan (cooling fan)
3 10 Secondary air combination valve (turbo models)
4 25 Sub fan (cooling fan)
5
6 10 Audio
7 30 Headlight (low beam)
8 15 Headlight (high beam)
9 20 Back-up light
10 15 Horn
11 25 Rear window defogger, Mirror heater
12 15 Fuel pump
13 10 Automatic transmission control unit
14 7,5 Engine control unit
15 15 Turn and hazard warning flasher
16 15 Tail and illumination relay
17 7,5 Alternator
18 15 Headlight (right hand)
19 15 Headlight (left hand)
A Main fuse

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
