Skoda Superb (2010 – 2011) – fuse box diagram

Skoda Superb (2010 – 2011) – fuse box diagram

Year of production: 2010, 2011

Fuse box in engine compartment

Version 1

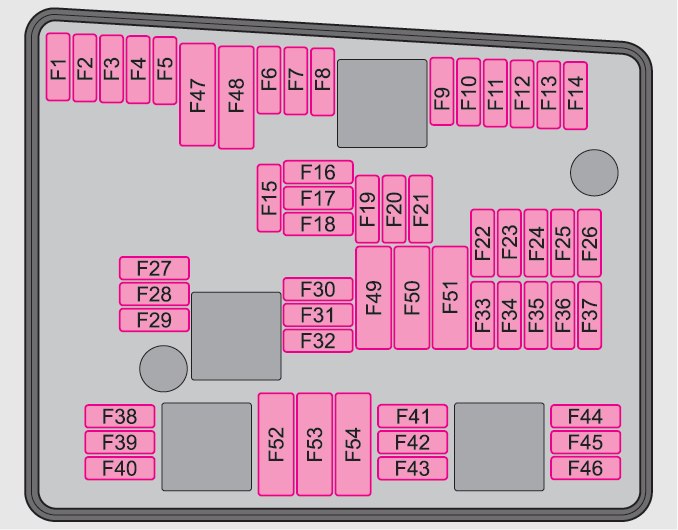

Skoda Superb - fuse box - engine compartment (version 1)
Skoda Superb – fuse box –
engine compartment (version 1)
Number Power consumer Amperes
F1 Front right main headlight, right rear light unit 30
F2 Valves for ABS 20
F3 Not assigned
F4 Not assigned
F5 Horn 15
F6 Not assigned
F7 Not assigned
F8 Not assigned
F9 Valves 10
F10 Not assigned
F11 Lambda probe 10
F12 Lambda probe 10
F13 Control unit for automatic gearbox 15
F14 Not assigned
F15 Coolant pump 10
F16 Not assigned
F17 Instrument cluster, windshield wiper lever and turn signal light lever 5
F18 Audio amplifier (sound system) 30
F19 Radio 15
F20 Phone 5
F21 Not assigned
F22 Not assigned
F23 Engine control unit 10
F24 Control unit for CAN databus 5
F25 Not assigned
F26 Not assigned
F27 Valve for fuel dosing 15
F28 Engine control unit 15/25
F29 Main relay 5
F30 Control unit for auxiliary heating 20
F31 Front window wiper 30
F32 Not assigned
F33 Not assigned
F34 Not assigned
F35 Not assigned
F36 Not assigned
F37 Not assigned
F38 Radiator fan, valves 10
F39 Not assigned
F40 Not assigned
F41 Not assigned
F42 Not assigned
F43 Ignition 30
F44 Not assigned
F45 Not assigned
F46 Not assigned
F47 Front left main headlight, left rear light unit 30
F48 Pump for ABS 40
F49 Power supply for terminal 15 (ignition on) 50
F50 Not assigned
F51 Not assigned
F52 Power supply relay – terminal a) 40
F53 Accessory equipment 50
F54 Not assigned
a) In order not to drain the battery unnecessarily when starting the engine, the electrical components of this terminal are automatically switched off.

Version 2

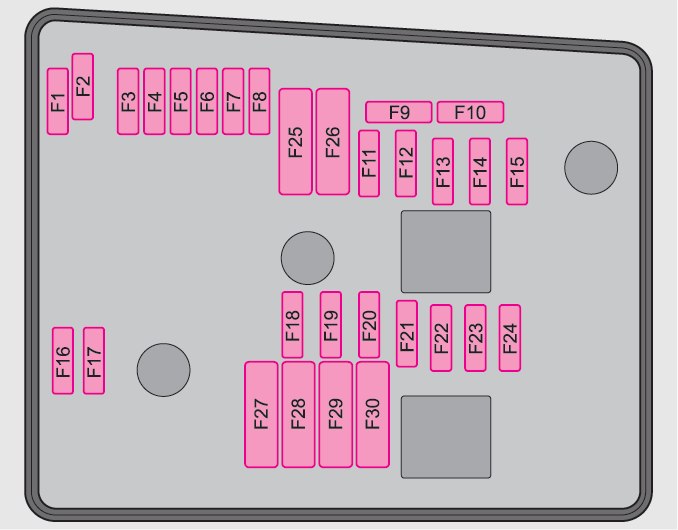

Skoda Superb - fuse box - engine compartment (version 2)
Skoda Superb – fuse box –
engine compartment (version 2)
Number Power consumer Amperes
F1 Not assigned
F2 Control unit for automatic gearbox DQ 200 30
F3 Measuring circuit 5
F4 Valves for ABS 30/20
F5 Control unit for automatic gearbox DQ250 15
F6 Instrument cluster, windshield wiper lever and turn signal light lever 5
F7 Power supply for terminal 15 (ignition on) 40
F8 Radio 15
F9 Phone 5
F10 Engine control unit, Main relay 5/10
F11 Control unit for auxiliary heating 20
F12 Control unit for CAN databus 5
F13 Engine control unit 15/20/30
F14 Ignition 20
F15 Lambda probe – Petrol 10
Glow plug system relay and fuel pump (diesel engine) 5
F16 Front right main headlight, right rear light unit 30
F17 Horn 15
F18 Audio amplifier (sound system) 30
F19 Front window wiper 30
F20 Valve for fuel dosing 20
Water pump 10
F21 Lambda probe 10/15/20
F22 Clutch pedal switch 5
F23 Relay 5
Valves 10
High pressure pump 15
F24 The radiator fan 10
F25 Pump for ABS 30/40
F26 Left main headlight 30
F27 Control unit for glow plug system 40/50
F28 Windscreen heater 50
F29 Accessory equipment 50
F30 Power supply relay – terminal X a) 50
a) In order not to drain the battery unnecessarily when starting the engine, the electrical components of this terminal are automatically switched off.

Fuse box in dash panel

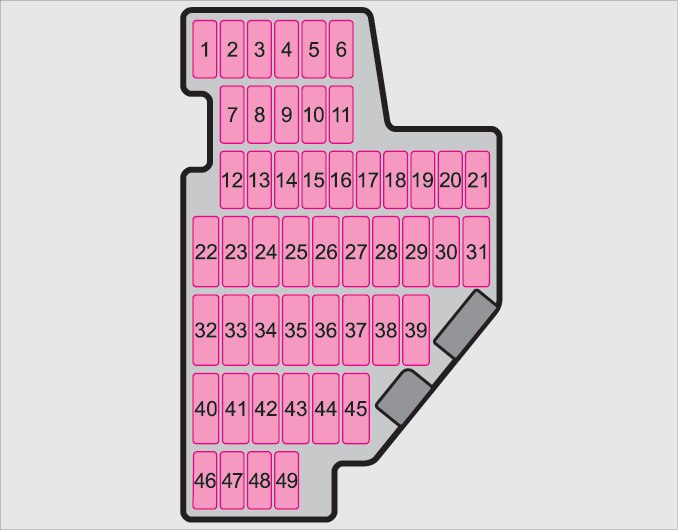

Skoda Superb - fuse box - dashboard
Skoda Superb – fuse box –
dashboard
Number Power consumer Ampere rating [A]
1 Diagnostic socket, engine control unit, fuel pump relay, fuel pump control unit 7,5
2 Control unit for ABS, ESP, switch for tyre inflation pressure-control system, brake sensor 5
3 Switch and control unit for airbag 5
4 WIV, parking light, dimming rear mirror, pressure sensor, telephone preinstallation 5
5 Control unit for headlamp beam adjustment and headlight swivel, control unit for parking aid, control unit for park assist 5
6 Instrument cluster, control unit for electromechanical power steering, Haldex, selector lever lock, power supply for data bus 5
7 Valve heating, air mass meter 10
8 Control unit for trailer detection 5
9 Relay for auxiliary heating 5
10 Adaptive left main headlight 10
11 Adaptive right main headlight 10
12 Not assigned
13 Diagnostic socket, light switch, rain sensor, clock 7,5
14 Central locking system and bonnet lid 15
15 Central control unit – interior lights 7,5
16 Air conditioning system 7,5
17 Not assigned 10
18 Not assigned
19 Not assigned
20 KESSY 5
21 KESSY ELV 7,5
22 Air blower for Climatronic 40
23 Front power window, central locking of the front doors 30
24 Selector lever lock 5
25 Rear window heater, relay for auxiliary heating and ventilation 30
26 Power socket in the luggage compartment 25
27 Fuel pump relay, 15
Fuel pump relay, control unit for fuel pump, injection valves 20
28 Electric boot lid 30
29 Preparation for the aftermarket radio 5
30 Not assigned
31 Not assigned
32 Front power window, central locking system of the rear doors 30
33 Electric sliding/tilting roof 25
34 Alarm, spare horn 5
35 Front and rear lighter 25
36 Headlight cleaning system 20
37 Front seat heating 20
38 Heated rear seats 20
39 Not assigned
40 Fan air-conditioning system, relay for auxiliary heating and ventilation 40
41 Rear window wiper 10
42 Light switch 5
43 Control unit for trailer detection 15
44 Control unit for trailer detection 20
45 Control unit for trailer detection 15
46 Heatable washing nozzles, switch for seat heating 5
47 Not assigned
48 Not assigned
49 Not assigned

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
