Skoda Roomster (2006) – fuse box diagram

Skoda Roomster (2006) – fuse box diagram

Year of production: 2006

Fuse box in dashboard

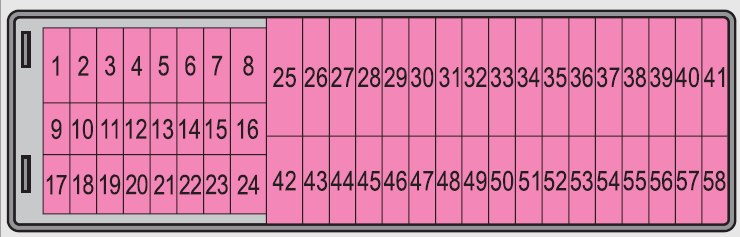

Skoda Roomster - fuse box diagram - dashboard
Skoda Roomster – fuse box diagram – dashboard
Number Power consumer Amoere rating [A]
1 Power steering 5
2 Instrument cluster, headlight range adjustment 5
3 Engine control unit – Petrol engine 5
4 ABS control unit 5
5 Petrol engine: Brake light switch, cruise control system 5
6 Not assigned
7 Engine control unit 1.2 ltr. engine 15
8 Injection valves – 1.4 ltr.; 1.6 ltr. 10
9 Operating controls for the heating, control unit for air conditioning system, parking aid, control unit for cornering lights 5
10 PCV valve 7,5
11 Electrically adjustable rear mirror, power windows 7,5
12 Reversing light 10
13 Engine control unit (for vehicles with automatic gearbox) 10
14 Motor for cornering lights 10
15 Navigation PDA 5
16 Not assigned
17 Left parking light, licence plate light 5
18 Right parking light 5
19 Radio, central control unit 5
20 Instrument cluster, steering angle sender, ESP 5
21 Brake lights 10
22 Operating controls for the heating, control unit for air conditioning system, parking aid, mobile phone 7,5
23 Lighting interior, storage compartment and luggage
compartment
10
24 Tailgate lock 10
25 Seat heaters 20
26 Heatable windscreen washing nozzles, windscreen cleaning system 15
27 Not assigned
28 Petrol engine: AKF valve, petrol engine: Control flap 10
29 Injection – 1.2 ltr. engine 10
30 Fuel pump – petrol engine 15
31 Lambda probe 10
32 Diesel engine: Switch for brake light and clutch pedal, cruise control system, fuel pump relay and glow plug system relay 5
33 Engine control unit – diesel engine 30
34 Engine control unit 1.4 ltr.; 1.6 ltr. engine 30
Fuel pump – diesel engine 15
35 Not assigned
36 Main beam 15/5
37 Rear fog light 7,5
38 Fog lights 10
39 Blower 25
40 Rear windo10w wiper 10
41 Not assigned
42 Rear window heater 25
43 Horn 20
44 Front window wiper 20
45 Central control unit for convenience system 15
46 Engine control unit 1.4 ltr.; 1.6 ltr. petrol engine 5
47 Cigarette lighter, power socket in the luggage compartment a) 15
48 Vehicle voltage control unit 5
49 Turn signals 15
50 Radio, Telephone preinstallation, Multi-functional module 10
51 Electrical power window (at the front and rear on the left) 25
52 Electrical power window (at the front and rear on the right) 25
53 Not assigned
54 Anti-theft alarm system 15
55 Not assigned
56 Headlight cleaning system 25
57 Low beam on the left 15
58 Low beam on the right
a) If the engine is switched off already one electrical component which is connected can discharge the battery.

Fuse box in engine compartment (near battery)

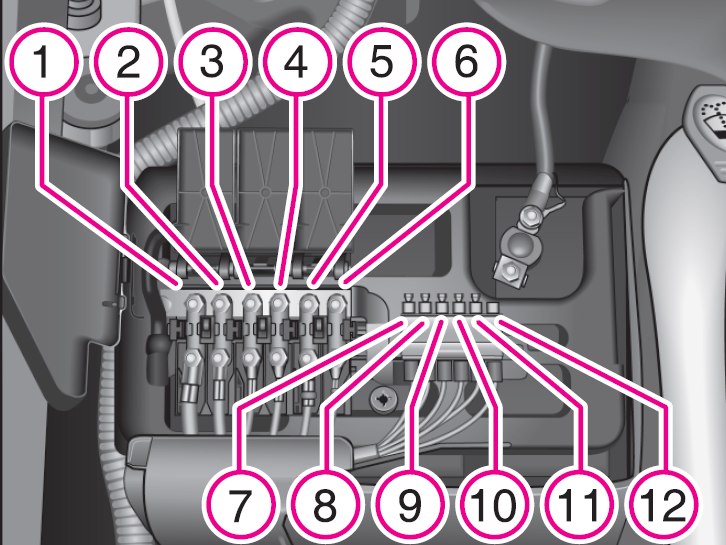

Skoda Roomster - fuse box diagram - engine compartment
Skoda Roomster – fuse box diagram – engine compartment
Number Power consumer Ampere rating [A]
1 Dynamo 175
2 Interior 110
3 The radiator fan 40
4 ABS or TCS or ESP 40
5 Power steering 50
6 Glow plugs 50
7 ABS or TCS or ESP 25
8 The radiator fan 30
9 The air conditioning system 5
10 Engine control unit 15
11 Central control unit 5
12 Automatic gearbox 5

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
