Pontiac Sunbird (1994) – fuse box diagram

Pontiac Sunbird (1994) – fuse box diagram

Year of production: 1994

Instrument panel

The fuse panel is located on the lower left side of the instrument panel.

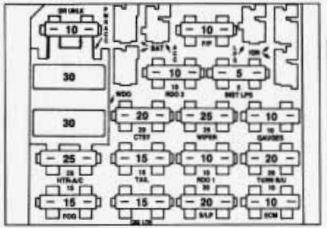

Pontiac Sunbird - fuse box diagram - instrument panel
Pontiac Sunbird – fuse box diagram – instrument panel
Fuse Ampere rating [A] Usage
DR UNLK 10 Automatic Door Unlock
F/P 10 Fuel Pump
PWR ACC 30 Door Locks; Rear Defogger (Breaker)
RDO 2 10 Radio & Cruise Power Feed
INST LPS 5 Instrument Panel Light
WDO 30 Power Window (Breaker)
CTSY 20 Courtesy Lights; Horn; Power Locks; Rear Compartment Courtesy Light, Audible Warning System, Check Oil Light
WIPER 25 Windshield Wipers/Washer
GAUGES 10 Gages; Warning Indicator; Audible Warning System; Rear Window Defogger; Torque Converter Clutch; Brake-Transaxle Shift Interlock; Multi-Port Fuel Injection
HTR-A/C 25 Heat; A/C; Daytime Running Lights (Canada); Anti-Lock Brake System
TAIL 15 Parking, Side Marker, License Plate Lights
RDO 1 10 Radio Memory, Digital Clock
TURN B/U 20 Turn Signal Flashers; Back-up Lights
FOG 15 Fog Lights
CIG 15 Cigarette Lighter, Glove Box Light
S/LP 20 Stop Lights; Hazard Flashers
ECM 10 ECM Injectors

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
