Peugeot 407 C (2004 – 2011) – fuse box diagram
Year of production: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011
Fascia fuses

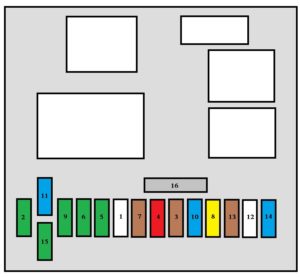

Peugeot 407 – fuse box – fascia box
Fuse
Ampere rating [A]
Functions
F1
—
Not used
F2
30
Locking and deadlocking
F3
5
Air bags and pre-tensioners control unit
F4
10
Automatic gearbox switch, diagnostic socket, electrochromatic mirror
F5
30
Driver and passenger electric windows
F6
30
Sunroof
F7
5
Glove box light, map reading lights, courtesy lights, courtesy mirrors
F8
20
Multifunction display, audio equipment, top-of-column, trailer fuse box (accessory), alarm, alarm siren
F9
30
Front lighter, 12 V rear socket, glove box light, map reading lights, courtesy lights, courtesy mirrors.
F10
15
Tyre under-inlation detection, CD changer
F11
15
Diagnostic socket, ignition switch
F12
15
Trailer fuse box (accessory), parking assistance control unit supply, passenger seat memory unit, rain and brightness sensor, alarm
F13
5
Windscreen wipers relay control, engine fuse box 2
F14
15
Driver’s seat memory unit, instrument panel, air bags and pre-tensioners control unit, air conditioning control panel, seat belt fastening management control unit, steering wheel adjustment switch, hands-free kit
F15
30
Locking and deadlocking
F16
—
PARC shunt
Engine compartment fuses

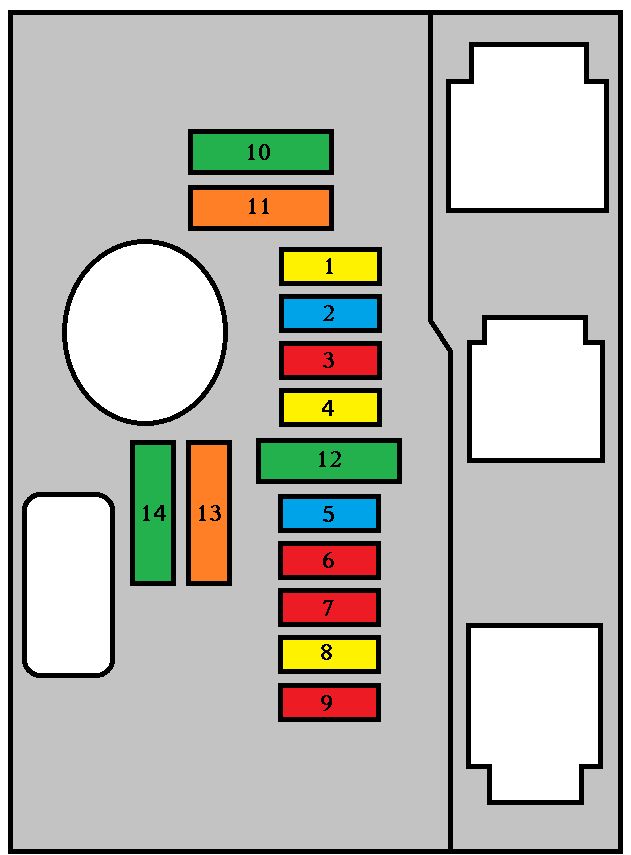

Peugeot 307 – fuse box – engine compartment
Fuse
Ampere rating [A]
Functions
1
20
Engine control unit, fan assembly relay supply
2
15
Horn
3
10
Wash-wipe pump
4
20
Headlamp wash pump
5
15
Fuel pump, engine management actuators (air low sensor, solenoid valves, …)
6
10
ESP control unit, engine coolant level sensor
7
10
Automatic headlamp adjustment
8
20
Starter coil
9
10
Directional headlamps control unit, additional heating switching and protection control unit, clutch switch
10
30
Engine management actuators (ignition coil, injectors, thermostats, solenoid valves, oxygen sensors), diesel additive pump, fuel pump, engine control unit, Blow-by heater
11
40
Air conditioning blower
12
30
Windscreen wipers
13
40
Built-in systems interface supply (ignition positive)
14
30
Not used
Boot compartment
Fuse
Ampere rating [A]
Functions
G29
—
Not used
G30
5
Heated rear screen
G31
5
Tyre under-inlation detection, CD changer
G32
—
Not used
G33
5
Power steering electropump unit, dual-function brake switch
G34
5
Dual-function brake switch, automatic gearbox relay
G35
5
Steering wheel angle sensor and ESP gyrometer sensor
G36
25
Hi-Fi ampliier
G37
15
Automatic gearbox
G38
20
Heated seats
G39
30
Passenger seat memory unit
G40
30
Driver’s seat memory unit
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
