Peugeot 2008 – fuse box diagram

Peugeot 2008 – fuse box diagram

Year of production:

Fuses in the dashboard

The fuse box is placed in the lower dashboard (right-hand side).

Peugeot 2008 - fuse box diagram - dashboard
Peugeot 2008 – fuse box diagram – dashboard

A
Functions
1 40 Heated rear window
2 10 Heated door mirrors
3 30 Front one-touch windows
4 Not used
5 30 Rear one-touch windows
6 10 Folding door mirrors
7 10 Folding door mirrors
8 Not used
9 15 Front electric windows (not one-touch)
10 20 Hi-Fi amplifier
11 Not used
12 Not used

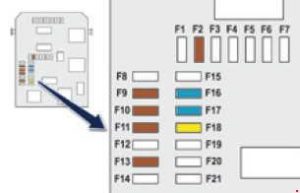

Fuses in the glove box

Peugeot 2008 - fuse box diagram - glove box
Peugeot 2008 – fuse box diagram – glove box

A
Functions
2 5 Door mirrors, headlamps, diagnostic socket
9 5 Alarm
10 5 Independent telematic unit
11 5 Electrochrome rear view mirror, additional heating, Active City Brake
13 5 Hi-Fi amplifier, parking sensors, reversing camera
16 15 Front 12 V socket
17 15 Audio system (without touch screen)
18 20 Touch screen, audio system (if touch screen)

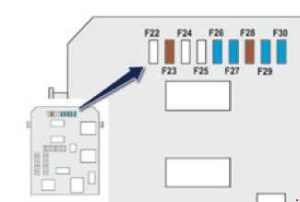

Peugeot 2008 - fuse box diagram - glove box
Peugeot 2008 – fuse box diagram – glove box

A
Functions
23 5 Vanity mirrors, map reading lamps
26 15 Horn
27 15 Screenwash pump
28 5 Anti-theft
29 15 Air conditioning compressor
30 15 Rear wiper

Fuses under the bonnet

The fuse box is placed in the engine compartment near the battery (left-hand side).

Peugeot 2008 - fuse box diagram - engine compartment
Peugeot 2008 – fuse box diagram – engine compartment

A
Functions
16 15 Daytime running lamps
18 10 Right hand main beam headlamp
19 10 Left hand main beam headlamp
25 30 Headlamp wash relay (accessory)
29 40 Front wiper motor
30 80 Pre-heater plugs (Diesel)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
