FUSE BOX DIAGRAMS & FUSE ASSIGNMENTS

Find the fuse box diagrams for the Peugeot 2008 (2020–2021), including the dashboard lower fuse box, dashboard upper fuse box and engine compartment fuse box. This guide provides fuse locations, amperage ratings and protected electrical circuits.

The second-generation Peugeot 2008 is a compact crossover SUV built on the CMP platform. The fuse assignments shown below apply to the supplied 2020–2021 diagrams and may vary depending on the vehicle’s engine, equipment and market.

Vehicle Information

Vehicle
Peugeot 2008
Generation
Second generation (P24)
Model years covered
2020–2021
Production
2019–present
Body
5-door crossover SUV
Platform
PSA CMP / e-CMP
Drivetrain
Front-wheel drive (FWD)
Engine
1.2L PureTech petrol, 1.5L BlueHDi diesel or electric powertrain (e-2008), depending on version and market
Transmission
Manual or automatic, depending on engine and version
Market
Europe and selected international markets

Dashboard Fuse Box – Lower Fusebox

The lower dashboard fuse box contains fuses for the horn, windscreen washer pump, rear wiper, wireless smartphone charger, USB socket, touchscreen, central locking system and 12V accessory socket.

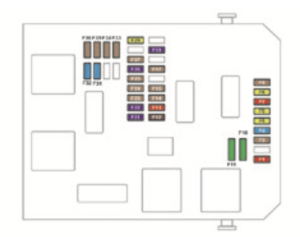

Peugeot 2008 2020–2021 dashboard lower fuse box diagram
Peugeot 2008 (2020–2021) – dashboard lower fuse box diagram. Click to enlarge.


Fuse Amps Protected circuit
F1 10 Electrochromic Interior Rear-View Mirror
F3 5 Wireless Smartphone Charger
F4 15 Horn
F5 20 Windscreen Washer Pump
F6 20 Windscreen Washer Pump
F7 5 Rear USB Socket
F8 20 Rear Wiper
F10 30 Central Locking / Unlocking
F11 30 Central Locking / Unlocking
F14 5 Emergency and Assistance Calls / Alarm
F24 5 Touchscreen (listed as “70inch” in the original source; specification requires verification)
F27 5 Alarm (Retrofit)
F29 20 10-Inch Touchscreen
F31 or F32 15 Cigarette Lighter / 12V Accessory Socket

Dashboard Fuse Box – Upper Fusebox

The upper dashboard fuse box protects the heated rear window, heated door mirrors, electric windows, electrically adjustable mirrors, sunroof and heated front seats.

Peugeot 2008 2020–2021 dashboard upper fuse box diagram

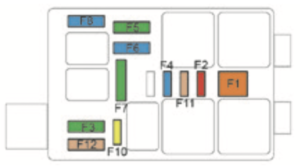

Peugeot 2008 (2020–2021) – dashboard upper fuse box diagram. Click to enlarge.


Fuse Amps Protected circuit
F1 40 Heated Rear Window
F2 10 Heated Door Mirrors
F3 30 Front One-Touch Electric Windows
F4 20 Door Mirror Adjustment / Folding Door Mirrors
F5 30 Rear One-Touch Electric Windows
F6 15 Sunroof
F10 30 Heated Front Seats

Engine Compartment Fuse Box

The engine compartment fuse box includes fuses for the heated windscreen, halogen high-beam headlights and windscreen wipers.

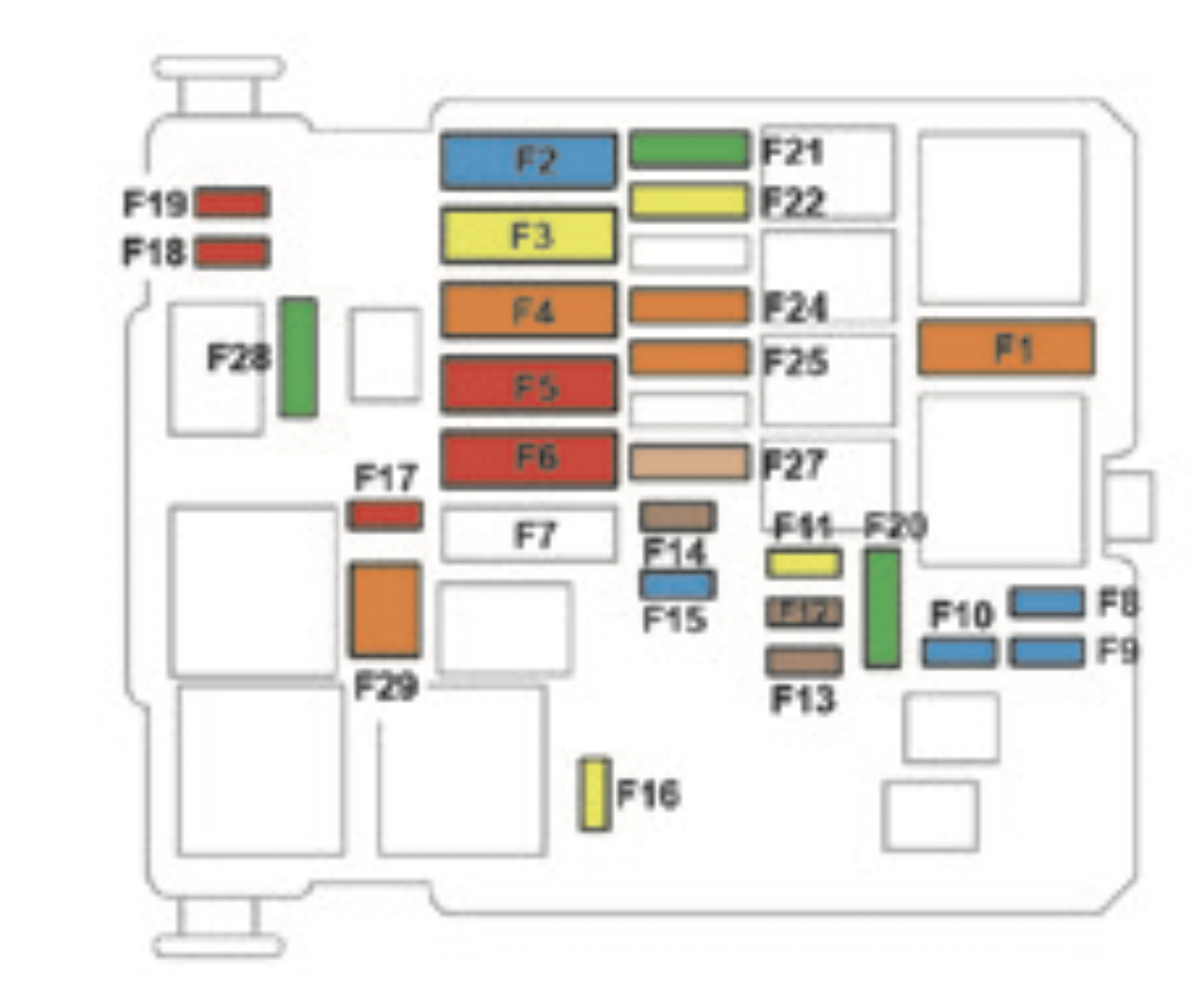

Peugeot 2008 2020–2021 engine compartment fuse box diagram
Peugeot 2008 (2020–2021) – engine compartment fuse box diagram. Click to enlarge.


Fuse Amps Protected circuit
F16 20 Heated Windscreen
F18 10 Right-Hand Main Beam Halogen Headlamp
F19 10 Left-Hand Main Beam Halogen Headlamp
F29 40 Windscreen Wipers

Frequently Asked Questions

Where is the cigarette lighter fuse in the Peugeot 2008 (2020–2021)?

The cigarette lighter and 12V accessory socket are protected by F31 or F32 (15A) in the lower dashboard fuse box, depending on the vehicle configuration.

Which fuse protects the horn?

The horn is protected by F4 (15A) in the lower dashboard fuse box.

Where is the wireless smartphone charger fuse?

The wireless smartphone charger is protected by F3 (5A) in the lower dashboard fuse box.

Which fuse protects the rear USB socket?

The rear USB socket is protected by F7 (5A) in the lower dashboard fuse box.

Where is the rear wiper fuse?

The rear wiper is protected by F8 (20A) in the lower dashboard fuse box.

Which fuse protects the heated rear window?

The heated rear window is protected by F1 (40A) in the upper dashboard fuse box.

Where is the sunroof fuse?

The sunroof is protected by F6 (15A) in the upper dashboard fuse box.

Which fuse protects the heated front seats?

The heated front seats are protected by F10 (30A) in the upper dashboard fuse box.

Where are the high-beam headlight fuses?

The engine compartment fuse box contains F18 (10A) for the right-hand halogen high beam and F19 (10A) for the left-hand halogen high beam.

Which fuse protects the windscreen wipers?

The windscreen wipers are protected by F29 (40A) in the engine compartment fuse box.

WARNING: Terminal and harness assignments for individual connectors may vary depending on vehicle equipment level, model year and market. Always consult the fuse box cover and vehicle handbook before replacing a fuse. Never install a fuse with a higher amperage rating than specified.
