Oldsmobile Starfire (1979) – fuse box diagram

Oldsmobile Starfire (1979) – fuse box diagram

Year of production: 1979

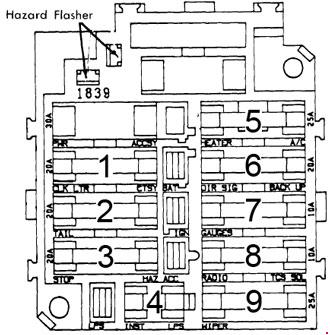

Fuse box diagram

Oldsmobile Starfire - fuse box diagram
Oldsmobile Starfire – fuse box diagram
No.
A
Circuit Protected
1 10 Electric fuel pump
2 20 Dome light, cigar light, clock
3 20 Tail and side marker lights
4 20 Stop and hazard warning lights
5 4 Instrument panel lights
6 25 Heater, air conditioner
7 20 Turn signals, back-up lights
8 10 Gauges, seat belt warning, low coolant warning, idle stop solenoid
9 10 Radio, defogger
10 25 Windshield wipers

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
