Mitsubishi Pajero (2006 – 2015) – fuse box diagram

Mitsubishi Pajero (2006 – 2015) – fuse box diagram

Year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

Fuse box on the dashboard

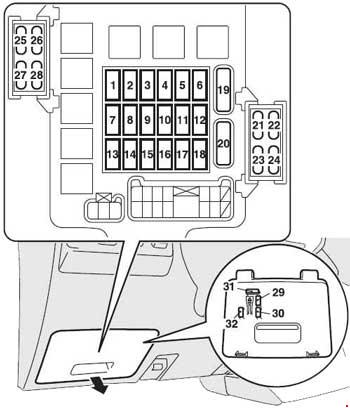

Mitsubishi Pajero – fuse box diagram – dashboard
Mitsubishi Pajero – fuse box diagram – dashboard
Number Fused function Ampers
1 Ignition coil 10
2 Gauge 7,5
3 Reversing lamp 7,5
4
5 Relay 7,5
6 Heated door 7,5
7
8 Engine control 7,5
9 Cigarette lighter 15
10
11 Outside rearview mirrors 7,5
12 Engine control 7,5
13
14 Rear window 15
15 Central door 15
16 Rear fog lamp 10
17
18
19 Heater 30
20 Rear window demister 30
21 Sunroof 20
22 Anti-lock brake 10
23 Heated seat 20
24 Approach lamps 10
25 Transfer control 10
26 ENG/POWER 10
27 Starter motor 10
28
29 Spare fuse 20
30 Spare fuse 10
31 Spare fuse 30
32 Spare fuse 25

Fuse box in engine compartment (A)

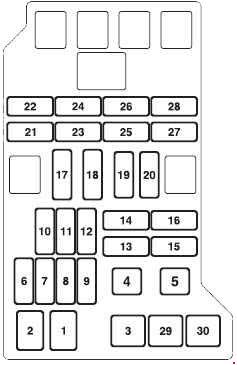

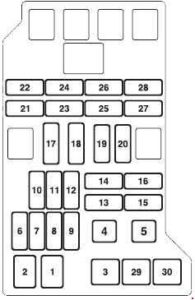

Mitsubishi Pajero - fuse box diagram - engine compartment A
Mitsubishi Pajero – fuse box diagram – engine compartment A
Number Fused function Ampers
1 Altemator 140
2 Fuse (+B) 60
3 Ignition switch 40
4 Electric window control 30
5 Engine control 20
6 Fuel pump 20
7 Rear heater 25
8 Accessory socket 25
9 Fuel line heater 25
10 Condenser fan 25
11 Rear air conditioning 20
12 Horn (Theft-alarm system) 15
Wiper de-icer
13 Horn 10
14 Automatic transmission 20
15 Hazard warning 10
16 Stop lamps 15
17 Radio 10
18 Room lamp 15
19 Air conditioning 10
20 Front fog lamps 15
21
22 Windscreen 20
23 Tail lamp (right) 7,5
24 Tail lamp (left) 7,5
25 Vehicles without discharge headlamps: Headlamp low beam (right) 10
Vehicles with discharge headlamps: Headlamp low beam (right) 20
26 Vehicles without discharge headlamps: Headlamp low beam (left) 10
Vehicles with discharge headlamps:Headlamp low beam (left) 20
27 Headlamp high-beam (right) 10
28 Headlamp high-bearn (left) 10
29 Audio 30
30 Heater 50

Fuse box in engine compartment (B)

Mitsubishi Pajero - fuse box diagram - engine compartment B
Mitsubishi Pajero – fuse box diagram – engine compartment B
Number Fused function Ampers
31 Anti-lock brake 60
32 Brake system 40
33 Glow relay 80

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
