Mercedes-Benz 500SEL (1992) – wiring diagrams – ABS

Mercedes-Benz 500SEL (1992) – wiring diagrams – ABS

Year of productions:  1992

ABS

Version 1

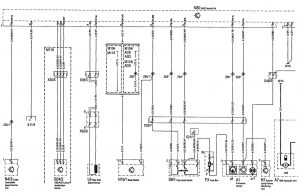

Mercedes-Benz 300SE - wiring diagram - ABS (part 1)
Mercedes-Benz 500SEL – wiring diagram – ABS (part 1)

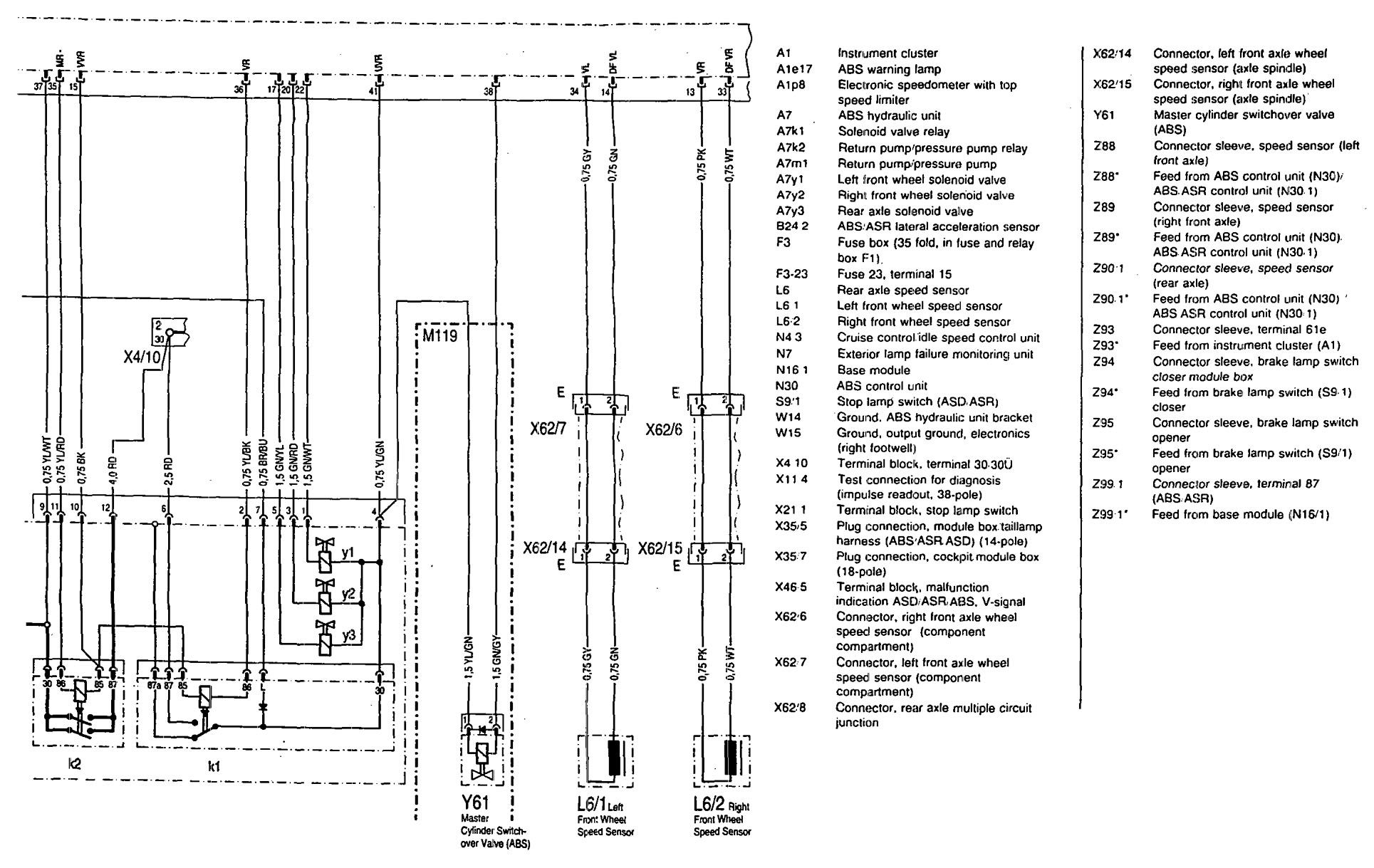

Mercedes-Benz 300SE - wiring diagram - ABS (part 2)
Mercedes-Benz 500SEL – wiring diagram – ABS (part 2)

Version 2

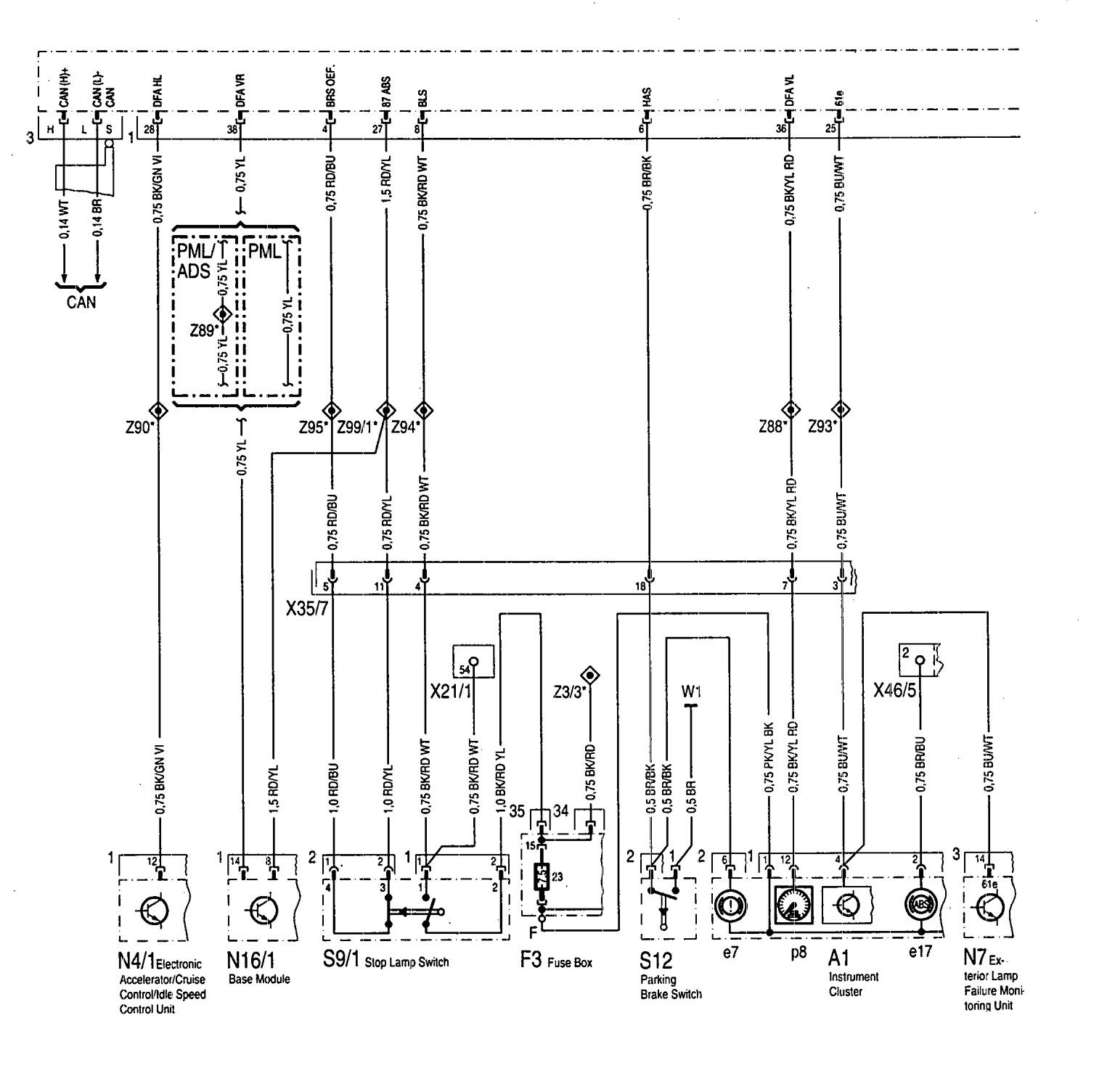

Mercedes-Benz 300SE - wiring diagram - ABS (part 1)
Mercedes-Benz 500SEL – wiring diagram – ABS (part 1)

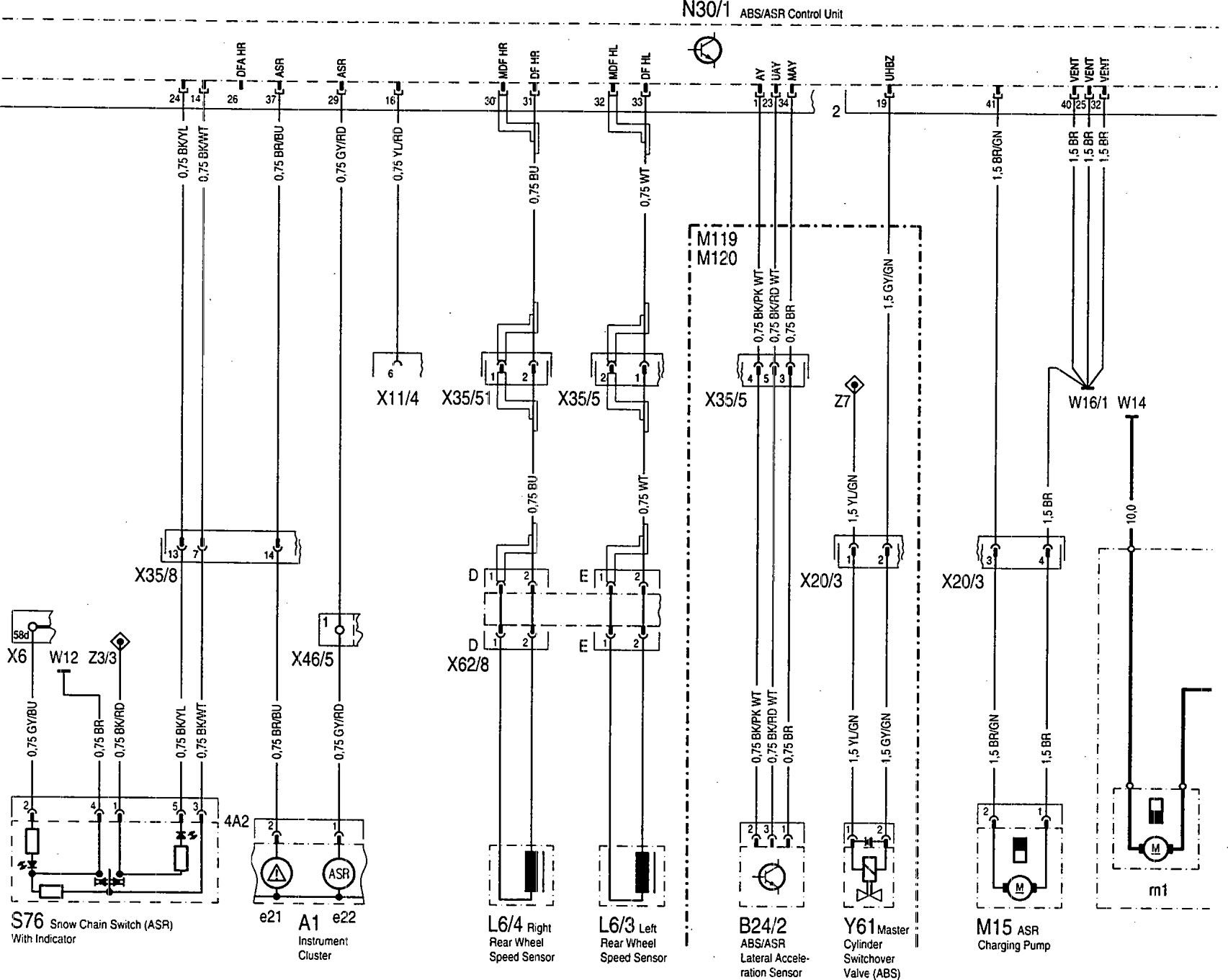

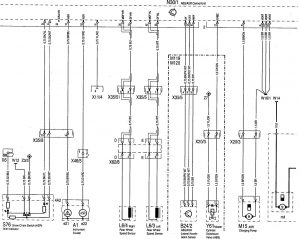

Mercedes-Benz 300SE - wiring diagram - ABS (part 2)
Mercedes-Benz 500SEL – wiring diagram – ABS (part 2)

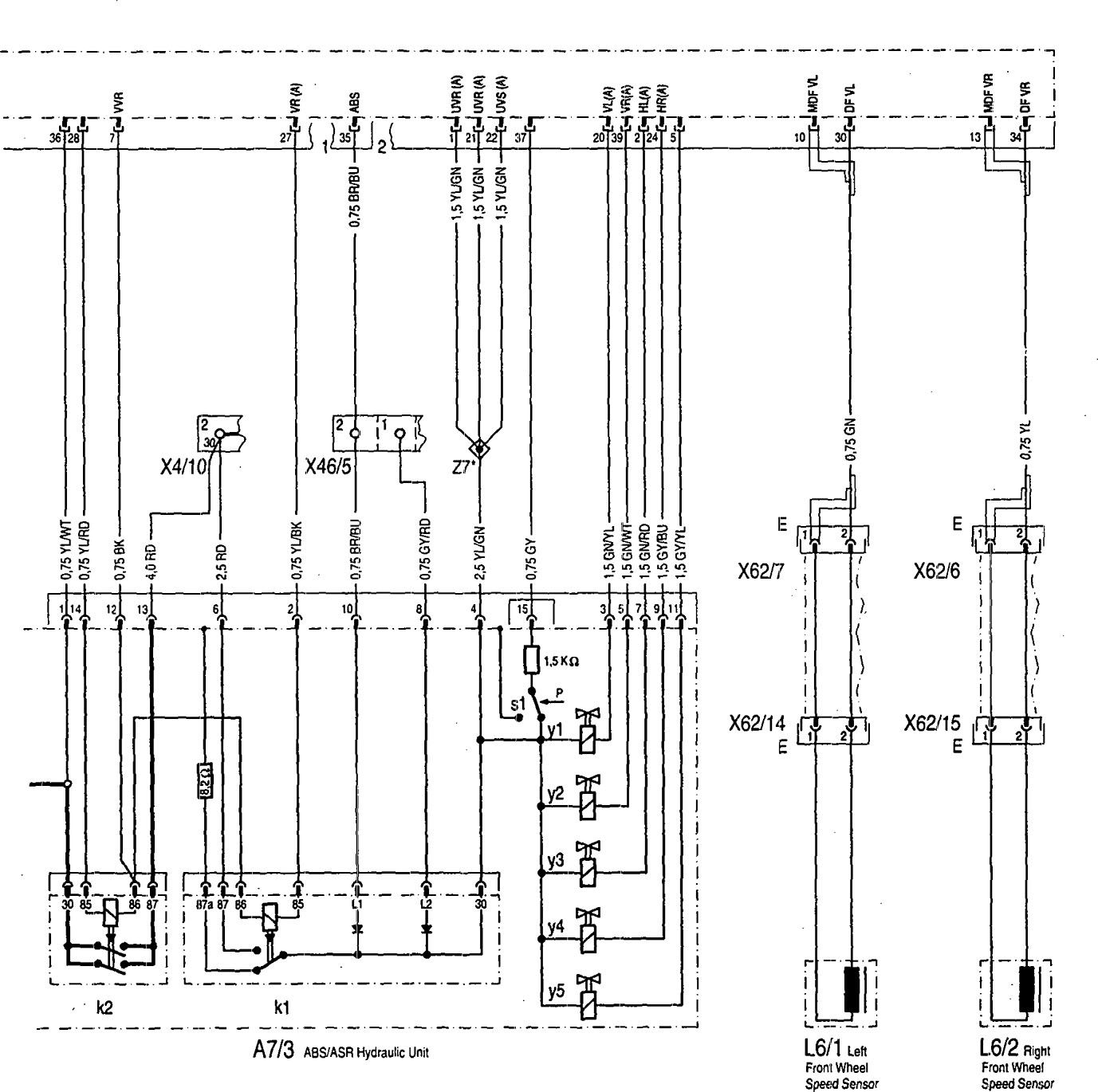

Mercedes-Benz 300SE - wiring diagram - ABS (part 3)
Mercedes-Benz 500SEL – wiring diagram – ABS (part 3)

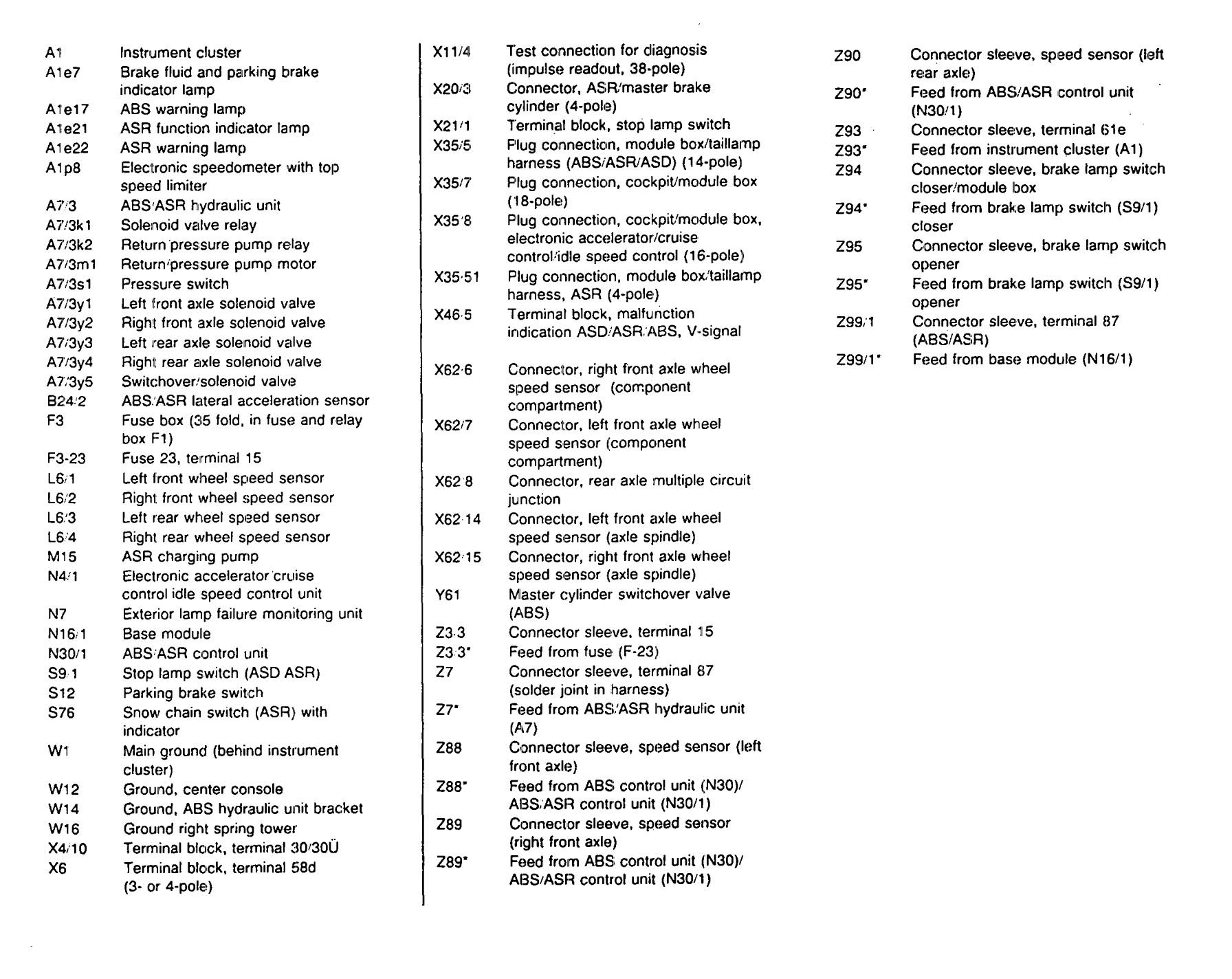

Mercedes-Benz 300SE - wiring diagram - ABS (part 4)
Mercedes-Benz 500SEL – wiring diagram – ABS (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
