Lincoln Navigator (1999 – 2002) – fuse box diagram

Lincoln Navigator (1999 – 2002) – fuse box diagram

Year of production: 1999, 2000, 2001, 2002

Passenger compartment fuse panel

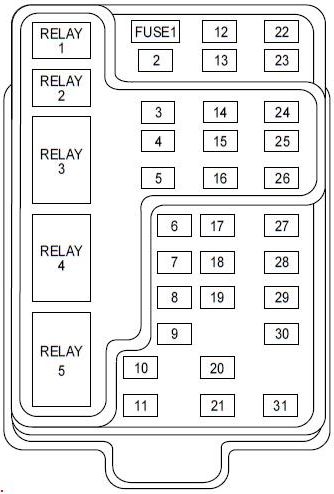

Lincoln Navigator - fuse box diagram - passenger compartment

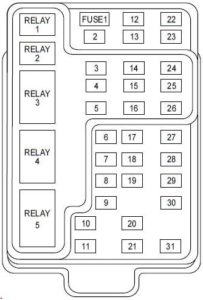

Lincoln Navigator – fuse box diagram – passenger compartment
No.
A
Circuit Protected
1 25 Audio
2 5 Clock, Overhead Trip Computer, Electronic Automatic Temperature Control (EATC), Powertrain Control Module (PCM), Cluster, Navigation (’00-’02)
3 20 Cigar Lighter, OBD-II Scan Tool Connector
4 15 ’99: Autolamp Module, Remote Entry Module, Mirrors, Memory Module, Adjustable Pedals, Air Suspension Switch
7.5 ’00-’02: Remote Entry Module, Mirrors, Memory Module, Adjustable Pedals, Drivers Seat, Power Fold Mirrors
5 15 AC Clutch Relay (’99), Speed Control Module, Reverse Lamp, EVO Module (’99), Climate Mode Switch (’99), Daytime Running Lamp Relay, Reverse Sensing System (’00-’02), Autolock (’00-’02), E/C Mirror (’00-’02), Navigation (’00-’02)
6 5 Cluster, Overhead Trip Computer, Compass, Steering Sensor, Brake Shift Interlock Solenoid, Air Suspension Module, GEM Module, Heated Mirror (’00-’02), Rear Defroster (’00-’02), Reverse Sensing System (’00-’02), Automatic Park Brake Release (’00-’02)
7 5 Aux A/C Blower Relay, Console Blower
8 5 Radio (’99), Remote Entry Module, Cell Phone, Clock, GEM Module
9 Not Used
10 Not Used
11 30 Front Washer Pump Relay, Wiper Run/Park Relay, Wiper Hi/LO Relay, Windshield Wiper Motor, Rear Washer Pump Relay
12 15 ’00-’02: Air Suspension Switch
13 20 Stop Lamp Switch (Lamps), Turn/Hazard Flasher, Speed Control Module
14 15 Rear Wipers, Running Board Lamps, Battery Saver Relay, Interior Lamp Relay, Accessory Delay Relay (Power Windows, Flip Windows, Audio, Moonroof (’00-’02), Homelink (’00-’02))
15 5 Stop Lamp Switch, (Speed Control, Brake Shift Interlock, ABS, PCM Module Inputs), GEM Module, Autolock (’00-’02), Air Suspension Module (’00-’02)
16 20 Headlamps (Hi Beams), Cluster (Hi Beam Indicator)
17 10 Heated Mirrors/Rear Window Defroster Indicator
18 5 Instrument Illumination (Dimmer Switch Power), Clock (Dimmer), Navigation Screen (’00-’02)
19 Not Used
20 5 Audio, Air Suspension Module, Memory Module, GEM Module, Digital Transmission Range Selector
21 15 Starter Relay, Fuse 20, Digital Transmission Range Selector (’00-’02)
22 10 Air Bag Module, EATC (’00-’01), EATC Blower Relay (’00-’01), Feeds Fuse 7 (’00-’01), Intelligent Passenger Air Bag Deactivation Module (’02)
23 10 Electrochromic Mirror, Aux A/C, Heated Seats, Trailer Tow Battery Charge, Turn/Hazard Flasher, Console Blower Door Actuator, 4×4 Clutch Relay (’00-’02), 4 Wheel Anti-Lock Brake System (4WABS) Module (’00-’02)
24 10 ’99: Climate Mode Switch (Blower Relay), EATC (via fuse 7), EATC Blower Relay
’02: EATC Module, EATC Blower/Flasher Relay, Climate Control Selector Switch , Feeds fuse 7
25 5 ’99: 4 Wheel Anti-Lock Brake System (4WABS) Module
26 10 Right Side Low Beam Headlamp
27 5 Foglamp Relay and Foglamp Indicator
28 10 Left Side Low Beam Headlamp
29 5 Autolamp Module, Transmission Overdrive Control Switch
30 30 Passive Anti Theft Transceiver, Cluster, Ignition Coils, Powertrain Control Module Relay
31 10 Rear Integrated Control Panel (Audio), CD Player, Cell Phone
Relay
R1 Interior Lamp
R2 Battery Saver
R3 Rear Window Defroster
R4 One Touch Down Window
R5 ACC Delay

Engine Compartment Fuse Box

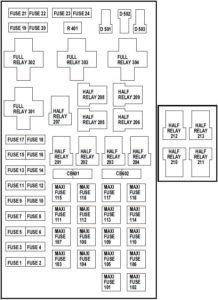

Lincoln Navigator – fuse box diagram – engine compartment
Lincoln Navigator – fuse box diagram – engine compartment
No.
A
Circuit Protected
1 25 ’99: Power Point
20 ’00-’02: Power Point
2 30 Powertrain Control Module
3 30 Headlamps/Autolamps
4 25 ’99: Console Power Point
20 ’00-’02: Console Power Point
5 20 Trailer Tow Backup/Park Lamps
6 15 Parklamps/Autolamps, Feeds Passenger Compartment Fuse 18 (’00-’02)
7 20 Horn
8 30 Power Door Locks
9 15 Daytime Running Lamps (DRL), Fog Lamps
10 20 Fuel Pump
11 20 Alternator Field
12 10 Rear Wipers
13 15 ’00-’02: A/C Clutch
14 Not Used
15 10 Running Board Lamps
16 Not Used
17 10 Delayed Accessoiy (Audio, Moonroof (’99), Flip Windows (’00-’02))
18 15 Powertrain Control Module, Fuel Injectors, Fuel Pump, Mass Air Flow Sensor
19 10 Trailer Tow Stop and Right Turn Lamp
20 10 Trailer Tow Stop and Left Turn Lamp
21 Not Used
22 Not Used
23 15 Powertrain Control Module (’99), HEGO Sensors, Canister Vent, Transmission (’00-’02), CMS Sensor (’00-’02)
24 15 ’99: Powertrain Control Module, Transmission, CMS Sensor
101 30 Trailer Tow Battery Charge
102 50 Four Wheel Antilock Brake Module
103 50 Junction Box Battery Feed
104 30 4×4 Shift Motor & Clutch
105 40 Climate Control Front Blower
106 Not Used
107 30 Passenger Power Seat, Passenger Seat Lumbar (’00-’02)
108 30 Trailer Tow Electric Brake
109 50 Air Suspension Compressor
110 30 ’99: Moonroof, Flip Windows and Heated Seats
’00-’02: Heated Seats/CCS
111 50 Ignition Switch Battery Feed (Run and Start Circuits)
112 30 Memory (Drivers Seat, Adjustable Pedals, Mirrors), Drivers Seat Lumbar (’00-’02)
113 50 ’99: Ignition Switch Battery Feed (Run and Accessory Circuits)
40 ’00-’02: Ignition Switch Battery Feed (Run and Accessory Circuits)
114 30 Climate Control Auxilary Blower
115 Not Used
116 40 Rear Window Defroster, Heated Mirrors
117 Not Used
118 Not Used
601 30 Circuit Breaker: Delayed Accessory (Power Windows, Flip Windows, Radio, Moonroof (’00-’02))
602 Not Used
Relay
201 Trailer Tow Park Lamp
202 Front Wiper Run/Park
203 Trailer Tow Backup Lamp
204 A/C Clutch
205 ’99: Horn
’00-’02: Rear Wiper Down
206 Fog Lamp
207 Front Washer Pump
208 ’99: Rear Washer Pump
’00-’02: Rear Washer Pump
209 ’99: Front Wiper Hi/Lo
’00-’02: Rear Wiper Up
210 ’99: Not Used
211 ’99: Not Used
212 ’99: Rear Wiper Up
213 ’99: Rear Wiper Down
301 Fuel Pump
302 Trailer Tow Battery Charge
303 ’00-’02: Front Wiper Hi/Lo
304 Powertrain Control Module
401 Not Used
Diode
501 Powertrain Control Module
502 A/C Clutch
503 ’00-’02: Automatic Park Brake Release

Primary battery fuses (megafuses)

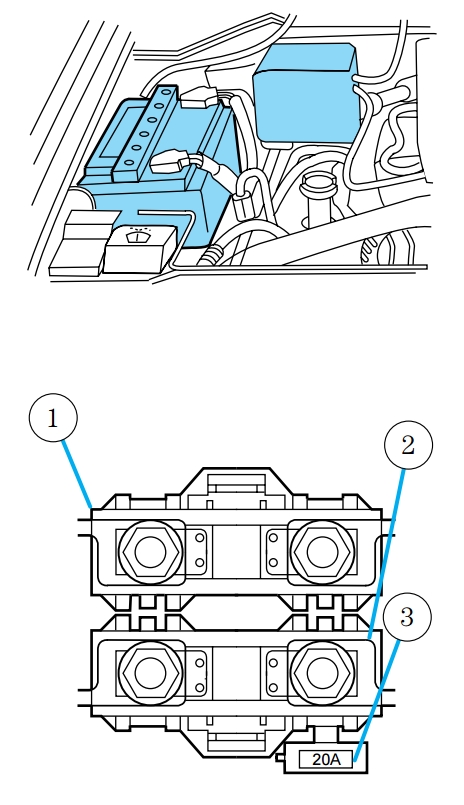

Lincoln Navigator - fuse box diagram - primary battery fuses
Lincoln Navigator – fuse box diagram – primary battery fuses

Relays are located in the power distribution box and should be replaced by qualified technicians

Location Amperage Description
1 175 Power Network Box Megafuse
2 175 Alternator Megafuse
3 20 Alternator Field Minifuse

Engine mini fuse box

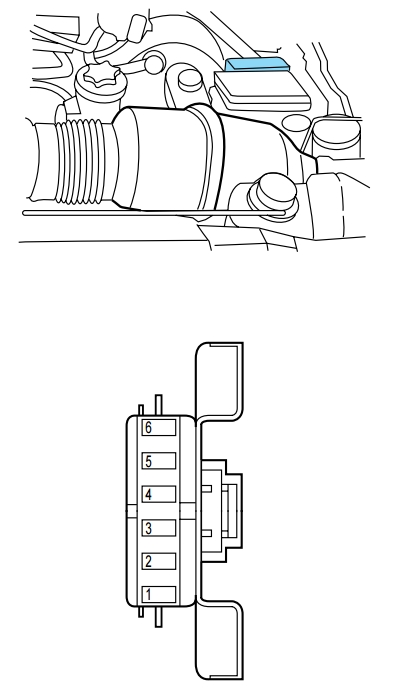

Lincoln Navigator - fuse box diagram - engine mini fuse box
Lincoln Navigator – fuse box diagram – engine mini fuse box

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
