Lincoln MKX (2016 – 2018) – fuse box diagram
Year of production: 2016, 2017, 2018

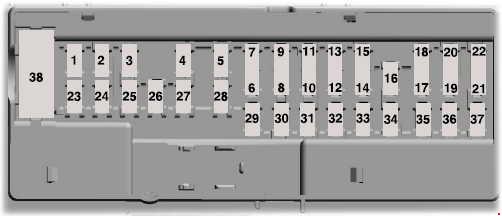

Passenger compartment fuse panel
No. | A | Protected Components |
1 | 10 | ’16: Demand lighting (glove box, vanity, dome), Battery saver relay coil, Second row easy fold relay coil |
2 | 7.5 | Memory seats, Lumbar, Power mirrors (’16), Driver seat module logic power |
3 | 20 | Driver door unlock |
4 | 5 | Not used (spare) |
5 | 20 | Subwoofer amplifier |
6 | 10 | USB charger |
7 | 10 | Not used (spare) |
8 | – | ’17-’18: Security horn relay |
9 | 10 | Rear seat entertainment system module, 360 camera badge |
10 | 5 | Keypad, Power liftgate module logic power, Handsfree liftgate module, MyLincoln module (’16), SYNC 3 module (’17-’18), Embedded modem (’18) |
11 | 5 | ’17-’18: Combined sensing module |
12 | 7.5 | Climate control module, Gear shift module (’17-’18) |
13 | 7.5 | Steering column control module, Smart datalink connector (gateway) module |
14 | 10 | ’17-’18: Extended power module – power |
15 | 10 | Datalink power |
16 | 15 | Not used (spare) |
17 | 5 | Not used (spare) |
18 | 5 | ’16: Ignition switch, Push button start switch, Key inhibit solenoid |
19 | 7.5 | ’17-’18: Extended power module – Run/Start |
20 | 7.5 | Active front steering logic power |
21 | 5 | Humidity and in-car temperature sensor |
22 | 5 | Occupant classification sensor |
23 | 10 | Delayed accessory (power inverter logic, moonroof logic, driver window switch power), Heads up display (’16), Gear shift module (’16), Front camera (’16), 360 camera module (’16) |
24 | 20 | Central lock unlock |
25 | 30 | Driver door (window, mirror), Driver door module, Driver door lock indicator, Driver lock switch illumination |
26 | 30 | Front passenger door (window, mirror), Front passenger door module, Front passenger lock indicator, Front passenger switch illumination (window, lock) |
27 | 30 | Moonroof |
28 | 20 | Amplifier |
29 | 30 | Rear driver side door smart window |
30 | 30 | Rear passenger side door smart window |
31 | 15 | Not used (spare) |
32 | 10 | Global positioning system module (’16), Centerstack display (’16), Voice control (SYNC), Radio transceiver module, Multimedia gateway module (’16) |
33 | 20 | Radio |
34 | 30 | Run-start bus (fuse 19, 20, 21, 22, 35,36, 37, circuit breaker 38) |
35 | 5 | ’16: Restraints control module |
36 | 15 | Auto-dimming rearview mirror, Heated seat (’16), Auto high beam/lane departure mirror module, Rear heated seat module logic power, Suspension module |
37 | 20 | ’16: Heated steering wheel module (without active front steering) |
38 | 30 | Rear power windows, Rear window switch illumination |

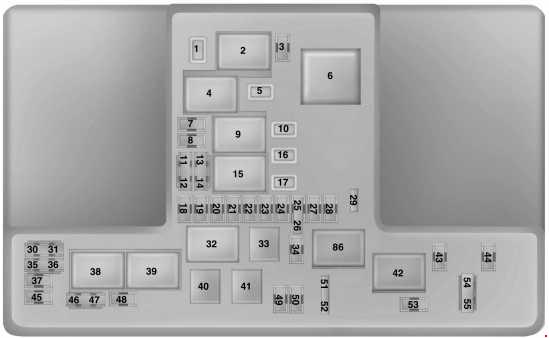

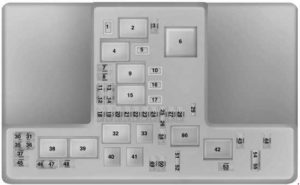

Engine Compartment Fuse Box
No. | A | Protected Components |
1 | 30 | Power fold 2nd row seats |
3 | 15 | Rear wiper, Rain sensor |
5 | 20 | Power point 3 – back of console |
7 | 20 | Powertrain control module – vehicle power 1 |
8 | 20 | Powertrain control module – vehicle power 2 |
10 | 20 | ’16-’17: Power point 1 – driver front ’18: Power point 5 – main bin |
11 | 15 | Powertrain control module – vehicle power 4 |
12 | 15 | Powertrain control module – vehicle power 3 |
13 | – | Not used |
14 | – | Not used |
16 | 20 | Power point 2 – console bin |
17 | 20 | Power point 4 – luggage compartment |
18 | 20 | RH HID headlamp |
19 | 10 | Run-start electronic power assist steering |
20 | 10 | Run/start lighting |
21 | 15 | Transmission oil pump logic power (start/stop) |
22 | 10 | Air conditioner clutch solenoid |
23 | 15 | ’16: Run-start 6, Blind spot information system, Rear view camera, Adaptive cruise control, Heads-up display, Voltage quality module (start/stop), Front split view camera, Front split view camera module ’17-’18: Front split view camera, Rear view camera, Front split view camera module, Gear shift actuator |
24 | 10 | Not used (spare) |
25 | 10 | Run-start anti-lock brake system |
26 | 10 | Run-start powertrain control module |
27 | – | Not used |
28 | 10 | Rear washer pump |
29 | – | Not used |
30 | – | Not used |
31 | – | Not used |
34 | 15 | Glove box release |
35 | – | Not used |
36 | – | Not used |
37 | 10 | Power transfer unit fan |
43 | 10 | 2nd row easy fold seat release |
44 | 20 | LH HID headlamp |
45 | – | Not used |
46 | – | Not used |
47 | – | Not used |
48 | – | Not used |
49 | – | Not used |
50 | 20 | Horn |
51 | – | Not used |
52 | – | Not used |
53 | 10 | ’16-’17: Multi-contour seats |
54 | 10 | Brake on off switch |
55 | 10 | ALT sensor |
Relay | ||
2 | Starter | |
4 | Blower motor | |
6 | Not used | |
9 | Powertrain control module | |
15 | Run-start | |
32 | Electronic fan 1 | |
33 | A/C clutch | |
38 | Electronic fan 2 | |
39 | Electric fan 3 | |
40 | Horn | |
41 | Not used | |
42 | Fuel pump | |
86 | Not used |

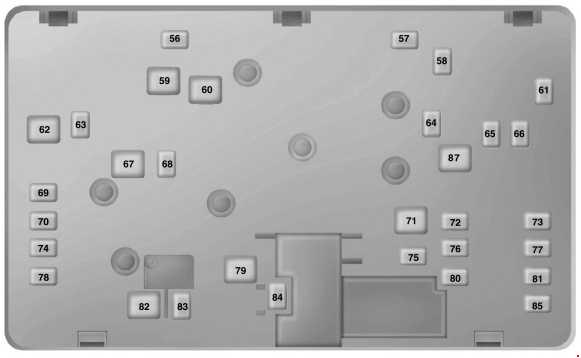

There are fuses located on the bottom of the fuse box.
No. | A | Protected Components |
56 | – | Not used |
57 | 20 | ’18: Power point 1 – driver front |
58 | 30 | Fuel pump feed |
59 | 40 | Electronic fan 3 |
60 | 40 | Electronic fan 1 |
61 | — | Not used |
62 | 50 | Body control module 1 |
63 | 25 | Electronic fan 2 |
64 | 20 | Headlamp washer |
65 | 20 | Front heated seat |
66 | 15 | ’17-’18: Heated wiper park |
67 | 50 | Body control module 2 |
68 | 40 | Heated rear window |
69 | 30 | Anti-lock brake system valves |
70 | 30 | Passenger seat |
71 | 50 | Active front steering |
72 | 20 | Transmission oil pump (start/stop) |
73 | 20 | Rear heated seats |
74 | 30 | Driver seat module |
75 | 25 | Wiper motor 1 |
76 | 30 | Power liftgate module |
77 | 30 | Climate control seat module |
78 | 40 | Trailer lighting module |
79 | 40 | Blower motor |
80 | 25 | Wiper motor 2 |
81 | 40 | 110 volt inverter |
82 | – | Not used |
83 | 20 | TRCM (iShifter) |
84 | 30 | Starter solenoid |
85 | 30 | ’16: Vista roof |
87 | 60 | Anti-lock brake system pump |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
