Kia Sephia Sport FL (2009 – 2011) – fuse box diagram

Kia Sephia Sport FL (2009 – 2011) – fuse box diagram

Also called:

  • Kia Rio
  • Kia New Pride
  • Kia Rio Xcite

Year of production: 2009, 2010, 2011

Engine compartment

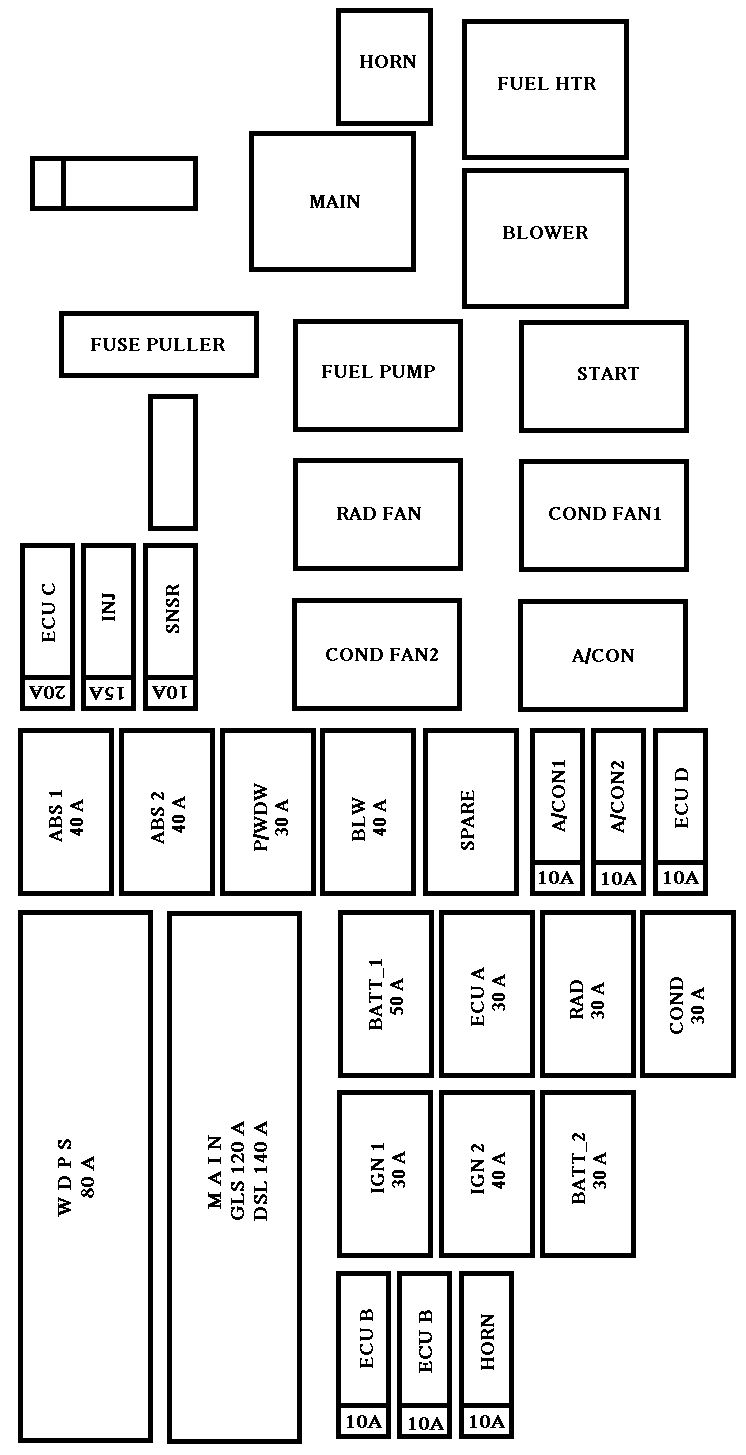

KIA New Sephia FL - fuse box - engine compartment
KIA New Sephia FL – fuse box – engine compartment
Description Fuse rating [A] Protected component
BATT_1 50 Alternator, Battery
ECU A 30 Engine control unit
RAD 30 Radiator fan
COND 30 Condenser fan
ECU B 10 Engine control unit
SPARE Spare fuse
HORN 10 Horn
IGN1 30 Ignition
IGN2 40 Ignition
BATT_2 Alternator, Battery
MAIN 125 Alternator
MDPS 80 Power steering wheel
ABS1 40 ABS
ABS2 40 ABS
P/WDW 30 Power window
BLW 40 Blower
SPARE Spare fuse
A/CON1 10 Air conditioner
A/CON2 10 Air conditioner
ECU D 10 Engine control unit
SNSR 10 Sensor
INJ 15 Injector
ECU C 20 Engine control unit
SPARE Spare fuse
SPARE Spare fuse
HORN Horn relay
MAIN Main relay
FUEL PUMP Fuel pump relay
RAD FAN Radiator fan relay
COND FAN2 Condenser fan relay
FUEL HTR Fuel filter heater relay
BLOWER Blower motor relay
START Start motor relay
COND FAN1 Condenser fan relay
A/CON Air conditioner relay

Driver-side knee bolster

KIA New Sephia FL - fuse box - driver's side knee bloster
KIA New Sephia FL – fuse box – driver’s side knee bloster
Description Fuse rating [A] Protected component
RR WIPER 15 Rear wiper
H/LP (LH) 10 Headlight (left)
FR WIPER 25 Front wiper
BLOWER 10 Blower
H/LP(RH) 10 Headlight (right)
S/ROOF 20 Sunroof
STOP LP 15 Stop light
C/DR LOCK 20 Central door lock
IGN COIL 15 Ignition coil
ABS 10 ABS
B/UP LP 10 Back-up light
SPARE Spare fuse
C/LIGHTER 25 Cigar lighter
FOLD’G 10 Outside rearview mirror folding
HTD SEAT 20 Seat warmer
AMP 25 Amplifier
FR FOG LP 10 Front fog light
SPARE Spare fuse
ECU 10 Engine control unit
CLUSTER 10 Cluster
P/WDW RH 25 Power window (right)
AUDIO 10 Audio
RR FOG LP 10 Rear fog light
IGN 10 Ignition
HTD GLASS 30 Rear window defroster
A/BAG 15 Air bag
TCU 10 Automatic transaxle control
SNSR 10 Sensor
SPARE Spare fuse
MULT B/UP 10 Cluster, ETACS, A/C, Clock, Room lamp
AUDIO 15 Audio
P/WDW LH 25 Power window (left)
HTD MIRR 10 Outside rearview mirror heater
TAIL LP(LH) 10 Taillight (left)
TAIL LP(RH) 10 Taillight (right)
HAZARD 10 Hazard warning light
T/SIG LP 10 Turn signal light
A/BAG IND 10 Air bag warning
START 10 Start motor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
