KIA Clarus (1996 – 2001) – fuse box diagram
Year of production: 1996, 1997, 1998, 1999, 2000, 2001

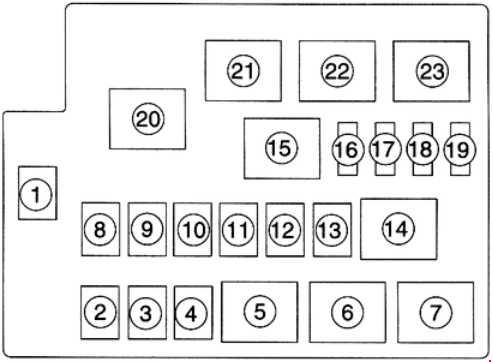

Engine compartment fuse box
| No. |
A |
Circuits protected |
| 1 | 80 | Main |
| 2 | 20 | Head lamp |
| 3 | – | – |
| 4 | 20 | Injector |
| 5 | Headlamp relay | |
| 6 | Condensor fan relay | |
| 7 | Cooling fan relay | |
| 8 | 50 | Ignition |
| 9 | 20 | ABS |
| 10 | 30 | Qir-con. |
| 11 | 30 | Cooling fan |
| 12 | 30 | Heater |
| 13 | 60 | Battery |
| 14 | Air-con. relay | |
| 15 | Main relay | |
| 16 | 15 | Main relay |
| 17 | 20 | ABS |
| 18 | 10 | EGR |
| 19 | 10 | Rear fog |
| 20 | Horn-relay | |
| 21 | Fogplamp relay | |
| 22 | Small relay | |
| 23 | Fuel pump relay |

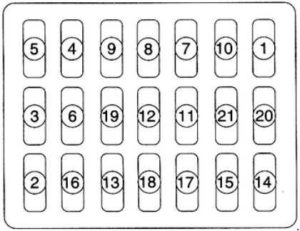

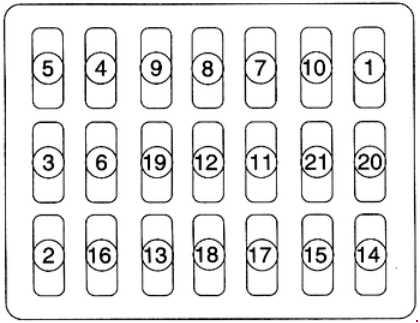

The instrument panel fuse panel
| No. |
A |
Circuits protected |
| 1 | 30 | Power window |
| 2 | 10 | Radio |
| 3 | 20 | Cigar lighter |
| 4 | 15 | Engine |
| 5 | 10 | Fuel tank |
| 6 | 15 | Meter |
| 7 | 20 | Wiper |
| 8 | 15 | Side lamp |
| 9 | 10 | (Air-bag) |
| 10 | 15 | Sun roof |
| 11 | 15 | Air-con. |
| 12 | 15 | Fog-lamp |
| 13 | 15 | Hazard lamp |
| 14 | 30 | Door lock |
| 15 | 15 | Room lamp |
| 16 | 30 | (Power seat) |
| 17 | 20 | Stop lamp |
| 18 | 15 | Turnk opener |
| 19 | 15 | Turn signal lamp |
| 20 | 15 | Spare |
| 21 | 30 | Rear window heater |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
