Infiniti M30 (1990 – 1992) – fuse box diagram

Infiniti M30 (1990 – 1992) – fuse box diagram

Year of  production: 1990, 1991, 1992

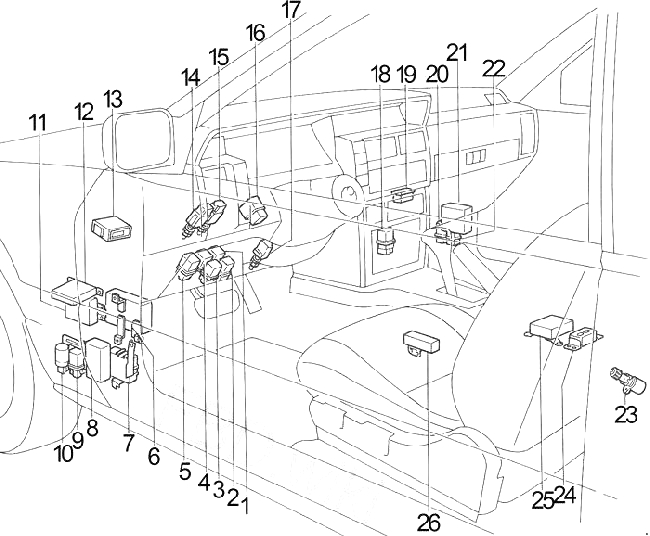

Passenger Compartment

Infiniti M30 - fuse box diagram - passenger compartment
Infiniti M30 – fuse box diagram – passenger compartment
  1. Ignition Relay No.1
  2. Door Lock Relay
  3. Accessory Relay No.2
  4. Ignition Relay No.2
  5. Accessory Relay No.1
  6. Automatic Transmission Control Unit
  7. Time Control Unit
  8. Door Lock Timer No.1
  9. Rear Window defogger Relay
  10. Circuit Breaker (Power Door Lock, Power Seat)
  11. Theft Warning Control Unit
  12. Door Lock Timer No.2
  13. Shift Lock Control Unit
  14. Stop Lamp Switch
  15. Automatic Speed Control Device (ASCD) Cancel Switch
  16. Combination Flasher Unit
  17. Kickdown Switch
  18. Blower Relay (High Speed – Automatic A/C)
    Blower Relay (Manual A/C)
  19. Warning Chime
  20. Electronic Concentrated Engine Control (ECCS) Relay
  21. Electronic Concentrated Engine Control (ECCS) Control Unit
  22. Safety Relay
  23. Speed Sensor (on rear extension)
  24. Tunnel Sensor and Safing Sensor
  25. Air Bag Control Unit
  26. Power Window Amplifier

Passenger Compartment Fuse Box

Infiniti M30 - fuse box diagram - passenger compartment fuse box
Infiniti M30 – fuse box diagram – passenger compartment fuse box
No.
A
Circuit Protected
1 15 Headlamp, Theft Warning System
2 15 Headlamp, Theft Warning System
3 15 Clearance Lamps, Tail Lamps, License Lamps, Side Marker Lamp, Illumination Lamps, Glove Box Lamp
4 10 Spot Lamp, Vanity Lamp, Trunk Room Lamp, Interior Lamp, Step Lamp, Key Illumination, Time Control System, Automatic Transmission Control Unit, Theft Warning System, Automatic Air Conditioner, Illuminated Entry System, Audio (except Bose), Air Bag System
5 10 Hazard Warning
6 15 Stop Lamp, Shift Lock Control System, Automatic Speed Control Device
7 10 Horn, Theft Warning System
8 15 Blower Motor, Automatic A/C Amplifier
9 15 Blower Motor, Automatic A/C Amplifier
10 10 Audio, Power Antenna
11 20 Rear Window Defogger
12 20 Rear Window Defogger
13 10 Warning Lamp, Meter, Gauge, Time Control System, Automatic Air Conditioner, Automatic Speed Control Device, Rear Window Defogger, Power Antenna, Power Window, Air Bag System
14 10 Hazard Warning
15 10 Shift Lock Control System, Automatic Transmission Control Unit, Theft Warning System, ABS, Sonar Suspension System
16 10 Air Bag System
17 10 Electronic Concentrated Engine Control (ECCS)
18 20 Wiper and Washer
19 15 Cigarette Lighter
20 10 Door Mirror, Manual Air Conditioner, Theft Warning System, Time Control System, Clock

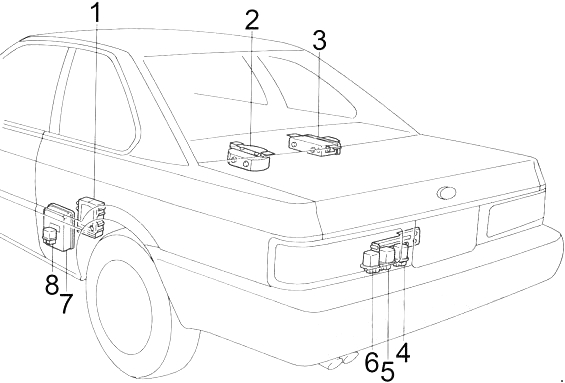

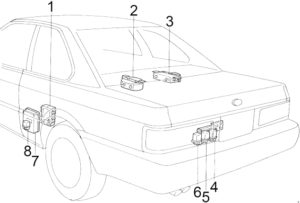

Infiniti M30 - fuse box diagram - passenger compartment
Infiniti M30 – fuse box diagram – passenger compartment
  1. Sonar Suspension Control Unit
  2. Audio Amplifier
  3. ABS Control Unit
  4. Fuel Pump Relay
  5. Trunk Lid Opener Relay
  6. Fuel Filler Lid Opener Relay
  7. Automatic Speed Control Device (ASCD) Control Unit
  8. Automatic Speed Control Device Hold Relay

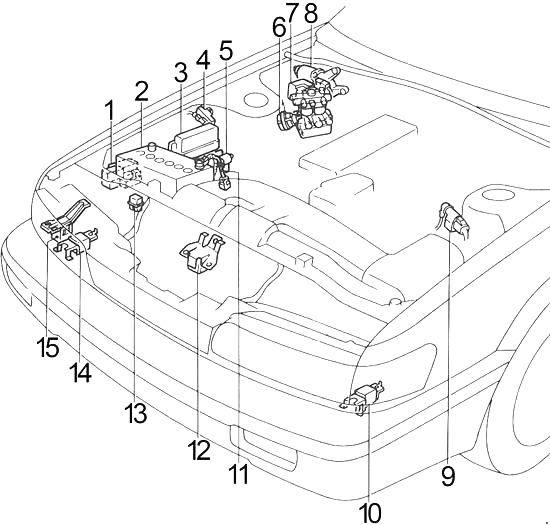

Engine Compartment

Infiniti M30 - fuse box diagram - engine compartment fuse box
Infiniti M30 – fuse box diagram – engine compartment fuse box
  1. Fuse Box
  2. Battery
  3. Relay Box
  4. Dropping Resistor
  5. Automatic Speed Control Device (ASCD) Pump
  6. Automatic Speed Control Device Actuator
  7. ABS Actuator
  8. Wiper Motor
  9. Ignition Coil
  10. Left Crash Zone Sensor
  11. Fusible Link
  12. Center Crash Zone Sensor
  13. Starter Relay
  14. Right Crash Zone Sensor
  15. Sonar Road Surface Sensor (for Sonar Suspension System)

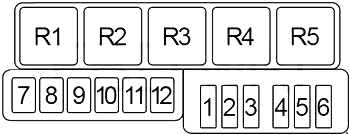

Engine Compartment Fuse Box

Infiniti M30 - fuse box diagram - engine compartment fuse box
Infiniti M30 – fuse box diagram – engine compartment fuse box
No.
A
Circuit Protected
1 20 ABS
2 10 Time Control System, Shift Lock Control System
3 10 Electronic Concentrated Engine Control (ECCS), Radiator Fan Relay
4 20 Trunk Lid Opener, Fuel Filler Lid Opener
5 15 BOSE Amplifier
6 15 BOSE Amplifier
7 ABS
8 Ignition Switch
9  –
10 Circuit Breaker (Power Door Lock, Power Seat)
11 Electronic Concentrated Engine Control (ECCS)
12 Radiator Fan
Relay
R1 Horn
R2 Radiator Fan
R3 Inhibitor
R4 Air Conditioner
R5 Wiper

Engine Compartment Relay Box

Infiniti M30 - fuse box diagram - engine compartment relay box
Infiniti M30 – fuse box diagram – engine compartment relay box
No.
Circuit Protected
R1 Theft Warning (No.1)
R2 Theft Warning (No.2)
R3 Theft Warning (No.3)
R4 Theft Warning Horn
R5 Switching

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
