Infiniti G20 – P10 (1990 – 1996) – fuse box diagram

Infiniti G20 – P10 (1990 – 1996) – fuse box diagram

Year of production: 1990, 1991, 1992, 1993, 1994, 1995, 1996

Passenger Compartment Fuse Box

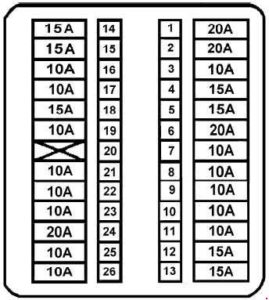

Infiniti G20 - fuse box diagram - passenger compartment

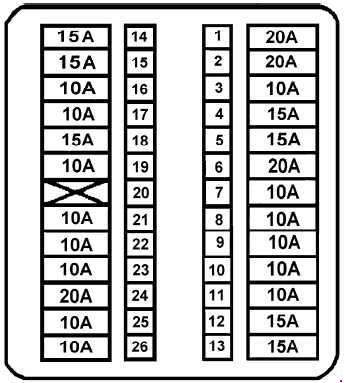

Infiniti G20 – fuse box diagram – passenger compartment
Fuse Ampere ratting [A] Description
1 20 Rear Window Defogger
2 20 Rear Window Defogger
3 10 up to 1993: Shift Lock System Time, Control Unit (A/T Only)
as of 1993.5: Trunk & Fuel Filler Lid Opener, Multi-Remote Control System
4 15 Blower Motor
5 15 Blower Motor
6 20 Wiper & Washer
7 10 Electronic Control Computer System (ECCS), Bulb Check Relay, Theft Warning System, Radiator Fan System, Starting System (1993.5-1995), A/T Control System (1993.5-1995), A.S.C.D (1993.5-1995)
8 15 up to 1993: Fuel Pump
10 as of 1993.5: Air Bag System
9 10 Audio, Clock Illumination
10 10 Air Conditioner, Time Control Unit, Theft Warning System
11 10 Door Mirror
12 15 Cigarette Lighter
13 15 Front Foglight
14 15 as of 1993.5: Audio
15 15 as of 1993.5: Fuel Pump
16 10 Starting System, Electronic Control Computer System (ECCS), Clutch Interlock Relay (M/T Only), Daytime Light Unit (Canada Only), Theft Warning System (1993.5-1995)
17 10 Hazard Warning, Multi-Remote Control System (1993.5-1995)
18 10 Horn, Theft Warning System, A.S.C.D. (1993.5-1995)
19 10 Taillights, Clearance Lights, License Plate Light, Side Marker Lights, Illumination Lights, Clock, Warning Chime
20
21 10 up to 1993: Combination Meter, Shift Lock System, Check Connector, Rear Window Defogger Relay, Power Antenna Timer, Blower Relay, Back-Up Light
as of 1993.5: Combination Meter, Shift Lock System (A/T), Blower Relay, Data Link Connector (Check Connector), Back-Up Light, Rear Window Defogger Relay, Daytime Light Unit (Canada), A/T Control System, Power Antenna Timer, Seat Belt Relay, Heated Mirror Relay
22 10 Turn Signal
23 10 Electronic Control Computer System (ECCS)
24 20 up to 1993: Stoplights
as of 1993.5: Stoplights, A.S.C.D, Shift Lock System, ABS System
25 10 Interior Lights, Spotlights, Trunk Room Lights, Time Control Unit, Theft Warning System, Power Antenna Timer, Two-Point Motorized Automatic Seat Belt System (1990-1993)
26 10 Anti-Lock Braking System, Time Control Unit, Two-Point Motorized Automatic Seat Belt System, Automatic Speed Control Device (ASCD), Daytime Light Unit (Canada Only)

Engine Compartment Fuse Box

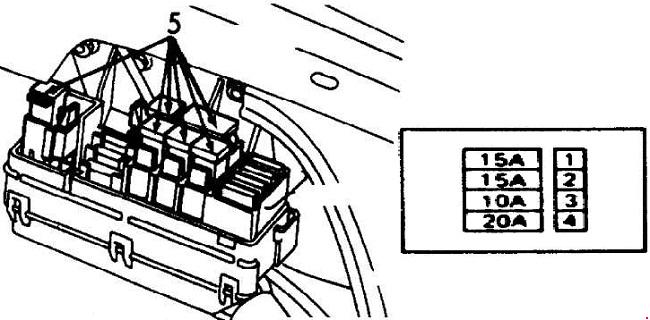

Infiniti G20 - fuse box diagram - engine compartment
Infiniti G20 – fuse box diagram – engine compartment
Number Ampere ratting [A] Description
1 15 Headlights
2 15 Daytime Light Unit (Canada Only)
3 10 Electronic Control Computer System (ECCS)
4 20 Anti-Lock Brake System
5 30 Ignition Switch (Fusible Link)
6 30 Main Harness (Fusible Link)
7 25 ECCS (Fusible Link)
8 75 Alternator (Fusible Link)
9 30 Radiator Fan System (Fusible Link)
Radiator Fan System (Relay-3 A/T Models)
10 30 ABS System Relay Box, ABS Control Unit (Fusible Link)

Engine Compartment Relays (Right Fenderwell – A/T Models (1990-1993))

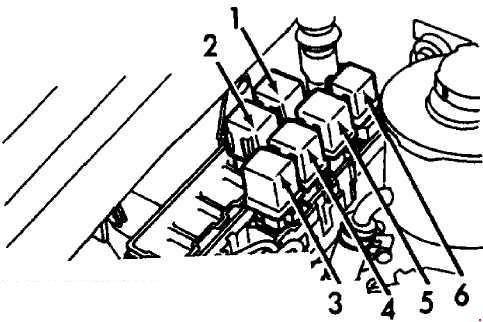

Infiniti G20 - fuse box diagram - engine compartment relay box
Infiniti G20 – fuse box diagram – engine compartment relay box
Number Description
1 Theft Warning Relay – 1
2 Automatic Speed Control Device (ASCD)
3 Air Conditioner Relay
4 Theft Warning Relay – 2
5 Front Foglight Relay
6 Horn Relay



Engine Compartment Relays (Right Fenderwell – M/T Models (1990-1993))

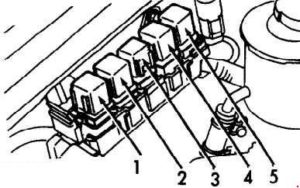

Infiniti G20 - fuse box diagram - engine compartment relay box

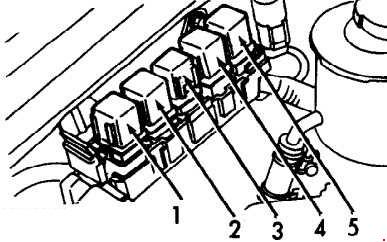

Infiniti G20 – fuse box diagram – engine compartment relay box
Number Description
1 Air Conditioner Relay
2 Automatic Speed Control Device Hold Relay (ASCD)
3 Horn Relay
4 Theft Warning Relay – 1
5 Theft Warning Relay – 2



Engine Compartment Relays (Right Fenderwell (1993.5-1995))

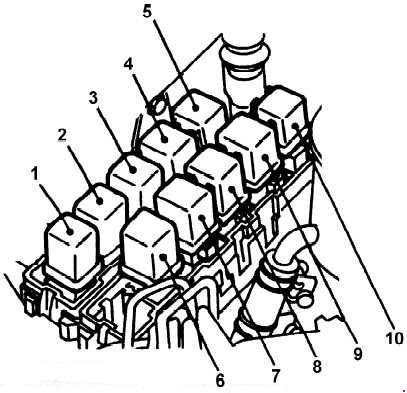

Infiniti G20 - fuse box diagram - engine compartment relay box
Infiniti G20 – fuse box diagram – engine compartment relay box
Number Description
1 Radiator Ran Relay – 3
2 Horn Relay – 2
3 Radiator Fan Relay
4 Automatic Speed Control Device Hold Relay (ASCD)
5 Front Foglight Relay
6 Air Conditioner Relay
7 Daytime Light Relay (Canada)
8 Heated Mirror Relay
9 Theft Warning Relay – 1
10 Horn Relay

Engine Compartment Relays (By Battery)

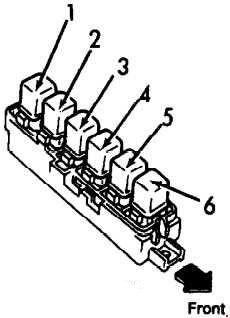

Infiniti G20 - fuse box diagram - engine compartment relay box
Infiniti G20 – fuse box diagram – engine compartment relay box
Number Description
1 up to 1993: Fuel Pump Relay
as of 1993.5: Front Wiper Rela
2 1991: Front Foglight Relay (M/T Models)
1992-1995: ECCS Relay
3 1991-1993: Radiator Fan Relay – 2 (A/T Models)
1992-1993: Front Foglight Relay (M/T Models)
as of 1993.5: Theft Warning Relay – 2
4 up to 1993: Radiator Fan Relay – 1
as of 1993.5: Fuel Pump Relay
5 Clutch Interlock Relay (U.S. M/T Models)
Inhibitor Relay (A/T Models)
6 up to 1993: Front Wiper Relay
as of 1993.5: Radiator Fan Relay – 2

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
