GMC Terrain (from 2017) – fuse box diagram

GMC Terrain (from 2017) – fuse box diagram

Year of production: 2017

Engine Compartment Fuse Block

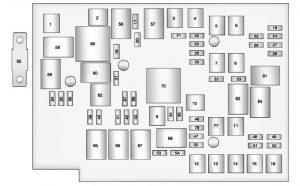

GMC Terrain – fuse box – engine compartment
GMC Terrain – fuse box – engine compartment
Fuses Usage
1 Cooling fan 1
2 Cooling fan 2
3 Brake Booster
4 Right power windows
5 Memory Seat Module
6 Left power seat
7 Instrument panel fuse block 1
8 Rear Defogger
9 Starter
10 AIR Pump Motor
11 Instrument panel fuse block 2
12 Sunroof
13 ABS pump
14 Instrument panel fuse block 3
15 Left power windows
16 ABS module
17 Transmission control module battery
18 Trailer parking light
19 AIR pump solenoid
20 Engine control module battery
21 Canister vent
22 Left trailer side (if equipped)
23 Liftgate module
24 Power lumbar
25 Right trailer side (if equipped)
26 Rear accessory power outlet
27 Memory mirror module
28 Regulated voltage control battery sensor
29 Front wiper
30 Rear wiper
31 A/C
32 Rear latch
33 Heated mirrors
34 Horn
35 Right high-beam headlamp
36 Left high-beam headlamp
37 Ignition coil – even
38 Ignition coil – odd
39 Windshield washer
40 Front fog lamps (if equipped)
41 Post catalytic converter O2 sensor
42 Engine control module
43 Pre-catalytic converter O2 sensor
44 Transmission control module
45 Mirror
46 Fuel system control module/Ignition
47
48 Rear drive module
49 Lift gate module logic
50 Instrument panel fuse block/Ignition
51 Front heated seat
52 Fuel system control module
53 Engine control module
54 Rear vision camera
55 Electric power steering
56 AIR pump solenoid
57 Brake booster
58 Cooling fan – low
59 High-beam headlamps
60 Cooling fan control
61 Wiper On/Off control
62 A/C
63 Rear defogger
64 Wiper speed
65 Fog lamps
66 Engine control
67 Starter
68 Run/Crank
69 Cooling fan – high
70 AIR pump motor
77 Right power seat
78 Passenger power lumbar

Instrument Panel Fuse Block

The instrument panel fuse block is located on the passenger side panel of the center console. To access the fuses, open the fuse panel door from the passenger side by pulling it out.

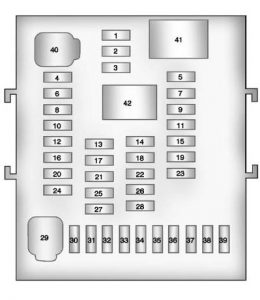

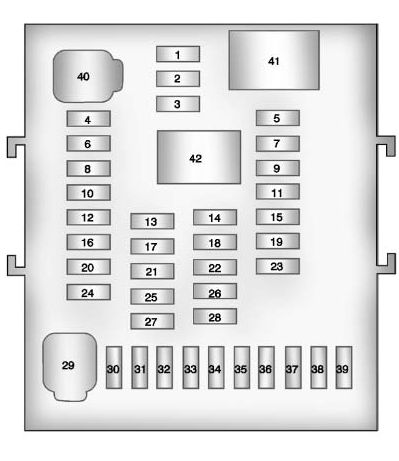

GMC Terrain – fuse box – instrument panel
GMC Terrain – fuse box – instrument panel
Mini Fuses Usage
1 Steering Wheel Dimming
2
3
4 Body Control Module 1
5 Infotainment
6 Body Control Module 7
7 Noise Control Module
8 Body Control Module 4
9 Radio
10
11 Rear parking assist module
12 HVAC/Battery
13 Front auxiliary power
14 HVAC/Ignition
15 Display
16 Body Control  Module 5
17 Rear auxiliary power
18 Instrument panel/Ignition
19 Universal Garage Door Opener
20 Body Control Module 6
21
22 Sensing/Diagnostic module/Ignition
23 Front vision camera
24
25 Transmission gear shift position indicator
26
27
28
29 Front blower motor
30 Body Control Module 3
31 Amplifier
32 Discrete Logic Ignition Switch
33 Communications Integration Module
34 Body Control Module 2
35 Sensing and Diagnostic Module Battery
36 Data Link Connection
37 Instrument Panel Cluster Battery
38 Passenger Sensing System modul
39
40 Body control module 8
41 Logistic relay (if equipped)
42 Retained accessory power relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
