Ford Taurus (1985 – 1995) – fuse box diagram

Ford Taurus (1985 – 1995) – fuse box diagram

Year of production: 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995

Passenger Compartment Fuse Panel

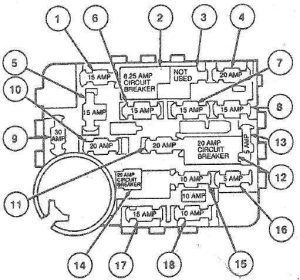

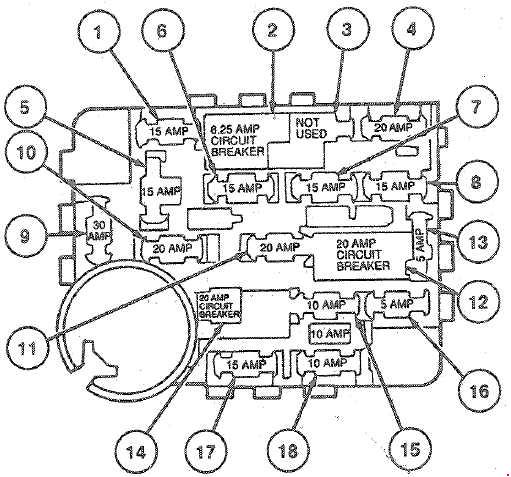

Ford Taurus – fuse box diagram – passenger compartment
Ford Taurus – fuse box diagram – passenger compartment
Number A Description
1 15 High-Mounf Stoplamp, Stoplamps, Front and Rear Turn Signals, Instrument Panel Turn indicator Lamps, Speed Control
2 8.25 Circuit Breaker: Windshield Wiper Motor, Intermittent Wiper Module, Windshield Washer Motor
3
4 20 1993-1994: Front Park, Side Marker and Tail Lamps, “Headlamps On’’ Warning Buzzer/Chime, Front Laser Lamp (Sable)
15 1985-1992: Front Park, Side Marker and Tail Lamps, “Headlamps On’’ Warning Buzzer/Chime, Front Laser Lamp (Sable)
5 15 Electronic Cluster, Rear/Window Defroster Switch, Electronic Flasher, Backup Lamps, Heated Oxygen Sensor (H02S), Illuminated/Keyless Entry Module, Brake Interlock Solenoid, Eletronic Door Lock Control Processor
6 15 Rear Window Wiper and Washer Motors (Wagons), Diagnostic Warning Lamp Module, Warning Chime, Headiamp Switch Illumination (Sable), Clock illumination, Radio Illumination, EATC Control illumination, Power Window Relay, Speed Control Amplifier
7 15 Foglights
1992-1994: Air Bag Module
8 15 Clock, Radio Memory, Glove Compartment Lamp, Luggage Compartment Lamp, Instrument Panel Courtesy Lamps, Interior Lamps, Illuminated /Keyless Entry Module, Power Mirrors, Engine Compartment Lights, Key-In Ignition Chime
9 30 Blower Motor, Blower Speed Controller (EATC) (1985-91)
10 20 Flash-fo-Pass, High Beam Headlamps and Indicator Lamp
11 20 Radio, Premium Sound Amplifier, Power Antenna Motor, Redundant Radio Switch
12 20 Circuit Breaker: Cigar Lighters, Horn Relay, Horns,
1993-94: Not Used
13 5 Cluster Illumination, Radio Display, Ash Receptacle Illumination, EATC Control Display, Rear Window Defroster Switch Illumination, Rear Wiper Switch Illumination, Headlamp Switch Illumination, Clock Display, PRNDL Illumination
14
15 10 License Lamps, Side Marker and Tail Lamps
16 5 Electronic Cluster, EATC Control
17 15 EATC Compressor Clutch, Blend Door Actuator, A/C Compressor Clutch
18 10 Autolamp Module, Cluster Warning Lamps, Low Oil Level Relay, Buzzer/Chime

Fuse Box In The Engine Compartment

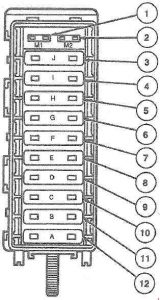

Ford Taurus – fuse box diagram – engine compartment
Ford Taurus – fuse box diagram – engine compartment
Number A Description
1 10 Ignition Coil
2 10 Accessory Feed
3 40 Power Lock / Window
4 40 Anti-Lock
5 40 Rear Defroster
6 30 Anti-Lock Module
7 60 Headlamps
8 40 Fuse Panel
9 60 Engine Cooling Fan
10 30 Electronic Engine Control, Powertrain Control Module (1994), Fuel Pump Relay (1994)
11 60 Ignition Switch / Blower Motor
12 60 Ignition Switch / Blower Motor

The locations and values of the fuses and circuit breakers not contained in the panels are shown in the following circuit protection chart.

Fuse Link Gauge Location
Alternator Output 12 Near Power Distribution Box
Alternator Voltage Sensing Circuit 18 Near Power Distribution Box
Heated Windshield 18 Near Heated Windshield Relay

Flasher Location

Ford Taurus – fuse box diagram – flasher location
Ford Taurus – fuse box diagram – flasher location

An electronic combination turn signal and emergency warning flasher is secured to the lower LH instrument panel reinforcement by one screw (above fuse panel).

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
