FUSE BOX DIAGRAMS & RELAY INFORMATION
This guide covers the Ford F-MAX heavy-duty truck equipped with the 12.7L EcoTorq diesel engine for model years 2018, 2019, 2020 and 2021. Find fuse box diagrams, fuse assignments, amperage ratings, relay information and fusible link locations.
Vehicle Information
- Vehicle
- Ford F-MAX
- Generation
- First generation (2018–present)
- Model years
- 2018–2021
- Body
- Heavy-duty tractor unit
- Engine
- 12.7L EcoTorq inline-six turbodiesel
- Transmission
- Automated manual transmission
- Drivetrain
- Rear-wheel drive (4×2)
- Electrical system
- 24V with 12V auxiliary circuits
- Market
- Europe and selected international markets

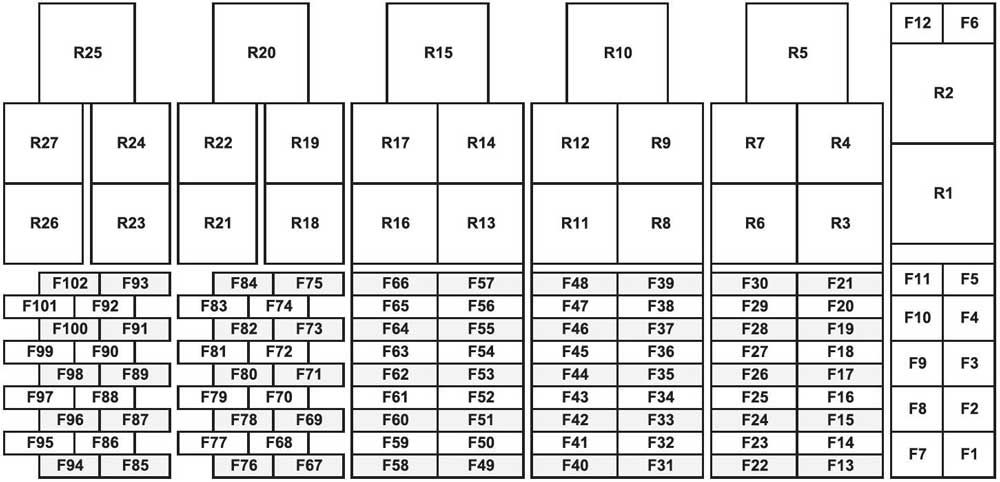

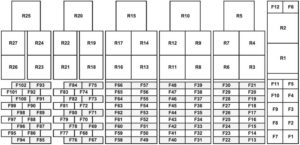

Ford F-MAX Fuse Box Diagram (2018–2021)
The main fuse box protects the engine control unit, transmission, braking system, lighting, cabin equipment, power outlets and other electrical components.

No matching fuses found.
| No. | Amps | Protected component |
|---|---|---|
| 1 | 30 | Automatic Transmission Control Unit No.1 |
| 2 | 40 | Windshield Heating No.1 |
| 3 | 40 | Windshield Heating No.2 |
| 4 | 40 | Park Air Conditioner |
| 5 | – | Not assigned |
| 6 | 20 | 12V Power Outlet |
| 7 | 30 | Air Conditioner Fan |
| 8 | – | Not assigned |
| 9 | 50 | Cab Lifting Motor |
| 10 | 30 | 24V KL30 (Horn and A/C Motor Relay) |
| 11 | 40 | 24V Power Outlet Panel and Bed |
| 12 | – | Not assigned |
| 13 | 20 | Engine Control Unit |
| 14 | 10 | Automatic Transmission Control Unit No.2 |
| 15 | 7.5 | Intarder |
| 16 | 15 | Parking Lamps |
| 17 | 5 | Tachograph |
| 18 | 3 | Front Camera |
| 19 | 7.5 | Door Lock Button |
| 20 | 20 | Body Control Unit No.1 |
| 21 | 5 | Electronic Air Pressure Unit |
| 22 | 20 | Body Control Unit No.2 |
| 23 | 10 | Brake Lamps |
| 24 | 7.5 | Refrigerator |
| 25 | 20 | Body Control Unit No.3 |
| 26 | 20 | NOx Sensors 1 & 2 & Urea Quality and Level Sensor |
| 27 | 20 | Wet Type Heater |
| 28 | 10 | Mirror Heaters |
| 29 | 7.5 | Triple Dome Parking Lamps & Dome Beacon |
| 30 | 10 | Dry Type Heater |
| 31 | 30 | 7 Pin Trailer Connector |
| 32 | 3 | ERA GLONASS Emergency Call Unit |
| 33 | 20 | Body Control Unit No.4 |
| 34 | 20 | Body Control Unit No.5 |
| 35 | 20 | Body Control Unit No.6 |
| 36 | 20 | Body Control Unit No.7 |
| 37 | 3 | Right and Left ARM |
| 38 | 10 | OBD (On Board Diagnosis System) Connectors 1 & 2 |
| 39 | 20 | Body Control Unit No.8 |
| 40 | 7.5 | Shade Motor |
| 41 | 25 | Convertor No.2 |
| 42 | 5 | Map Assisted Speed Control Unit |
| 43 | 15 | Horn |
| 44 | 15 | EBS Unit |
| 45 | 3 | Buttons |
| 46 | 25 | Convertor No.2 |
| 47 | 15 | DeNOx Control Unit and Urea Heaters |
| 48 | 20 | After Sales Chassis and Dome Connectors |
| 49 | – | Not assigned |
| 50 | 20 | 24V Power Outlet – Panel |
| 51 | 20 | 24V Power Outlet – Bed |
| 52 | 20 | After Sales Cab Connector & Fleet Monitoring Unit |
| 53 | 15 | Lighter |
| 54 | 5 | Tire Pressure Display Unit |
| 55 | 5 | Ignition Switch |
| 56 | 10 | Instrument Panel |
| 57 | 3 | Exterior Cabinet Lamps |
| 58 | 3 | Engine RPM |
| 59 | 10 | 15-pin Trailer Connector & After Sales Chassis and Dome Connectors – Park |
| 60 | 5 | Vehicle Park Lamps |
| 61 | 1 | Sunroof Window (Headlining Console Side) Button – Waking |
| 62 | 1 | Sunroof Window (Bed Side) Button – Waking |
| 63 | 1 | Bed Lamp Button – Waking |
| 64 | 3 | Tachograph (for Vehicles Carrying Dangerous Goods) |
| 65 | – | Not assigned |
| 66 | 5 | Interior Cabinet Lamps & Door Locking Buttons |
| 67 | 7.5 | EBS Unit (Ignition) |
| 68 | 3 | Instrument Panel (Ignition) |
| 69 | 3 | Electronic Air Pressure Unit (Ignition) |
| 70 | 7.5 | Intarder (Ignition) |
| 71 | 7.5 | Tachograph (Ignition) |
| 72 | 3 | Lane Departure Warning System Buzzer |
| 73 | 7.5 | Radar & Camera & Map Assisted Speed Control Unit (Ignition) |
| 74 | 7.5 | Automatic Transmission Control Unit (Ignition) |
| 75 | 5 | Engine Control Unit (Ignition) |
| 76 | 3 | Electronically Air Suspension Control |
| 77 | 10 | Seat Heater |
| 78 | – | Not assigned |
| 79 | 3 | Brake Lamps |
| 80 | 15 | After Sales Chassis and Dome Connectors & Fleet Monitoring Unit (Ignition) |
| 81 | 3 | ERA GLONASS Emergency Call Unit (Ignition) |
| 82 | 7.5 | Working Lamp (Ignition) |
| 83 | 3 | Right and Left ARM (Ignition) |
| 84 | 5 | Buttons & Steering Lock Valve (Ignition) |
| 85 | 10 | Reversing Lamps |
| 86 | – | Not assigned |
| 87 | 20 | Fuel Heater |
| 88 | 7.5 | 7-pin Trailer Connector (Ignition) |
| 89 | 3 | Convertors 1 & 2 (Ignition) |
| 90 | 10 | NOx Sensors 1 & 2 |
| 91 | 7.5 | Urea Quality and Level Sensor |
| 92 | 15 | Turbo & Exhaust Gas Recirculation |
| 93 | 7.5 | Front Headlamp Leveling Motor & Rain Sensor & In-Vehicle Temperature and Humidity Sensor |
| 94 | 5 | Window and Mirror Button |
| 95 | – | Not assigned |
| 96 | – | Not assigned |
| 97 | 20 | Body Control Unit (12V Supply) |
| 98 | 7.5 | A/C Control Unit |
| 99 | 7.5 | Exterior Cabinet Lamps |
| 100 | 3 | Headlamp Switch |
| 101 | 7.5 | Horn and A/C Motor Relay Coil (+) |
| 102 | 20 | Radio |
Ford F-MAX Relay Assignments
The main fuse box contains relays for ignition, lighting, heating, power outlets, cab lifting and other electrical systems.
No matching relays found.
| Relay | Amps | Function |
|---|---|---|
| R1 | 40 | Ignition/Start No.1 |
| R2 | 40 | Ignition/Start No.2 |
| R3 | 20 | 12V Power Outlets (Sealed Relay) |
| R4 | 20 | Lighting Working Lamp |
| R5 | 40 | Ignition/Accessory |
| R6 | 20 | Shade Motor (Up) |
| R7 | 20 | Engine Off |
| R8 | 20 | Horn |
| R9 | 20 | Urea Module and Urea Heaters |
| R10 | 40 | A/C Motor |
| R11 | 20 | Reverse Lamps & Reverse Warning |
| R12 | 20 | Urea Quality and Level Sensor & NOx Sensors & Turbo & Exhaust Gas Recirculation |
| R13 | – | Not assigned |
| R14 | – | Not assigned |
| R15 | 40 | Cab Lifting Motor |
| R16 | – | Not assigned |
| R17 | 20 | Brake Lamps |
| R18 | – | Not assigned |
| R19 | 20 | Parking Lamps |
| R20 | 40 | Windshield Heating No.1 |
| R21 | 20 | Triple Dome Park Lamps |
| R22 | – | Not assigned |
| R23 | 20 | Dome Beacon |
| R24 | 20 | Mirror Heaters |
| R25 | 40 | Windshield Heating No.2 |
| R26 | 20 | Door Locking Buttons |
| R27 | 20 | Shade Motor (Down) |
Fusible Link Block
The fusible link block provides high-amperage protection for major electrical circuits, including the alternator and heater.

| No. | Amps | Protected component |
|---|---|---|
| 1 | – | Not assigned |
| 2 | 150 | Alternator |
| 3 | 175 | Grilled Heater |
Frequently Asked Questions
Which fuse protects the 12V power outlet?
Fuse 6 (20A) protects the 12V power outlet. Relay R3 (20A) is assigned to the 12V power outlets.
Where is the cigarette lighter fuse?
Fuse 53 (15A) protects the cigarette lighter.
Which fuse protects the radio?
Fuse 102 (20A) protects the radio.
Where is the horn fuse?
Fuse 43 (15A) protects the horn. Relay R8 (20A) is assigned to the horn circuit.
Which fuses protect the windshield heating system?
Fuse 2 (40A) protects windshield heating circuit No.1, while fuse 3 (40A) protects circuit No.2. The corresponding relays are R20 and R25.
Which fuse protects the engine control unit?
Fuse 13 (20A) protects the engine control unit. Fuse 75 (5A) is assigned to the engine control unit ignition circuit.
Where are the alternator and heater main fuses?
The fusible link block contains fuse 2 (150A) for the alternator and fuse 3 (175A) for the heater circuit.
WARNING: Terminal and harness assignments for individual connectors may vary depending on vehicle equipment level, model year and market. Always consult the vehicle owner’s manual and verify the specified fuse rating before replacement. Never replace a fuse with one of a higher amperage rating.
