Dodge Viper (2003 – 2007) – fuse box diagram

Dodge Viper (2003 – 2007) – fuse box diagram

Year of production: 2003, 2004, 2005, 2006, 2007

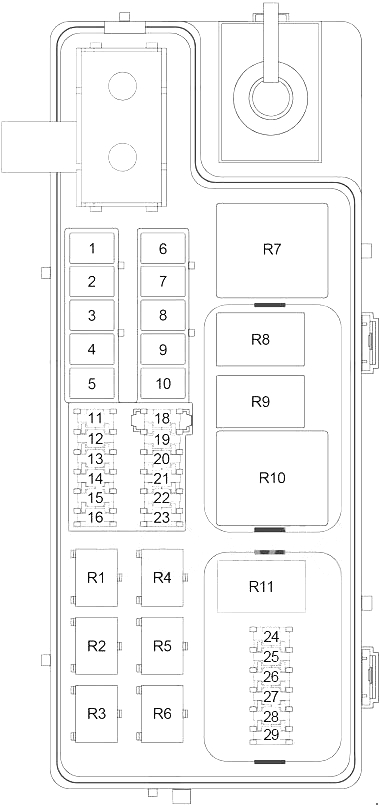

Fuse box diagram

Dodge Viper - fuse box diagram
Dodge Viper – fuse box diagram
No.
A
Protected Component
1 40 Blower Motor Relay
2 40 Starter Relay, ABS
3 30 Body Control Module
4 20 Amplifier
5 30 Adjustable Pedals Switch, Passenger Window Up Relay, Passenger Window Down Relay
6 40 Headlamp Relay, Body Control Module
7 30 ABS
8 30 Run/Accessory Relay
9 40 Headlamp Relay (Fuse: “24”, “25”)
10 30 Ignition Switch (Fuse: “27”, “28”, “29”)
11 20 Auto Shut Down Relay, Powertrain Control Module, Fuel Injectors, Oxygen Sensor, Hydraulic Cooling Module, Ignition Coil Pack
12 20 Cigar Lighter, Data Link Connector
13 15 Multi-Function Switch (Flasher, Hazard)
14 15 Oxygen Sensor Relay, Skip Shift Solenoid, Reverse Lock-Out Solenoid
15 20 Rear Window Defogger Relay
16 20 Power Outlet
18 15 Radio, Power Mirror Switch
19 15 Horn Relay
20 15 Air Conditioner Compressor Clutch Relay, Courtesy Lamp, Dome Lamp, Visor amp, Illuminated Entry, Reading Lamp
21 15 Stop Lamp Switch
22 15 Fuel Pump Relay
23 10 Airbag Control Module
24 20 Right Headlamp (HID)
25 20 Left Headlamp (HID)
26 20 Wiper Control Module, Wiper Motor
27 10 Airbag Control Module
28 15 Gauge Cluster, Tire Pressure Monitor Module, Body Control Module, Push Button Starter Switch
29 15 Powertrain Control Module, Air Conditioner Compressor Clutch Relay, EVAP/Purge Solenoid, Oxygen Sensor Relay, Fuel Pump Relay
Relay
R1 Starter
R2 Horn
R3 Air Conditioner Compressor Clutch
R4 Auto Shut Down
R5 Headlamp
R6 Oxygen Sensor
R7 Blower Motor
R8 Fuel Pump
R9 Rear Window Defogger
R10  –
R11 Run/Accessory

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
