Dodge Dakota (2000 – 2004) – fuse box diagram

Dodge Dakota (2000 – 2004) – fuse box diagram

Year of production: 2000, 2001, 2002, 2003, 2004

Passenger Compartment Fuse Box

Dodge Dakota - fuse box diagram - passenger compartment
Dodge Dakota – fuse box diagram – passenger compartment
No.
A
Protected Component
1 15 Sentry Key Immobilizer Module, Instrument Cluster, Dome Lamp, Glove Box Lamp and Switch, Driver Door Module, Data Link Connector, Overhead Console, Cargo Lamp, Radio (’00-’01), Center Console Lamp (’00-’01)
2 20 Horn Relay
3 20 Radio (’02-’04)
4 20 Park Lamp Relay (Front Park/Turn Signal Lamp, Front Side Marker Lamp, License Lamp, Rear Tail/Stop/Turn Signal Lamp, Central Timer Module, Fuse (Engine Compartment): “T”)
5 20 Front Wiper Relay, Central Timer Module, Multi-Function Switch, Wiper Motor
6  –
7  –
8 10 Instrument Cluster, Powertrain Control Module, Transmission Control Module
9 5 Instrument Cluster, A/C Heater Control, Radio, Transfer Case Selector Switch, Overhead Console, Shift Bezel Lamp, Cigar Lighter
10 10 Powertrain Control Module, Fuel Pump Relay, Radiator Fan Relay, Sentry Key Immobilizer Module
11 10 Air Conditioner Compressor Clutch Relay, Automatic Day/Night Mirror, Overhead Console, Central Timer Module, Transfer Case Selector Switch, Duty Cycle EVAP/Purge Solenoid (’00-’01)
12 10 Starter Relay, Powertrain Control Module
13 20 Amplifier (’02-’04)
15 Amplifier (’00-’01)
14 10 Instrument Cluster
15 10 Power Mirror
16  –
17 15 Cigar Lighter/Power Outlet
18 10 Radio
19 10 Combination Flasher
20 10 Airbag Control Module, Passenger Airbag On/Off Switch
21 10 Airbag Control Module
22  –
23  –
24 15 Rear Window Defogger Relay
25 10 Heating and Air Conditioning Control
26 15 Back-Up Lamp, Transmission Solenoid/TRS Assembly (4.7L + Automatic Transmission), Back-Up Lamp Switch (Manual Transmission), Passenger Door Power Lock Switch, Automatic Day/Night Mirror, Trailer Tow Connector
27 10 ABS
28 25 Driver Door Module (Power Window)
29  –
Relay
R1 Horn
R2 Park Lamp

Engine Compartment Fuse Box

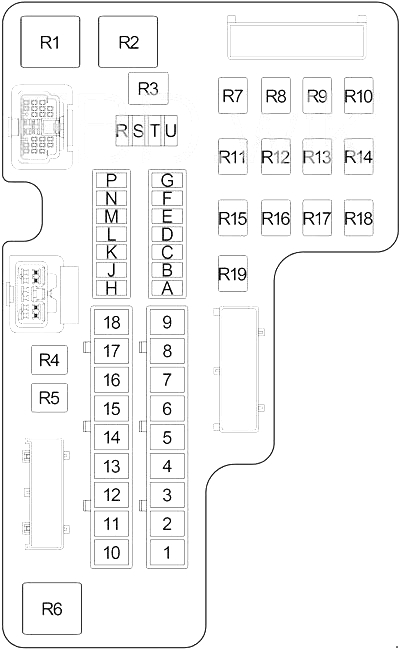

Dodge Dakota - fuse box diagram - engine compartment
Dodge Dakota – fuse box diagram – engine compartment
No.
A
Protected Component
1 20 Combination Flasher (’02-’04)
30 Combination Flasher (’00-’01)
2 20 Fuel Pump Relay, Powertrain Control Module
3 20 Central Timer Module
4 40 Rear Window Defogger Relay, Fuse (Passenger Compartment): “15”
5 20 Stop Lamp Switch
6 30 Electric Brake (Triler Tow)
7 40 Fuse (Passenger Compartment): “1”, “2”, “3”, “4”, “13”)
8 40 ABS
9 50 Ignition Switch (Fuse (Passenger Compartment): “21”, “24”, “25”, “26”, “27”)
10 40 Ignition Switch (Fuse (Passenger Compartment): “17”, “18”, “19”)
11 30 Automatic Shut Down Relay (Powertrain Control Module, Capacitor, Ignition Coil, Fuel Injector)
12 20 Central Timer Module
13 40 Ignition Switch (Blower Motor)
14 50 Power Seat Switch
15 40 Radiator Fan Relay
50 Radiator Fan Relay
16 50 Starter Relay
17 50 Ignition Switch (Fuse (Passenger Compartment): “5”, “28”)
18  –
A 20 Transfer Case Control Module
B 10 Air Conditioner Compressor Clutch Relay
C 20 Trailer Tow Connector
D 20 Center Power Outlet
E 20 Ignition Switch (Fuse (Passenger Compartment): “8”, “10”, “11”, “12”, “14”,”20″)
F 20 Transmission Control Relay (Transmision Range Sensor (3.7L), Transmission Solenoid/Pressure Switch Assembly (3.7L), Transmission Solenoid/TRS Assembly (4.7L), Powertrain Control Module)
G  –
H 20 Fog Lamp Relay (Fog Lam, Headlamp Switch, Central Timer Module)
J  –
K  –
L  –
M  –
N  –
P  –
R  –
S  –
T 10 Trailer Tow Connector
U 20 Oxygen Sensor
TRelay
R1 Radiator Fan
R2 Automatic Shut Down
R3  –
R4  –
R5  –
R6 EBL
R7 Fuel Pump
R8  –
R9 Air Conditioner Compressor Clutch
R10 Fog Lamp
R11  –
R12 Oxygen Sensor
R13  –
R14 Transmission Control
R15  –
R16  –
R17 Starter
R18 Wiper
R19  –

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
