Citroen Jumper (2011 – 2012) – fuse box diagram
Year of production: 2011, 2012
Fuse box in instrument panel (passenger side)
| Fuse | Ampere rating [A] | Allocation |
| 12 | 7,5 | Right-hand dipped beam headlamp |
| 13 | 7,5 | Left-hand dipped beam headlamp |
| 31 | 5 | Relay supply |
| 32 | 7,5 | Interior lighting |
| 33 | 20 | Battery sensor |
| 34 | 20 | Minibus interior lighting – Hazard warning |
| 36 | 10 | Audio system – Diagnostic socket – Alarm siren – Programmable additional heating controls – Air conditioning controls – Tachograph – Battery |
| 37 | 7,5 | Brake lamps switch – ASR sensor – ESP sensor – Brake lamps siwtch |
| 38 | 20 | Central locking |
| 42 | 5 | ABS control unit and sensor – ASR sensor – ESP sensor – Brake lamps switch |
| 43 | 20 | Windscreen wiper motor |
| 47 | 20 | Driver’s electric window motor |
| 48 | 20 | Passenger electric window motor |
| 49 | 5 | Audio system – Instrument panel controls |
| 50 | 7,5 | Airbags and pre-tensioners unit |
| 51 | 5 | Tachograph – Cruise contro – Air conditioning controls – Reversing lamps- water in Diesel sensor |
| 53 | 7,5 | Instrument panel |
| 89 | — | Not used |
| 90 | 7,5 | Left hand main beam headlamp |
| 91 | 7,5 | Right hand main beam headlamp |
| 92 | 7,5 | Left hand foglamp |
| 93 | 7,5 | Right hand fog lamp |
Fuse box in passenger compartment (driver’s door pillar fuses)
| Fuse | Ampere rating [A] | Allocation |
| 54 | — | Not used |
| 55 | 15 | Heated seats |
| 56 | 15 | 12 V socket |
| 57 | 10 | Programmable additional heating |
| 58 | 15 | Demisting: left hand rear screen |
| 59 | 15 | Demisting: right hand rear screen |
| 60 | — | Not used |
| 61 | — | Not used |
| 62 | — | Not used |
| 63 | 10 | Programmable additional heating switch |
| 64 | — | Not used |
| 65 | 30 | Programmable additional heating fan |

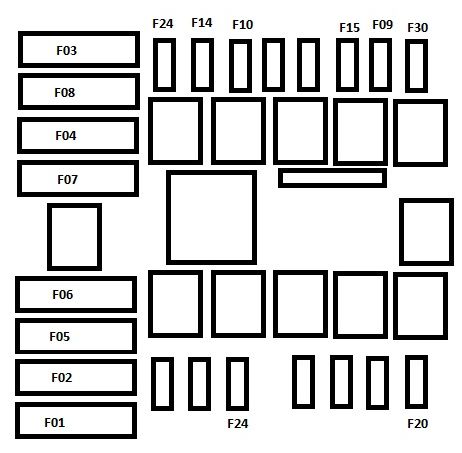

Fuse box in engine compartment
| Fuse | Ampere rating [A] | Allocation |
| 1 | 40 | ABS pump supply |
| 2 | 50 | Diesel pre-heater unit |
| 3 | 30 | Ignition switch |
| 4 | 30 | Headlamp washer pump |
| 8 | 40 | Cab fan unit |
| 9 | 15 | Rear 12V socket |
| 10 | 15 | Horn |
| 14 | 7,5 | Front 12V socket |
| 15 | 10 | Cigarette lighter |
| 20 | 30 | Screenwash pump |
| 21 | 15 | Fuel pump supply |
| 24 | 15 | Additional panel for ambulance – Mirrors |
| 30 | 15 | Demisting |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
