Citroen Jumper (2006 – 2014) – fuse box diagram

Citroen Jumper (2006 – 2014) – fuse box diagram

Year of production: 2006, 2007, 2008, 2009, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014

Driver’s side fascia panel fuses (v1)

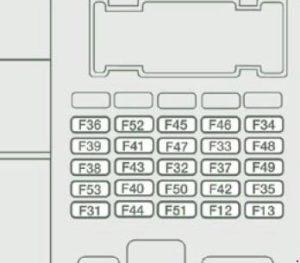

Citroen Jumper – fuse box diagram – driver’s side fascia panel fuses (v1)
Citroen Jumper – fuse box diagram – driver’s side fascia panel fuses (v1)
No.
A
Allocation
12 7.5 Right-hand dipped beam headlamp
13 7.5 Left-hand dipped beam headlamp – Headlamp height adjuster
31 7.5 Relay supply
32 10 Minibus interior lighting – Hazard warning lamps
33 15 Rear 12 V socket
34 Not used
35 7.5 Reversing lamps – Water in Diesel sensor
36 15 Door locking/unlocking unit
37 7.5 Brake lamps switch – Third brake lamp – Instrument panel
38 10 Interior relays
39 10 Audio equipment – Diagnostic socket – Alarm siren – Programmable additional heating controls
40 15 Defrosting: rear screen (left-hand side), mirror (passenger side)
41 15 Defrosting: rear screen (right-hand side), mirror (driver’s side)
42 7.5 ABS control unit and sensor – ESP sensor – Brake lamps switch
43 30 Windscreen wiper motor
44 20 Cigar lighter – Front 12 V socket
45 7.5 Electric window and mirror switches (driver’s side) – Passenger electric window
46 Not used
47 20 Driver’s electric window motor
48 20 Passenger electric window motor
49 7.5 Rain/sunshine sensor – Audio equipment – Driver’s electric window motor – Alarm – Instrument panel controls
50 7.5 Airbags and pre-tensioners unit
51 7.5 Tachograph – Cruise control – Air conditioning controls
52 7.5 Passenger compartment relays
53 7.5 Instrument panel – Rear fog amps

Driver’s side fascia panel fuses (v2)

Citroen Jumper – fuse box diagram – driver’s side fascia panel fuses (v2)
Citroen Jumper – fuse box diagram – driver’s side fascia panel fuses (v2)
No.
A
Allocation
12 7.5 Right-hand dipped beam headlamp
13 7.5 Left-hand dipped beam headlamp
31 5 Relay supply
32 7.5 Interior lighting
33 20 Battery sensor
34 20 Minibus interior lighting – Hazard warning
36 10 Audio system – Diagnostic socket – Alarm siren – Programmable additional heating controls – Air conditioning controls – Tachograph – Battery
37 7.5 Brake lamps switch – Third brake lamp – Instrument panel
38 20 Central locking
42 5 ABS control unit and sensor – ASR sensor – ESP sensor – Brake lamps switch
43 20 Windscreen wiper motor
47 20 Driver’s electric window motor
48 20 Passenger electric window motor
49 5 Audio system – Instrument panel controls
50 7.5 Airbags and pre-tensioners unit
51 5 Tachograph – Cruise control – Air conditioning controls – Reversing lamps – water in Diesel sensor
53 7.5 Instrument panel
89 Not used
90 7.5 Left hand main beam headlamp
91 7.5 Right han main beam headlamp
92 7.5 Left hand foglamp
93 7.5 Right hand foglamp

Passenger pillar fuses

Citroen Jumper – fuse box diagram – passenger pillar fuses
Citroen Jumper – fuse box diagram – passenger pillar fuses
No.
A
Allocation
54 Not used
55 15 Heated seats
56 15 12 V socket
57 10 Programmable additional heating
57 10 Ventilation/heating motor under the driver’s seat
58 15 Demisting: left hand rear screen
58 10 Direction indicators
59 15 Demisting: right hand rear screen
60 Not used
61 Not used
62 Not used
63 10 Programmable additional heating switch
64 Not used
65 30 Programmable additional heating fan

Fuses in the engine compartment (v1)

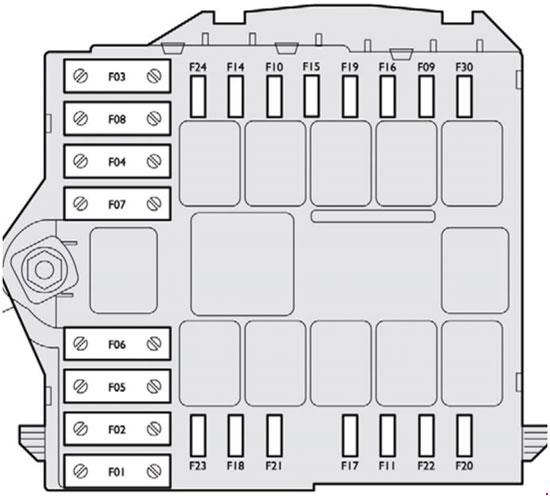

Citroen Jumper – fuse box diagram – engine compartment
Citroen Jumper – fuse box diagram – engine compartment
No.
A
Allocation
1 40 ABS/ESP pump supply
2 50 Diesel pre-heat unit
3 30 Ignition switch
4 20 Programmable additional heating burner
5 20 Programmable additional heating controls relay
6 40/60 Fan assembly (high speed)
7 40/50 Fan assembly (low speed)
8 40 Air conditioning
9 20 Windscreen wash pump
10 15 Horn
11 7.5 Diesel pre-heat unit and relay
14 7.5 Right-hand main beam headlamp
15 7.5 Left-hand main beam headlamp
16 7.5 Engine control unit
17 10 Engine control unit
18 7.5 Engine control unit
19 7.5 Air conditioning compressor
20 30 Headlamp wash pump
21 15 Fuel pump supply
22 20 Engine control unit
23 30 ABS/ESP solenoid valves supply
24 Not used
30 15 Front fog lamps

Fuses in the engine compartment (v2)

Citroen Jumper – fuse box diagram – engine compartment
Citroen Jumper – fuse box diagram – engine compartment
No.
A
Allocation
1 40 ABS/ESP pump supply
2 50 Diesel pre-heater unit
3 30 Ignition switch
4 30 Headlamp washer pump
8 40 Cab fan unit
9 15 Rear 12 V socket
10 15 Horn
14 15 Front 12 V socket
15 10 Cigarette lighter
20 30 Screenwash pump
21 15 Fuel pump supply
24 15 Additional panel for ambulance – Mirrors
30 15 Demisting

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
