Chery A113 (2007 – 2015) – fuse box diagram

Chery A113 (2007 – 2015) – fuse box diagram

Year of production: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

The instrument panel fuse panel

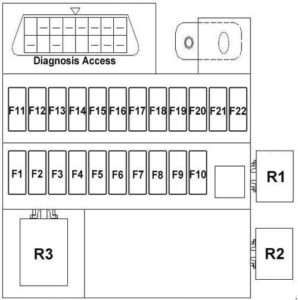

Chery A113 – fuse box diagram – instrument panel

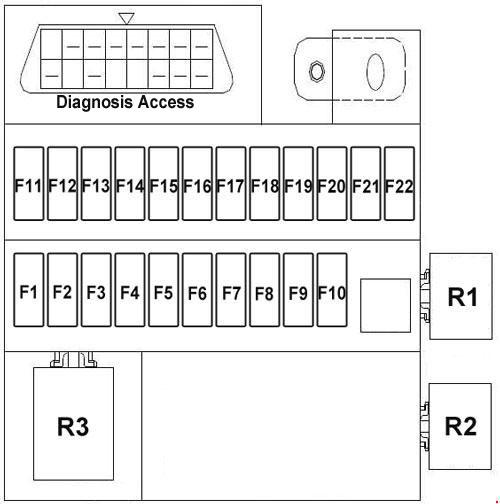

Chery A113 – fuse box diagram – instrument panel
No.
A
Function/component
F1 10 Combined instruments
F2 10 Rear view mirror, brake switch, BCM
F3 10 ABS control
F4 10 Air Bag
F5 Not used
F6 15 Washer, rear wiper power supply, sunroof control
F7 10 Steering power supply, A/C relay coil
F8 15 Front wiper
F9 15 Cigarette lighter
F10 10 Radio/player control
F11 Not used
F12 25 Start
F13 10 Diagnosis Access
F14 10 Braking Lamp
F15 20 Audio device
F16 15 Horn, fog lamp
F17 Not used
F18 10 Clearance lamp, ceiling lamp
F19 15 Alarm switch
F20 10 Lamp switch, instrument
F21 20 Sunroof power supply
F22 20 Rear defroster
Relay
R1 Blower Relay
R2 Steering relay
R3 Front wiper relay

Engine compartment fuse box

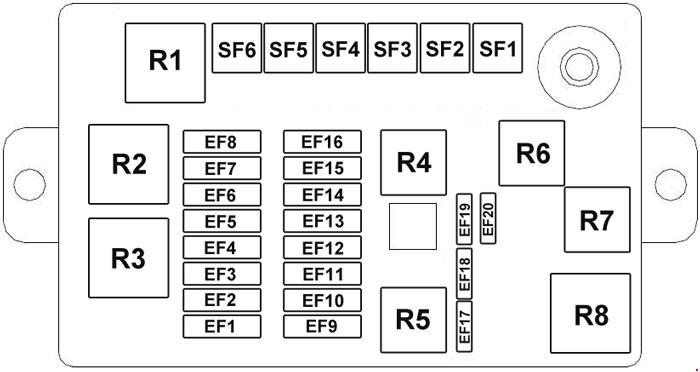

Chery A113 – fuse box diagram – engine compartment
Chery A113 – fuse box diagram – engine compartment
No.
A
Function/component
SF1 30 Fan. high speed
SF2 30 BCM
SF3 30 A/C
SF4 40 Instrument electric
SF5 30 ABS
SF6 30 ABS
EF1 20 Fan. low speed
EF2 15 Front fog lamp
EF3 10 ECU
EF4 15 Fuel pump
EF5 30 Primary relay
EF6 10 Compressor
EF7 15 Oxygen sensor
EF8 Not used
EF9 15 Ignition coil
EF10 10 Backup lamp
EF11 10 Right position lamp
EF12 10 Left position lamp
EF13 10 Right high beam
EF14 10 Left high beam
EF15 10 Right low beam
EF16 10 Left low beam
EF17 10 Spare
EF18 10 Spare
EF19 10 Spare
EF20 10 Spare
Relay
R1 Front Fog Lamp Relay
R2 Fan High Speed Relay
R3 Fan Low Speed Relay
R4 Low Beam Relay
R5 Compressor
R6 High Beam Relay
R7 Main relay
R8 Electric Fuel Pump

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
