Buick Century (1991) – wiring diagrams – exterior lighting
Year of productions: 1990
Exterior lighting

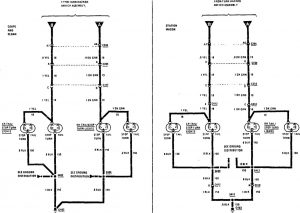

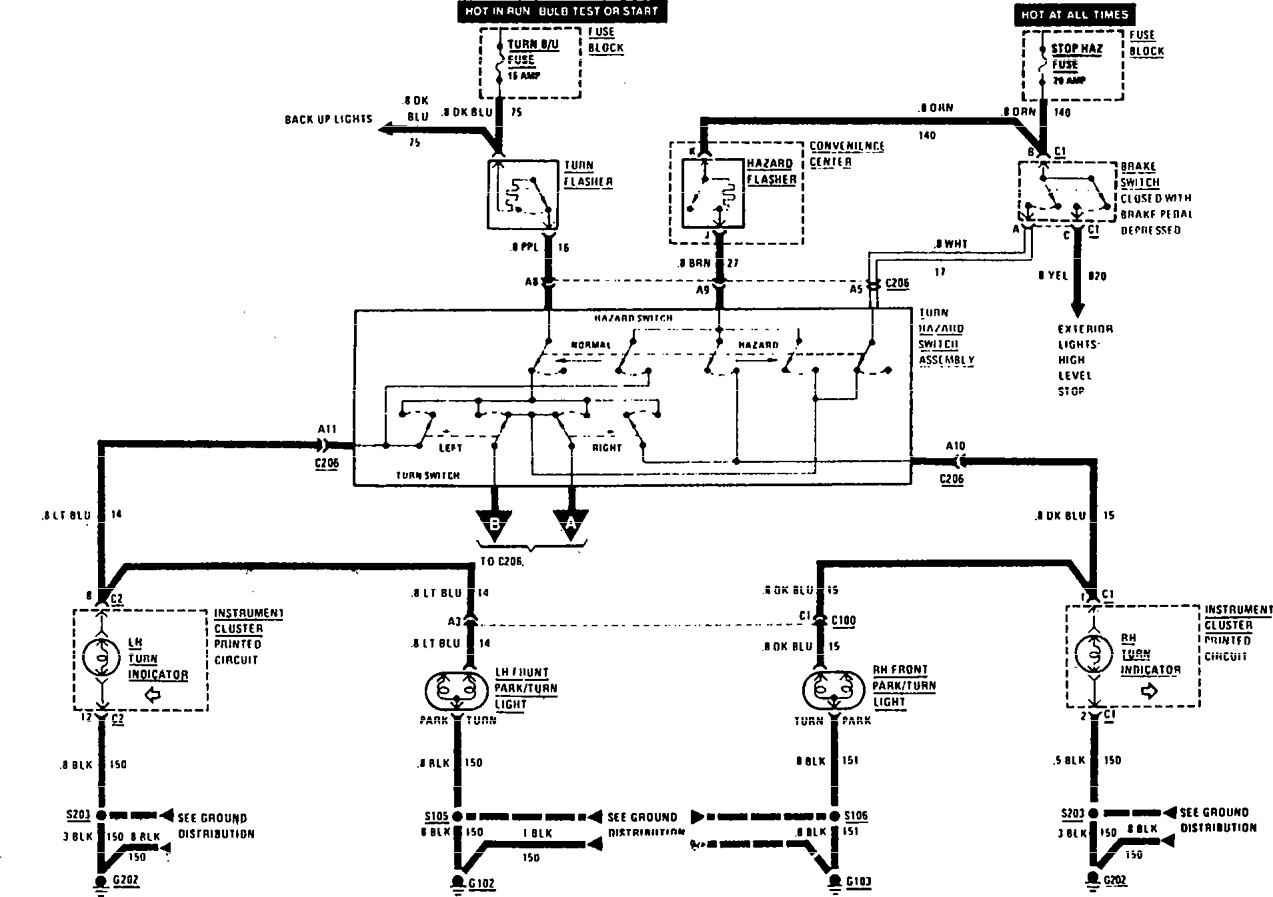

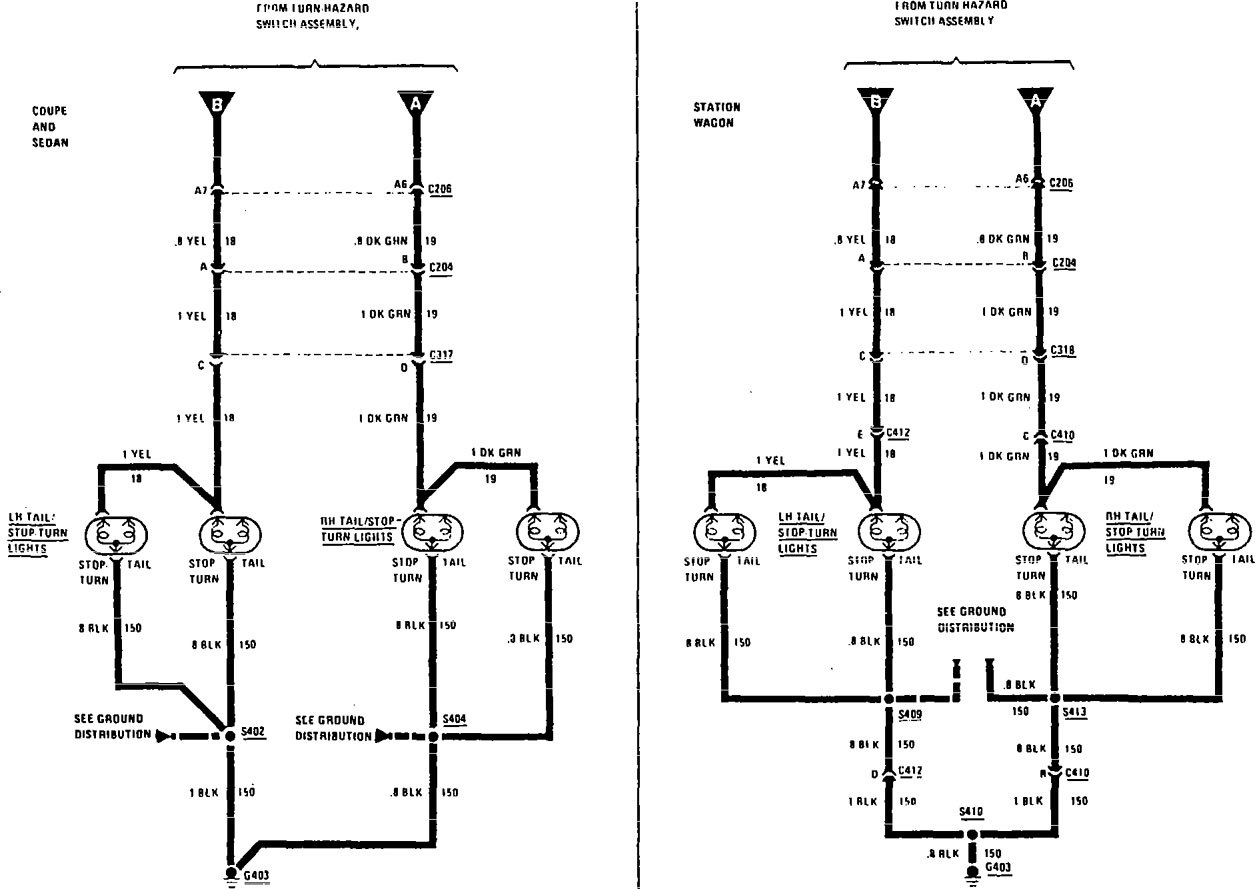

Version 1

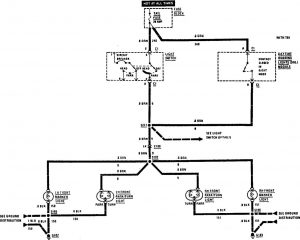

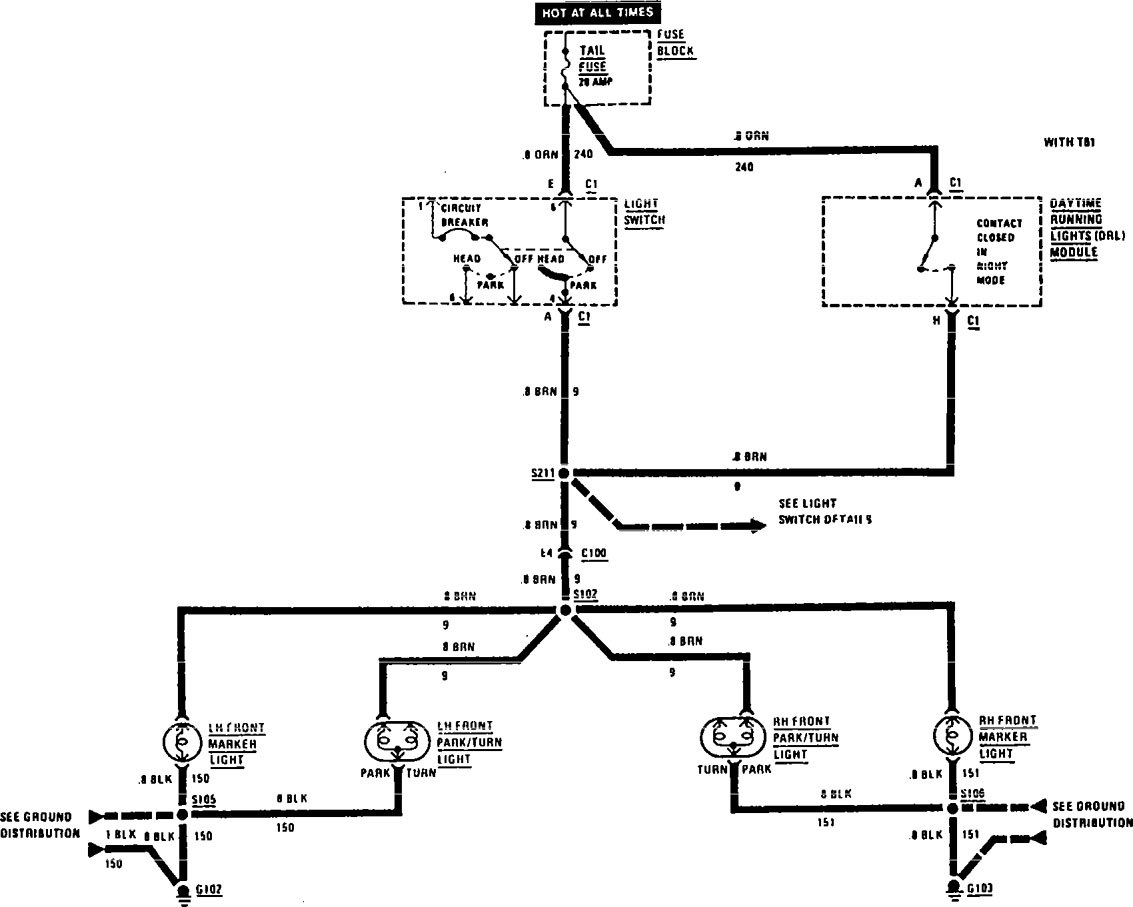

Version 2

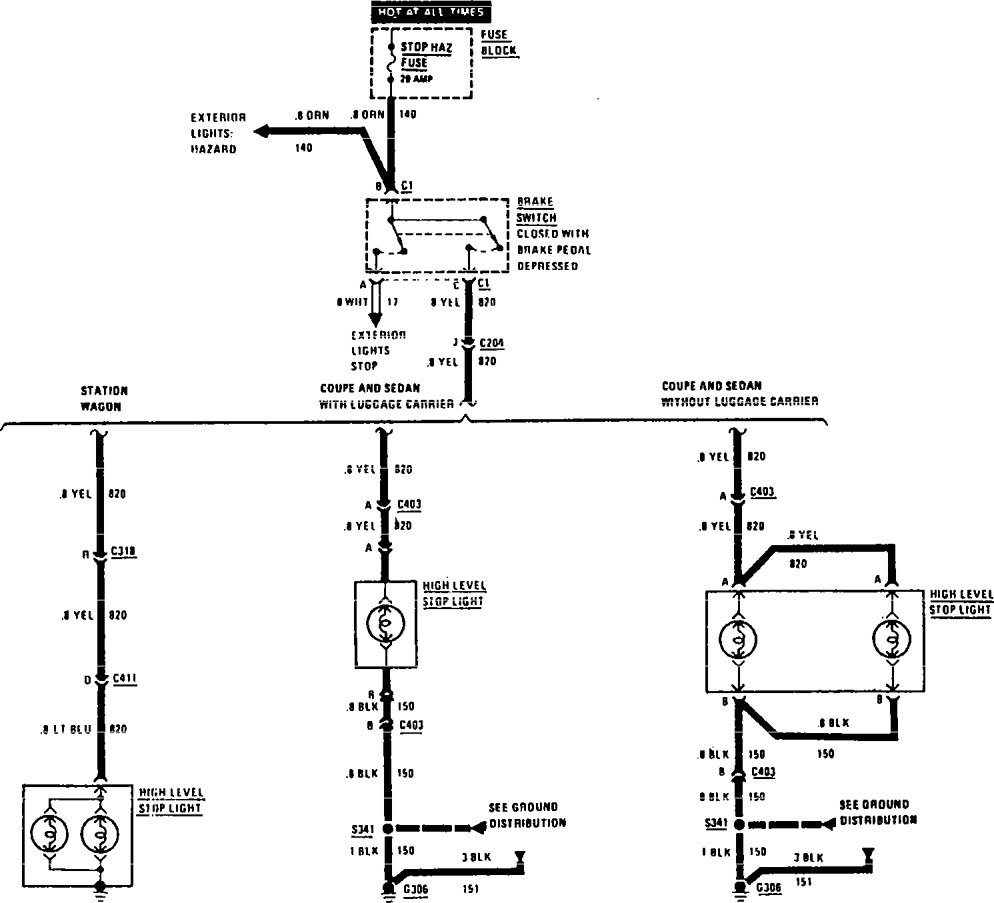

Version 3

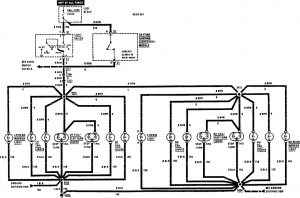

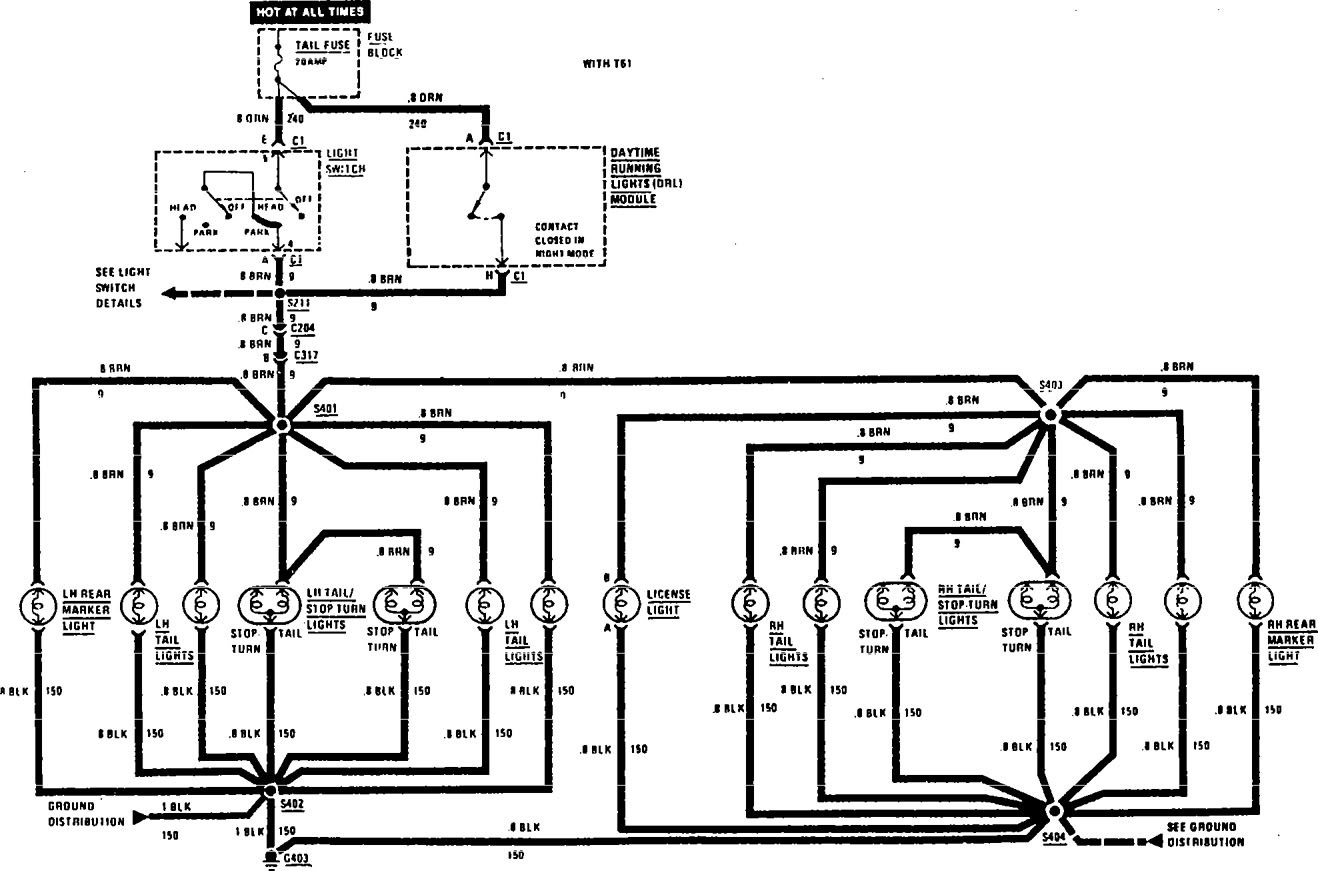

Version 4

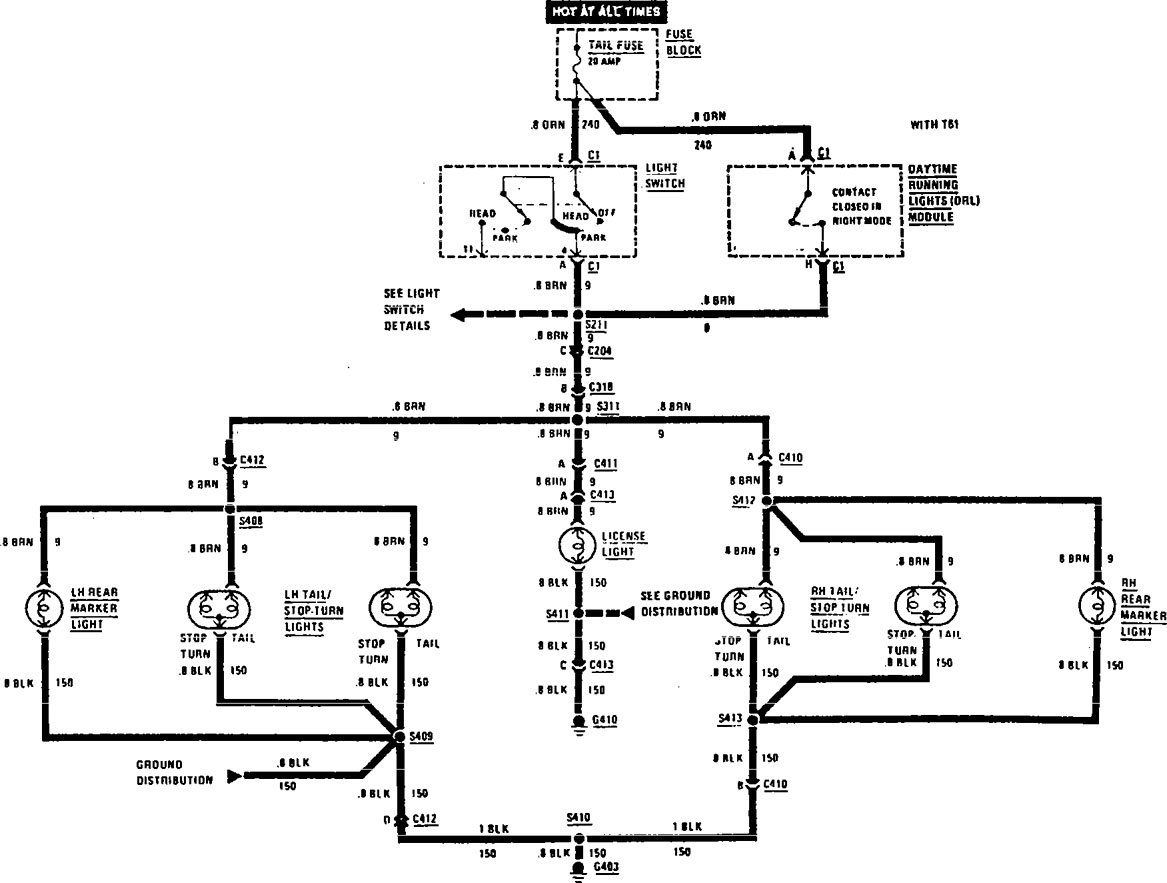

Version 5
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
