Buick Century (1989) – wiring diagrams – audio

Buick Century (1989) – wiring diagrams – audio

Year of productions:  1989

Audio

Version 1

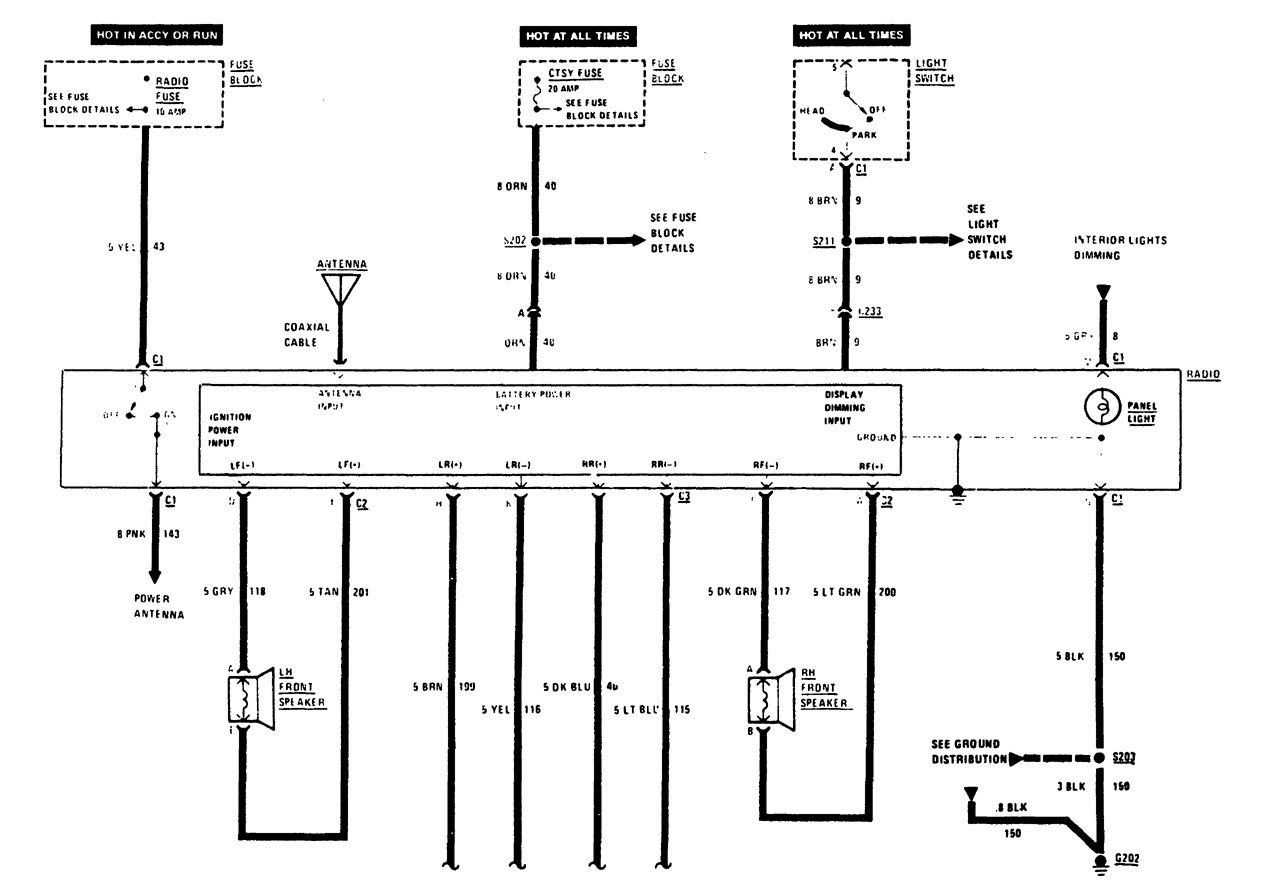

Buick Century – fuse box –
audio (part 1)

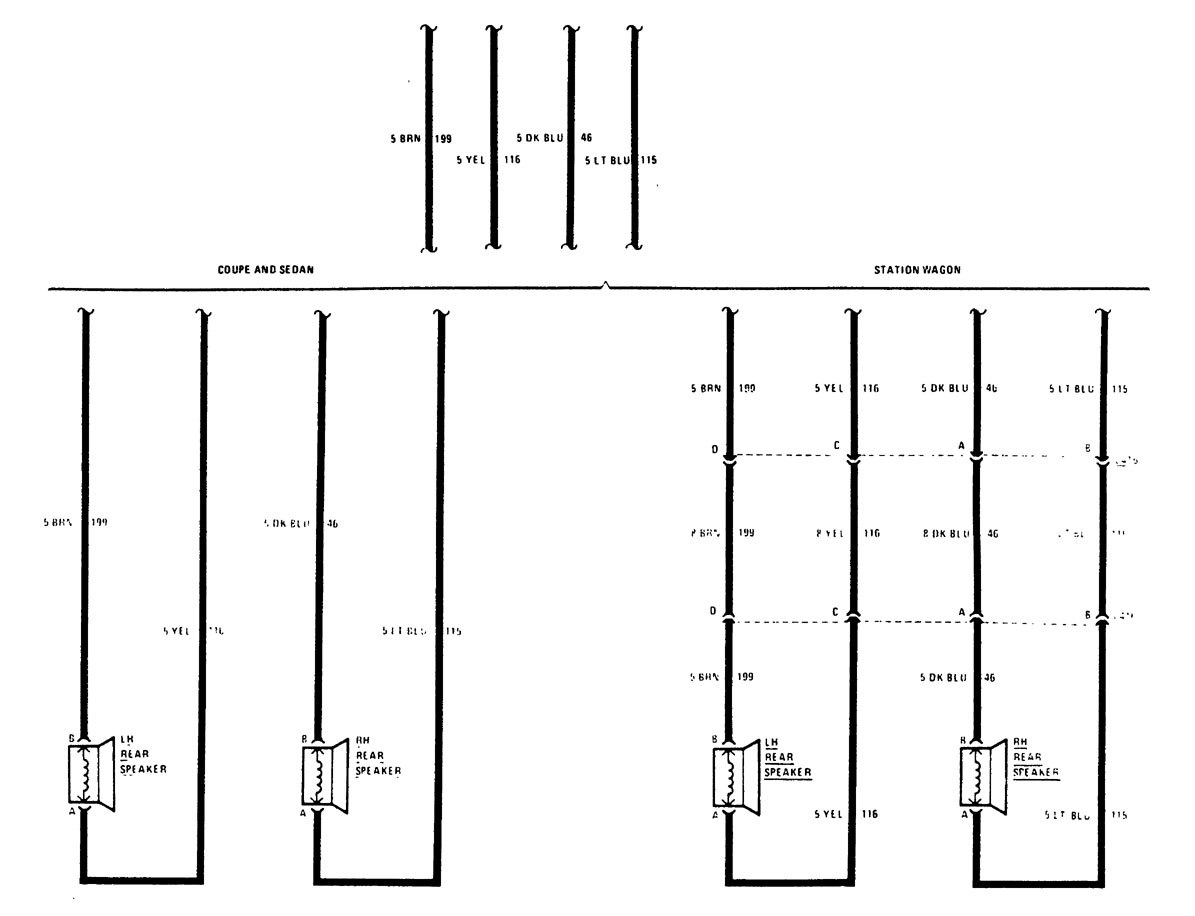

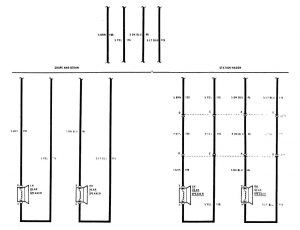

Buick Century – fuse box –
audio (part 2)

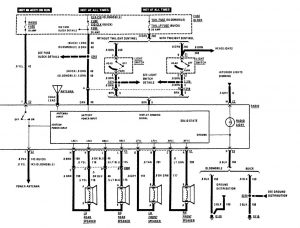

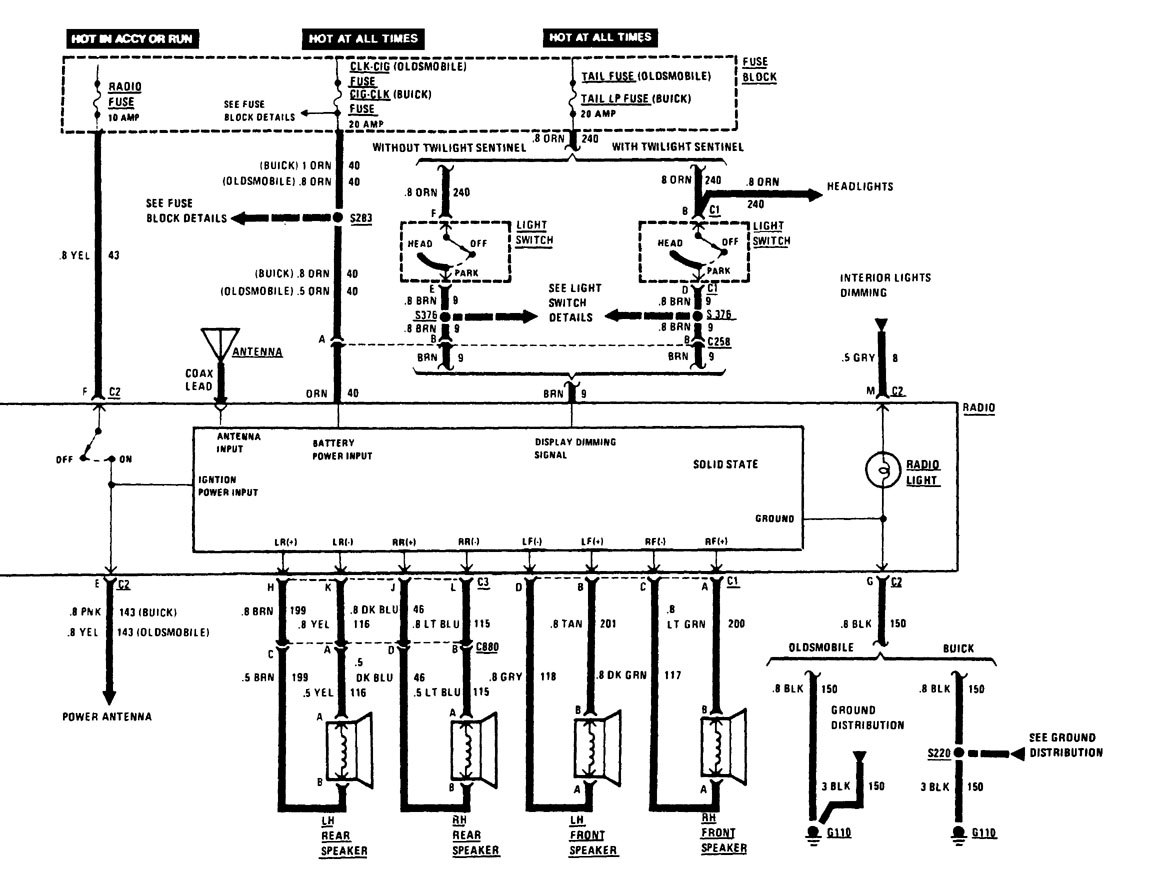

Version 2

Buick Century – fuse box –
audio

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
