Acura TL (2013 – 2014) – wiring diagrams – electrochromic mirror

Acura TL (2013 – 2014) – wiring diagrams – electrochromic mirror

Year of productions:  2013, 2014

Electrochromic mirror

A/T

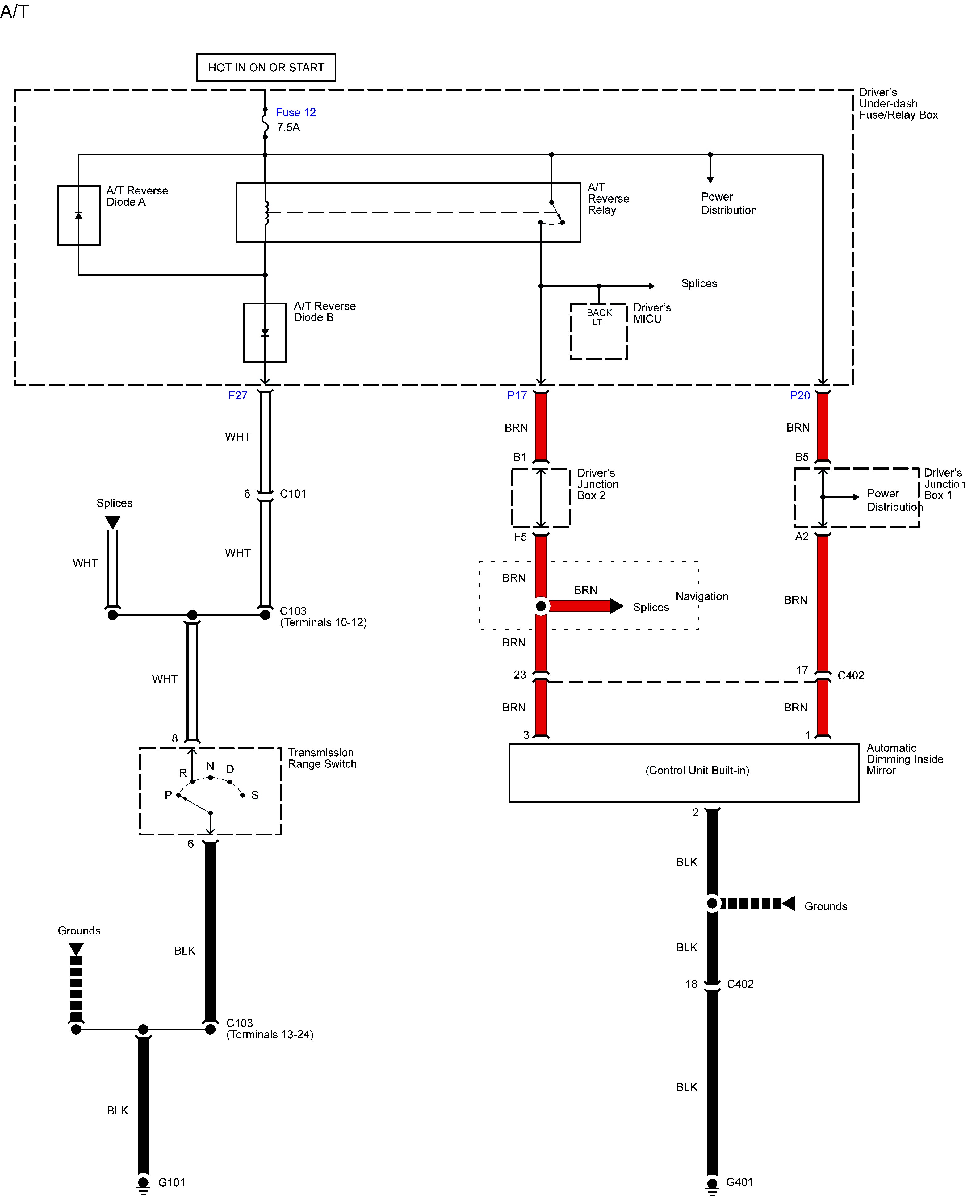

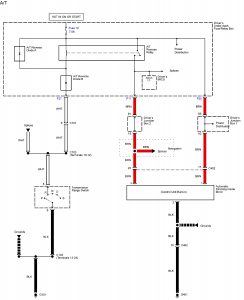

Acura TL - wiring diagram - electrochromic mirror - A/T
Acura TL – wiring diagram – electrochromic mirror – A/T

M/T

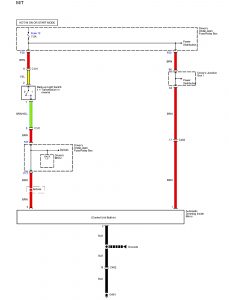

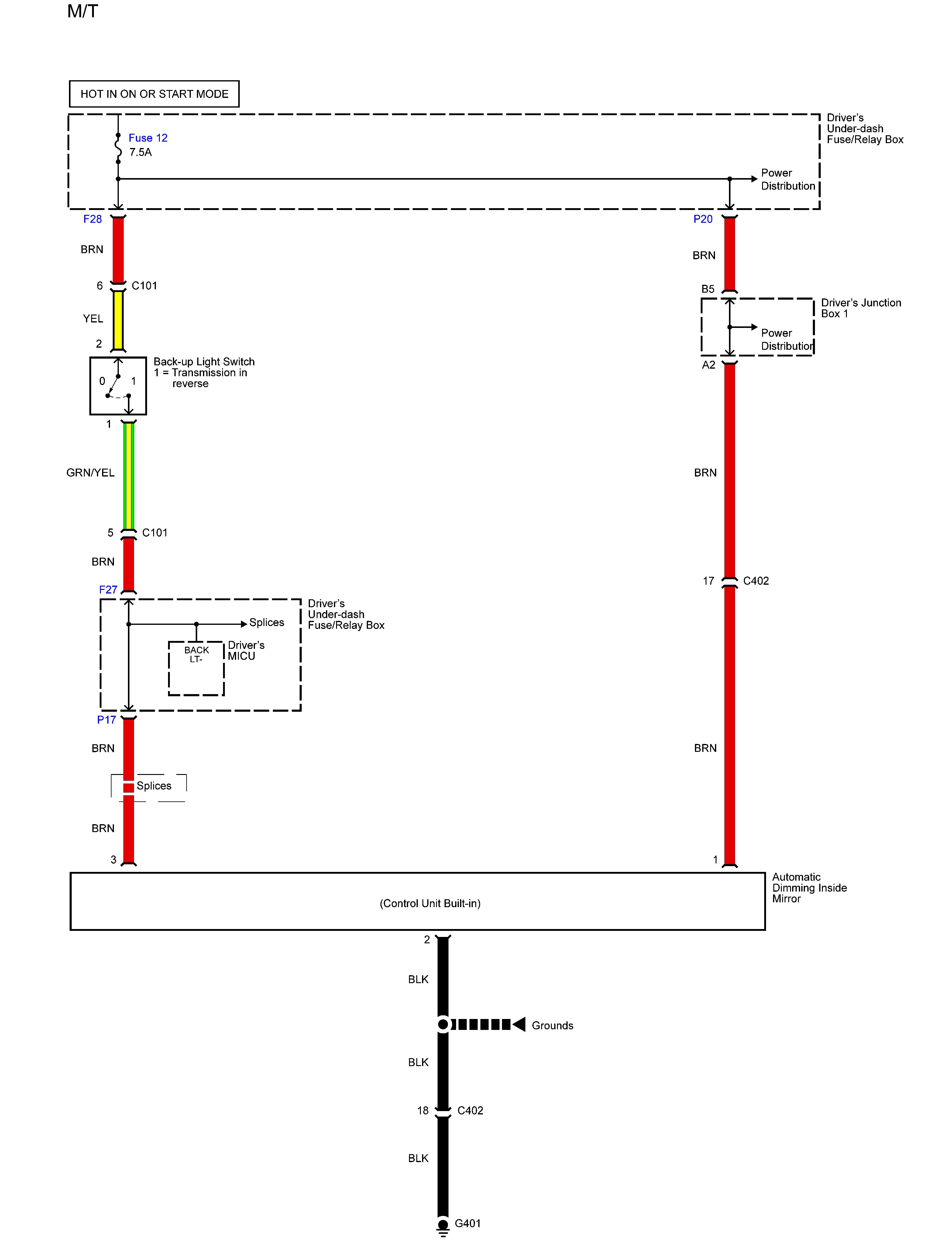

Acura TL - wiring diagram - electrochromic mirror - M/T
Acura TL – wiring diagram – electrochromic mirror – M/T



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
