Acura TL (2005) – wiring diagrams – audio

Acura TL (2005) – wiring diagrams – audio

Year of productions:  2005

Audio

Version 1

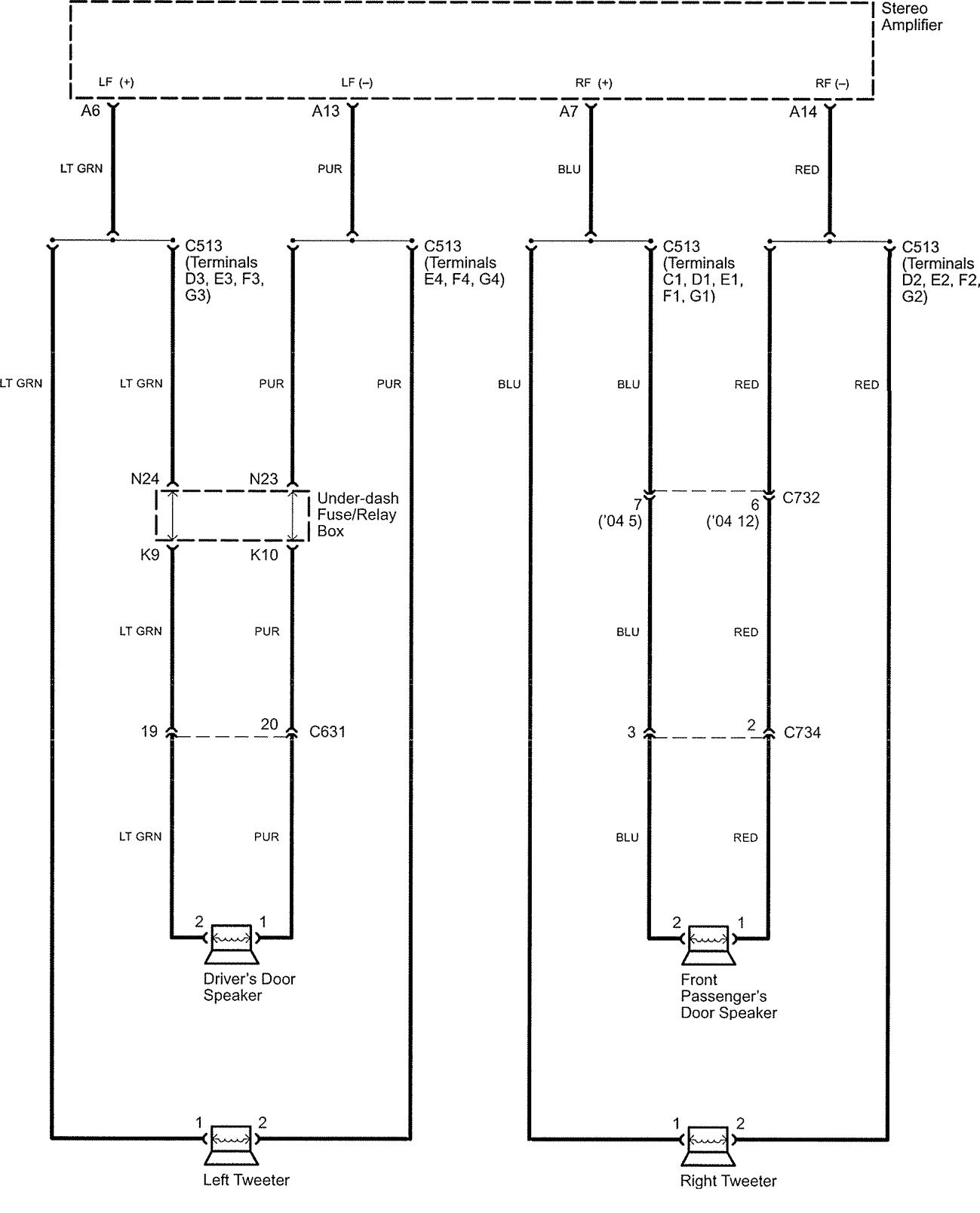

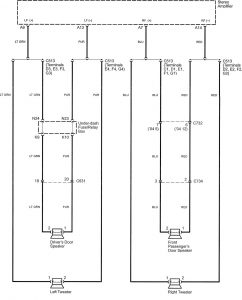

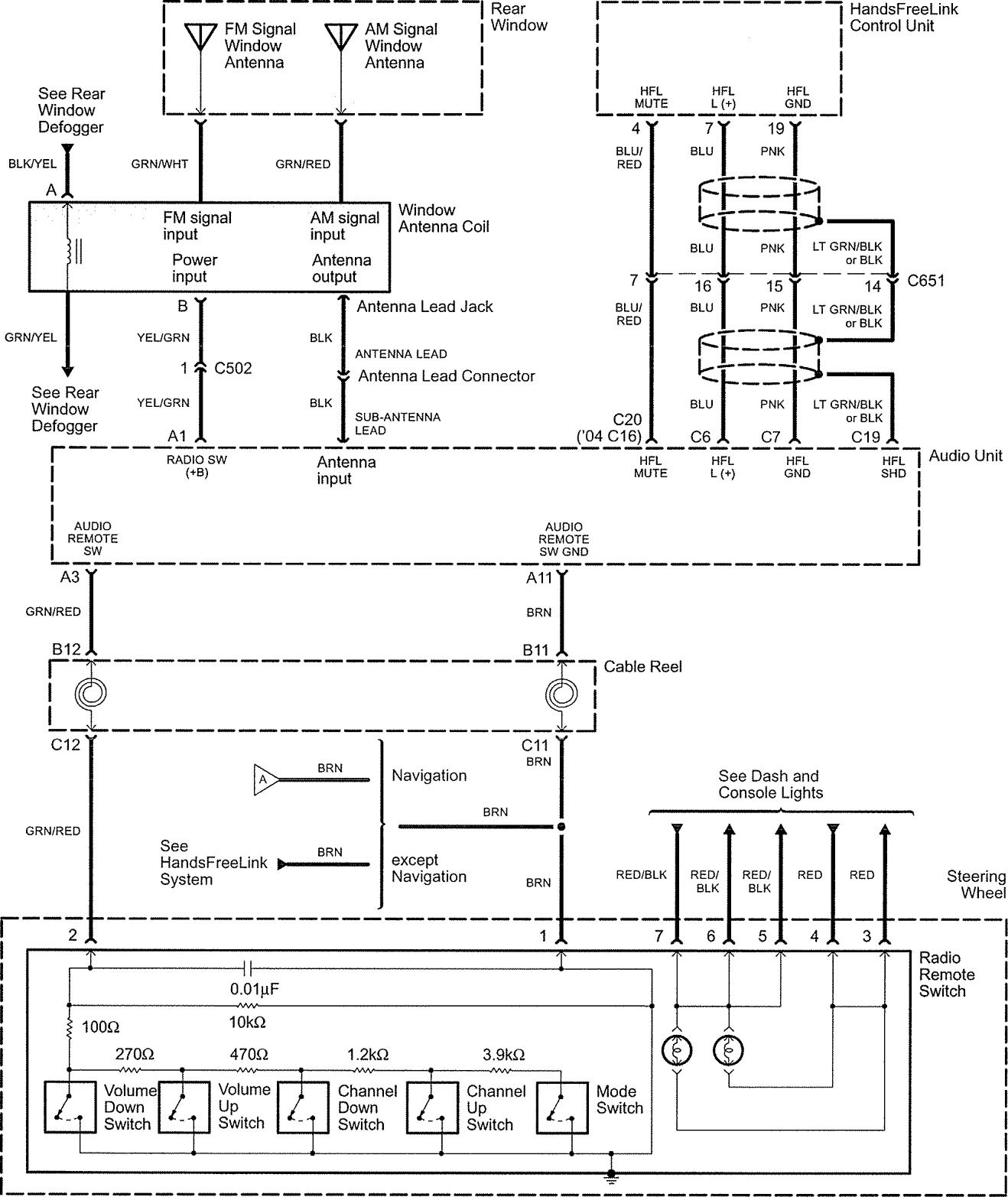

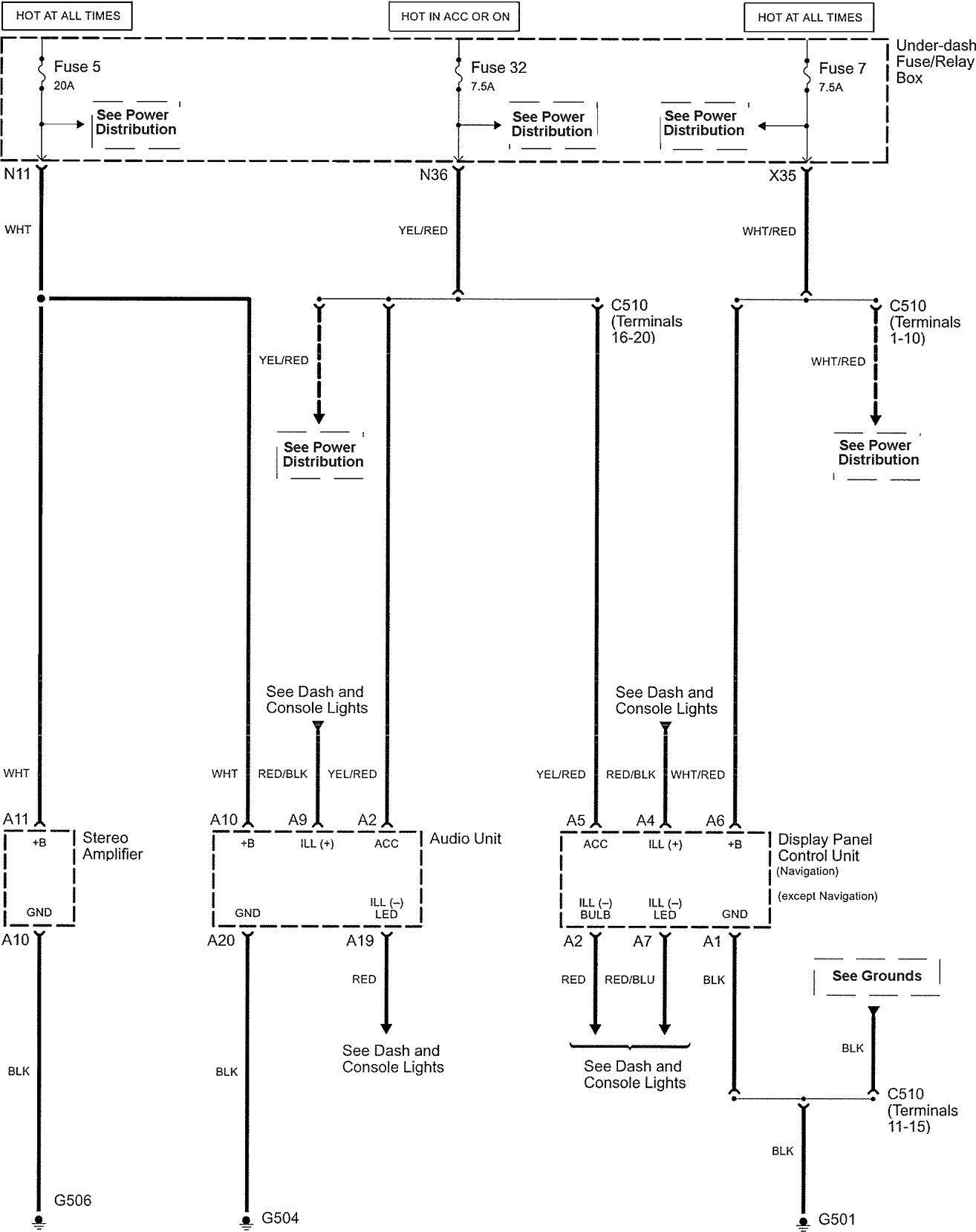

Acura TL – wiring diagram – audio (part 1)

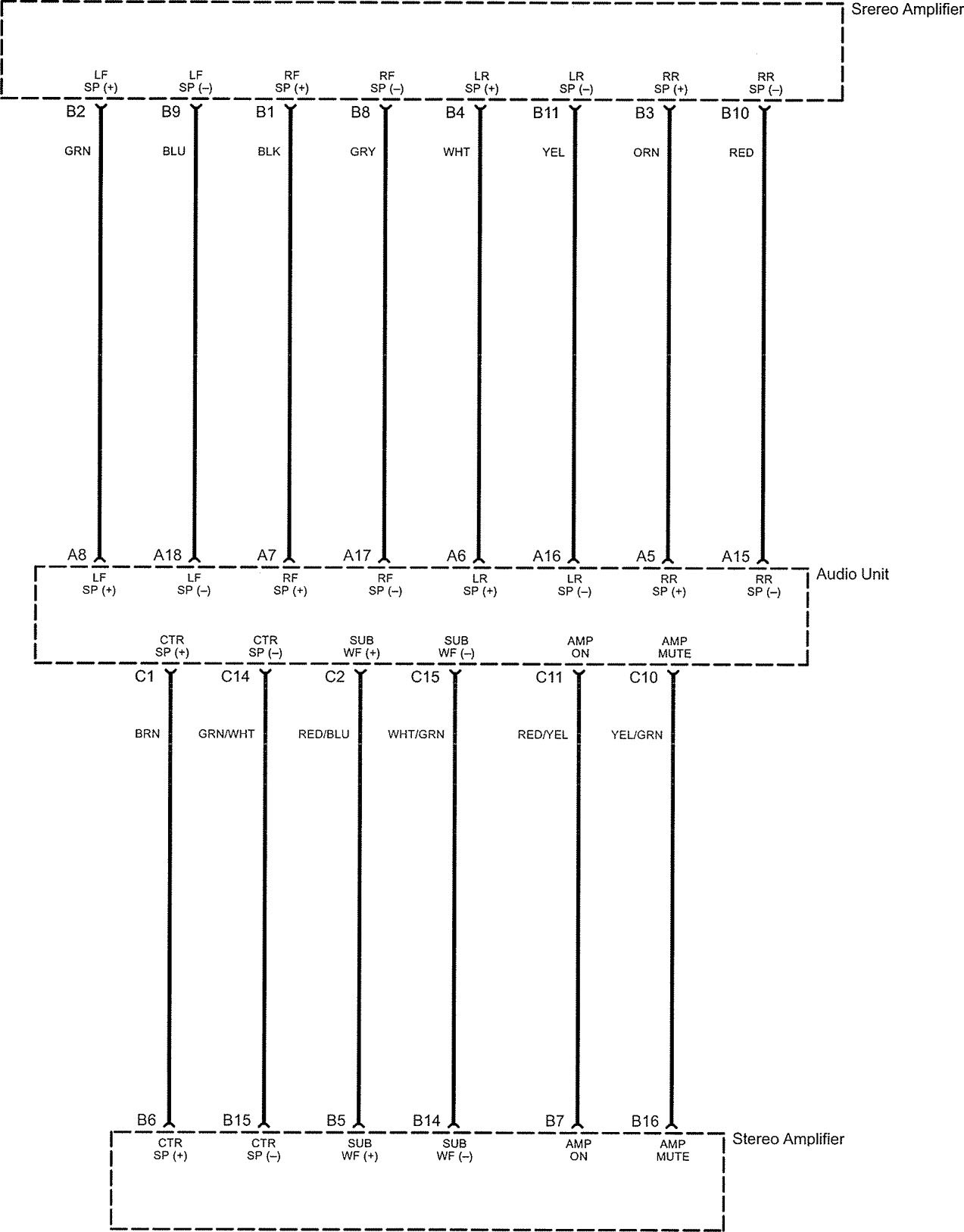

Acura TL – wiring diagram – audio (part 2)

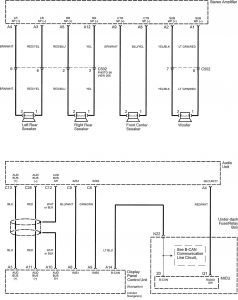

Acura TL – wiring diagram – audio (part 3)
Acura TL – wiring diagram – audio (part 4)

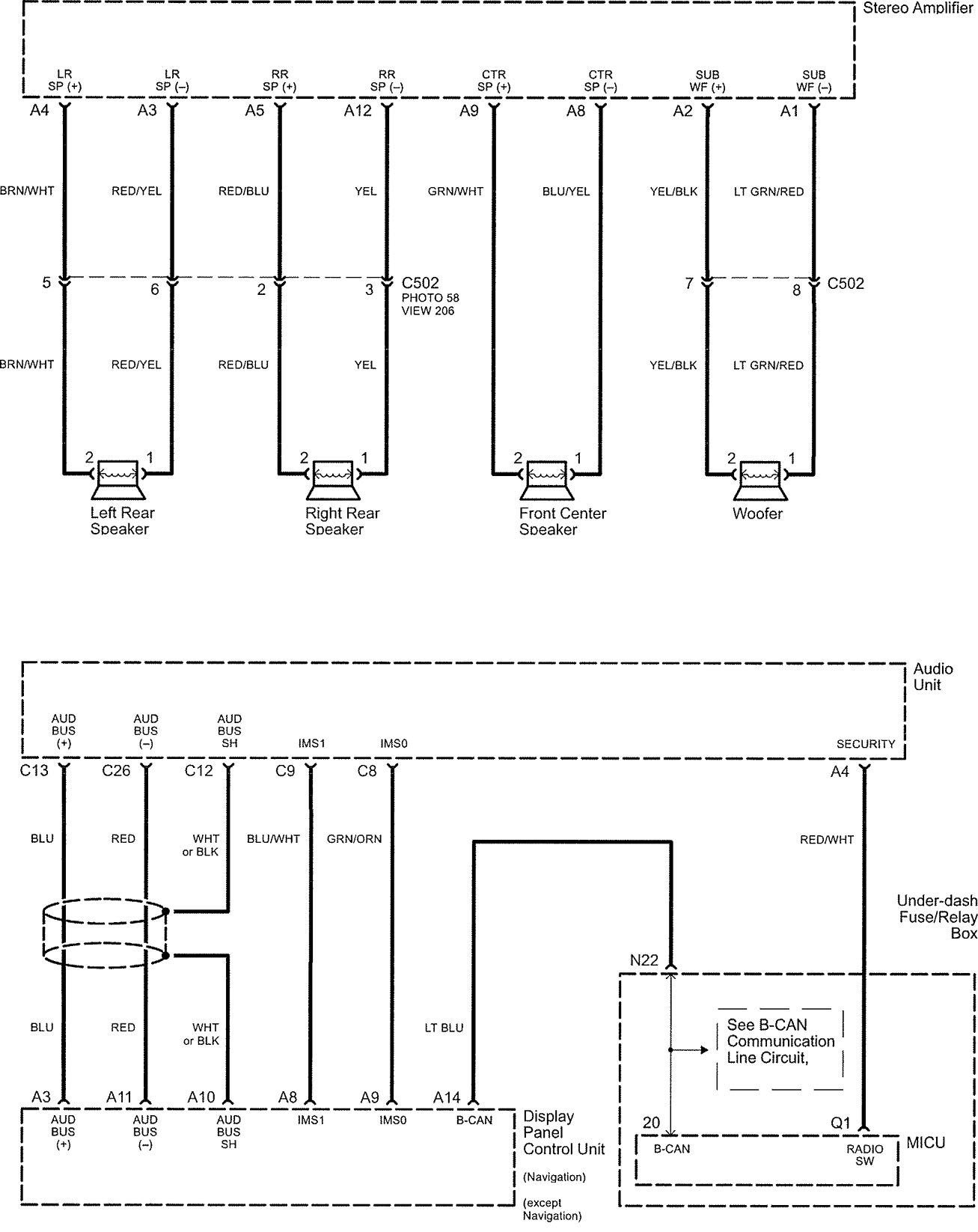

Acura TL – wiring diagram – audio (part 5)

Version 2

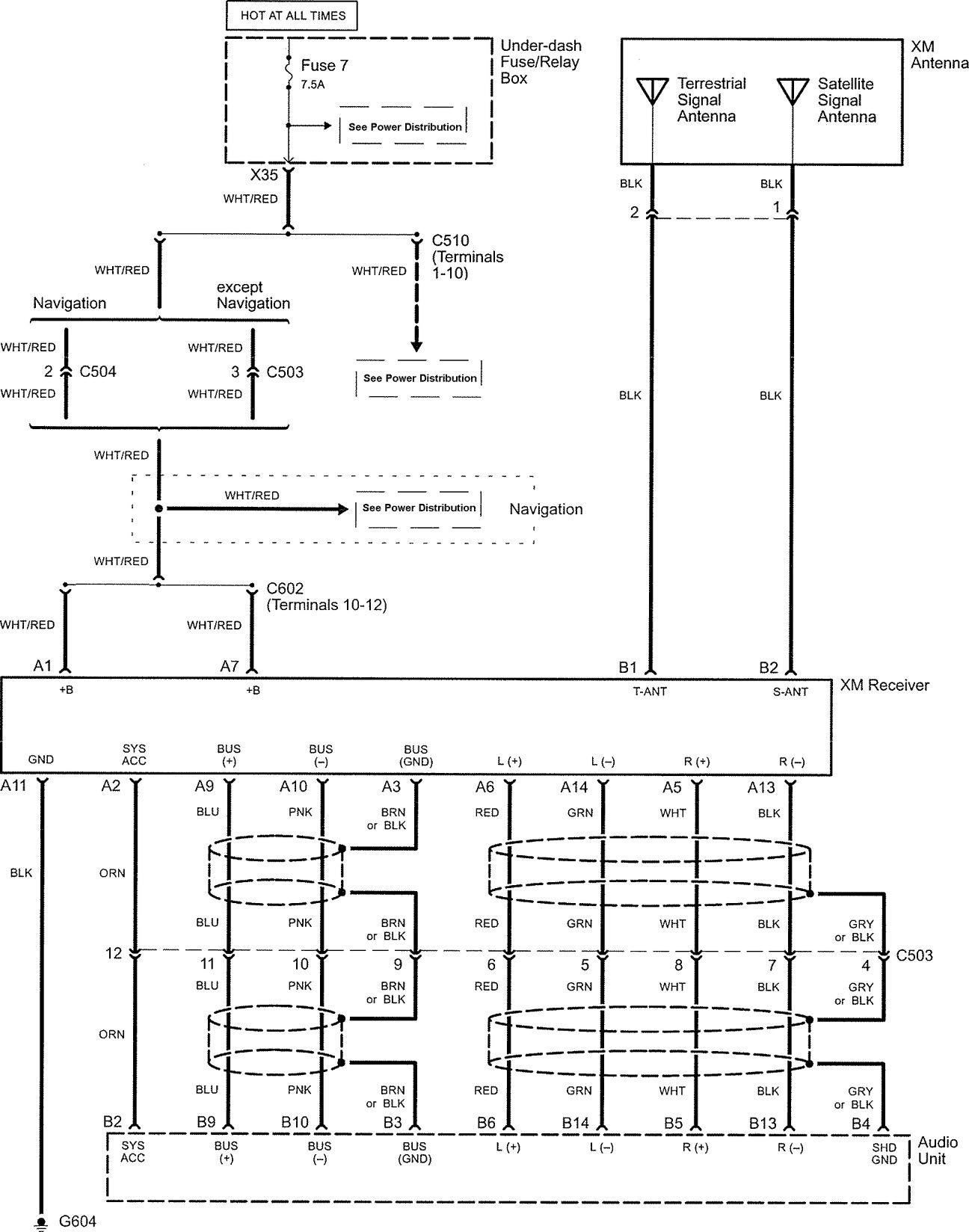

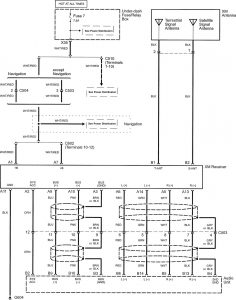

Acura TL – wiring diagram – audio

Version 3

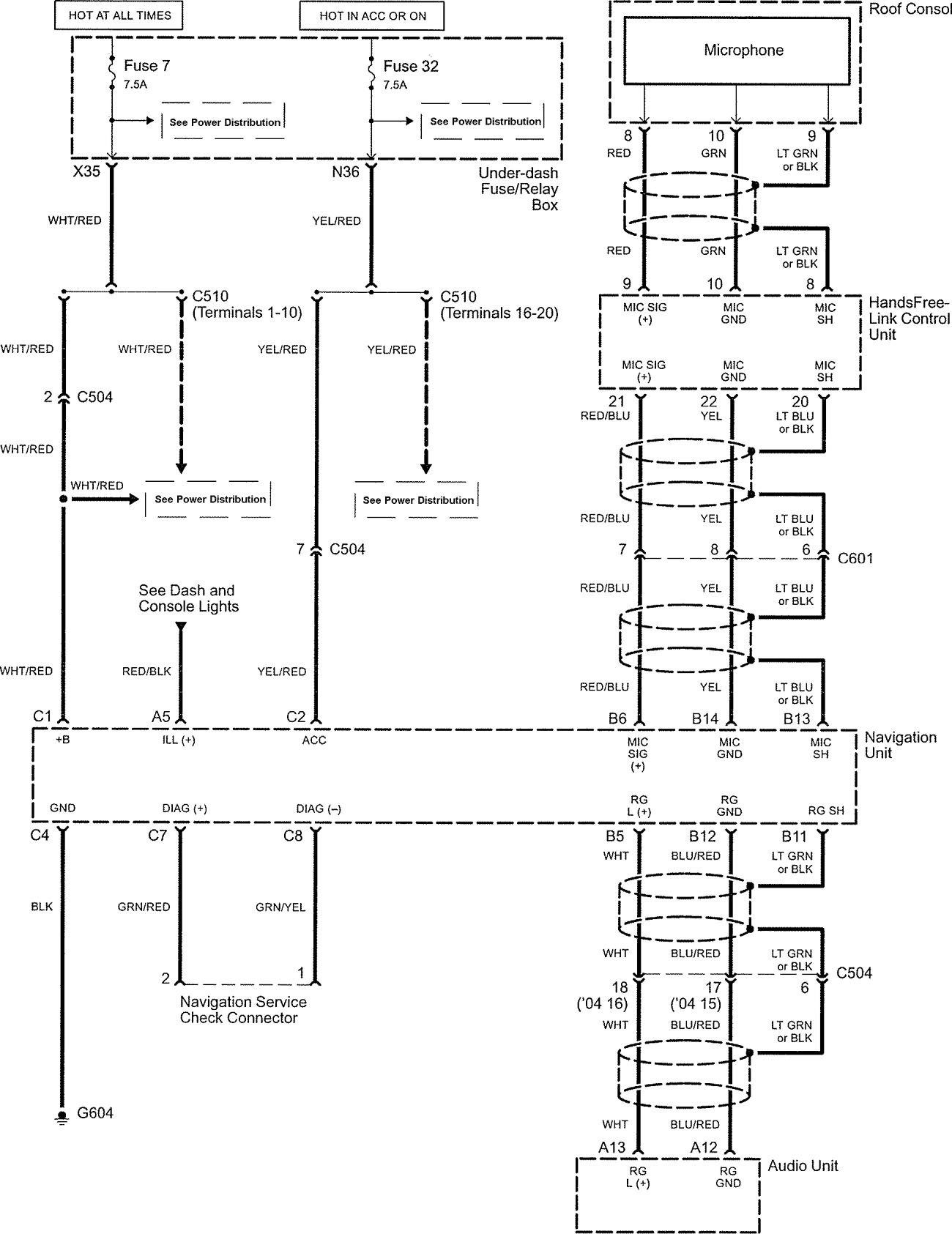

Acura TL – wiring diagram – audio (part 1)

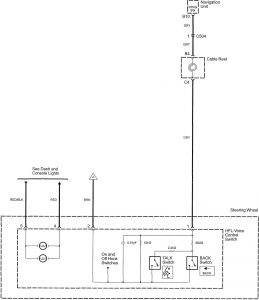

Acura TL – wiring diagram – audio (part 2)

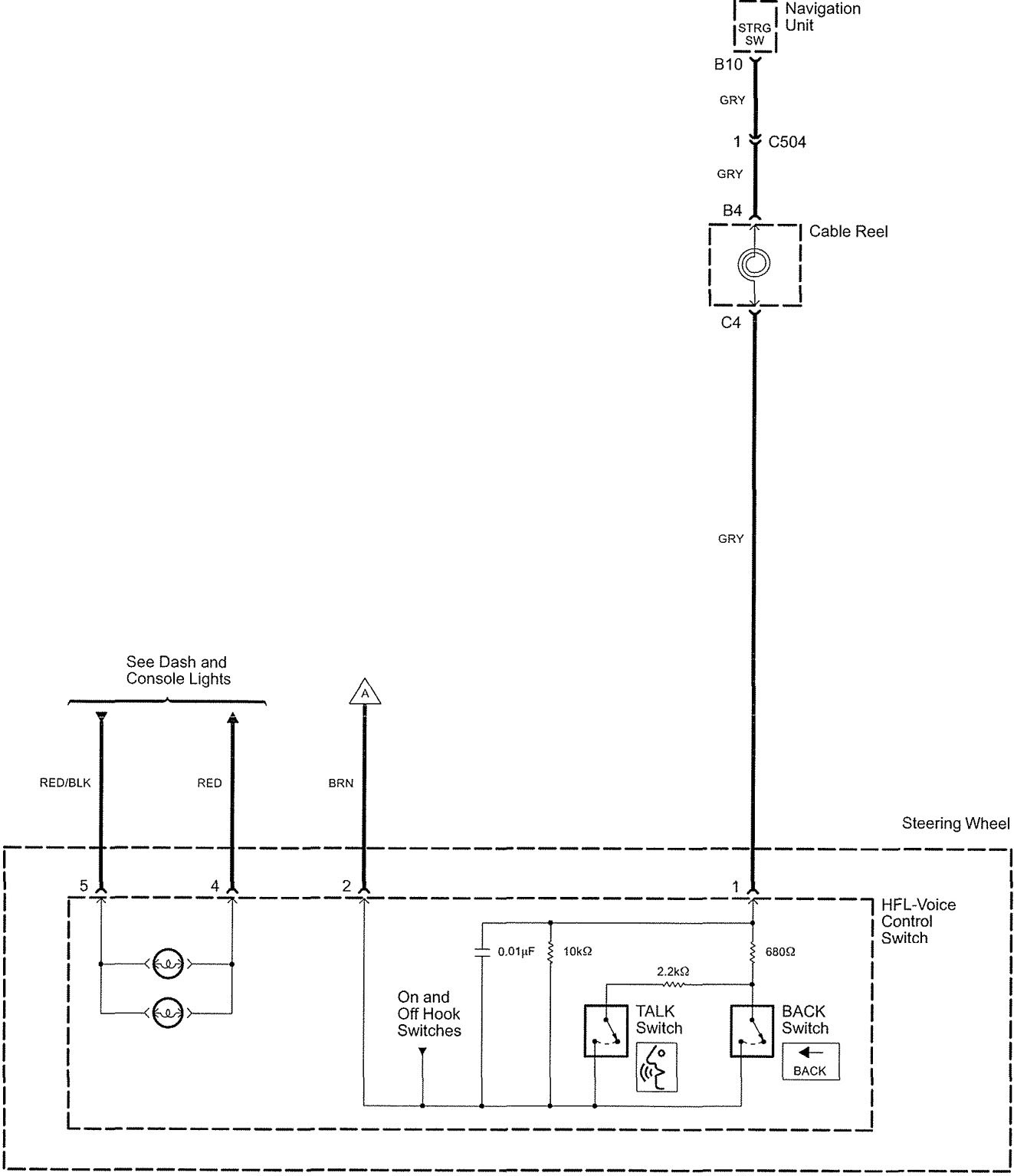

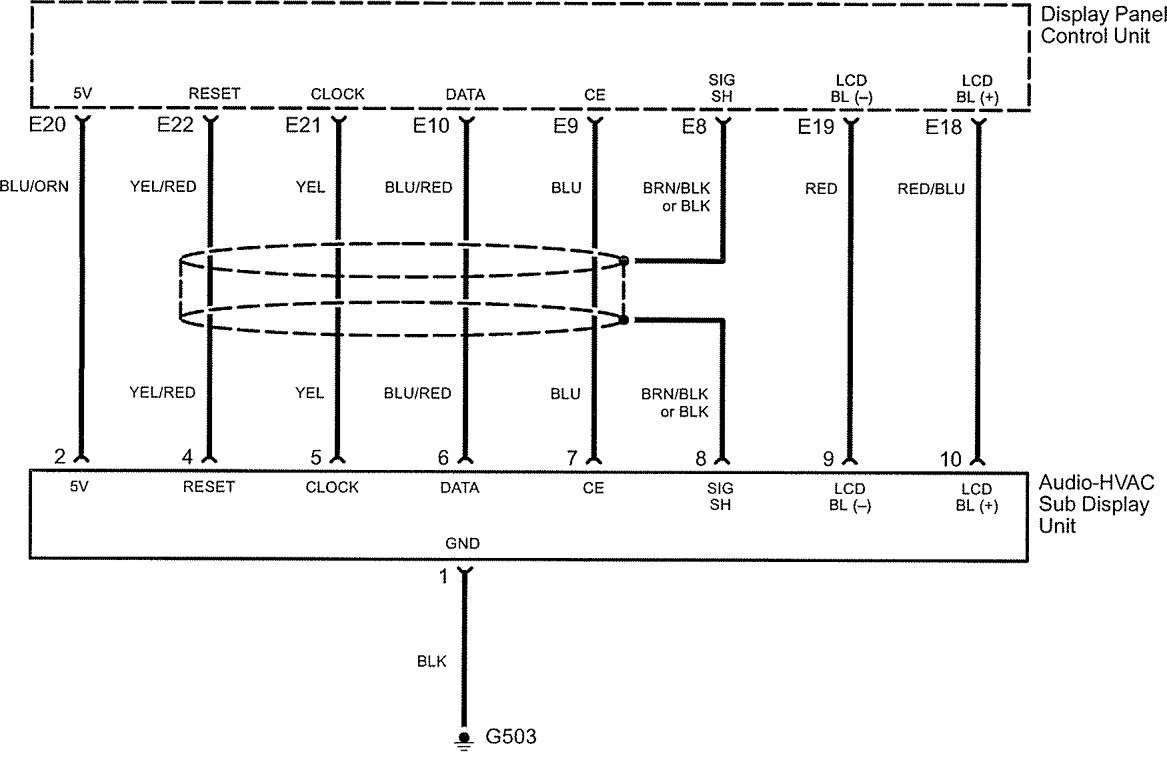

Acura TL – wiring diagram – audio (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
