Acura TL (2004) – wiring diagrams – interior

Acura TL (2004) – wiring diagrams – interior

Year of productions:  2004

Interior

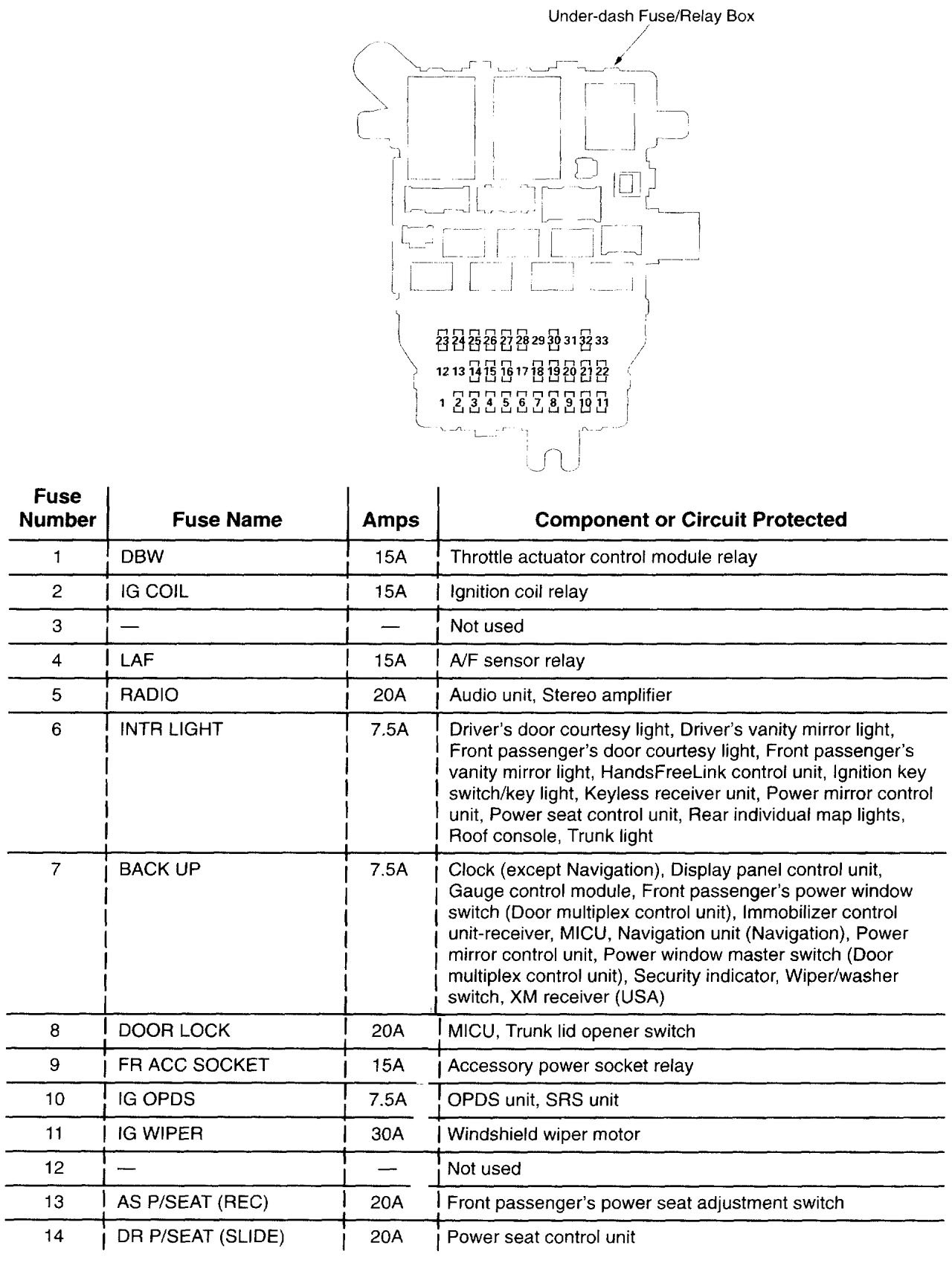

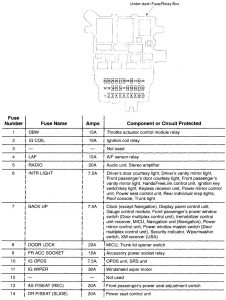

Acura TL – wiring diagram – interior (part 1)

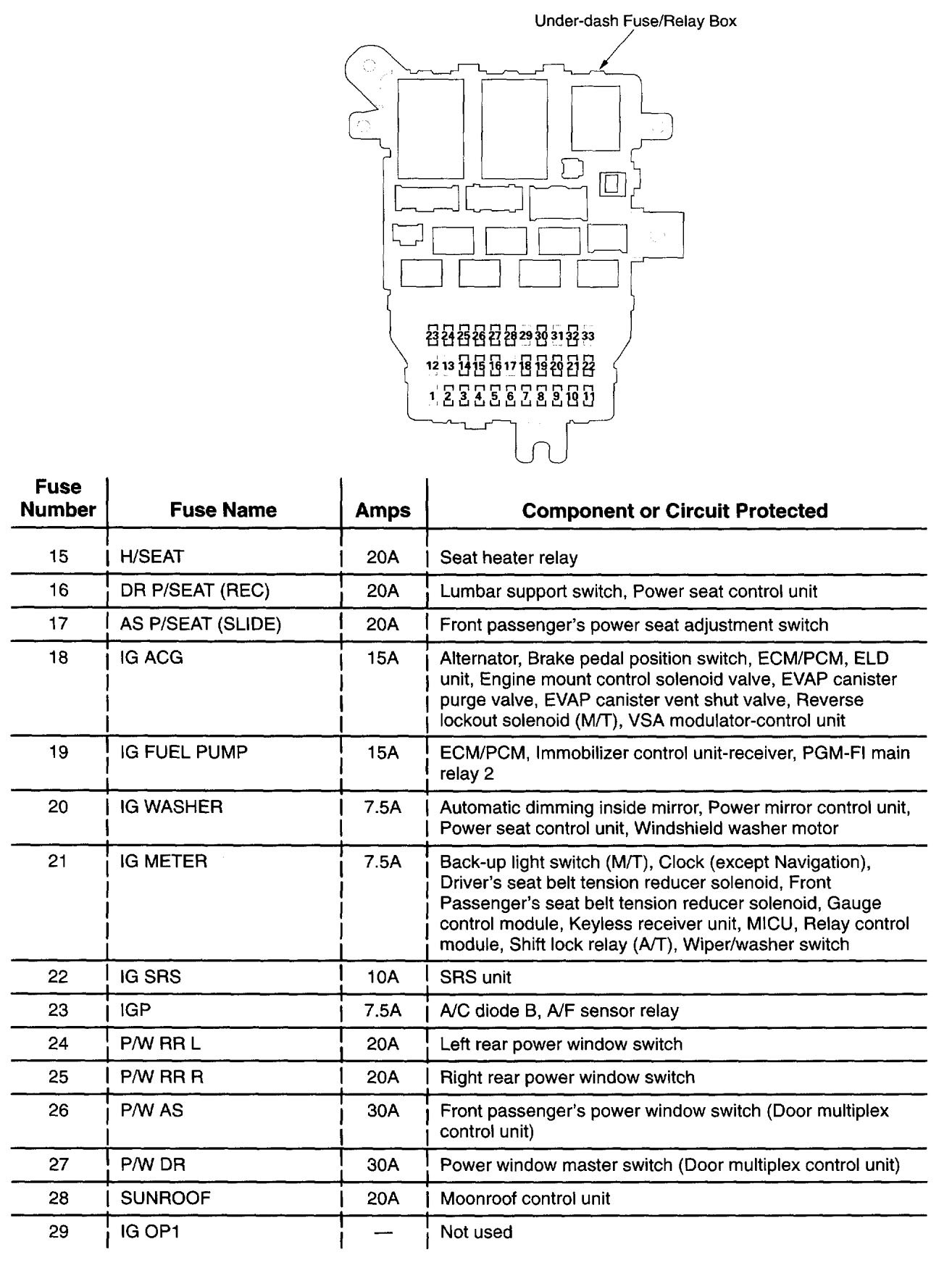

Acura TL – wiring diagram – interior (part 2)

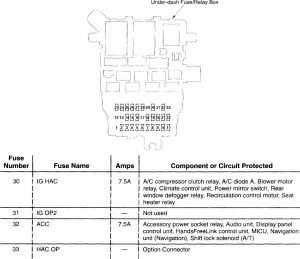

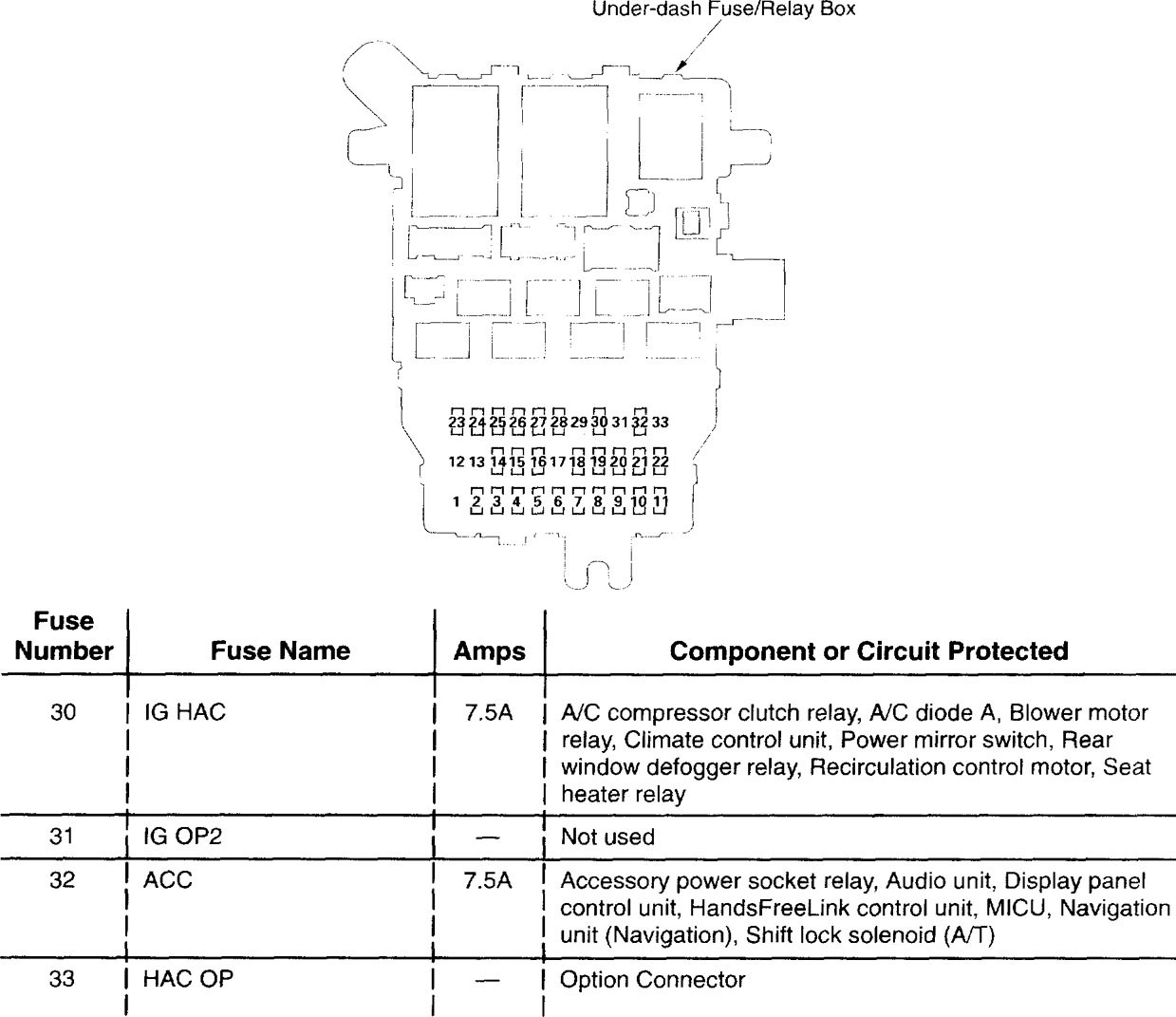

Acura TL – wiring diagram – interior (part 3)

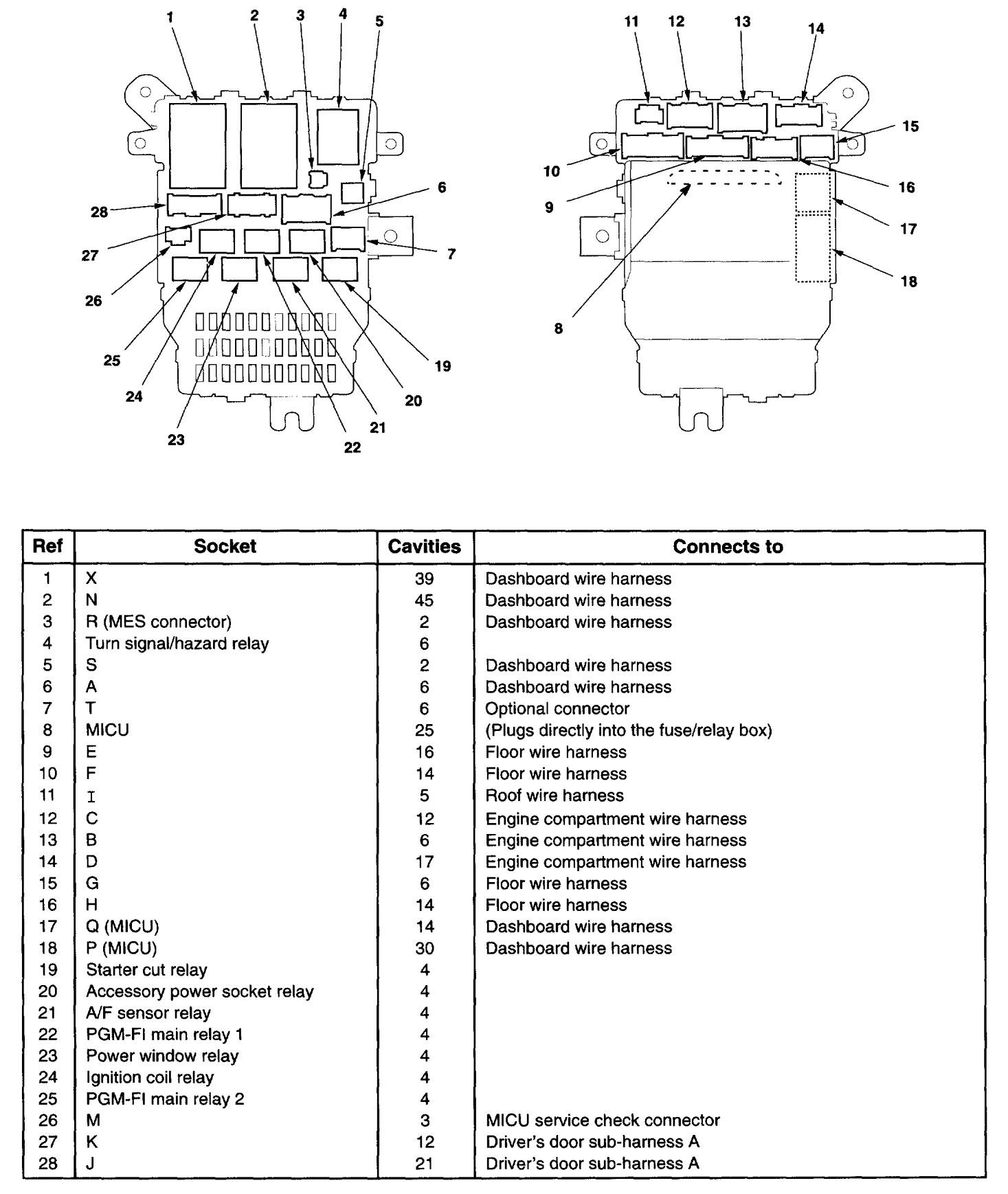

Acura TL – wiring diagram – interior (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
