Acura TL (2000 – 2001) – wiring diagrams – heated seats

31 May 2017 admin Acura, TL 0

Acura TL (2000 – 2001) – wiring diagrams – heated seats

Year of productions:  2000, 2001

Heated seats

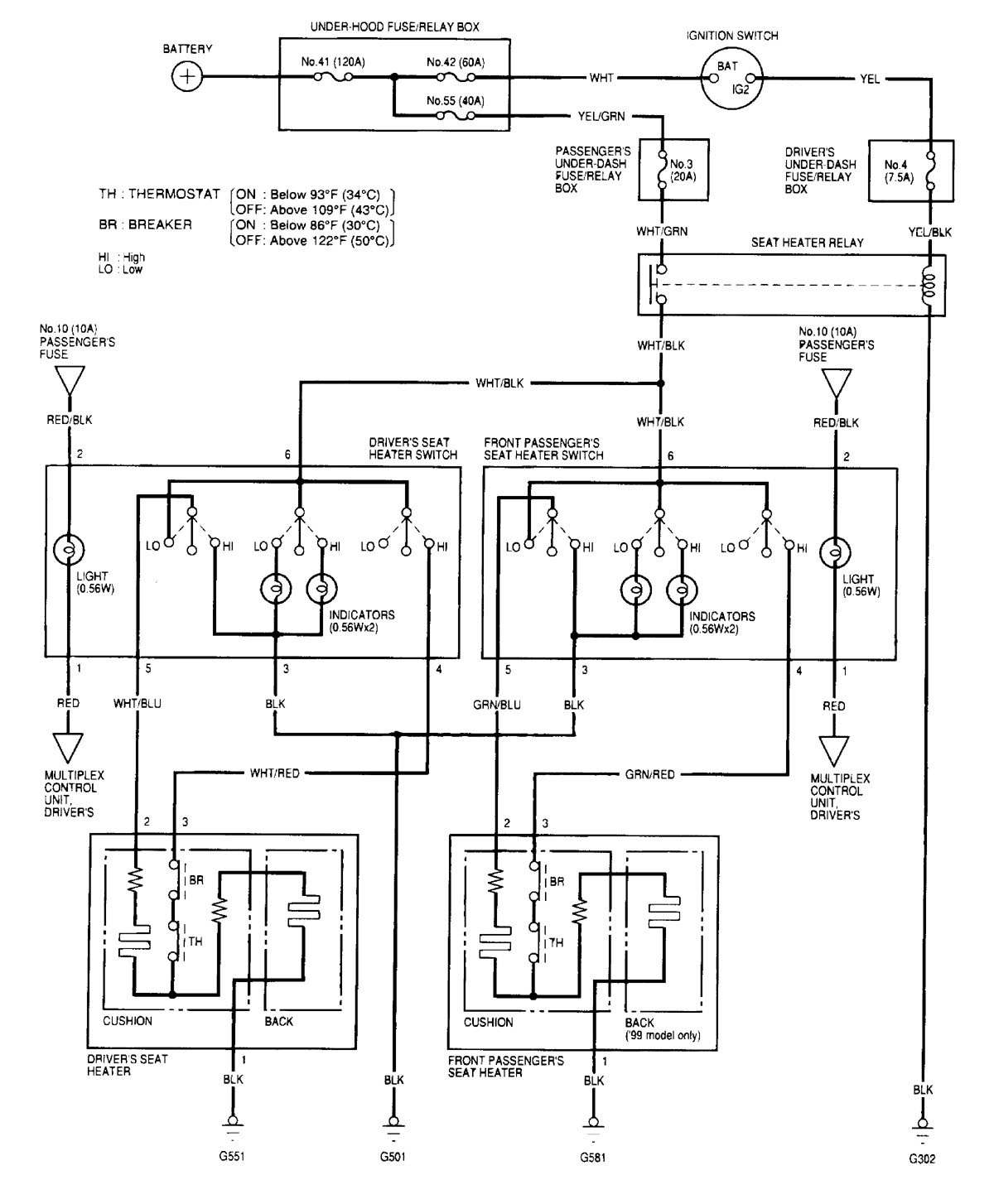

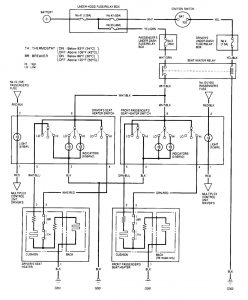

Acura TL – wiring diagram – heated seats

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
