Acura TL (1998 – 1999) – wiring diagrams – power windows

Acura TL (1998 – 1999) – wiring diagrams – power windows

Year of productions:  1998, 1999

Power windows

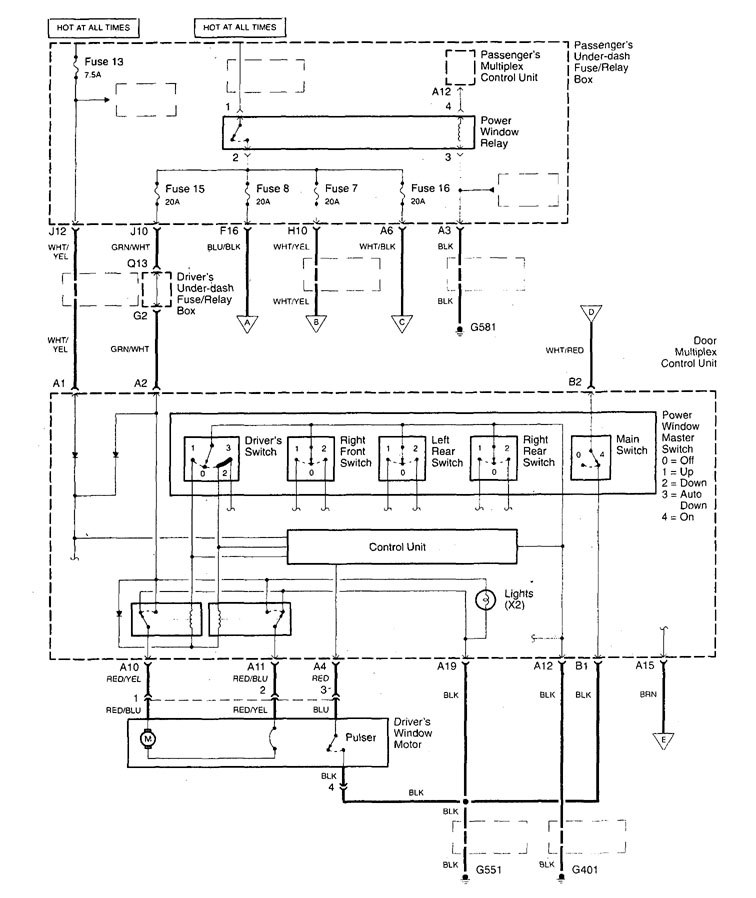

Acura TL – fuse box –
power windows (part 1)

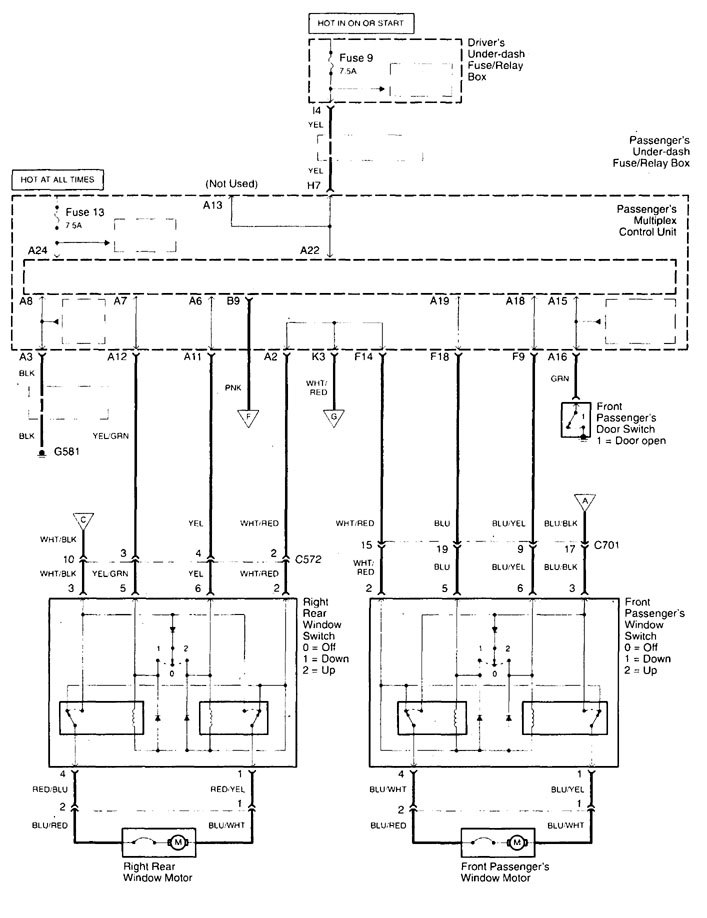

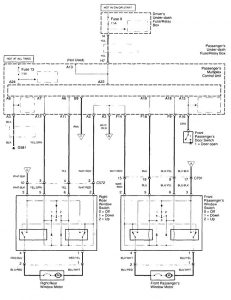

Acura TL – fuse box –
power windows (part 2)

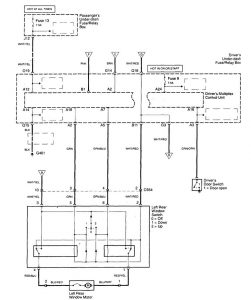

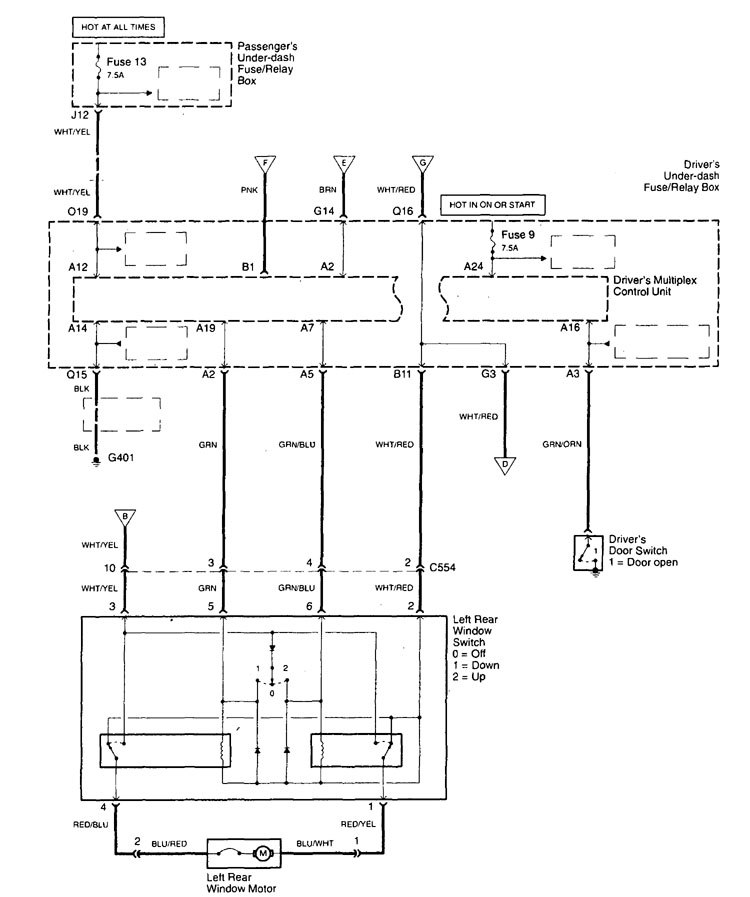

Acura TL – fuse box –
power windows (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
