Acura TL (1996) – wiring diagrams – security/anti-theft

Year of productions:  1996

Security/anti-theft

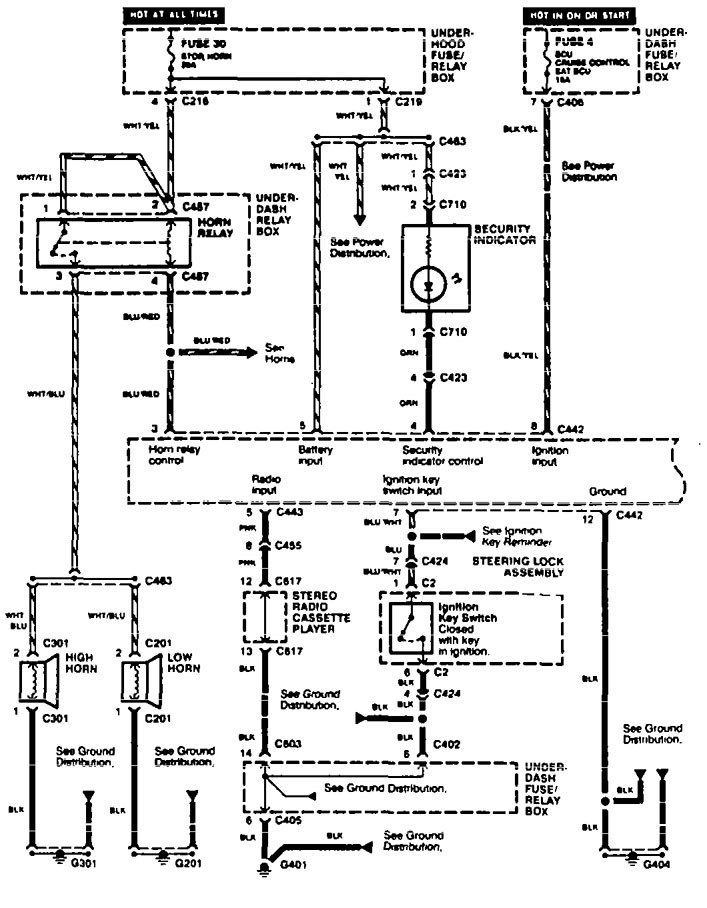

Acura TL – wiring diagram – security/anti-theft (part 1)

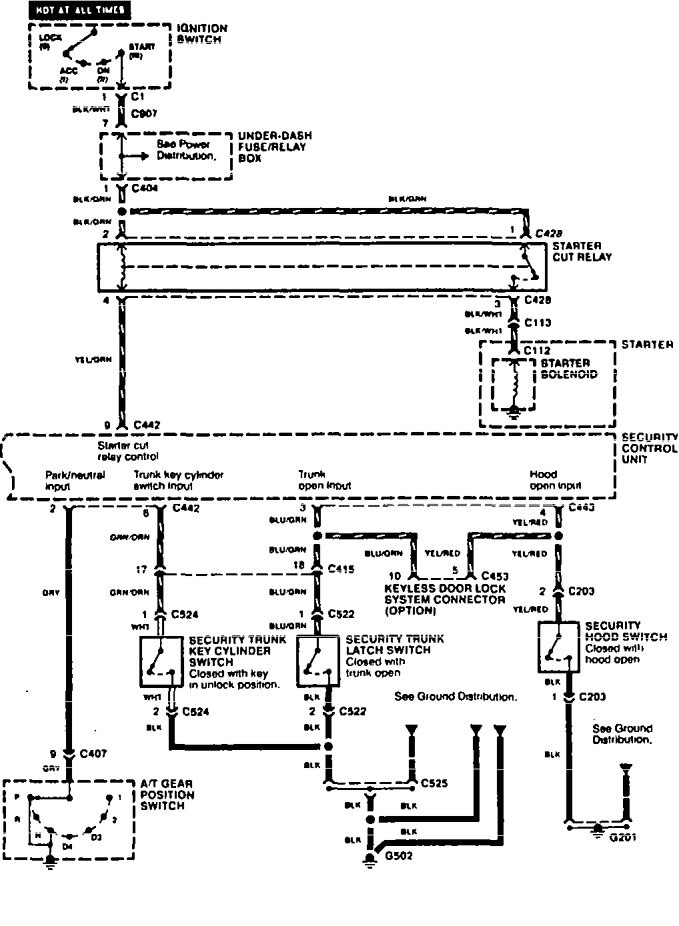

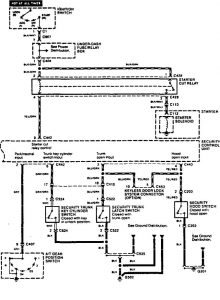

Acura TL – wiring diagram – security/anti-theft (part 2)

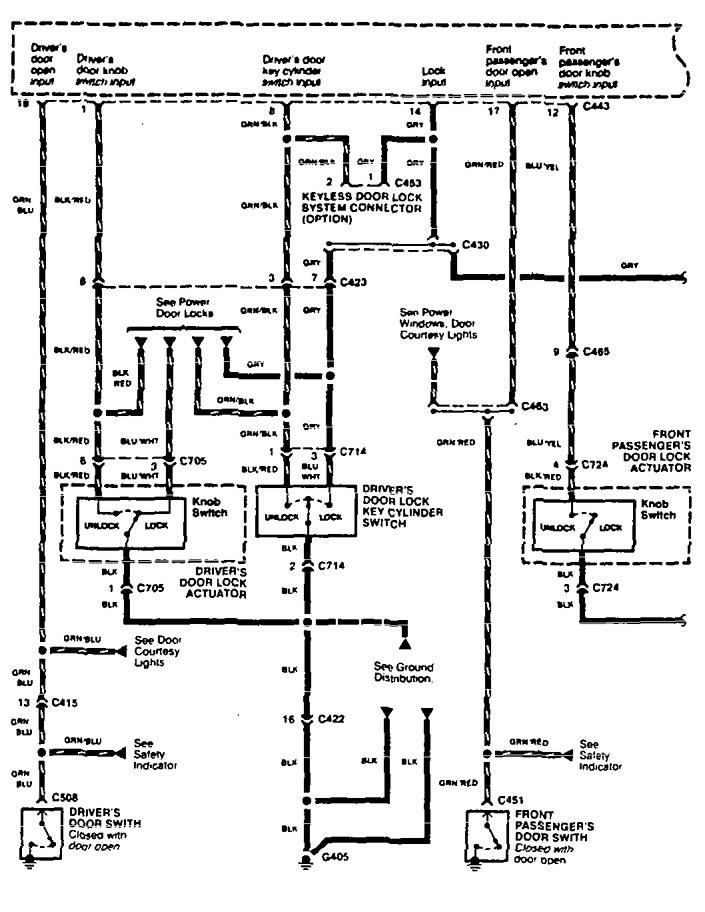

Acura TL – wiring diagram – security/anti-theft (part 3)

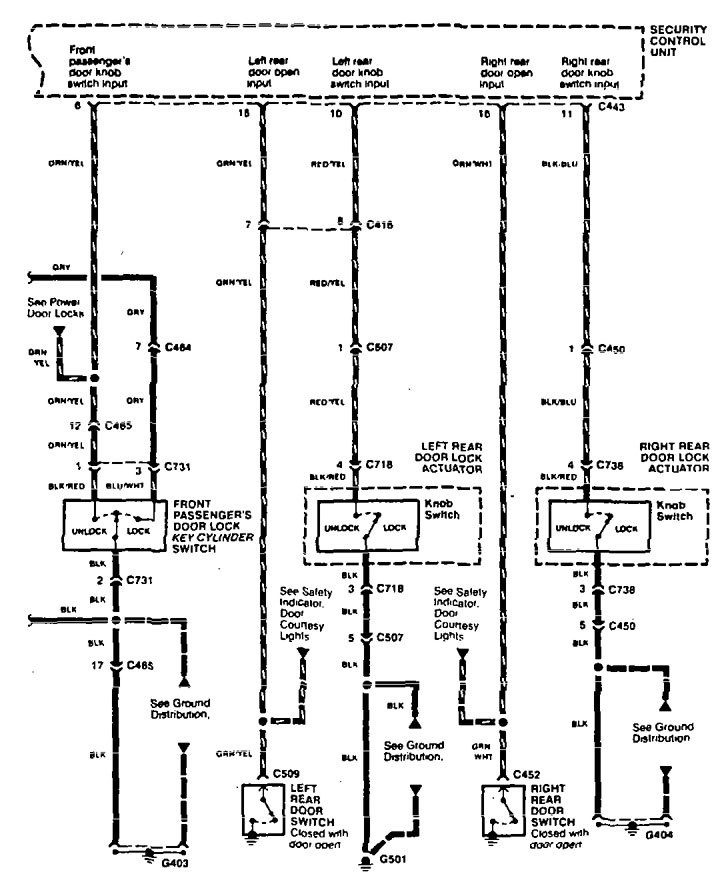

Acura TL – wiring diagram – security/anti-theft (part 4)

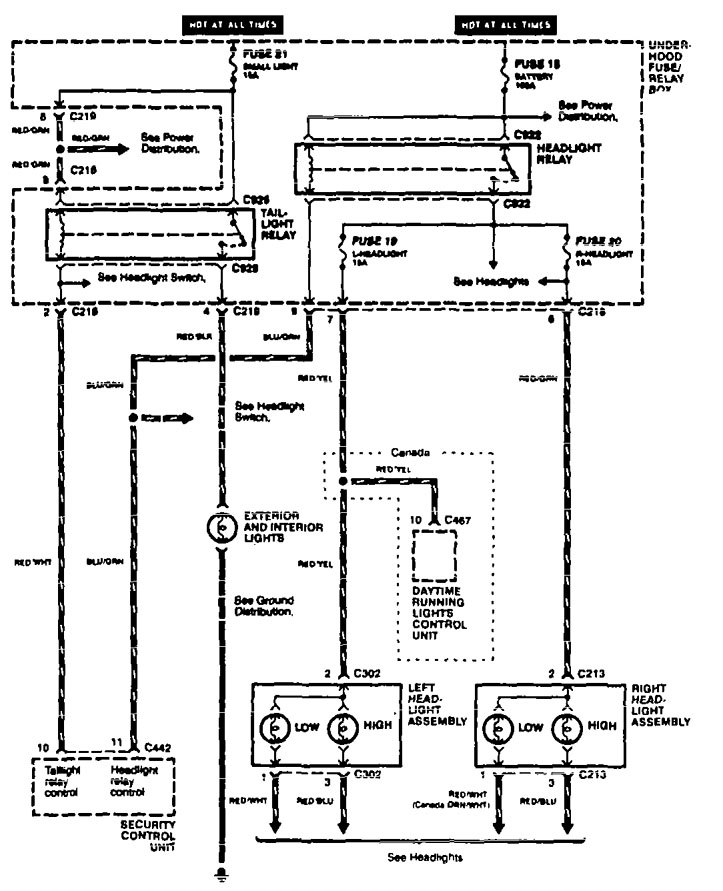

Acura TL – wiring diagram – security/anti-theft (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
