Acura RL (2006) – wiring diagrams – steering column

Acura RL (2006) – wiring diagrams – steering column

Year of production:  2006

Steering column

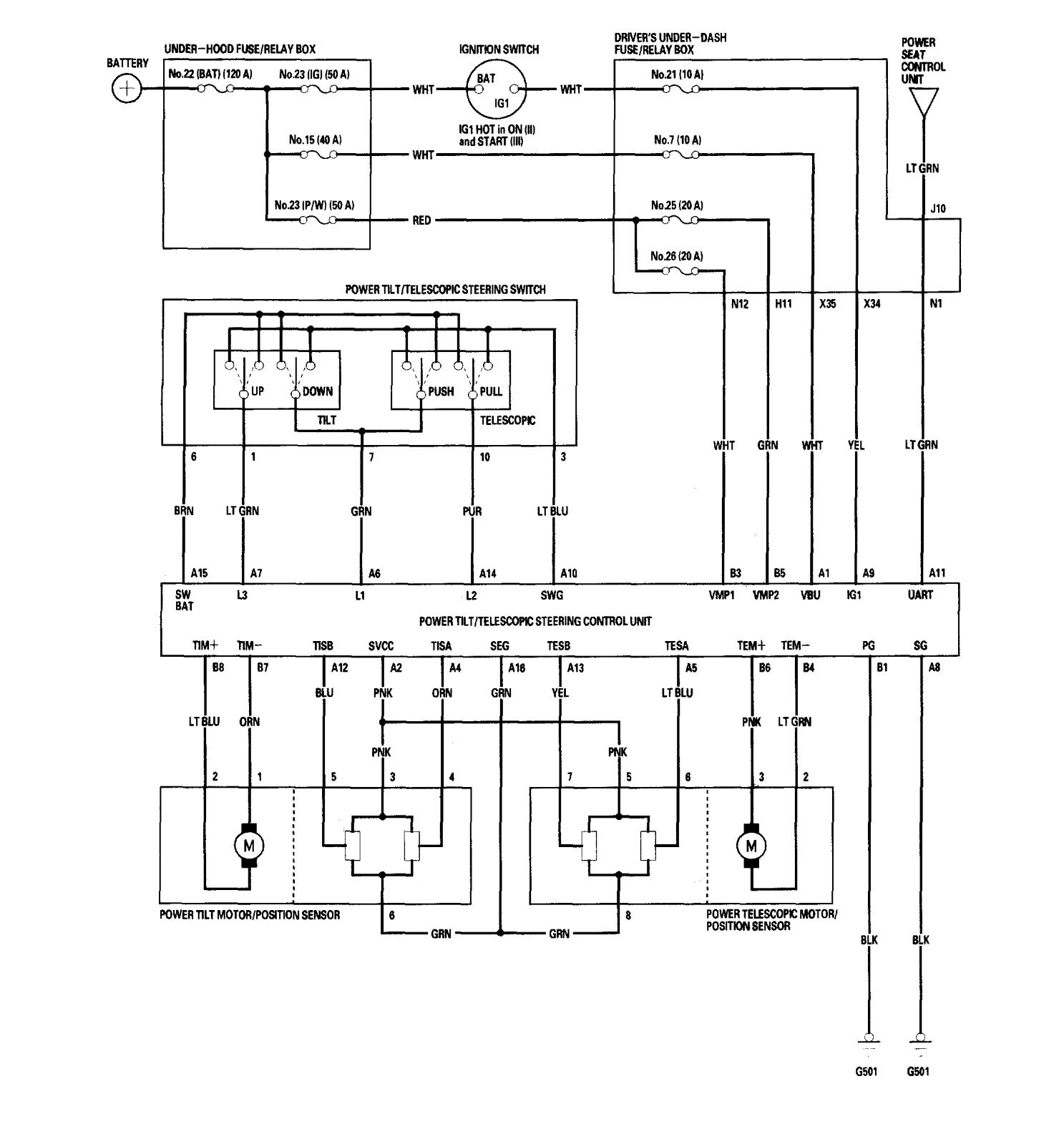

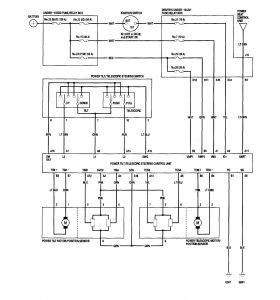

Acura RL - wiring diagram - steering column
Acura RL – wiring diagram – steering column

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
