Tire pressure monitoring system

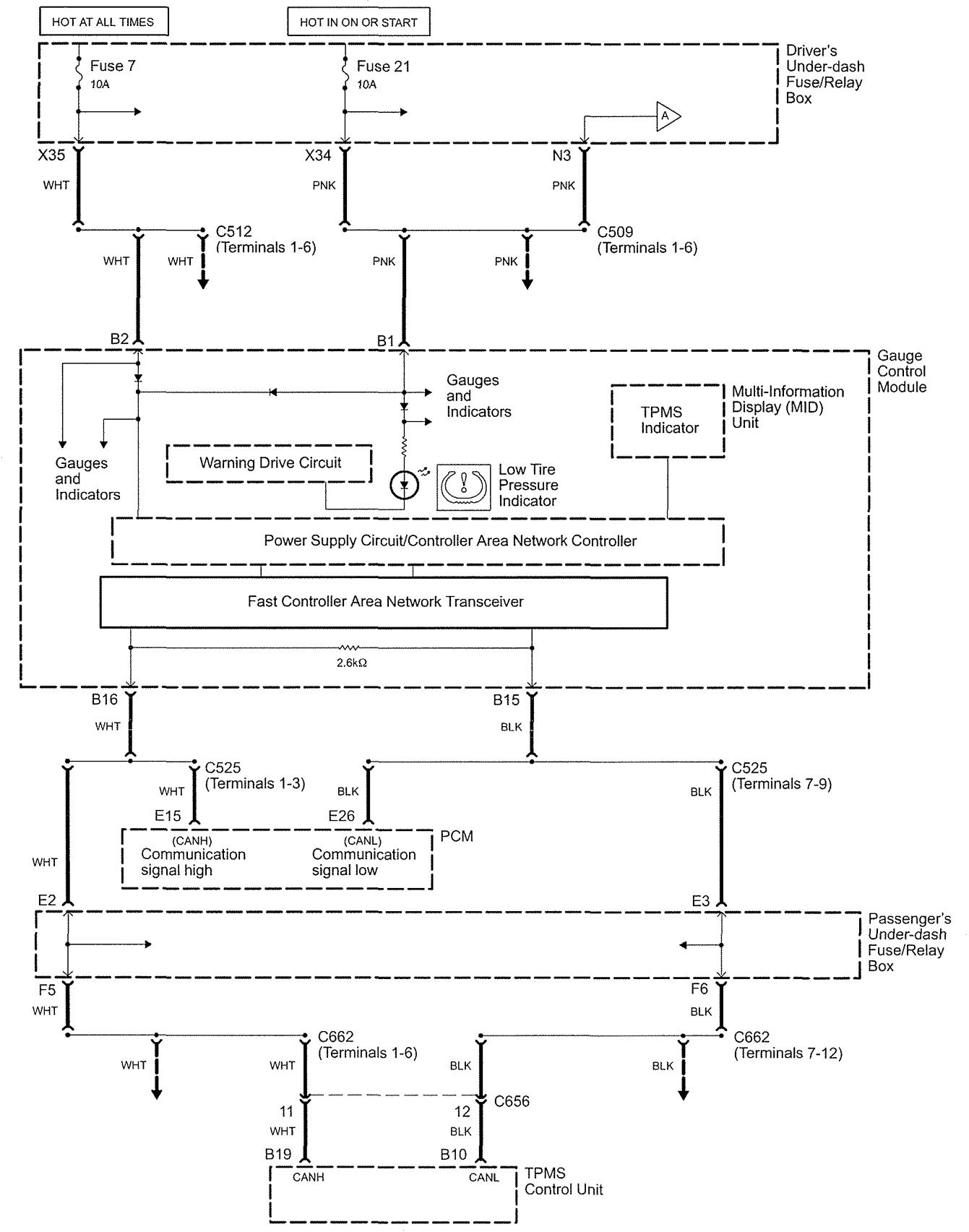

Acura RL - wiring diagram - tire pressure monitoring system (part 1)
Acura RL – wiring diagram – tire pressure monitoring system (part 1)

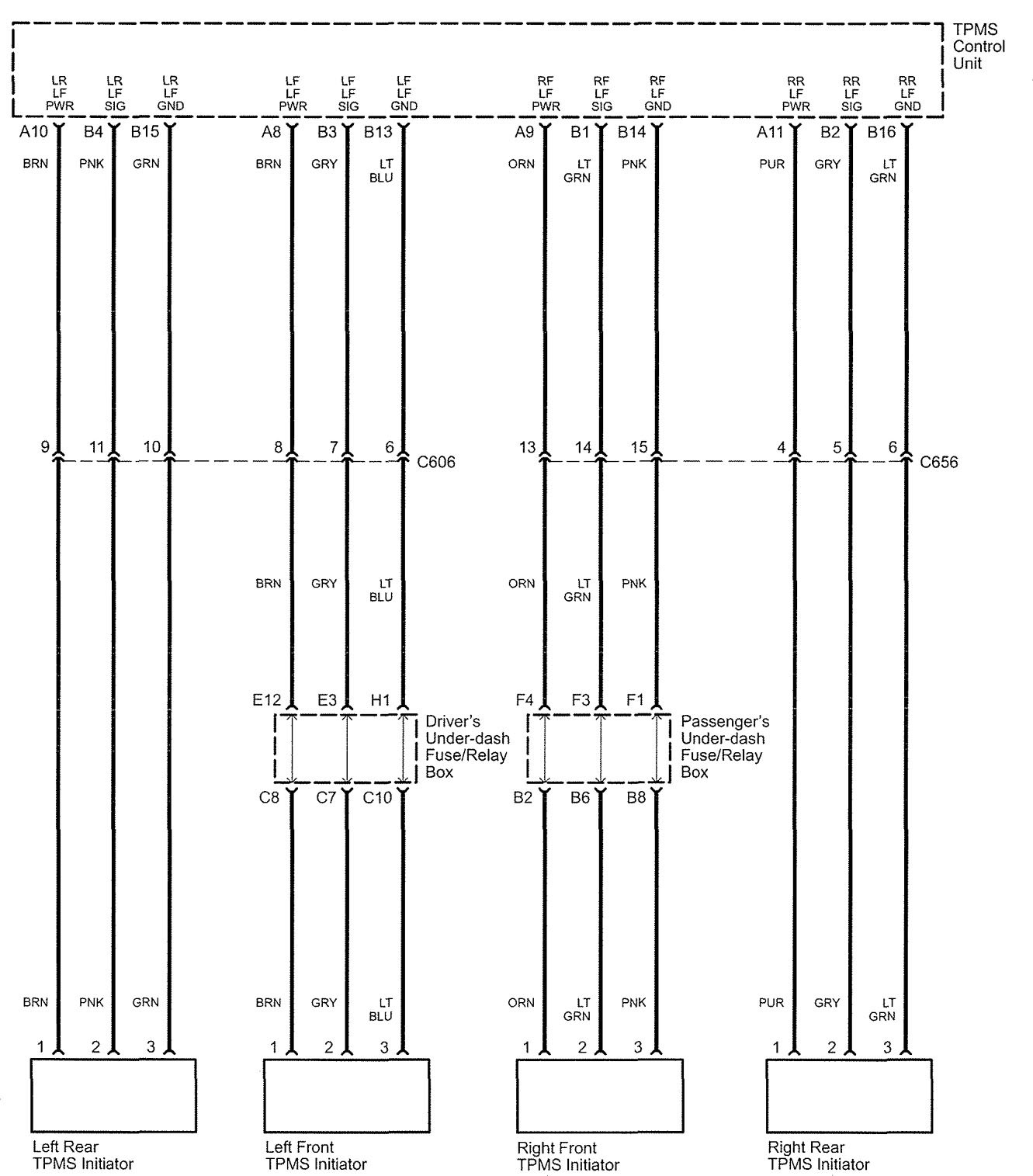

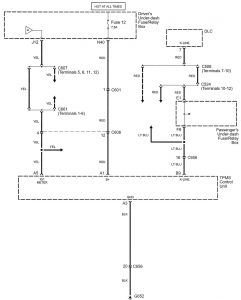

Acura RL - wiring diagram - tire pressure monitoring system (part 2)
Acura RL – wiring diagram – tire pressure monitoring system (part 2)

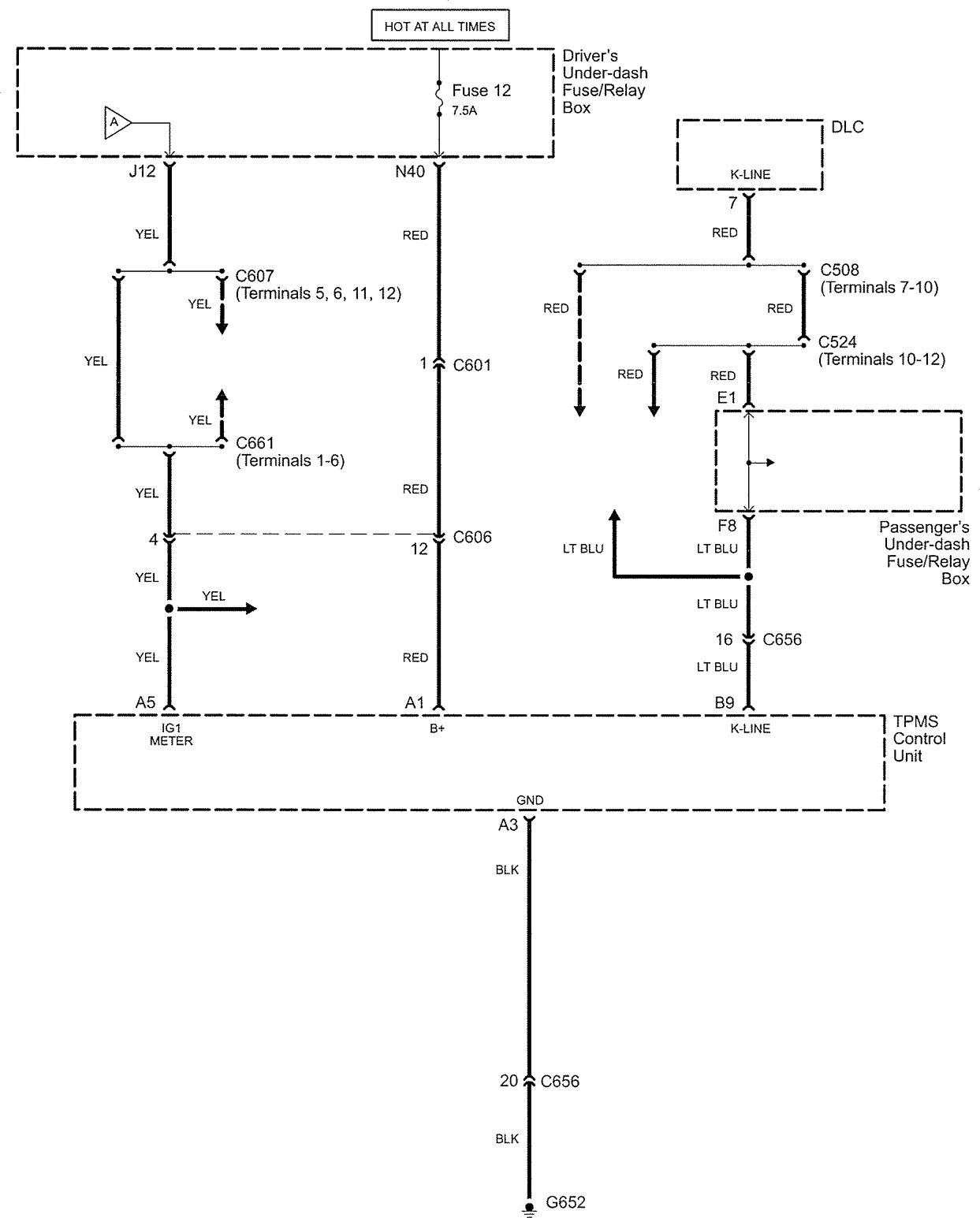

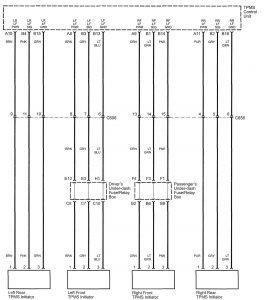

Acura RL - wiring diagram - tire pressure monitoring system (part 3)
Acura RL – wiring diagram – tire pressure monitoring system (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
