Acura RL (2005 – 2006) – wiring diagrams – intelligent key system

Acura RL (2005 – 2006) – wiring diagrams – intelligent key system

Year of productions:  2005, 2006

Intelligent key system

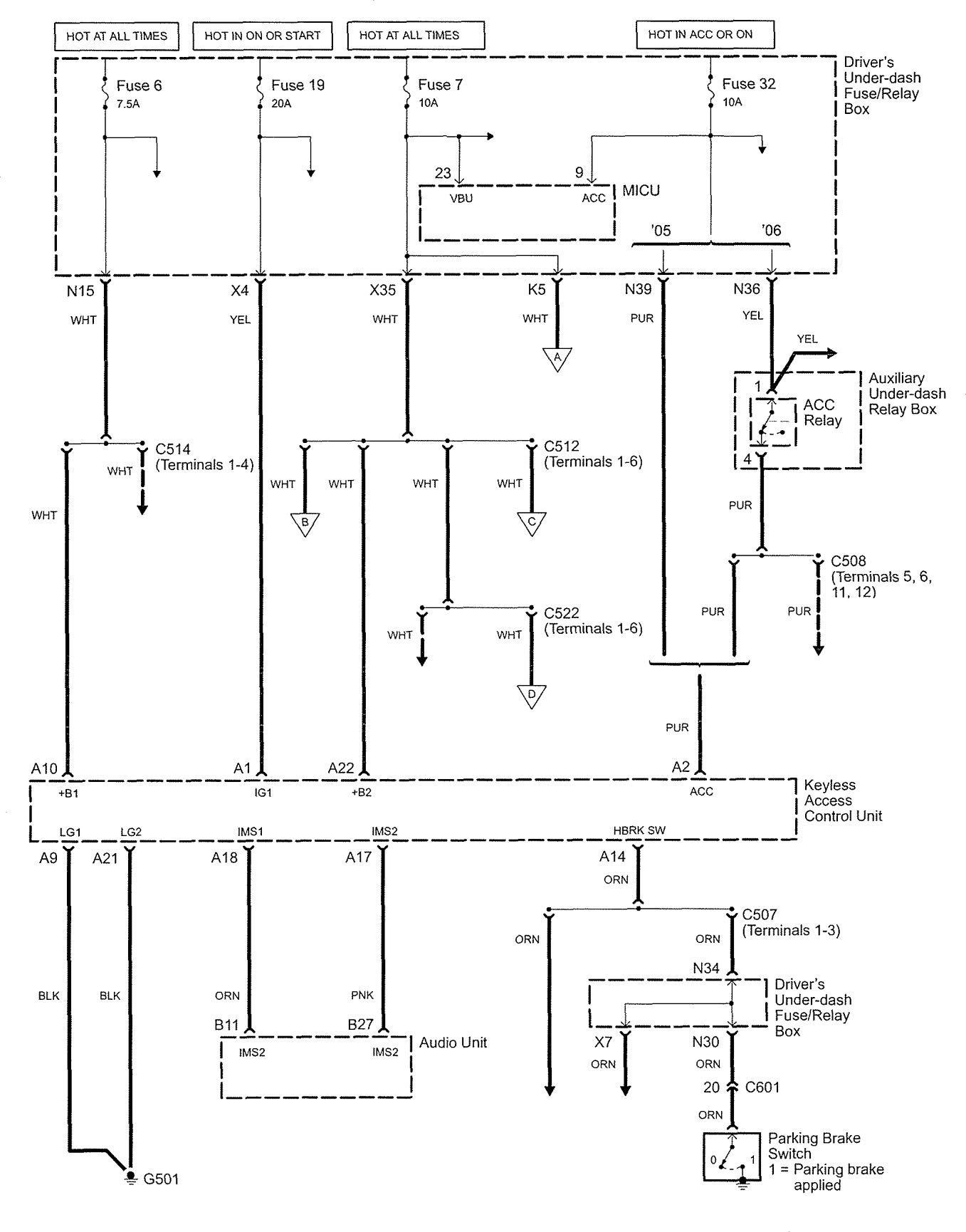

Acura RL - wiring diagram - intelligent key system (part 1)
Acura RL – wiring diagram – intelligent key system (part 1)

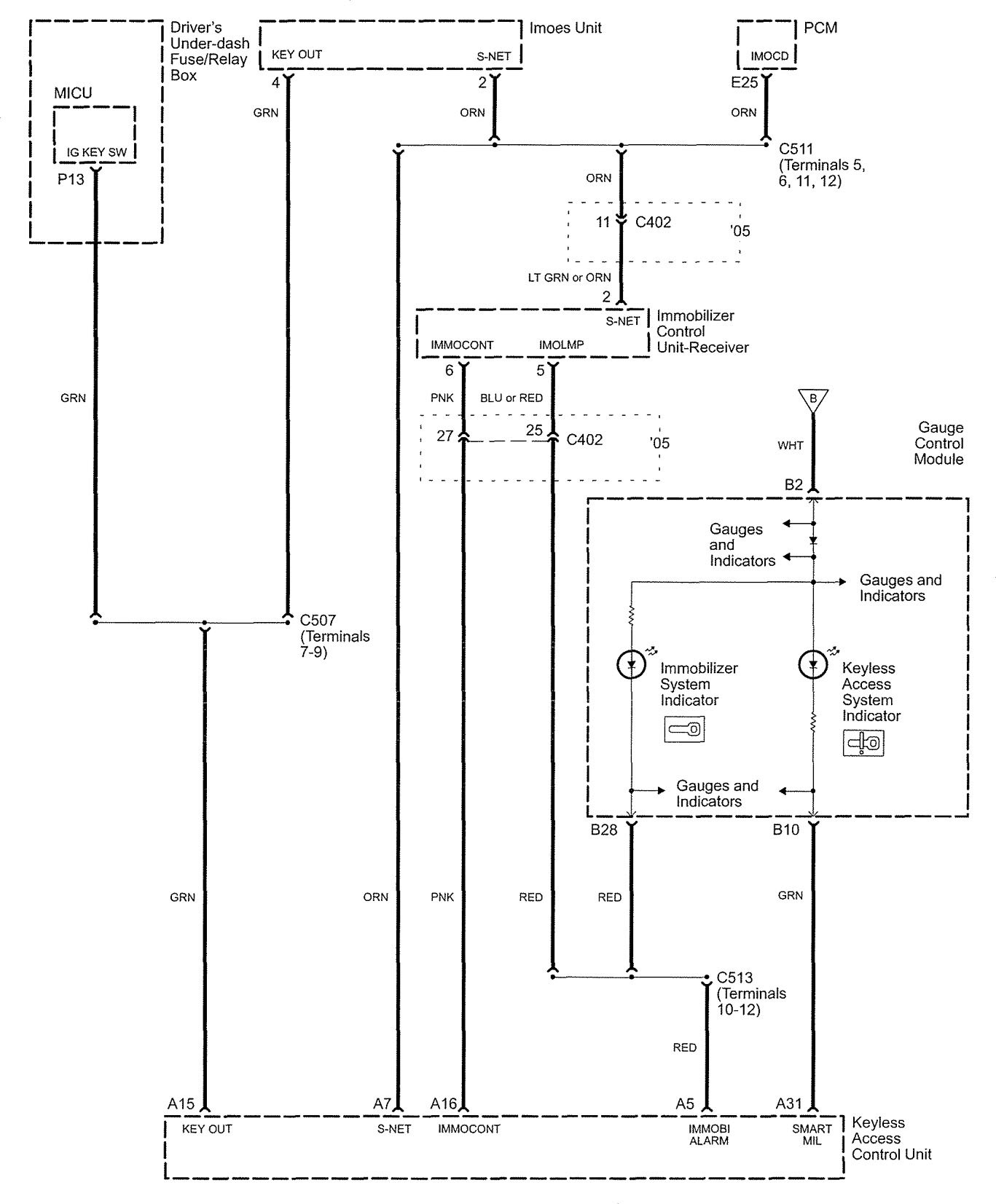

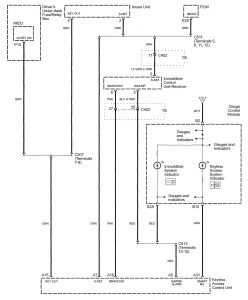

Acura RL - wiring diagram - intelligent key system (part 2)
Acura RL – wiring diagram – intelligent key system (part 2)

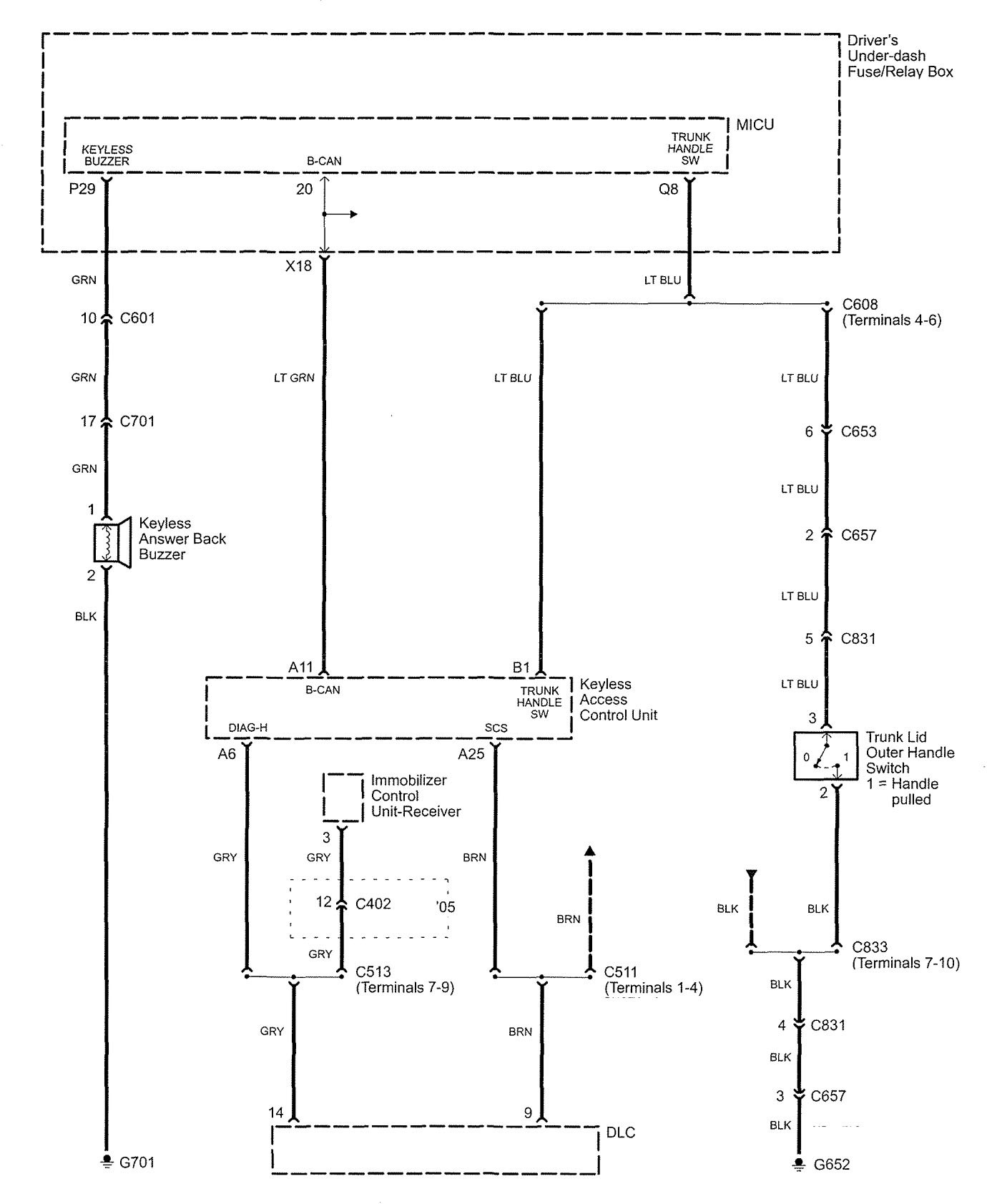

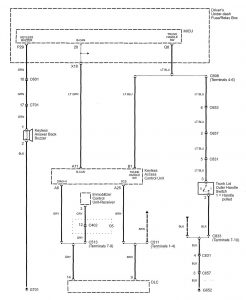

Acura RL - wiring diagram - intelligent key system (part 3)
Acura RL – wiring diagram – intelligent key system (part 3)

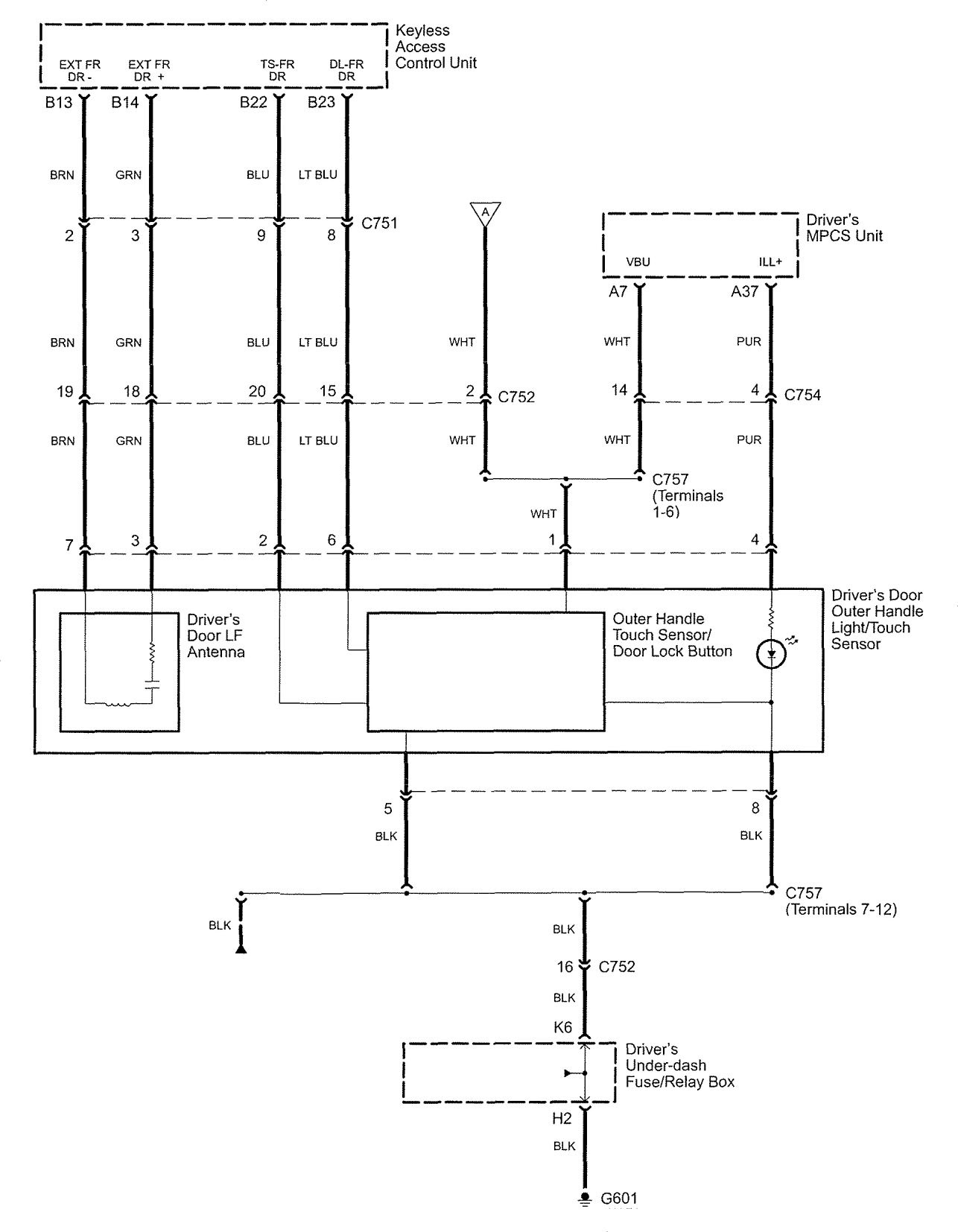

Acura RL - wiring diagram - intelligent key system (part 4)
Acura RL – wiring diagram – intelligent key system (part 4)

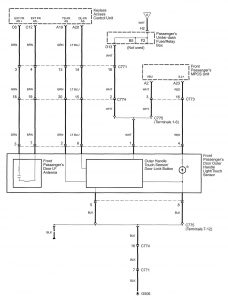

Acura RL - wiring diagram - intelligent key system (part 5)

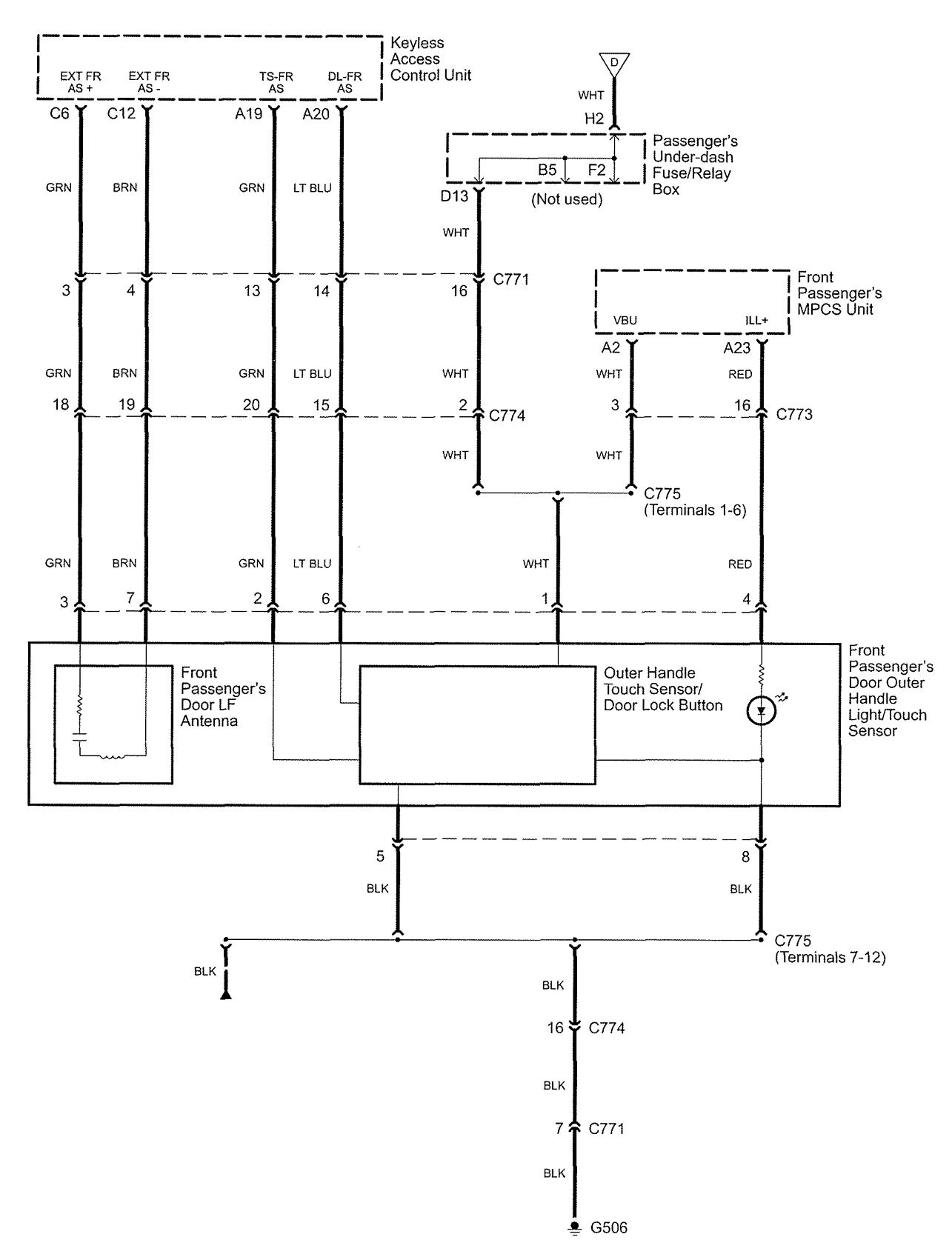

Acura RL – wiring diagram – intelligent key system (part 5)

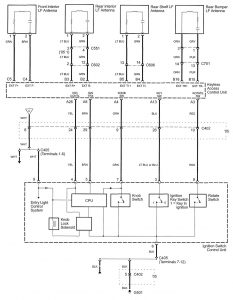

Acura RL - wiring diagram - intelligent key system (part 6)

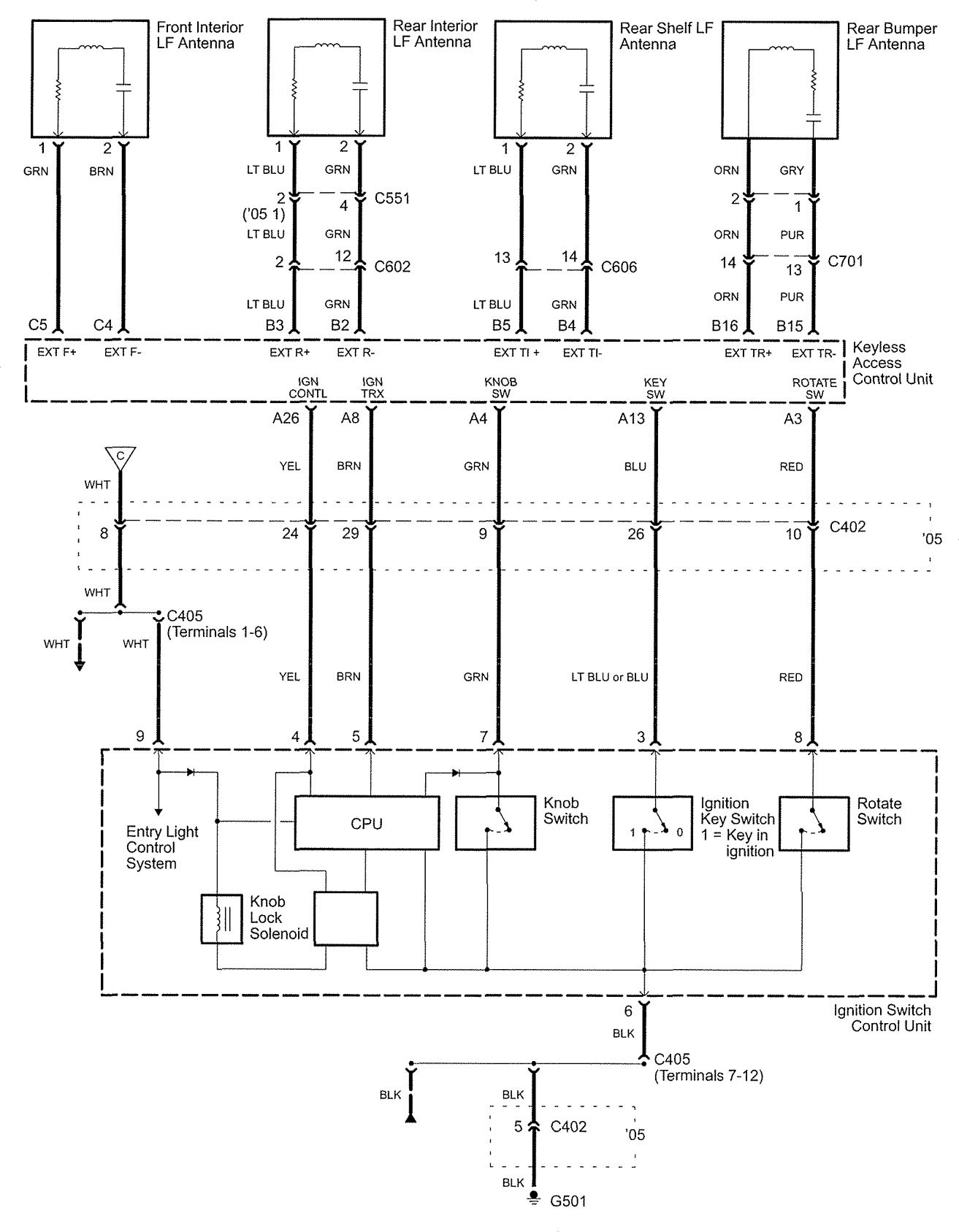

Acura RL – wiring diagram – intelligent key system (part 6)

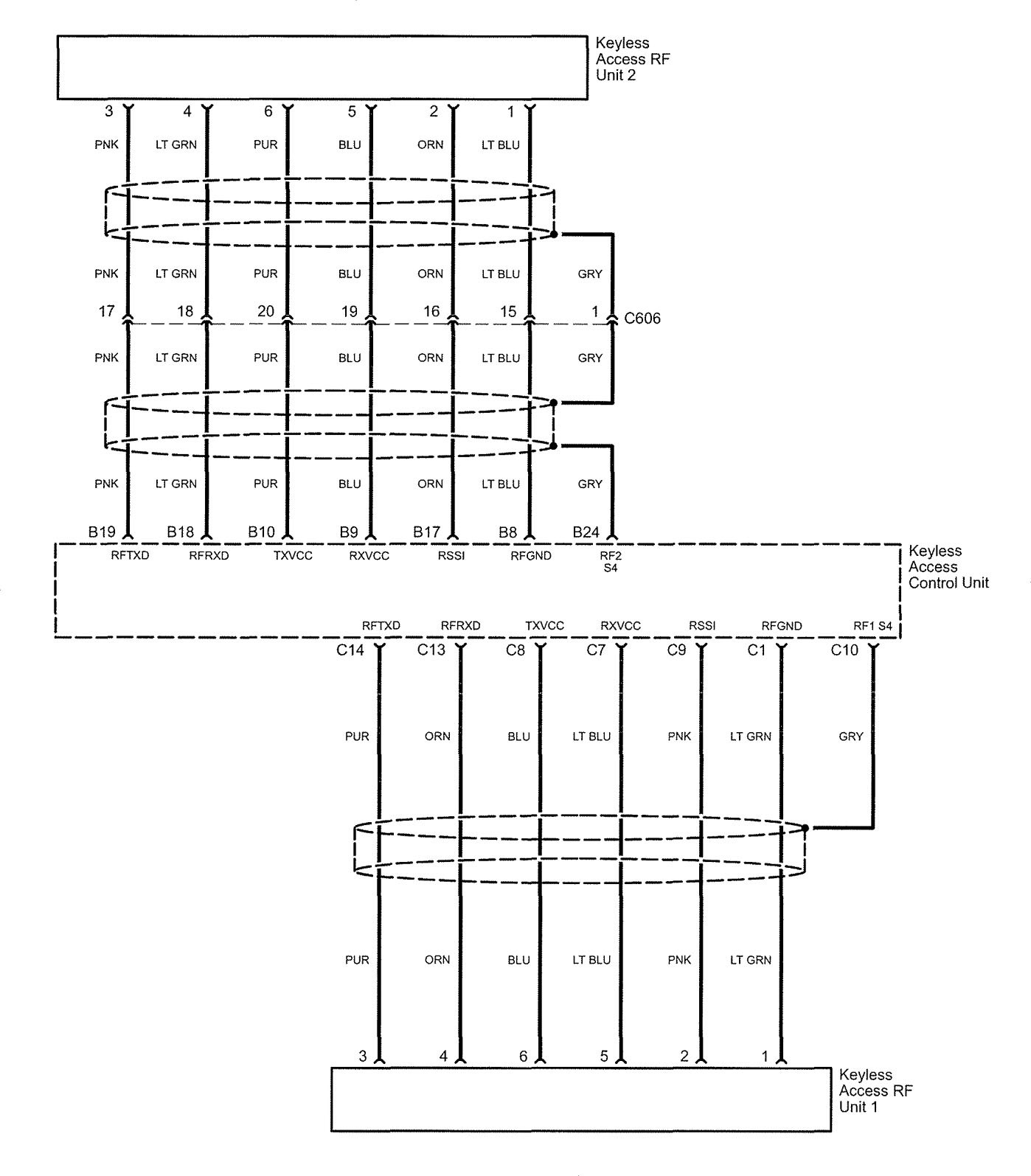

Acura RL - wiring diagram - intelligent key system (part 7)
Acura RL – wiring diagram – intelligent key system (part 7)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
