Acura RL (2003 – 2004) – wiring diagrams – seat belts

17 September 2017 admin Acura, RL 0

Acura RL (2003 – 2004) – wiring diagrams – seat belts

Year of production:  2003, 2004

Seat belts

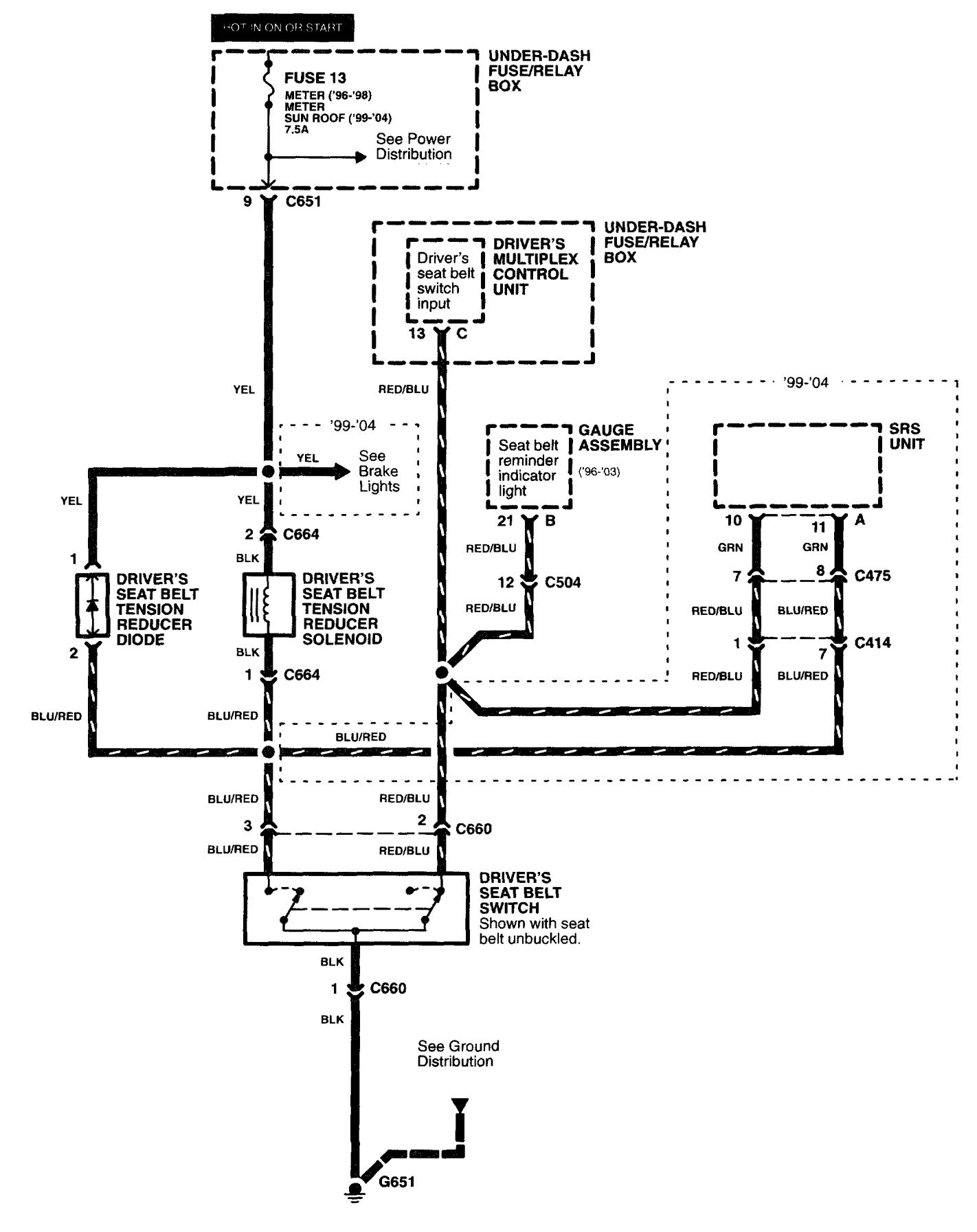

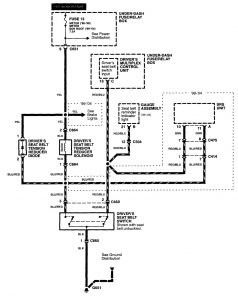

Acura RL - wiring diagram - seat belts (part 1)
Acura RL – wiring diagram – seat belts (part 1)

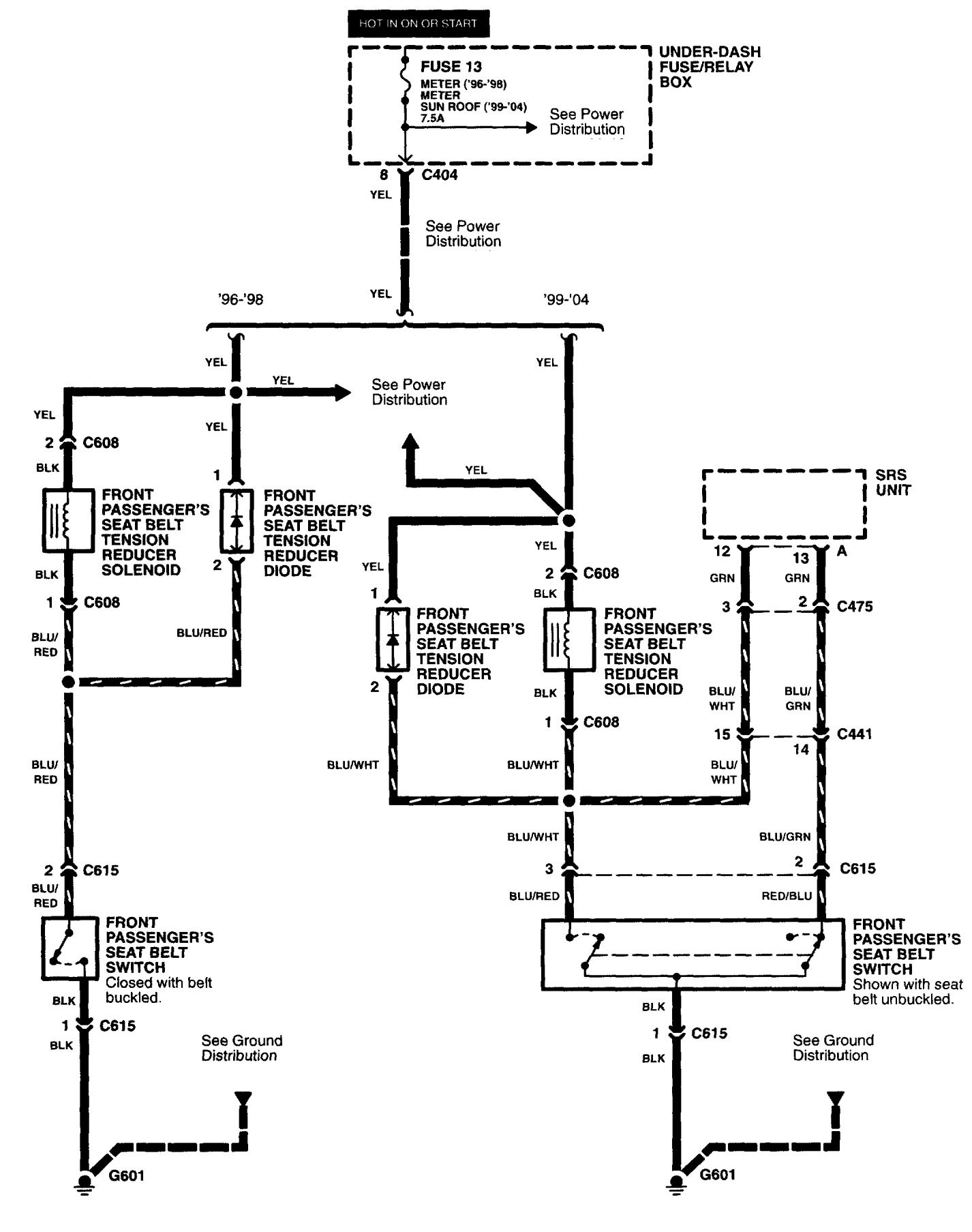

Acura RL - wiring diagram - seat belts (part 2)
Acura RL – wiring diagram – seat belts (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
