Acura RL (2003 – 2004) – wiring diagrams – heated seats

Acura RL (2003 – 2004) – wiring diagrams – heated seats

Year of productions:  2003, 2004

Heated seats

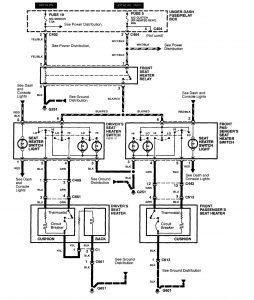

Acura RL - wiring diagram - heated seats

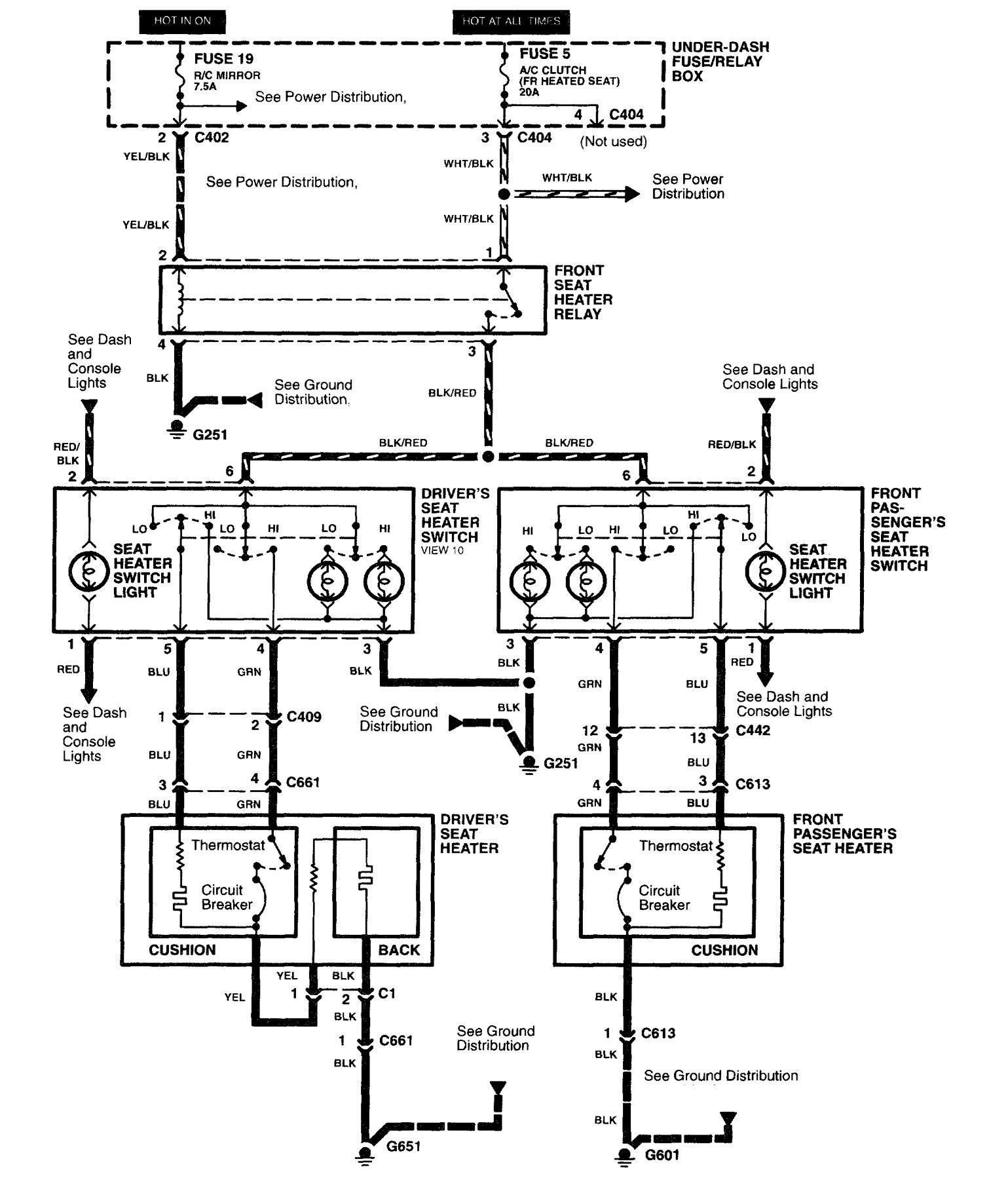

Acura RL – wiring diagram – heated seats

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
