Acura RL (2003 – 2004) – wiring diagrams – fog lamps

Year of production:  2003, 2004

Fog lamps

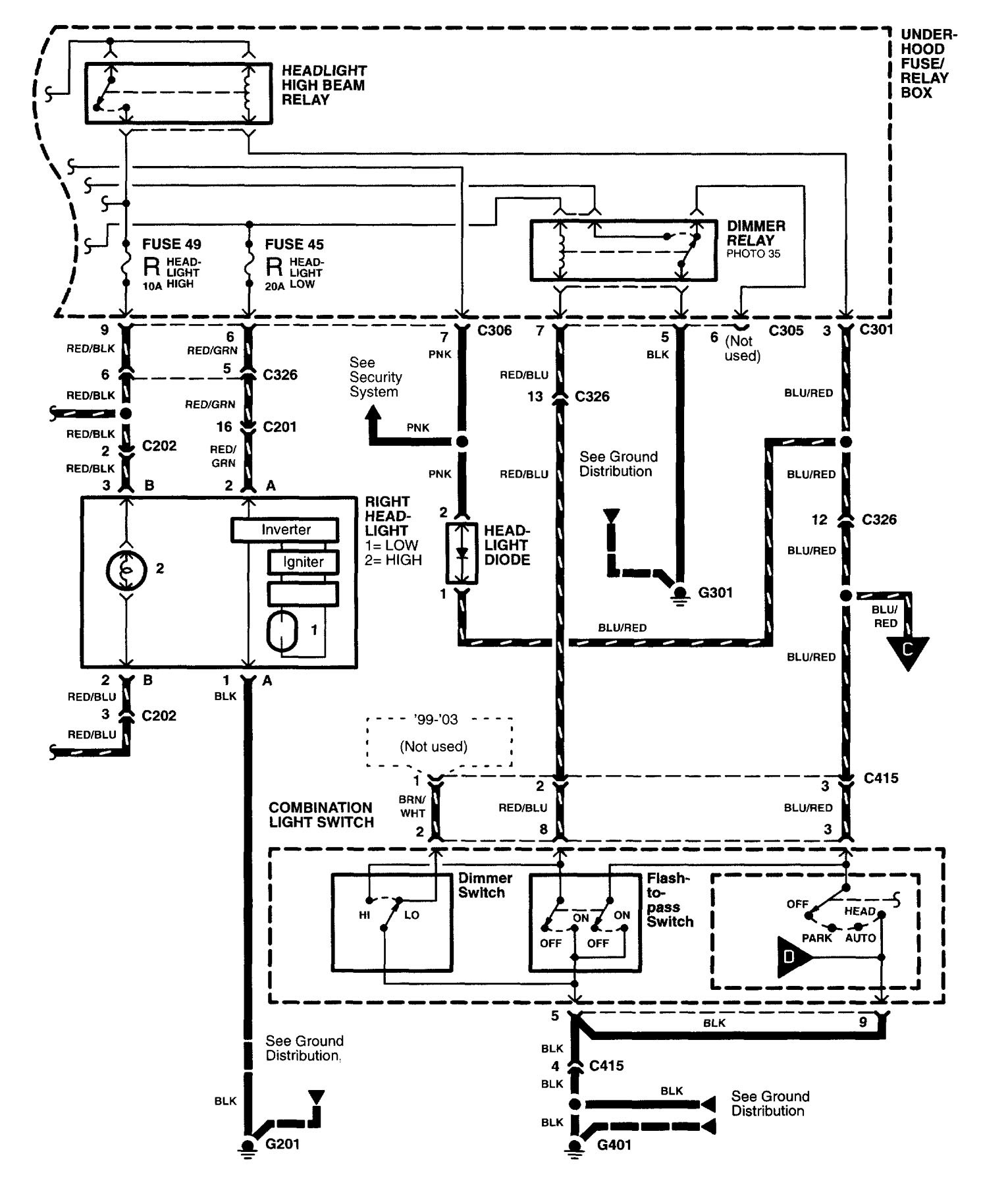

Acura RL - wiring diagram - fog lamps (part 1)
Acura RL – wiring diagram – fog lamps (part 1)

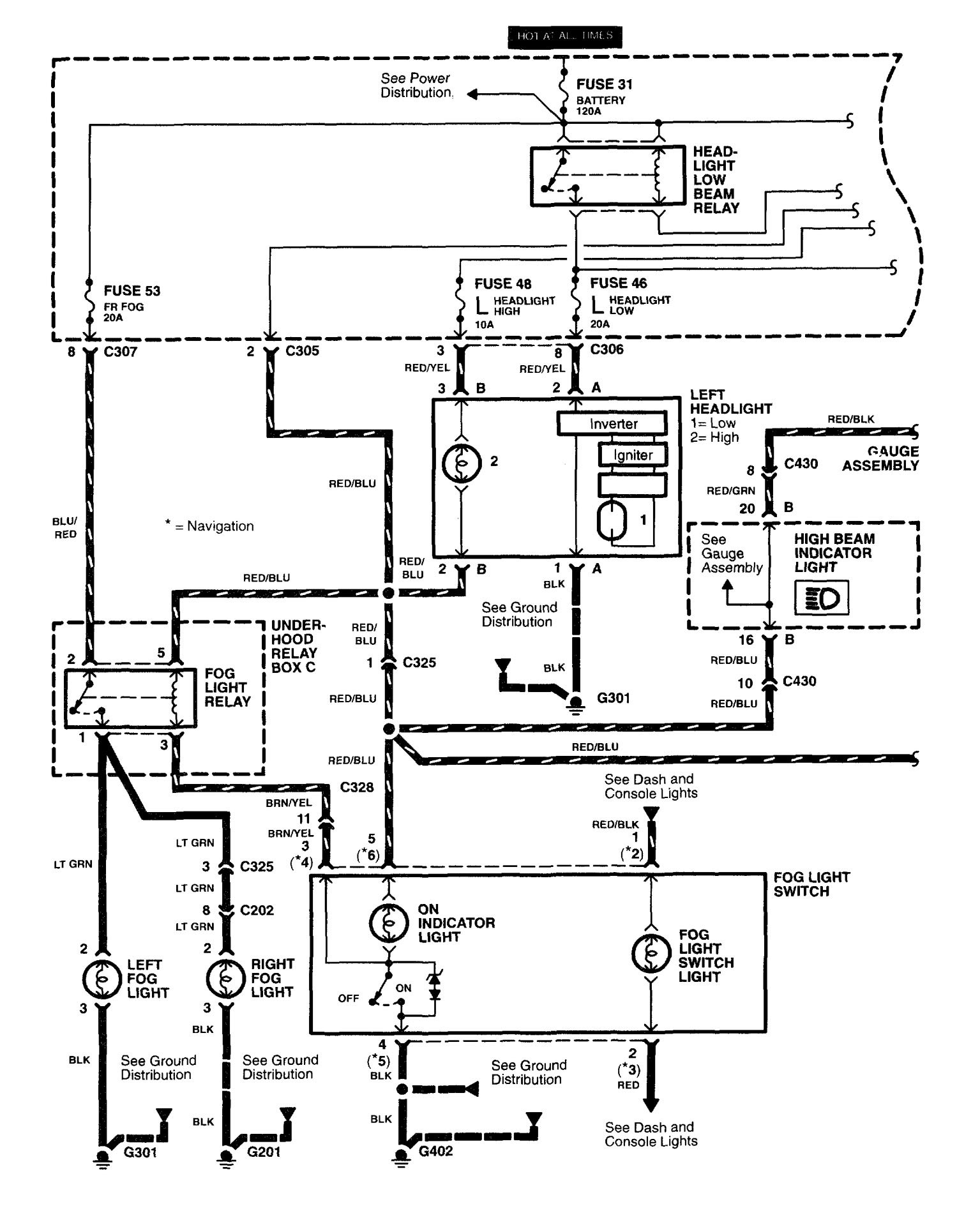

Acura RL - wiring diagram - fog lamps (part 2)
Acura RL – wiring diagram – fog lamps (part 2)

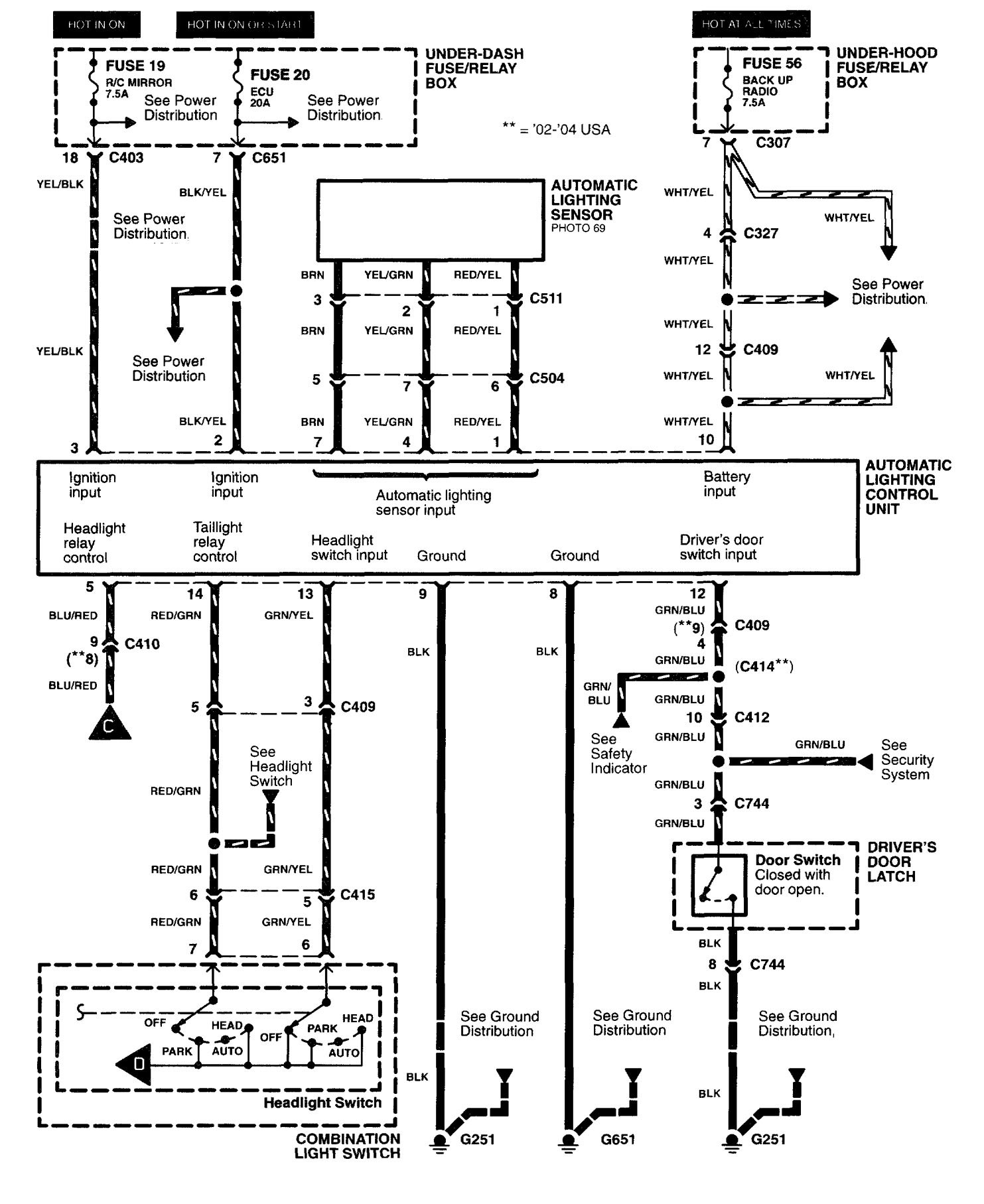

Acura RL - wiring diagram - fog lamps (part 3)
Acura RL – wiring diagram – fog lamps (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
