Acura RL (1996 – 1997) – wiring diagrams – audio

Acura RL (1996 – 1997) – wiring diagrams – audio

Year of productions:  1996, 1997

Audio

Version 1

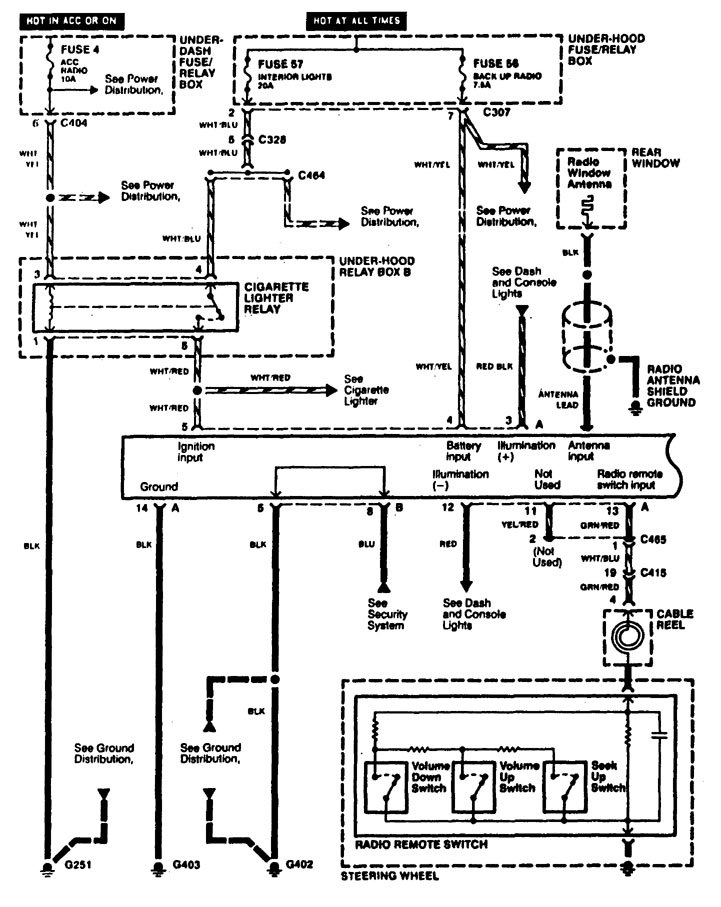

Acura RL - wiring diagram - audio (part 1)
Acura RL – wiring diagram – audio (part 1)

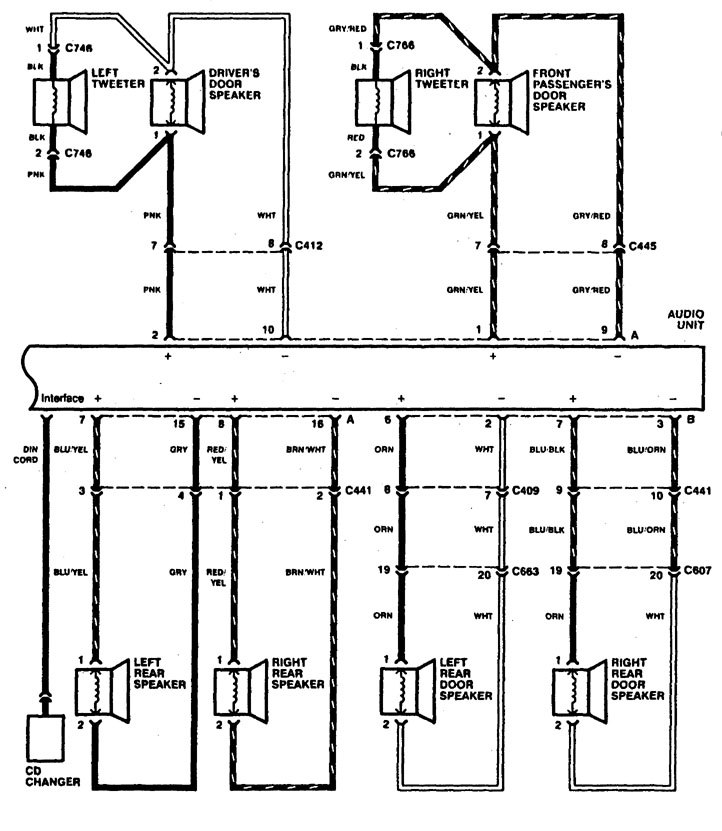

Acura RL - wiring diagram - audio (part 2)
Acura RL – wiring diagram – audio (part 2)

Version 2

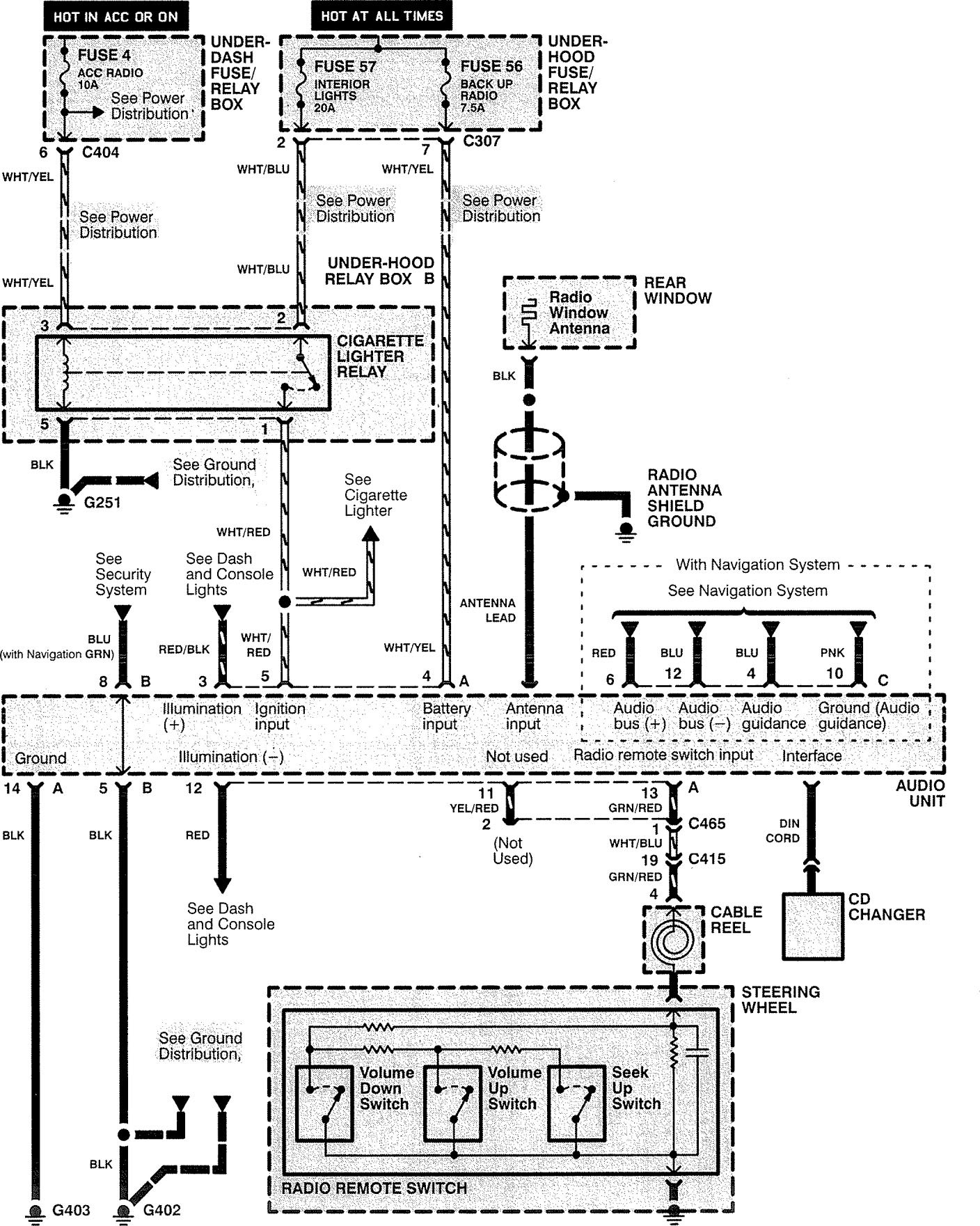

Acura RL - wiring diagram - audio (part 1)
Acura RL – wiring diagram – audio (part 1)

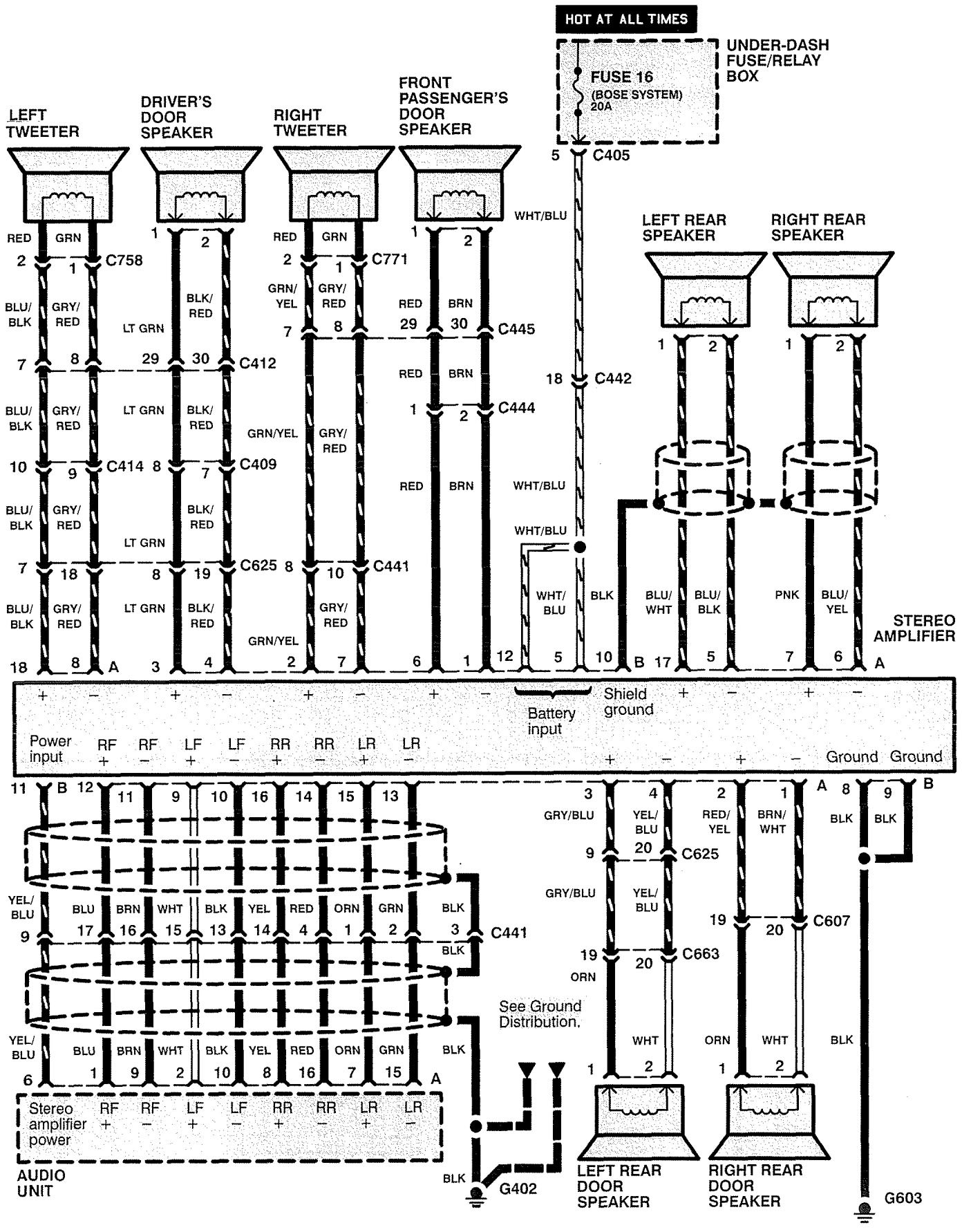

Acura RL - wiring diagram - audio (part 2)
Acura RL – wiring diagram – audio (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
