Acura Legend (1994) – wiring diagrams – instrumentation

Acura Legend (1994) – wiring diagrams – instrumentation

Year of productions:  1994

Instrumentation

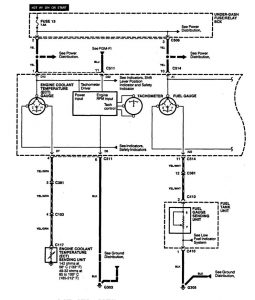

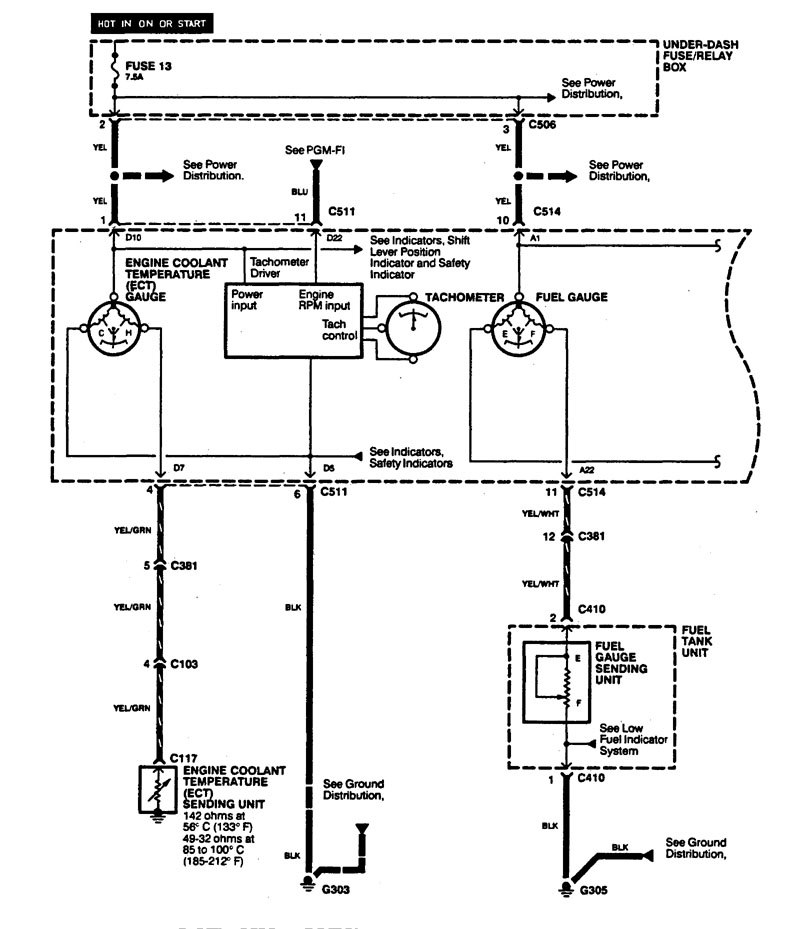

Acura Legend – wiring diagram – instrumentation (part 1)

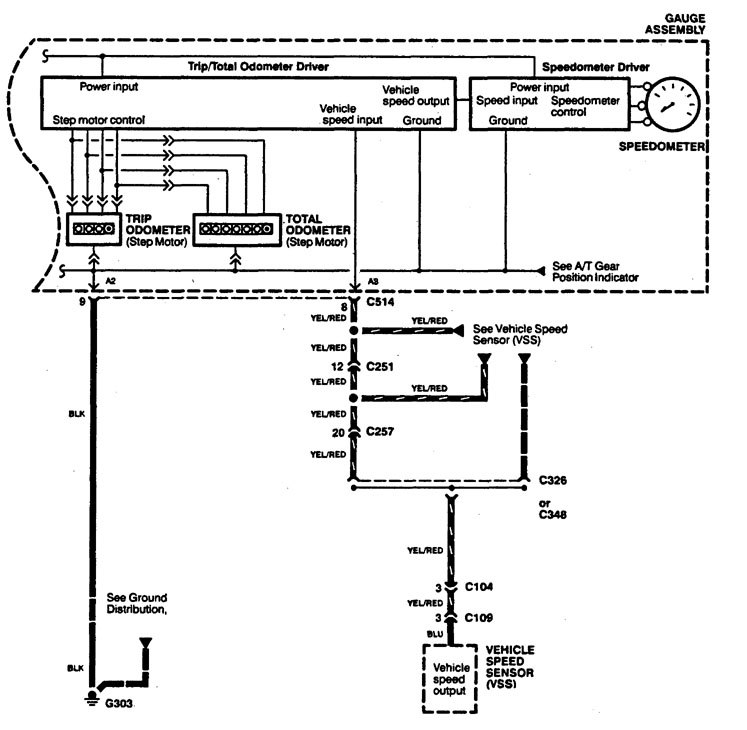

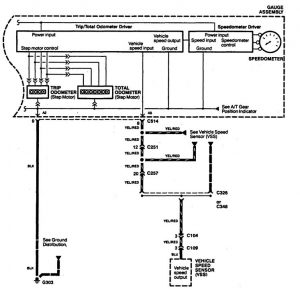

Acura Legend – wiring diagram – instrumentation (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
