Acura Legend (1994 – 1995) – wiring diagram – turn signal lamp
Year of productions: 1994, 1995
Turn signal lamp

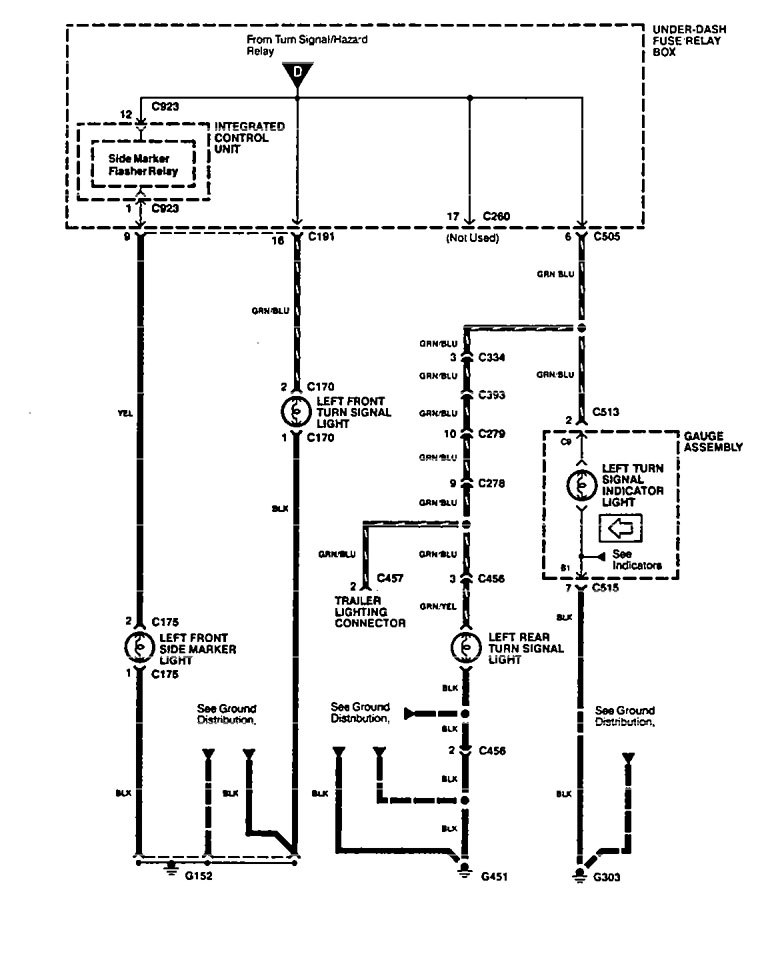

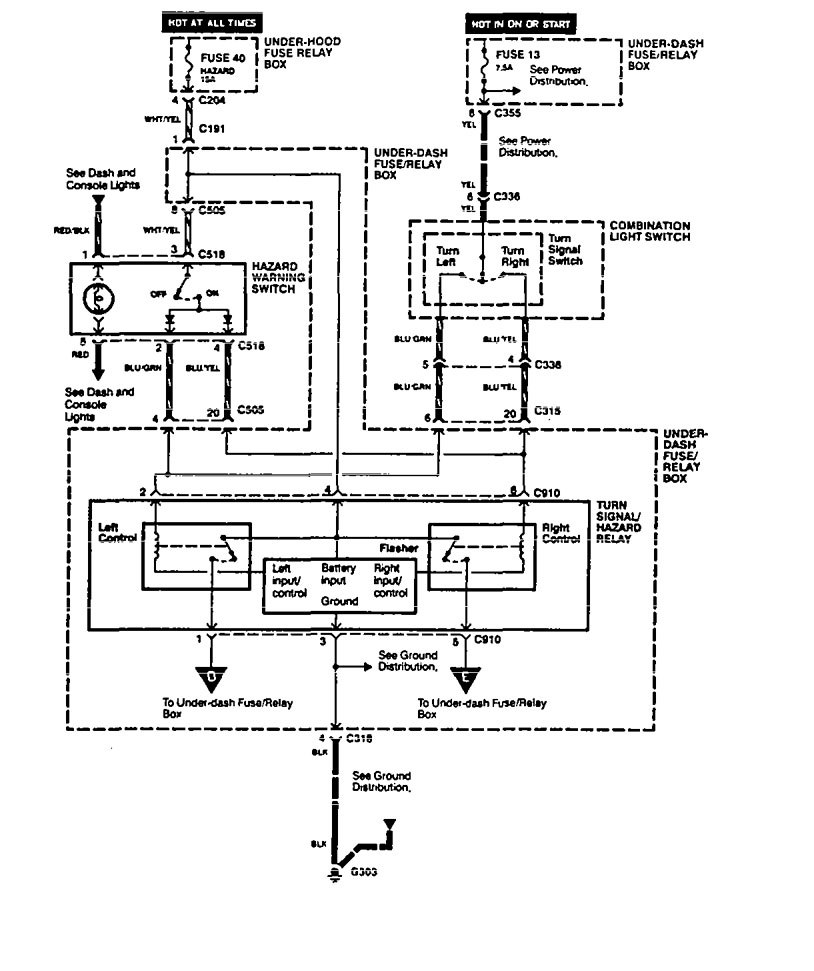

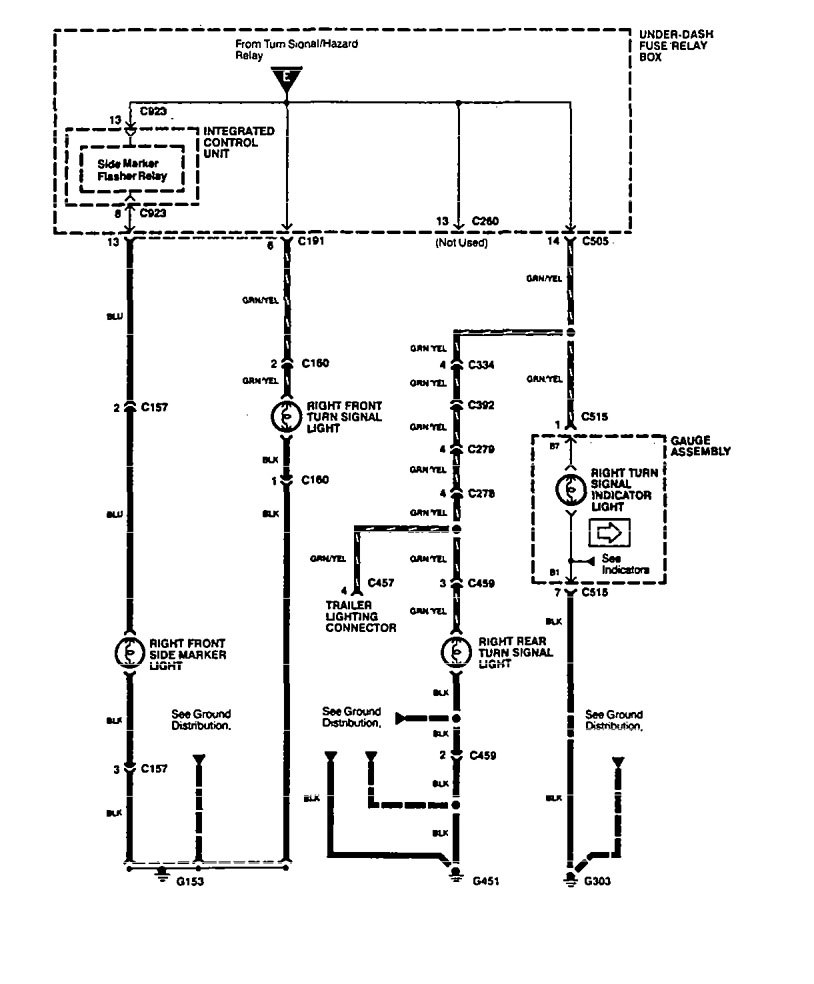

Version 1

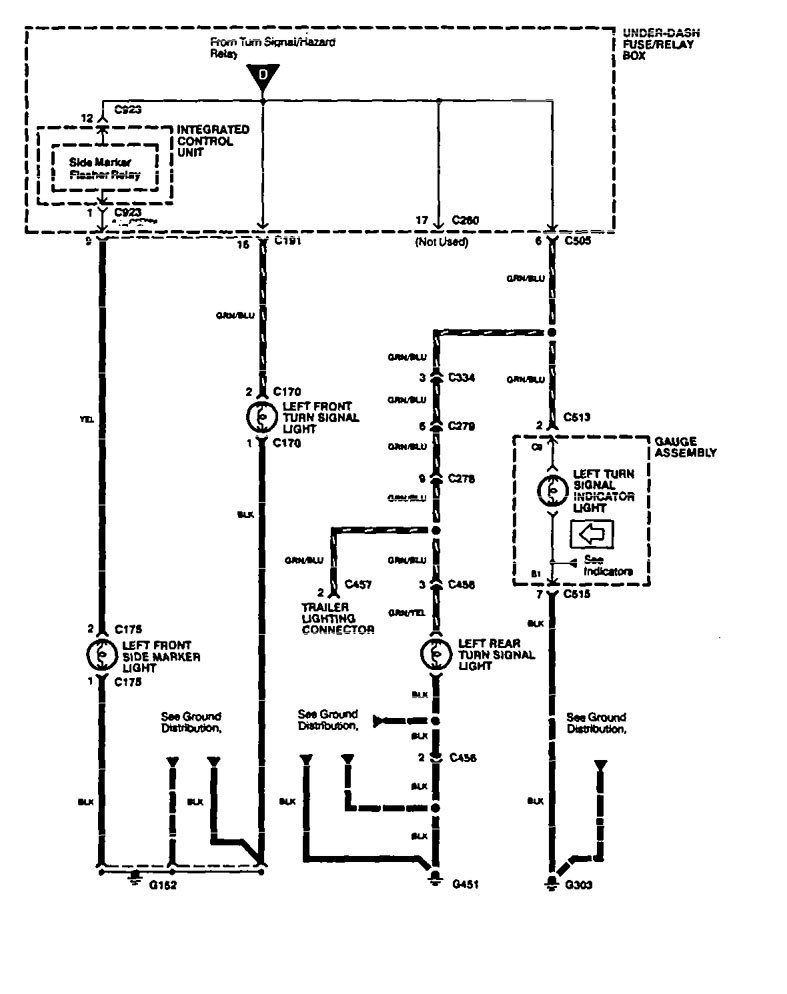

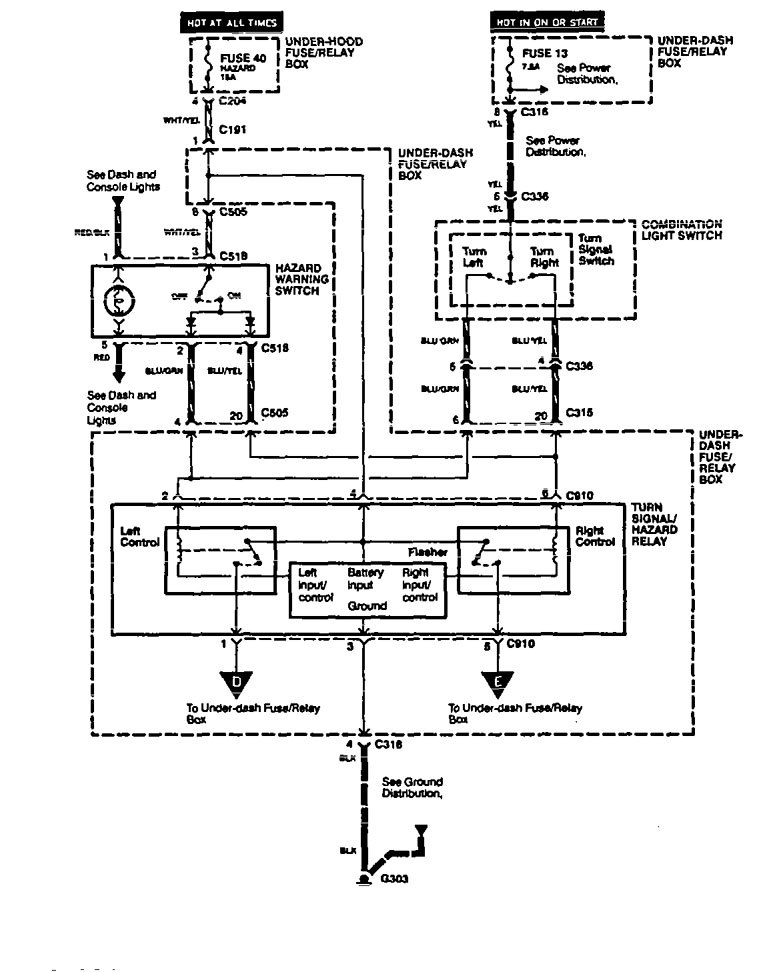

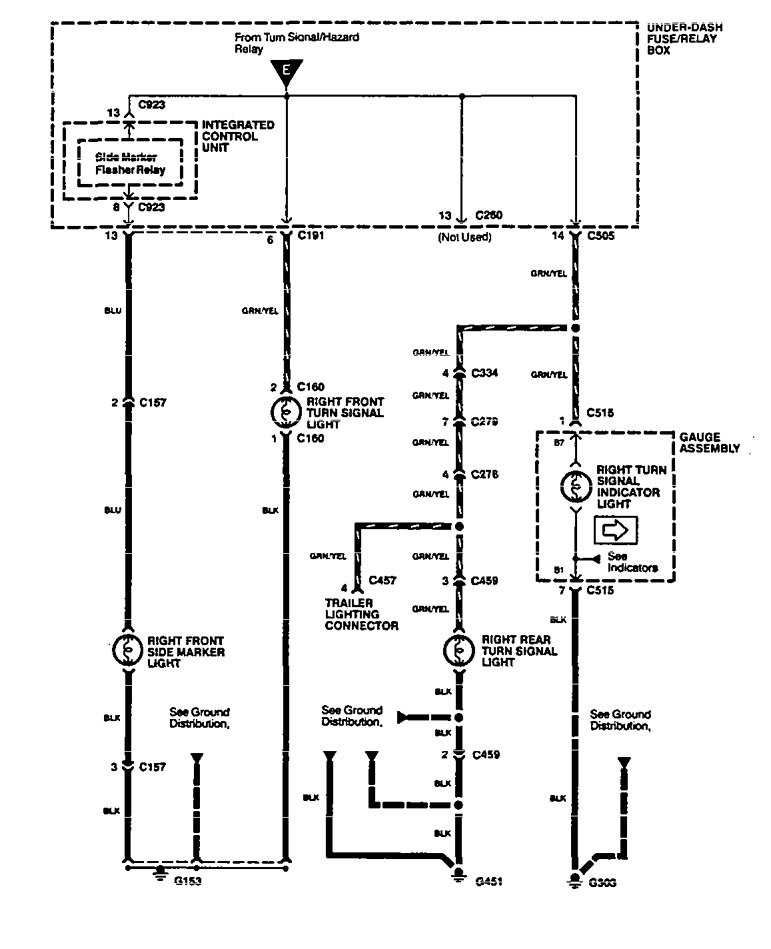

Version 2
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
