Acura Legend (1994 – 1995) – wiring diagram – parking lamp
Year of productions: 1994, 1995
Parking lamp

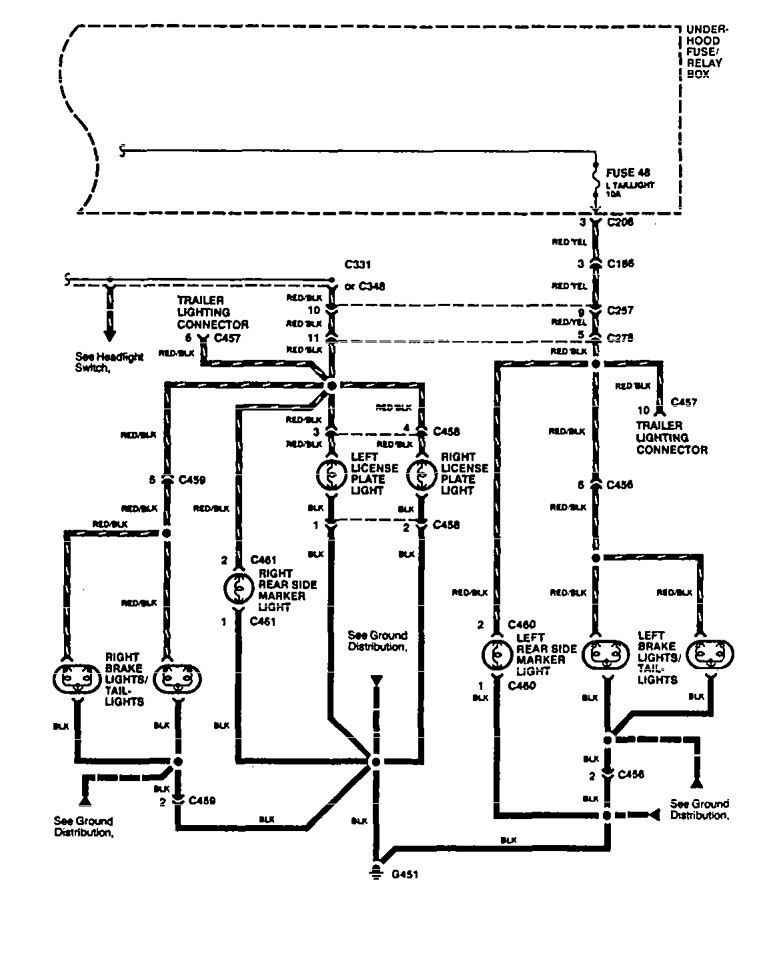

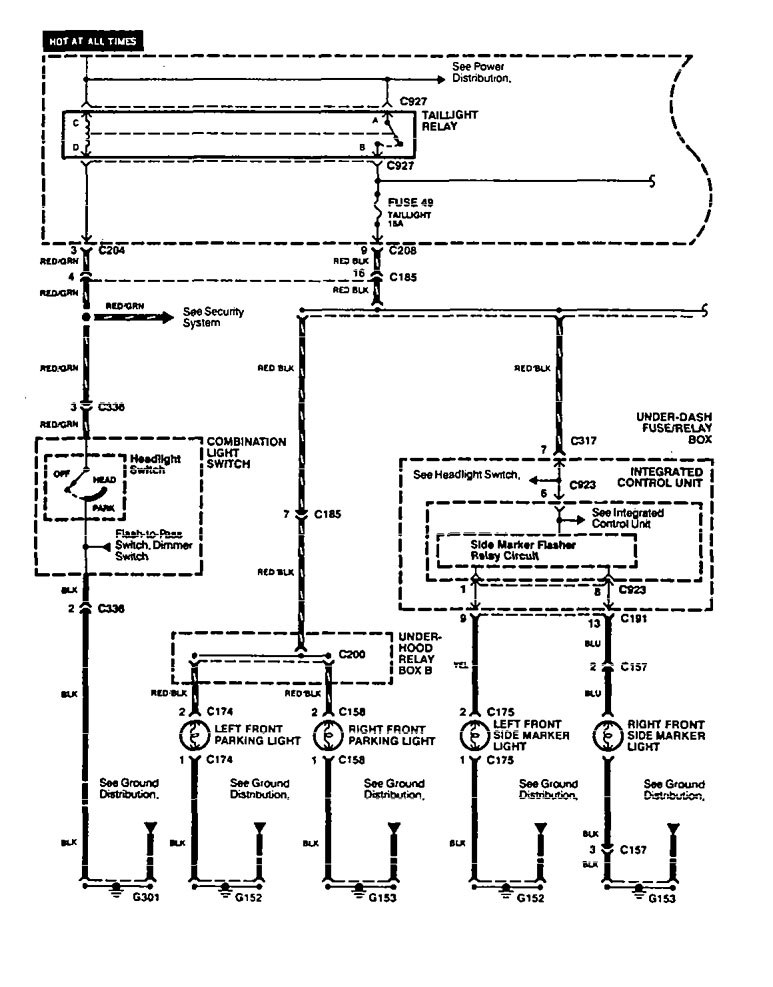

Version 1

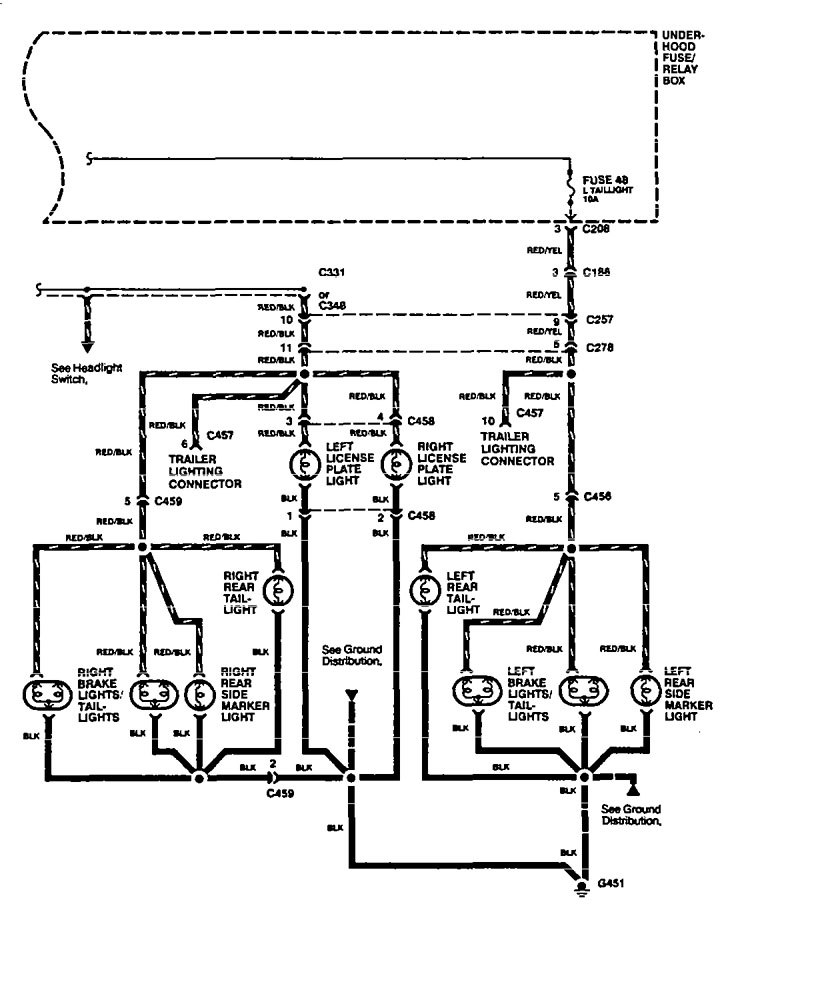

Version 2
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
