Acura Legend (1994 – 1995) – wiring diagram – headlamps

Acura Legend (1994 – 1995) – wiring diagram – headlamps

Year of productions:  1994, 1995

Headlamps

Version 1

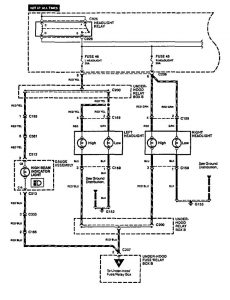

Acura Legend – wiring diagram – headlamps (part 1)

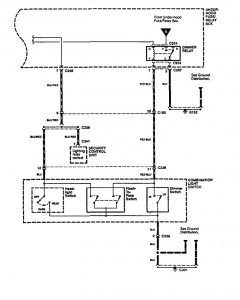

Acura Legend – wiring diagram – headlamps (part 2)

Version 2

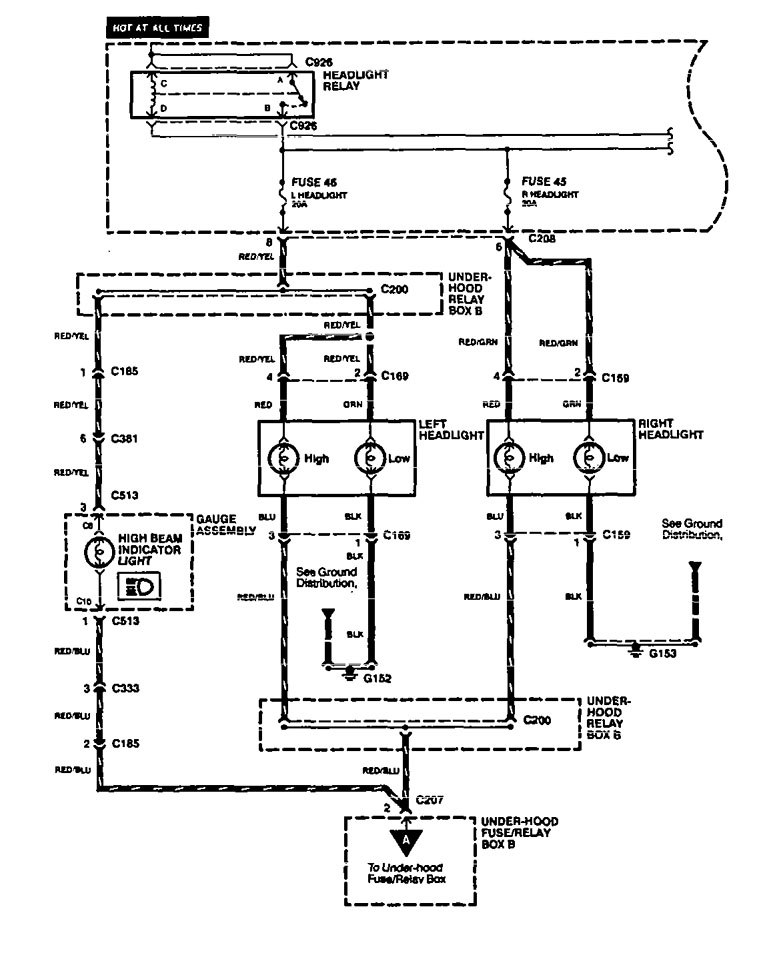

Acura Legend – wiring diagram – headlamps (part 1)

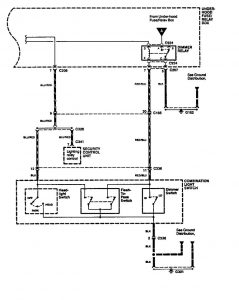

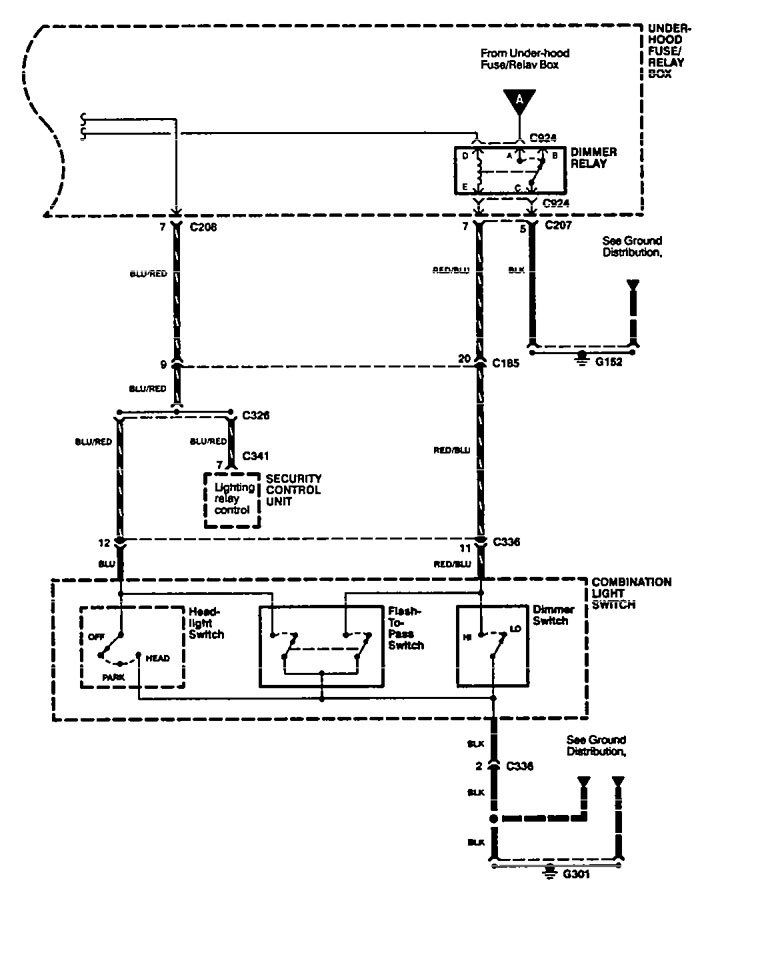

Acura Legend – wiring diagram – headlamps (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
