Acura Legend (1991 – 1992) – wiring diagram – glove compartment lamp

Acura Legend (1991 – 1992) – wiring diagram – glove compartment lamp

Year of productions:  1991, 1992

Glove compartment lamp

Version 1

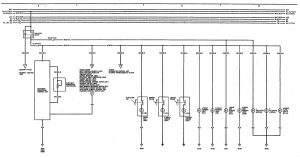

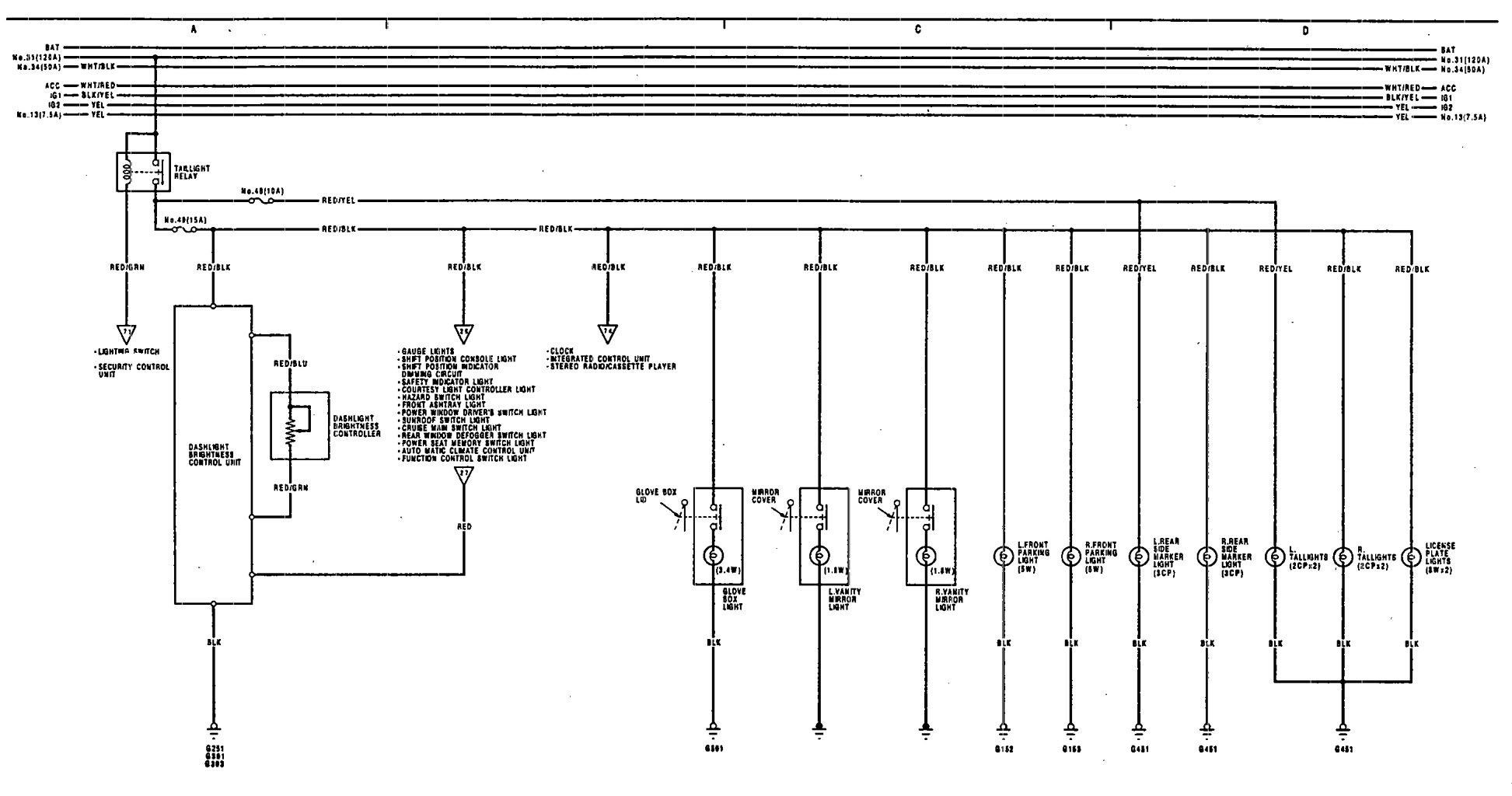

Acura Legend – wiring diagram – glove compartment lamp

Version 2

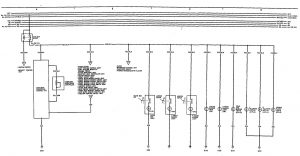

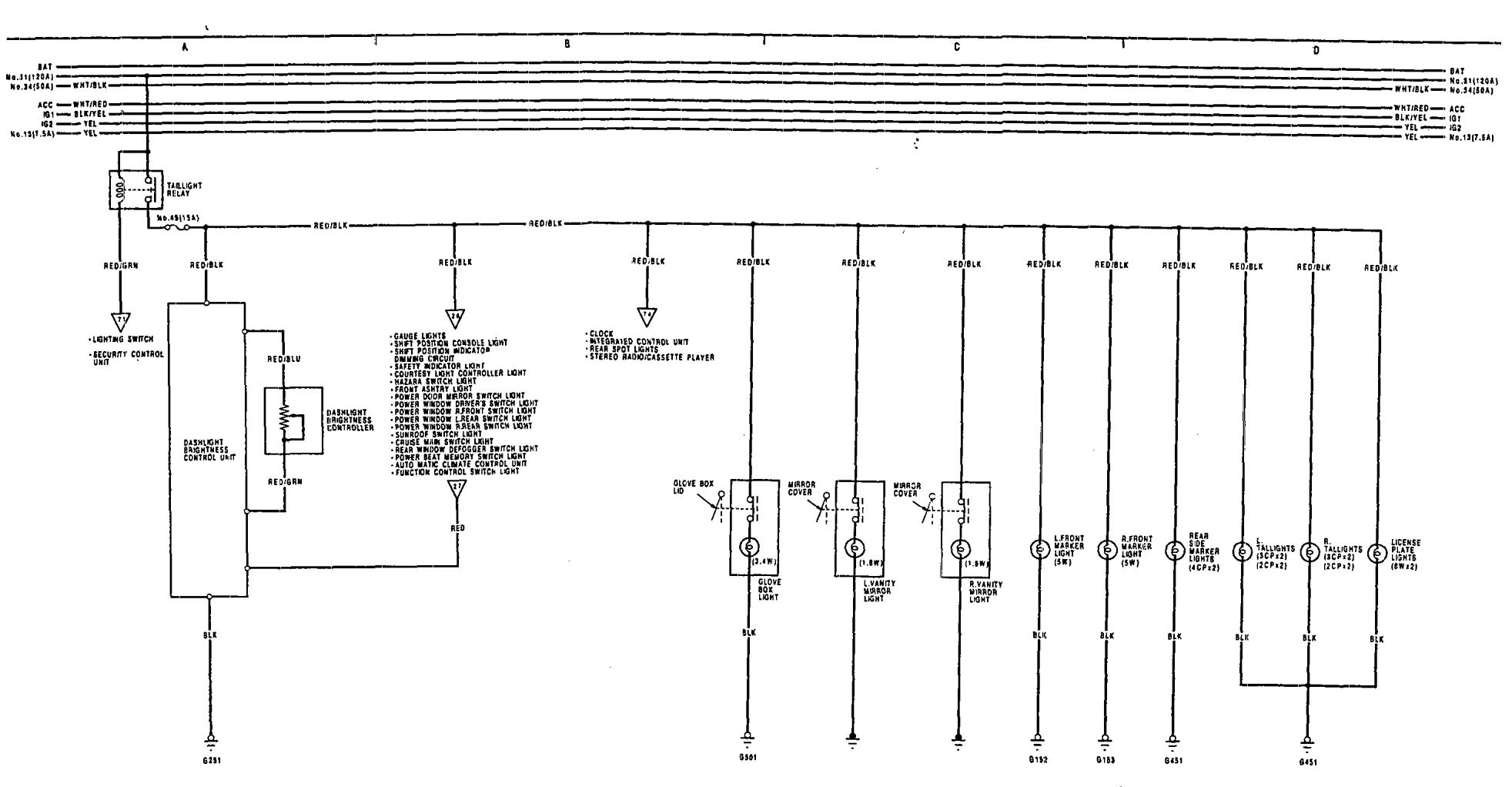

Acura Legend – wiring diagram – glove compartment lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
