Acura CL (1998 – 1999) – wiring diagrams – headlamp switch

Acura CL (1998 – 1999) – wiring diagrams – headlamp switch

Year of productions:  1998, 1999

Headlamp switch

Version 1

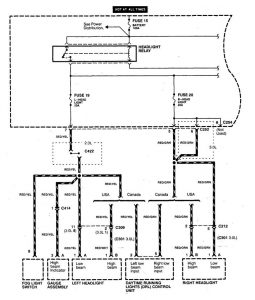

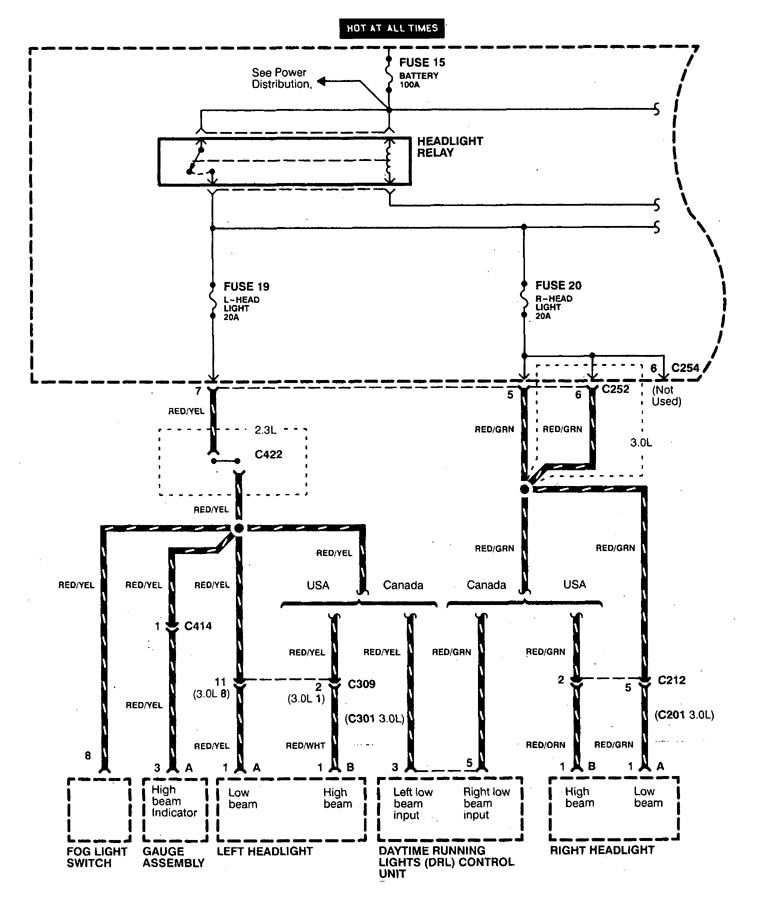

Acura CL - wiring diagram - headlamp switch (part 1)
Acura CL – wiring diagram – headlamp switch (part 1)

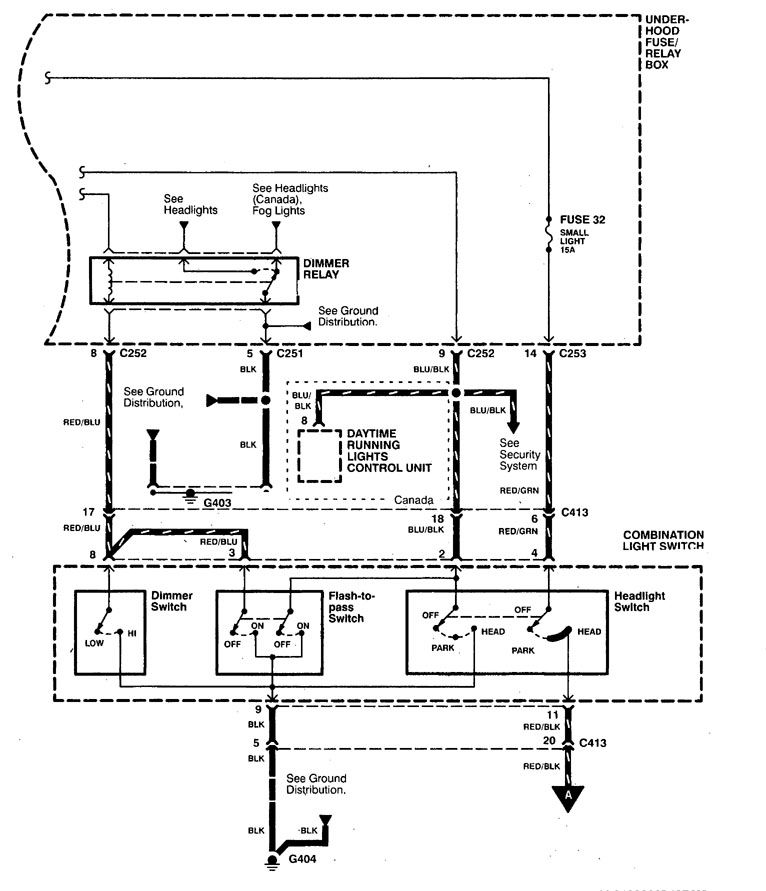

Acura CL - wiring diagram - headlamp switch (part 2)
Acura CL – wiring diagram – headlamp switch (part 2)

Version 2

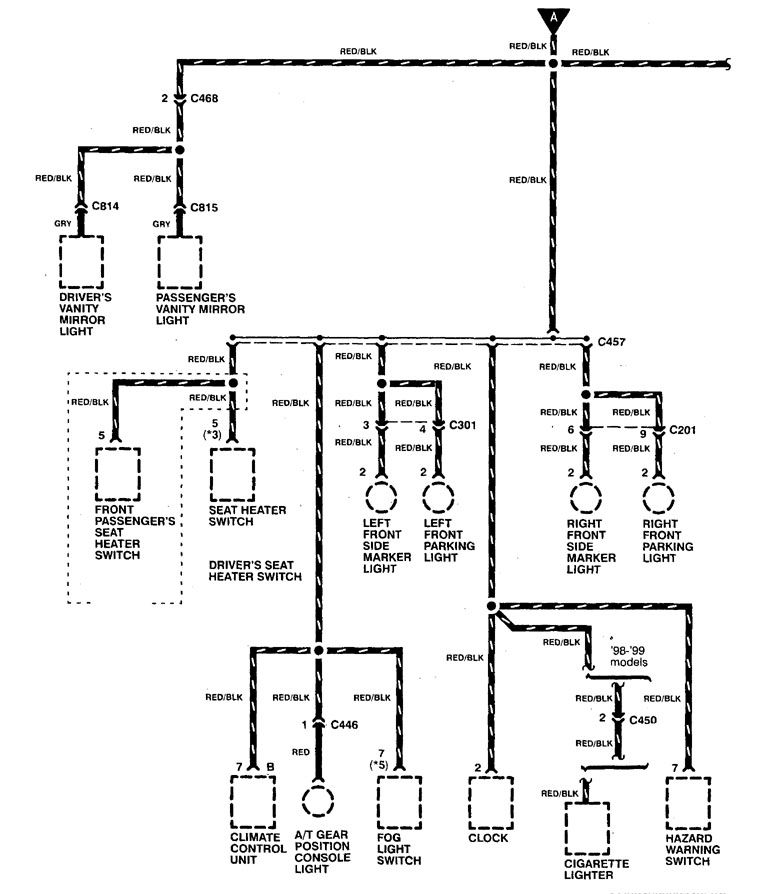

Acura CL - wiring diagram - headlamp switch (part 1)
Acura CL – wiring diagram – headlamp switch (part 1)

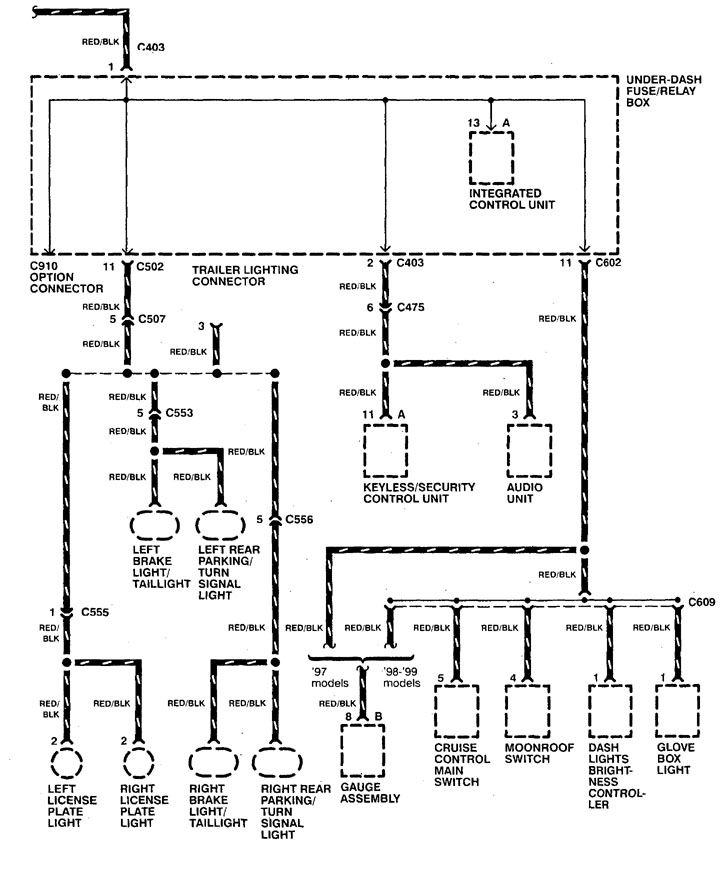

Acura CL - wiring diagram - headlamp switch (part 2)
Acura CL – wiring diagram – headlamp switch (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
